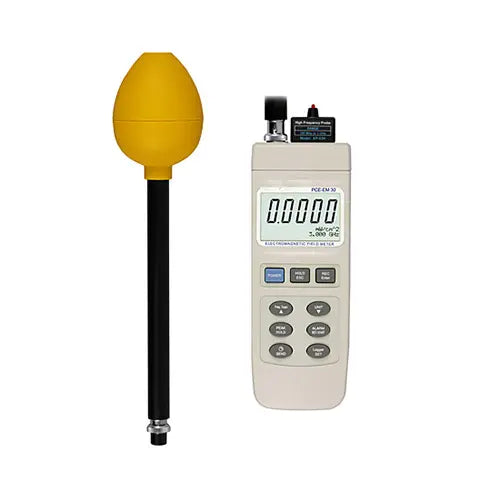

PCE-EM 30 - Triple-Axis EMF Detector for Precision Radiation Measurement

SKU: SKU: PCE-EM 30 Download PDF

Select a Variant:

PCE-EM 30 - Triple-Axis EMF Detector for Precision Radiation Measurement

SET THE QTY:

Now $2,178.00 Web pricing policy

~~BEFORE $0.00~~ Now $2,178.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-EM 30 Electromagnetic Radioactivity Meter, a state-of-the-art portable device designed to detect electromagnetic radiation emitted by various electronic devices and electrical systems This advanced 3-axis EMF meter offers enhanced accuracy compared to traditional single-axis models, allowing users to monitor electromagnetic fields from multiple sources simultaneously The package includes a USB data cable and the necessary VT-204-SW software for easy data transfer to your PC.

For more information, please check the accessories tab.

Features and Benefits:

•EMF measuring ranges: 0 to 199.99 V/m, 0 to 99.999 W/m², 0 to 9.9999 mW/cm².

•EMF bandwidth: 100 kHz to 3 GHz.

•Measures EMF of 5G cellular Low-band and Mid-band.

•Comes with two external sensor probes (for low and high frequency ranges).

•Features a large, easy-to-read LCD screen.

•Adjustable alarm value.

•Includes USB data cable and software VT-204-SW for data transfer to PC.

Specifications:

Bandwidth / Frequency range of the probe EP-03H	100 MHz ... 3 GHz
Range selection for the probe EP-03H	900 MHz, 1 GHz, 1.8 GHz, 2.4 GHz, 2.45 GHz, 3 GHz
Bandwidth / Frequency range of the probe EP-04L	100 kHz ... 100 MHz
Range selection for the probe EP-04L	100 kHz, 200 kHz, 500 kHz, 1 MHz, 10 MHz, 13.56 MHz, 100 MHz
Accuracy	±2 dB
Measuring ranges	0 ... 199.99 V/m, 0 ... 99.999 W/m², 0 ... 9.9999 mW/cm²
Resolution	0.01 V/m, 0.001 W/m², 0.0001 mW/cm²
Inital value	> 1 V/m, > 0.03 W/m², > 0.0003 mW/cm²
External sensor probe types	Triple axis
Display	LCD, 58 x 34 mm / 2.28 x 1.34"
Limit value	Adjustable
Alarm	Acoustic signal when limit value is exceeded
Internal memory	16,000 data records
Power	9 V battery
Operating conditions	0 ... 50 ºC / +32 ... +122 ºF, up to 80 % relative humidity (RH)
Dimensions	Meter: 200 x 76.2 x 36.8 mm / 7.88 x 3.00 x 1.45", Probes: 70 x 240 mm / 2.76 x 9.45"
