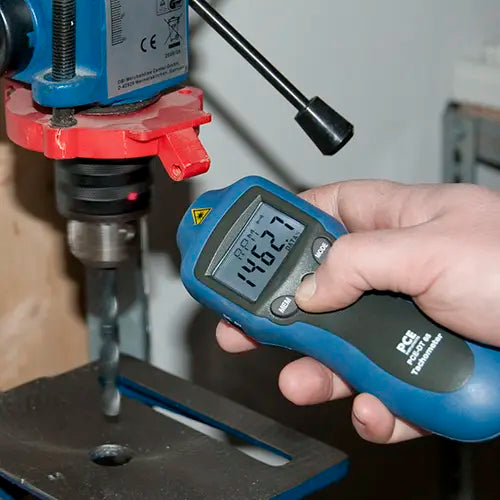

PCE-DT 65 - Digital Handheld Tachometer with Laser and Probes

PCE-DT 65 - Digital Handheld Tachometer with Laser and Probes

SKU: SKU: PCE-DT 65   Download PDF

Select a Variant:
  • PCE-DT 65 - Digital Handheld Tachometer with Laser and Probes
Qty:
Regular price Now $129.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $129.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

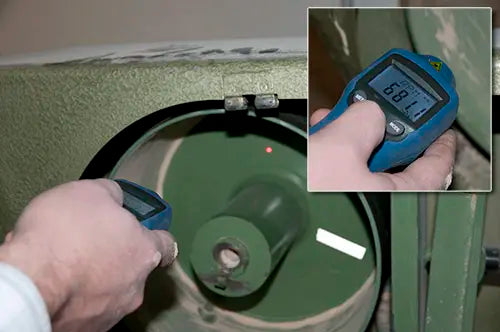

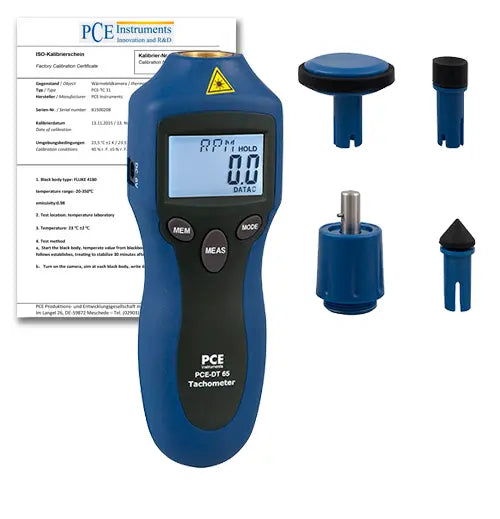

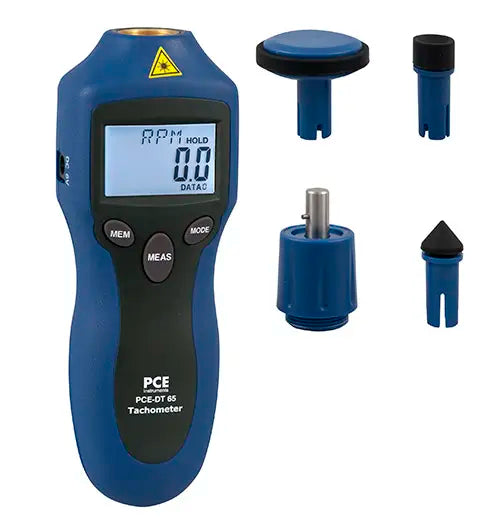

Introducing the PCE-DT 65, a versatile digital handheld tachometer that offers the ability to measure both rotation speed and linear speed through contact and non-contact methods This compact device is equipped with a built-in laser and comes with a mechanical attachment featuring contact probes, making it perfect for assessing machines, motors, conveyor systems, and other dynamic components For non-contact measurements, simply use the included laser-reflective tape, which adheres to the moving surface; three strips of reflective tape (each measuring 20 mm or 0.

8 inches) are included in your purchase The tachometer is delivered factory calibrated, with the option for ISO calibration available for an additional cost—please refer to the accessories section for further information.

Features and Benefits:

    •Speed measurement: rpm.

    •Surface velocity: m/min.

    •Number of rotations: counter.

    •Frequency: m, in, ft, yd.

    •Linear measurement: m, in, ft, yd.

    •Incl. ISO calibration certificate.

    •PCE-DT 65 comes factory calibrated..

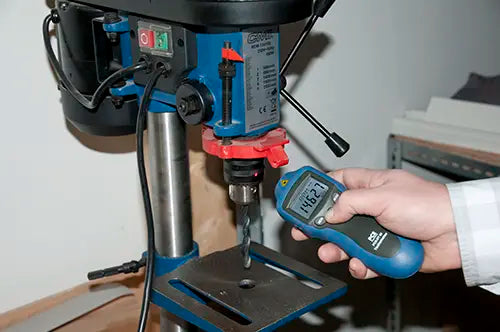

    •Measuring rotation speed and linear speed of machines and motors.

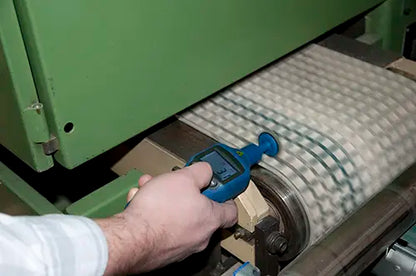

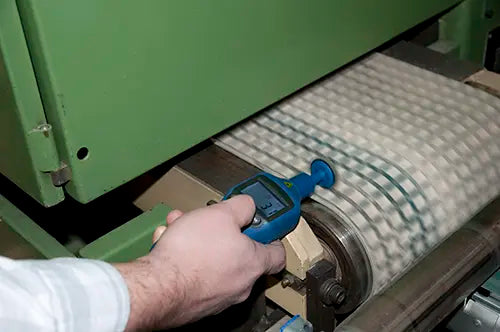

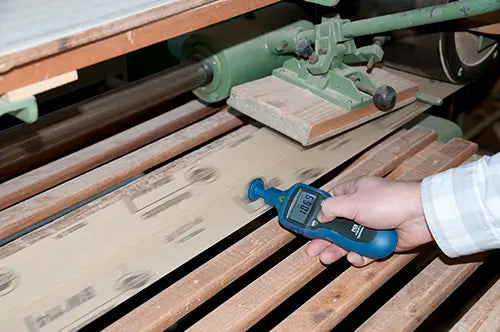

    •Used for conveyor belts and other moving parts.

Specifications:

 Measuring range laser-optical 2 ... 99999 rpm
 Measuring range mechanical 2 ... 20,000 rpm
 Resolution 0.1 rpm in the range 2.0 ... 9999.9 rpm, 1 rpm in the range 10000 ... 99999 rpm
 Accuracy ± 0.05% of the speed reading ± 1 digit
 Measuring distance 50 ... 500 mm / 2 ... 20 in
 Storage 10 readings
 Power supply 1 x 9V block / 6V external power supply
 Working temperature range 0 ... 50°C / 32 ... 122°F
 Casing ABS Plastic
 Speed display LCD display, 5 digits, 22 mm high
 Dimensions 160 x 60 x 42 mm / 6.3 x 2.4 x 1.7 in
