PCE-DT 50 - Handheld Tachometer, 2.5-99,999 RPM, LCD Display

PCE-DT 50 - Handheld Tachometer, 2.5-99,999 RPM, LCD Display

SKU: SKU: PCE-DT 50   Download PDF

Select a Variant:
  • PCE-DT 50 - Handheld Tachometer, 2.5-99,999 RPM, LCD Display
Qty:
Regular price Now $55.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $55.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

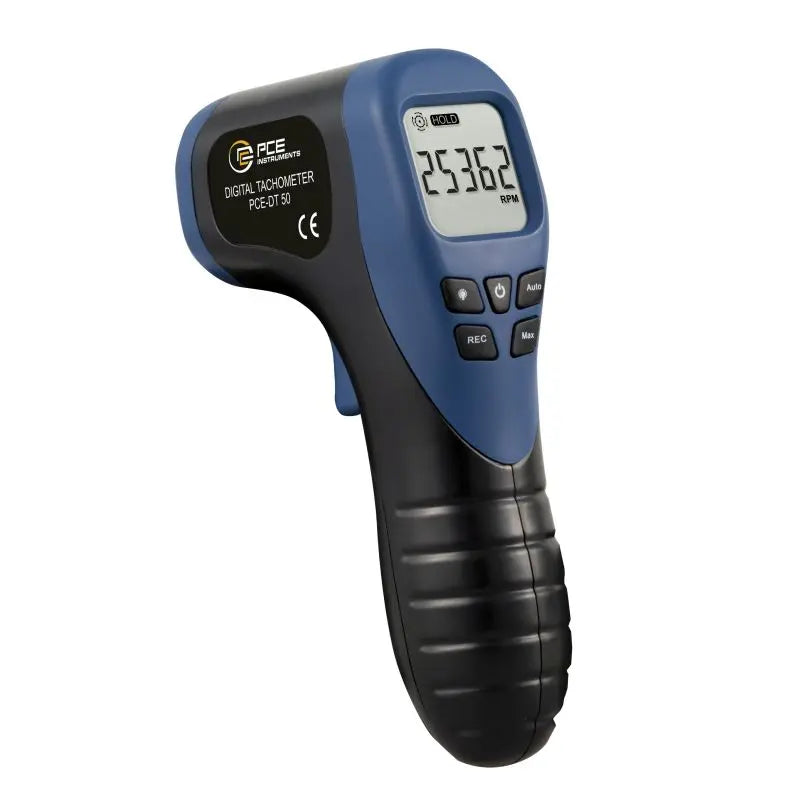

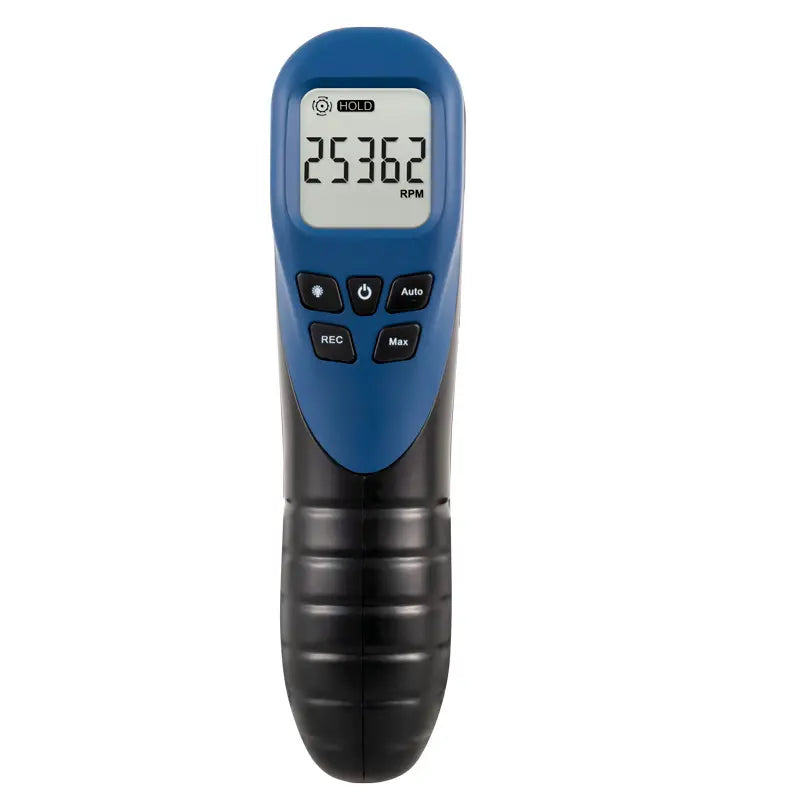

Introducing the PCE-DT 50 Handheld Tachometer, a versatile tool engineered for rapid speed assessments Capable of measuring rotational speeds from 25 to 99,999 RPM, this device is perfect for gauging the RPMs of various mechanical components like gears and drives The integrated laser technology captures the light-dark contrast of reflected beams, ensuring precise readings The illuminated LCD display enhances visibility, allowing for easy monitoring even in low light conditions.

Users can choose between manual mode, which measures while the trigger is pressed, and automatic mode, which records until deactivated Additionally, the tachometer features MAX, MIN, and AVG recording functions to analyze speed variations efficiently With a measurement distance of 50 to 500 mm (2 to 197 inches), the PCE-DT 50 is designed for convenience and quick assessments, making it an essential tool for both professionals and hobbyists alike.

Features and Benefits:

    •Measuring range up to 99,999 rpm.

    •Automatic mode.

    •MIN / MAX / AVG mode.

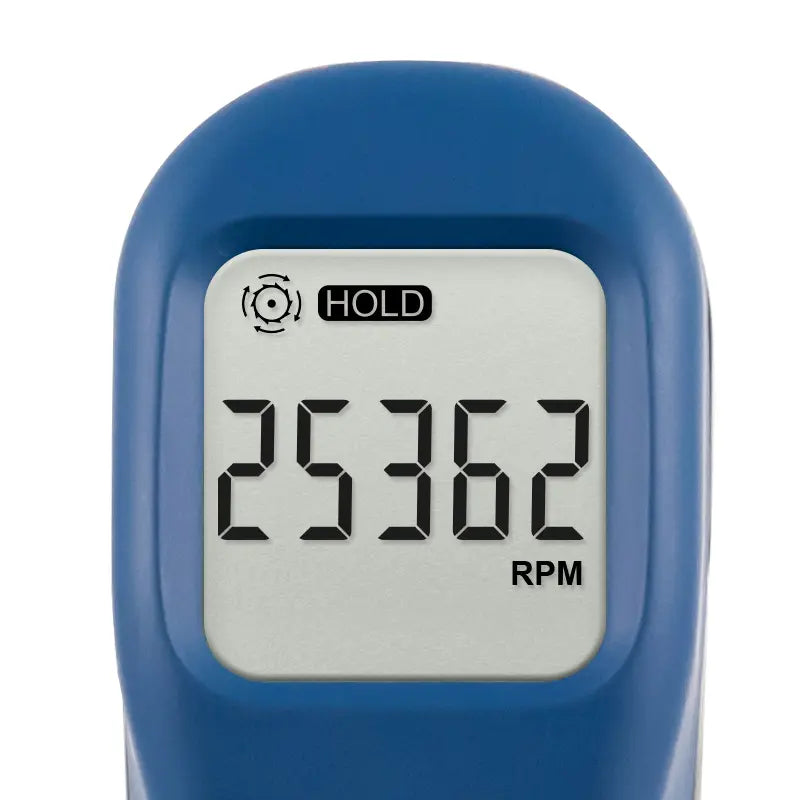

    •LD display with lighting.

    •Data hold function.

    •Automatic shutdown.

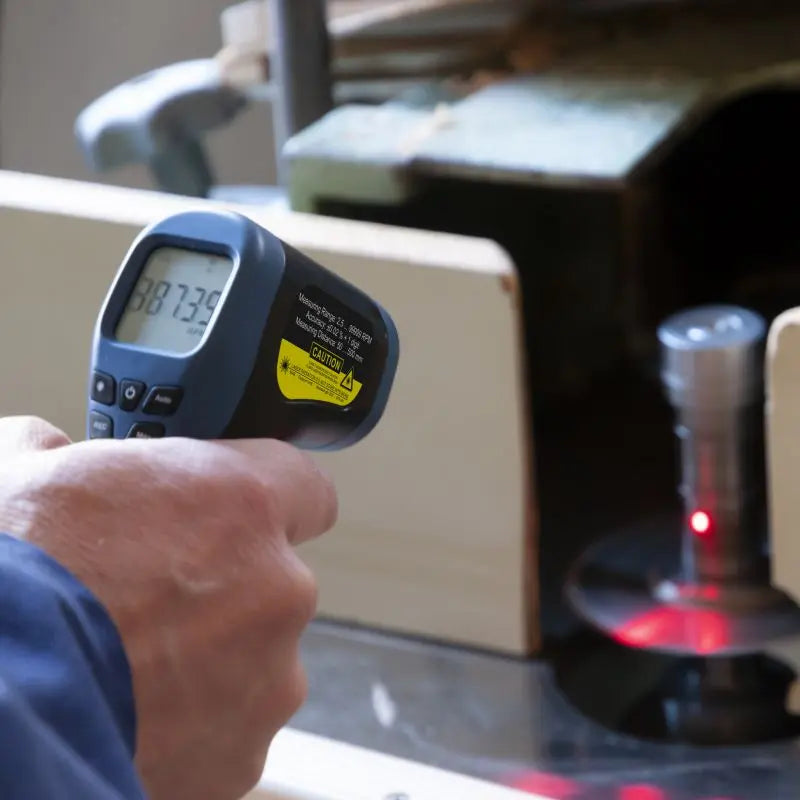

    •Used for quick control of speeds in moving objects, such as shafts, drives, pinions, etc..

Specifications:

 Measuring range: 2.5 ... 99,999 rpm (RPM)
 Measurement accuracy: ± 0.02% + 1 digit
 Resolution: 2.5 ... 999 rpm: 0.1 rpm, 1000 ... 99,999 rpm: 1 rpm
 Measuring distance: 50 ... 500 mm / 2 ... 19.7 in
 Measuring rate: 0.5s (over 120 rpm)
 Storage: 60 individual data storage
 Automatic shutdown: After 20 s

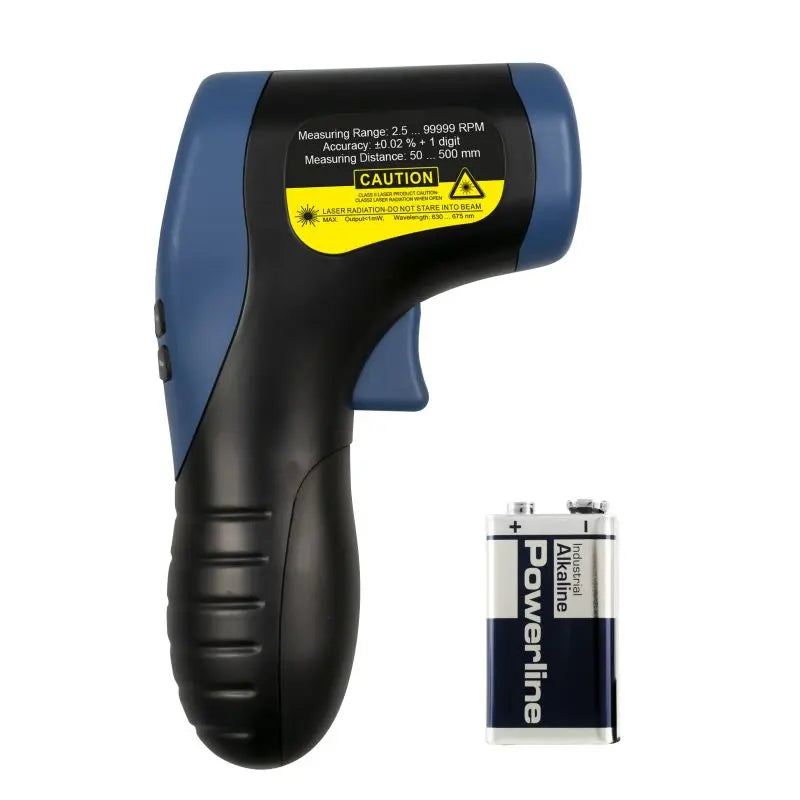

 Power supply: 9V block battery
 Operating conditions: 0 ... 50°C / 32 ... 122°F, 10 ... 90% rh
 Storage conditions: -10 ... 60°C / 14 ... 140°F, 10 ... 75% rh
 Dimensions: 145 x 90 x 35 mm / 5.7 x 3.5 x 1.4 in
