PCE-DSX 20 - Portable Handheld Stroboscope with ISO Certification and Trigger Input

PCE-DSX 20 - Portable Handheld Stroboscope with ISO Certification and Trigger Input

SKU: SKU: PCE-DSX 20   Download PDF

Select a Variant:
  • PCE-DSX 20 - Portable Handheld Stroboscope with ISO Certification and Trigger Input
Qty:
Regular price Now $561.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $561.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

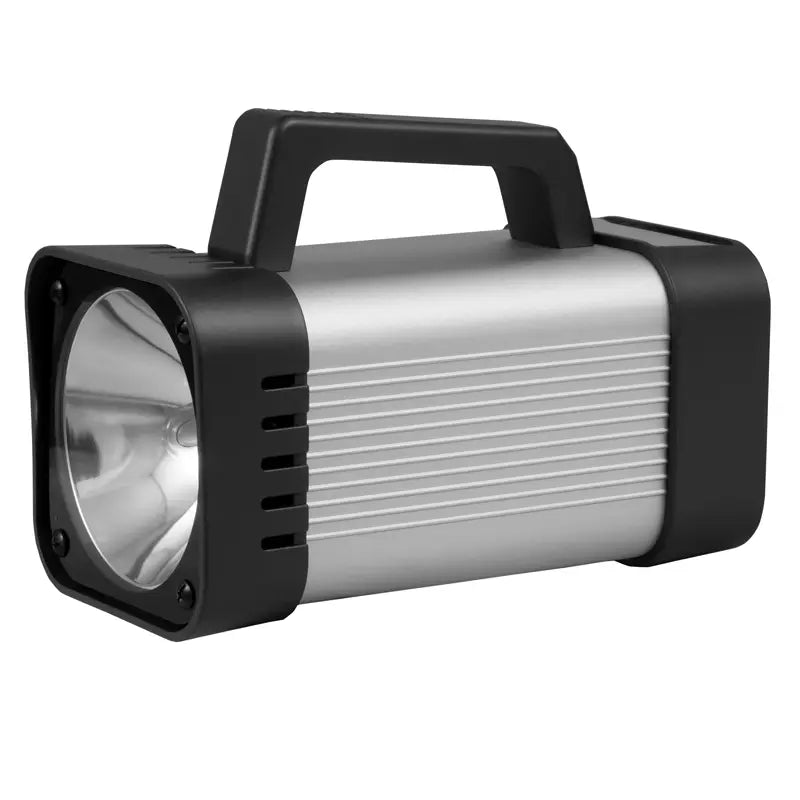

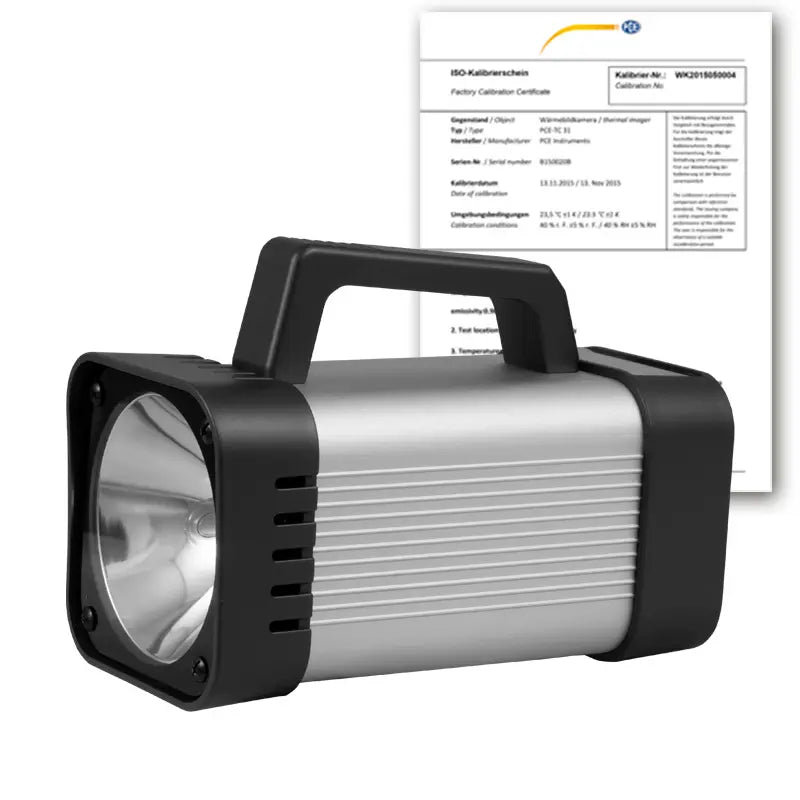

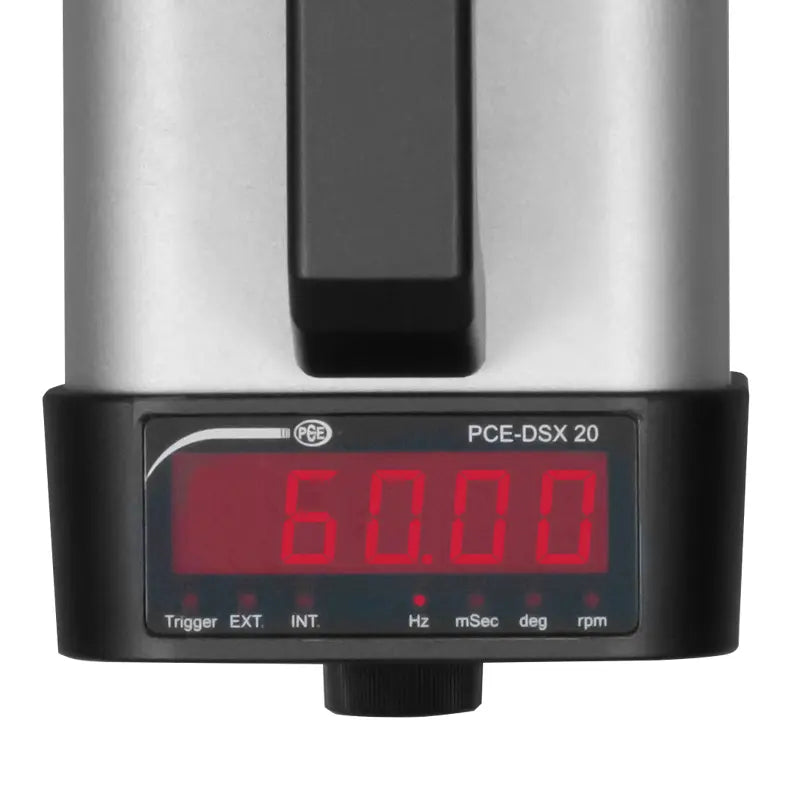

Introducing the PCE-DSX 20-ICA Handheld Tachometer, an essential tool for professionals This portable stroboscope features a bright xenon flash and a user-friendly LED display It includes an ISO calibration certificate for assured accuracy Designed for versatility, it's perfect for measuring speed, vibration, or motion, even in hard-to-reach areas thanks to its compact and lightweight build Control the flash rate easily with the intuitive rotary knob, and monitor your settings on the digital display.

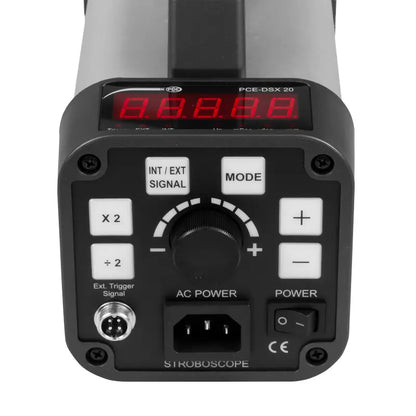

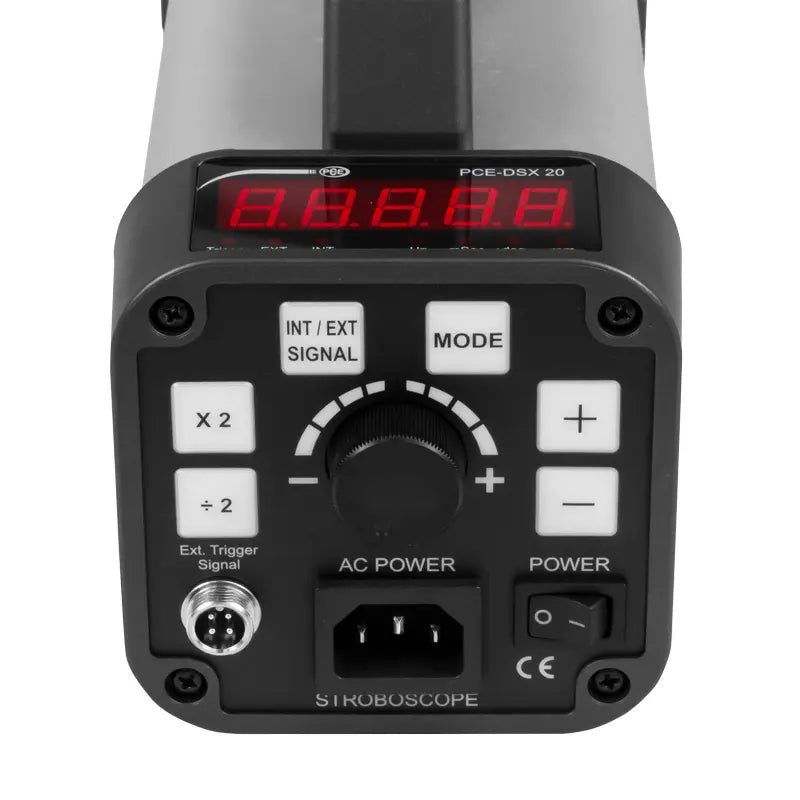

The device also allows for continuous operation, making it reliable for various tasks An external trigger input provides options for synchronization, while the device conveniently connects to a mains power source Users can select either half or double speed using the available buttons, ensuring optimal performance tailored to your needs.

Features and Benefits:

    •Trigger input for external synchronization.

    •Lightweight and portable design for easy use.

    •Fast flash rate adjustment with rotary knob.

    •Continuous operation capability.

    •Used by service technicians and maintenance personnel for industrial equipment and machinery.

    •Check speed and synchronization.

    •Identify undetectable mistakes in high-speed processes.

    •Ideal for bottling plants, printing machines, textile factories, automotive industry, ventilation systems, and high-volume production processes.

Specifications:

 Function: Lightning/speed 50 ... 35000 RPM / FPM
 Resolution (< 1000 PRM) 0.1 RPM
 Resolution (< 9999 RPM) 1 RPM
 Resolution (< 35000 RPM) 0.1 Hz
 Accuracy ± (0.05% of measured value + 2 Dgt)
 Function: Flash frequency 0.833 ... 583.3 Hz
 Resolution (< 599.9 RPM) 0.001 Hz
 Resolution (< 5999 RPM) 0.01 Hz
 Function: Phase shift 0 ... 359°
 Resolution
 Function: Ext. Trigger 0 ... 1200 ms

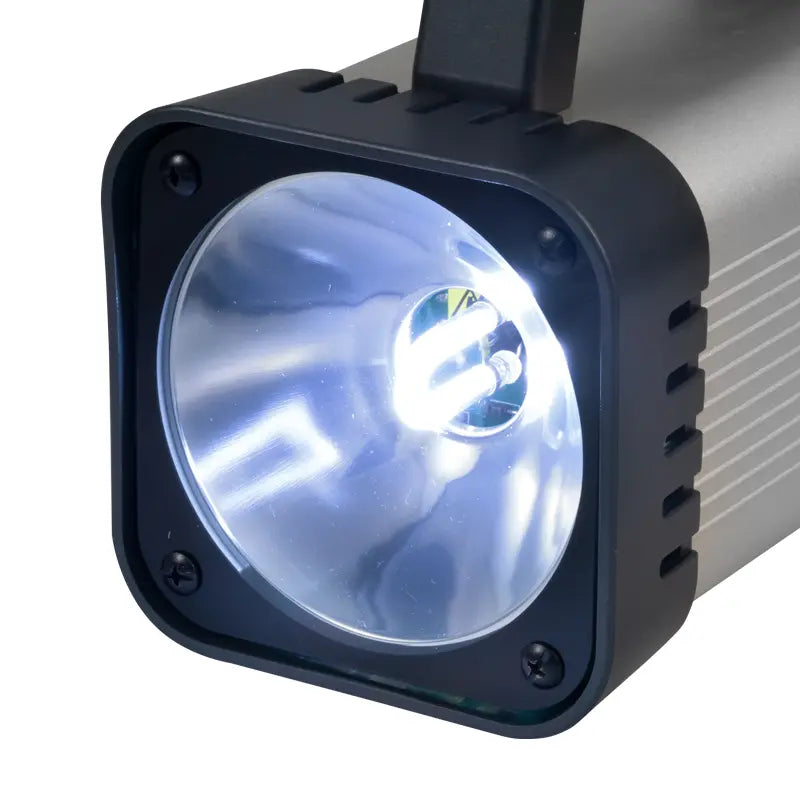

 Lamp type Xenon flash
 Flash response time 10 ... 30 μs
 Color temperature 6500K
 Flash output 8 joules

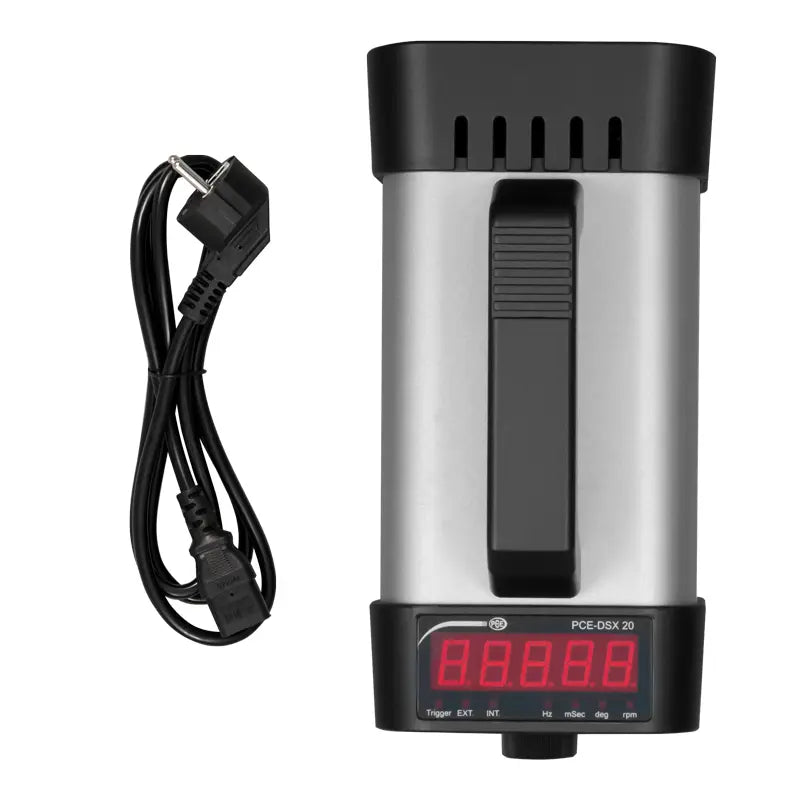

 Power supply PCE-DSX 20: 230 V AC 50/60 Hz; PCE-DSX 20-US: 110 V AC 50/60 Hz
 Current consumption 240-mA @ 3600 FPM
 Operating conditions 0 ... 50°C / 32 ... 122°F, max 80% RH
 Dimensions 230 x 110 x 150 mm / 9 x 4.3 x 5.9 in
