PCE-DRB 1 - Waterproof Brix Refractometer with ATC and Easy-Read LCD
PCE-DRB 1 - Waterproof Brix Refractometer with ATC and Easy-Read LCD
SKU: SKU: PCE-DRB 1 Download PDF
- PCE-DRB 1 - Waterproof Brix Refractometer with ATC and Easy-Read LCD
- PCE-DRB 1 - Waterproof Brix Refractometer with ATC and Easy-Read LCD
Couldn't load pickup availability

Description:
Introducing the Handheld Digital Brix Refractometer, designed for precision in measuring sugar content in liquids This robust refractometer is IP65-rated for waterproof protection, making it ideal for various environments With a measurement range from 0 to 90% Brix and a refractive index of 13330 to 15177 nD, it provides accurate readings with ease
Equipped with automatic temperature compensation (ATC) ranging from +10 to +40 °C (+50 to +104 °F), this device features a large digital LCD display that clearly shows both the Brix value and temperature simultaneously.
Whether you are in a lab, at a winery, or working on homemade beverages and syrups, this refractometer is a vital tool for determining sugar content quickly and effectively
In winemaking, monitoring the sugar-acid balance is crucial for quality, and this refractometer simplifies that process It helps assess the sugar concentration in grape must and provides insights into the potential alcohol content of the final product.
This automatic device ensures reliable results, contributing to the overall quality of any beverage
The Brix refractometer boasts a user-friendly three-button interface, delivering fast and precise readings in approximately one second Its robust ABS plastic exterior is designed to withstand both water and dust, making it easy to clean and maintain
Key Features:
- Measures Brix, refractive index, and temperature
- Automatic temperature compensation (ATC) from +10 to +40 °C / +50 to +104 °F
- Compact, handheld design
- Quick readings in about 1 second
- Durable ABS plastic housing with IP65 rating
- Clear digital LCD displays both Brix and temperature
- Average function calculates the mean from 15 measurements
- Stainless-steel protection for the glass prism
- Built-in light source enhances measurement accuracy
- Requires only 4-5 drops of liquid for testing
- Easy calibration with distilled water
- Energy-efficient with automatic shut-off after 1 minute of inactivity
Stay in control of your production process and ensure high-quality results with the Handheld Digital Brix Refractometer.
Features and Benefits:
•Automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F.
•Handheld and portable.
•User-friendly 3-button operation.
•Fast and precise measuring results in approx. 1 sec..
•ABS plastic housing with IP65 ingress protection rating against water and dust.
•Large, easy-to-read digital LCD shows both the measured value and the temperature.
•Average function measures same sample 15 times and displays the mean value.

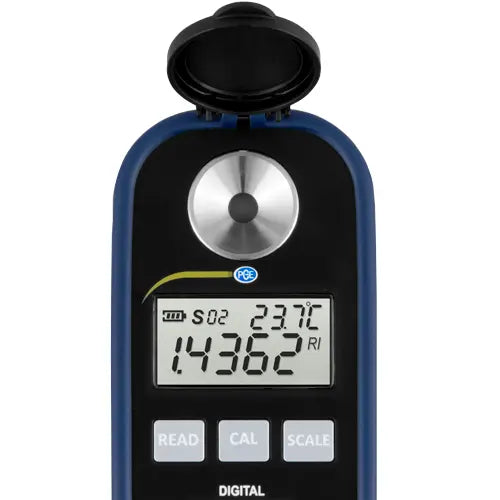

•Stainless-steel ring on sample well protects glass prism from damage.
•Internal light source for improved accuracy.
•Small liquid sample size of just 4 to 5 drops.
•Easy calibration with distilled water.
•Battery-saving automatic power off after 1 min. of inactivity.
•Used to determine sugar content in liquid solutions like beverages, wine, or juices.
•Monitoring and control during winemaking process.
•Testing the concentration of alcohol.
Specifications:
| Temperature compensation | automatic +10 ... +40 °C / +50 ... +104 °F |
| Measurement speed | 1 sec. |
| Sample size | 4 ... 5 drops of liquid |
| Sample plate | Stainless steel ring with glass prism |
| Housing | ABS, IP 65 |
| Battery | 1 x 1.5 V AAA |
| Automatic shutdown | after 1 min measurement break |
| Protection | IP 65 |
| Dimensions | 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98" |
| Measuring range (Sugar content) | 0 ... 90 % Brix |
| Measuring range (Refractive index) | 1,3330 ... 1,5177 nD |
| Measuring range (Temperature) | 0 ... 40 °C / +32 ... +104 °F |
| Resolution (Sugar content) | 0.1 % Brix |
| Resolution (Refractive index) | 0.0001 nD |
| Resolution (Temperature) | 0.1 °C / 32 °F |
| Accuracy (Sugar content) | 0.2 % Brix |
| Accuracy (Refractive index) | 0.0003 nD |
| Accuracy (Temperature) | ±0.5 °C / +31 ... +33 °F |
