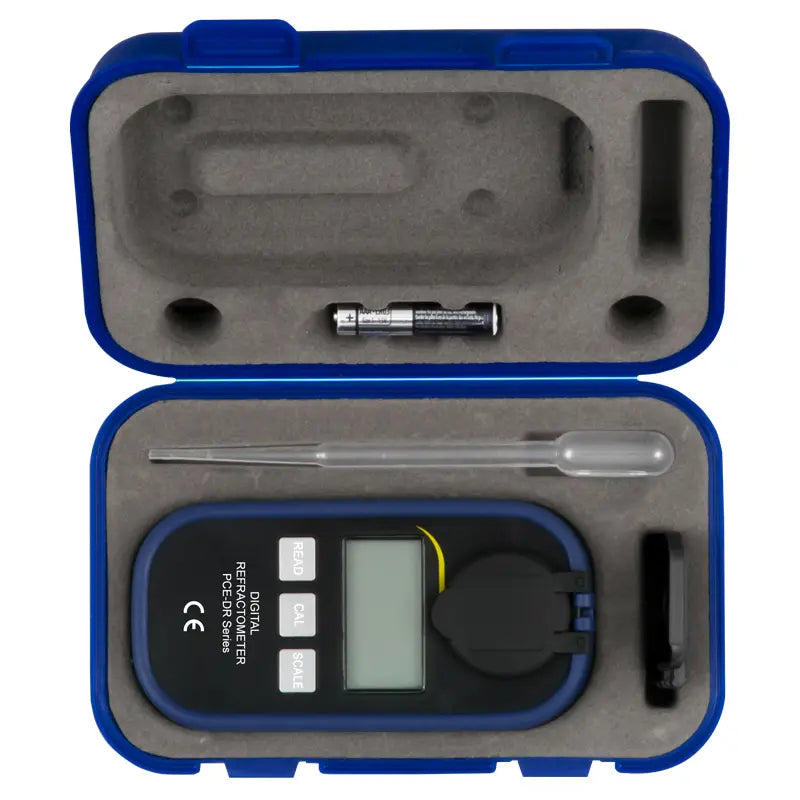

PCE-DRA 1 - IP65 Waterproof Car Measuring Device with LCD Display

PCE-DRA 1 - IP65 Waterproof Car Measuring Device with LCD Display

SKU: SKU: PCE-DRA 1   Download PDF

Select a Variant:
  • PCE-DRA 1 - IP65 Waterproof Car Measuring Device with LCD Display
Qty:
Regular price Now $355.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $355.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-DRA 1 Handheld Car Measuring Device, a highly reliable tool engineered for accurately assessing propylene glycol and ethylene glycol solutions This waterproof device boasts an impressive IP65 rating, making it tough and dependable for various automotive and transport applications Equipped with automatic temperature compensation (ATC) ranging from +10 to +40 °C (+50 to +104 °F), this portable meter ensures precise readings in a variety of conditions.

The large, user-friendly LCD screen displays both the measured values and temperature, simplifying your tasks Ideal for monitoring coolant quality, this device allows for quick evaluations of antifreeze concentration and freezing points, helping to prevent serious engine damage It features protective design elements for the glass prism and includes battery preservation capabilities for long-lasting use.

Features and Benefits:

    •Waterproof IP65-rated for durability.

    •Automatic temperature compensation (ATC) from +10 to +40 °C / +50 to +104 °F.

    •User-friendly 3-button operation.

    •Fast measurement results in approx. 1 second.

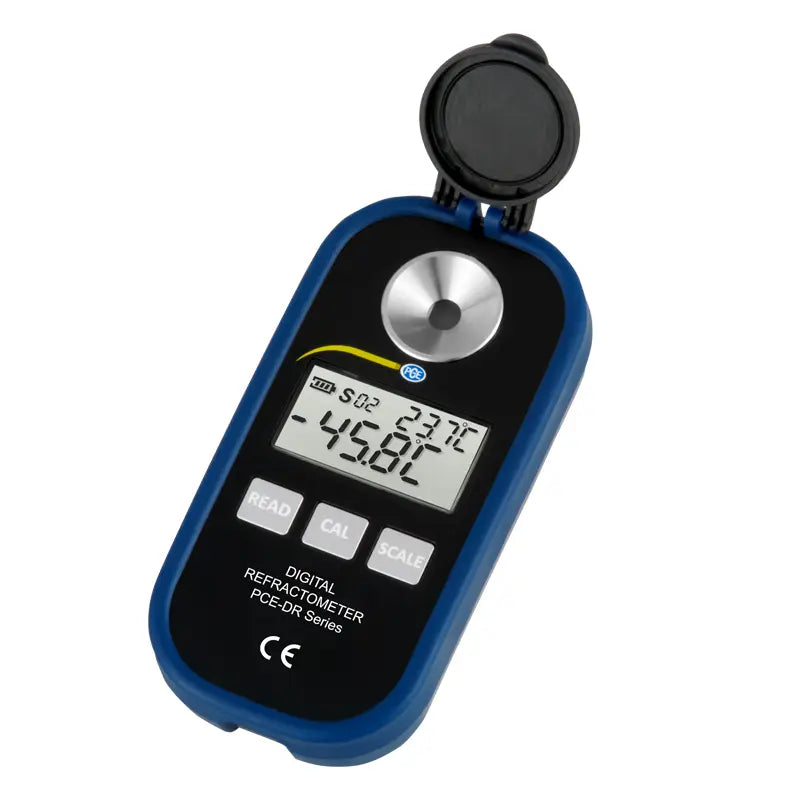

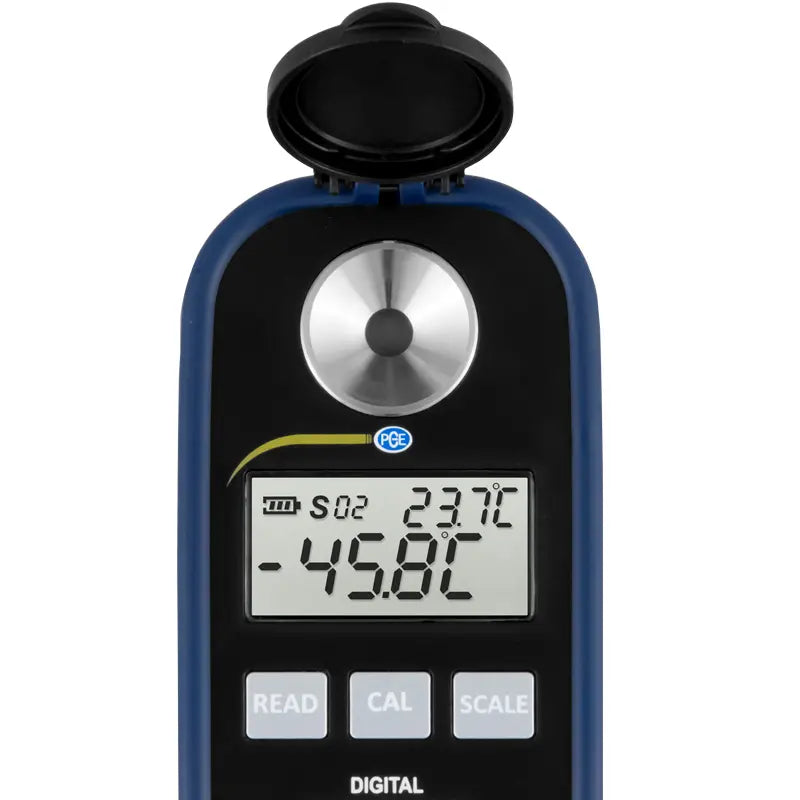

    •Large LCD display for easy reading of values.

    •Average function to measure the same sample multiple times.

    •Stainless-steel ring protects glass prism.

    •Internal light source for accuracy.

    •Small sample size needed (4 to 5 drops).

    •Easy calibration with distilled water.

    •Automatic power off after 1 minute of inactivity.

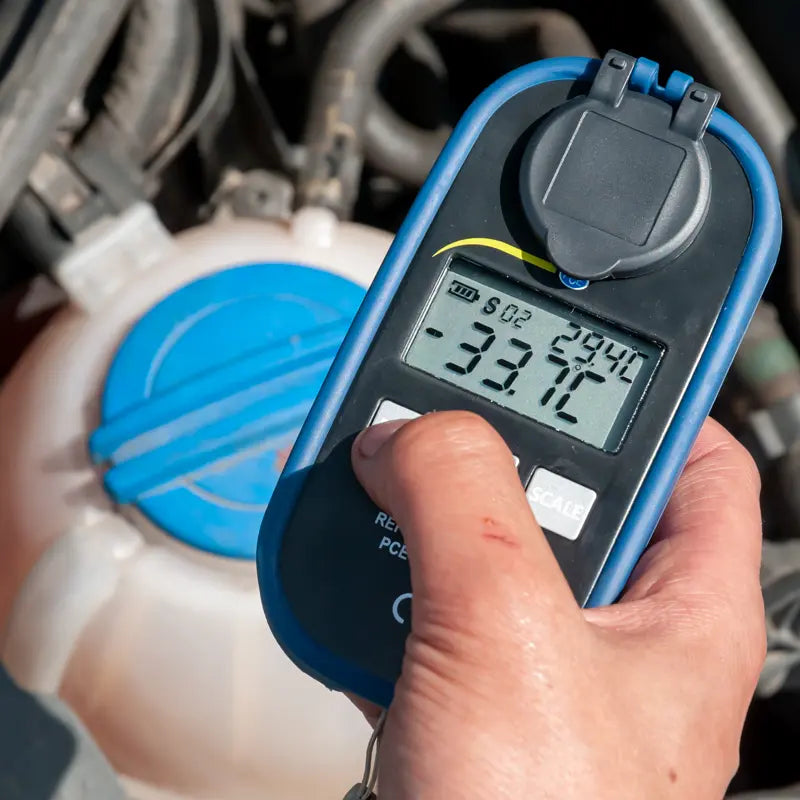

    •Determining antifreeze content in automotive cooling systems.

    •Testing the quality of motor oils and cleaning liquids.

    •Used for evaluating ethylene and propylene glycol mixtures in the industry.

    •Facilitating maintenance of vehicles and cooling systems.

Specifications:

 Measuring range: 0 ... 60 % ethylene glycol or propylene glycol content (v / v), -50 ... 0 °C ethylene glycol, -60 ... 0 °C propylene glycol, 0 ... +40 °C / +32 ... +104 °F temperature
 Resolution: 0.1 % / 0.1 °
 Accuracy: ±0.5 % / ±0.5 °C
 Temperature compensation range: +10 ... +40 °C / +50 ... +104 °F
 Measurement speed: Approx. 1 sec.

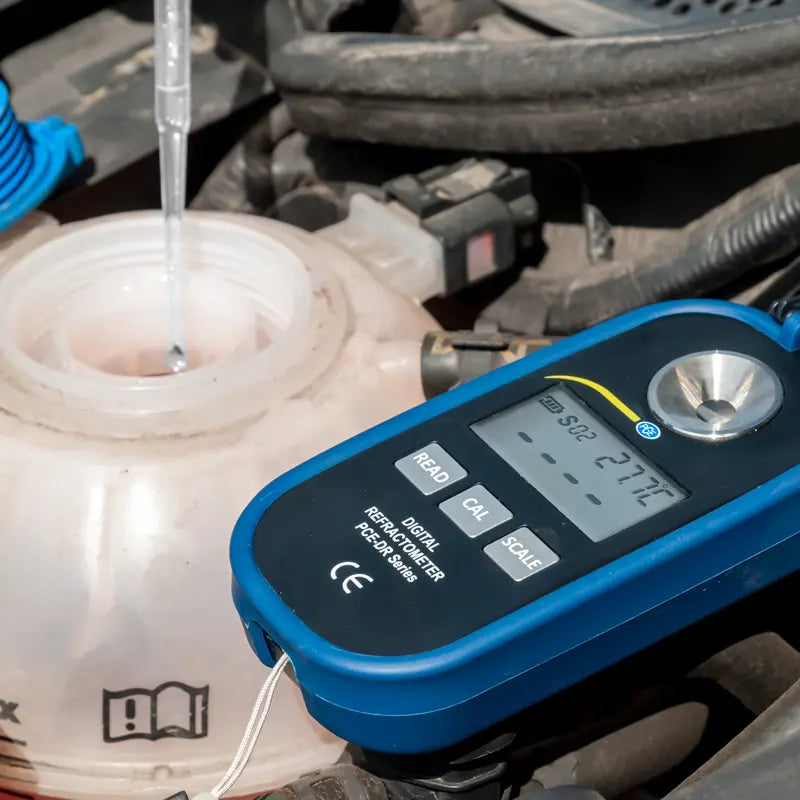

 Sample size: 4 to 5 drops of liquid
 Sample well: Stainless steel ring over glass prism
 Housing: ABS plastic, IP65 ingress protection rating against water and dust
 Power supply: 1 x 1.5V AAA battery
 Dimensions: Approx. 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98"
