Product Information

Description:

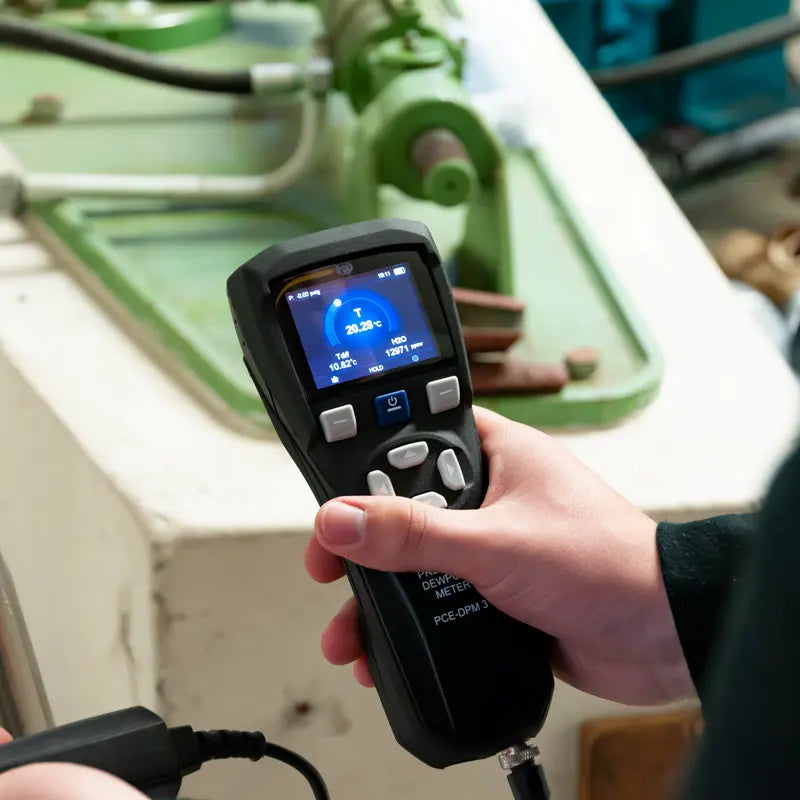

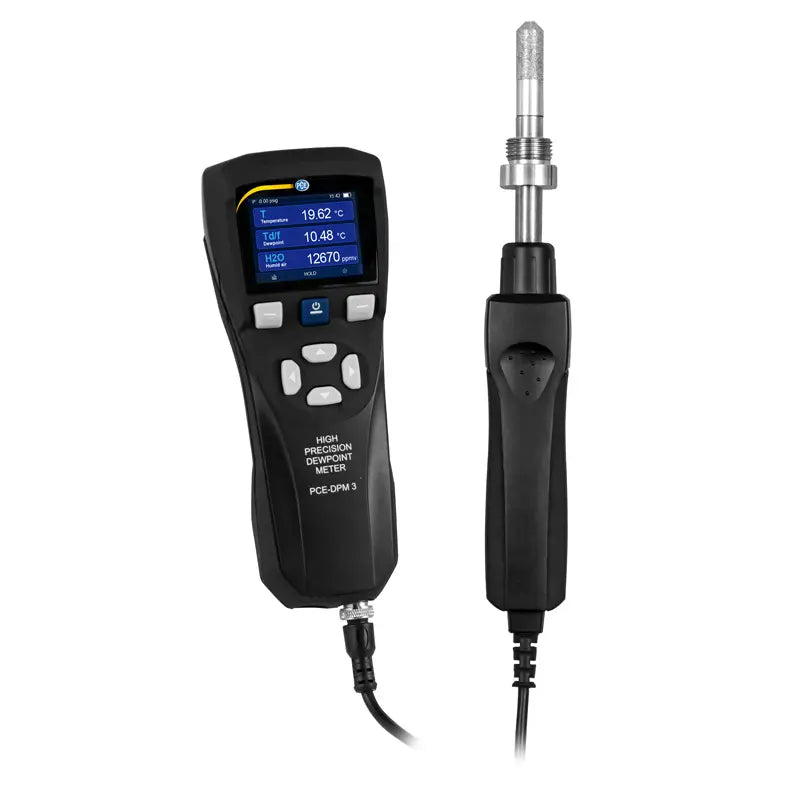

Introducing the PCE-DPM 3 hygrometer, a reliable mobile device for assessing the quality of compressed air across both stationary and mobile compressors This unit is equipped with a sintered cap that effectively safeguards against moisture, dust, and high flow rates, ensuring the longevity of its sensors The hygrometer accurately measures temperature, relative humidity, and H2O levels while calculating the dew point up to 20 bar of ambient pressure.

With a data storage capacity for approximately 50,000 measurement records, you can easily track changes in the pressure line Data is stored internally and can be conveniently accessed and reviewed directly on the device, or transferred to any computer via a micro USB connection Recognized as a mass storage device, it allows for seamless downloading of data in CSV format, making it compatible with any spreadsheet application for easy analysis.

Simplify your monitoring tasks with this user-friendly hygrometer designed for efficiency and precision.

Features and Benefits:

    •Data storage with CSV data export.

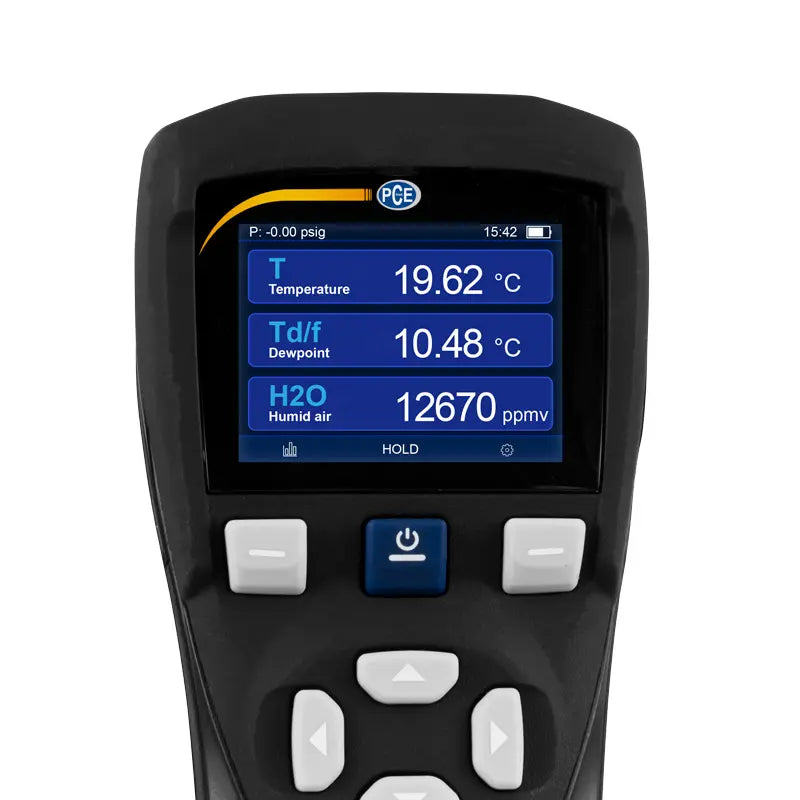

    •Dew point, H2O, temperature, humidity measurement.

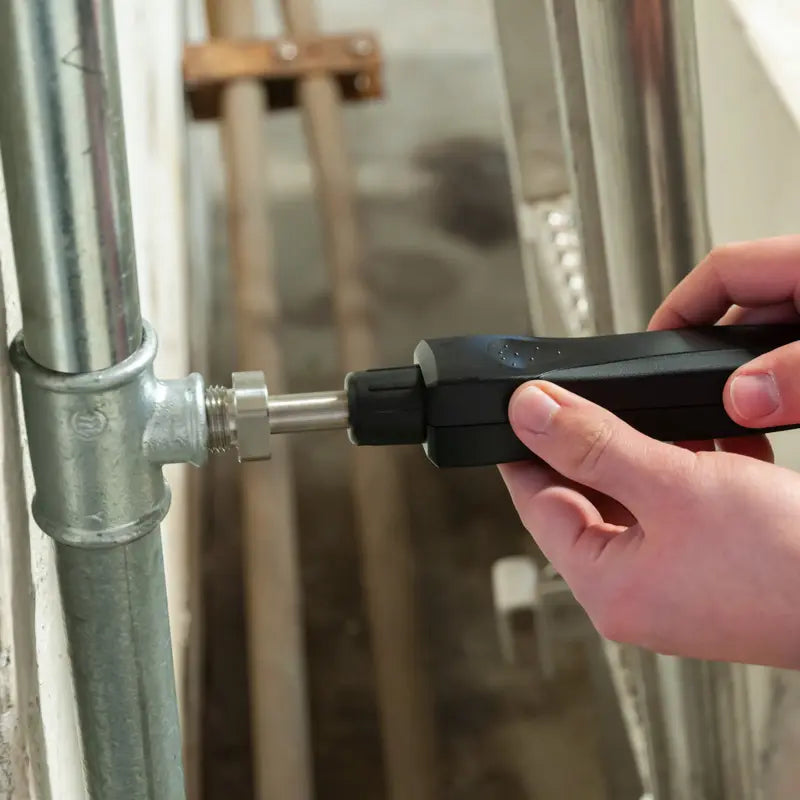

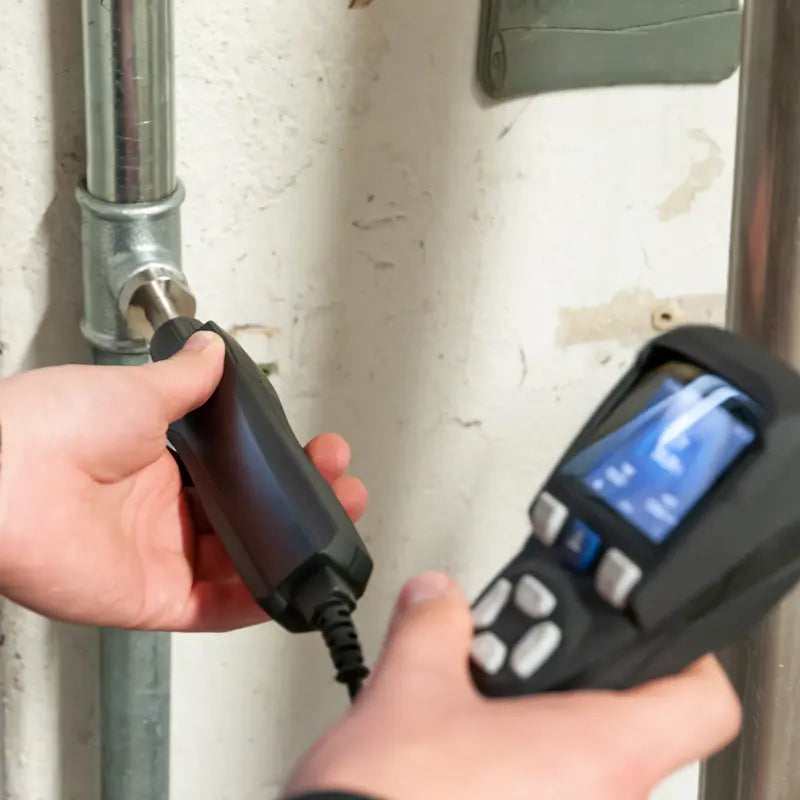

    •For inline measurement of pressure pipes.

    •Battery operation for mobile use.

    •With G1 / 2 " connection thread.

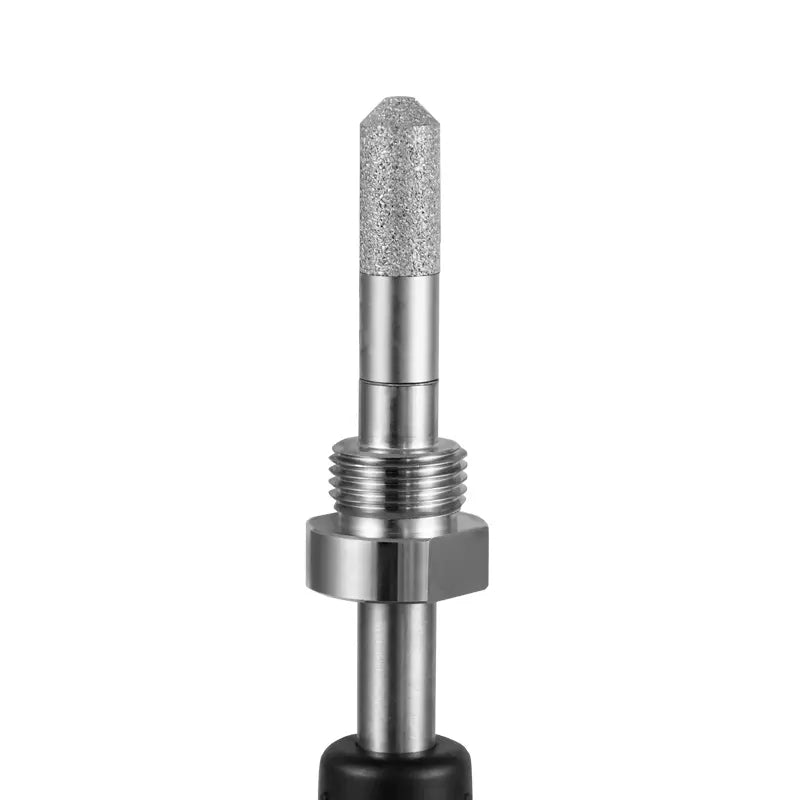

    •Sensors protected with sintered filters.

Specifications:

 Measurement Temperature Measuring range -10 ... 60°C / 14 ... 140 °F
 Resolution 0.01°C / 0.018 °F
 Accuracy at 20°C / 68 °F -10 ... 50°C / 14 ... 122°F: ± 0.3°C / 0.5 °F
 Measurement Relative humidity Measuring range 0 ... 100%
 Humidity Resolution 0.01%
 Humidity Accuracy at 20°C / 68 °F < 5%: ± (0.025% + 17.5% of mv) > 5%: ± (1% + 5% of mv) > 15%: ± (2% + 3% of mv)
 Measurement Dew point* Measuring range -50 ... 30°C / -58 ... 86 °F
 Dew point Resolution 0.01°C / 0.018 °F
 Dew point Accuracy -40 ... 20°C / -40 ... 68°F: ± 2°C / 3.6 °F *The accuracy of the dew point relates to an ambient temperature of 16 ... 25°C / 61 ... 77°F
 Measurement H2O Measuring range 40 ... 20,000 ppm
 H2O Resolution 1 ppm
 H2O Accuracy at 20°C / 68 °F ± (7.3 ppm + 8.3%)
 Environmental conditions -10 ... 60°C / 14 ... 140 °F
 Response time at: 0.2 m / s, 1 bar, 0 ... 40°C / 32 ... 104°F: 20s [120s]
 Data storage For approx. 50,000 measuring points, Adjustable storage rates 10 seconds, 1, 5, 10, 20, minutes, Adjustable recording time 1, 5, 12, 24, 48 hours, File format CSV
 Cable length Approx. 1.5 m / 4.9 ft
 Thread G1 / 2"
 Thread length 1.2 cm
 Probe length 5.2 cm
 Probe width 1.2 cm
 Display 2.3" LCD
 Power supply Battery 3.7V DC, 3000-mAh
 Power supply power pack Primary: 100 ... 240V AC, 0.25 A Secondary: 5V DC, 1 A

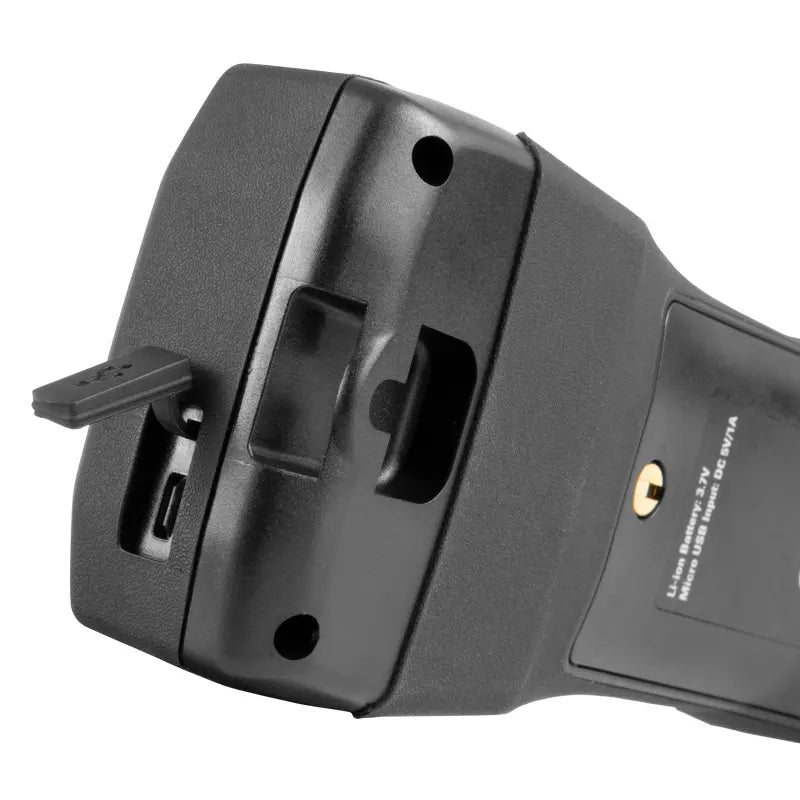

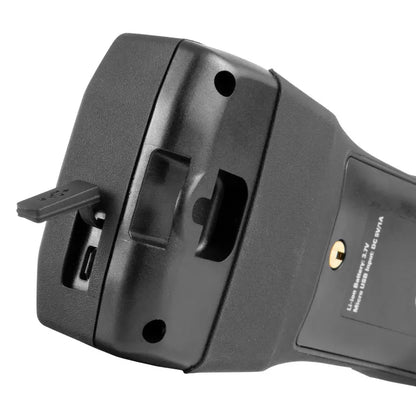

 Interface Micro USB
