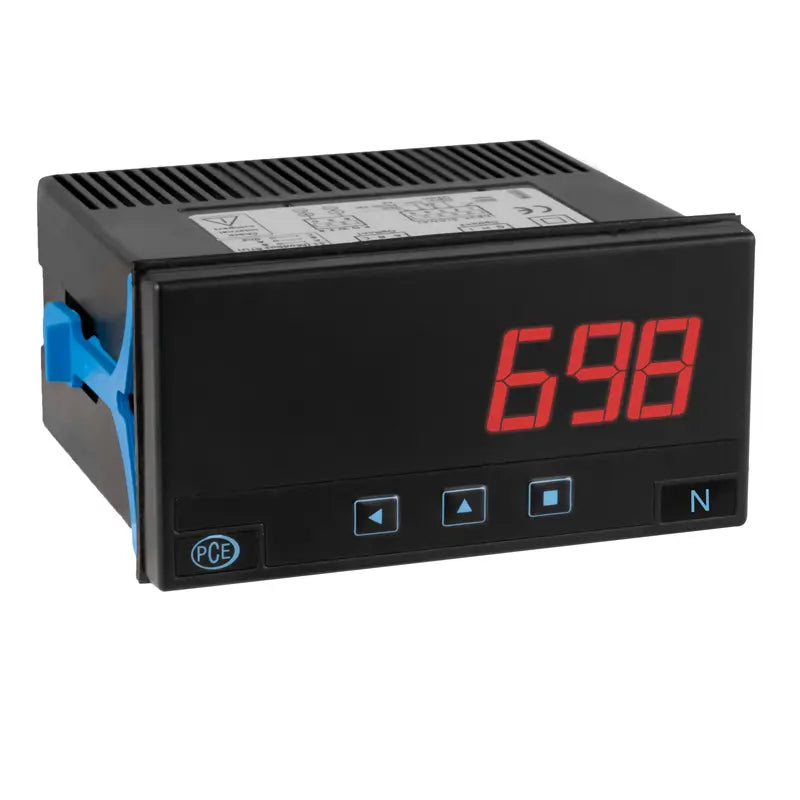

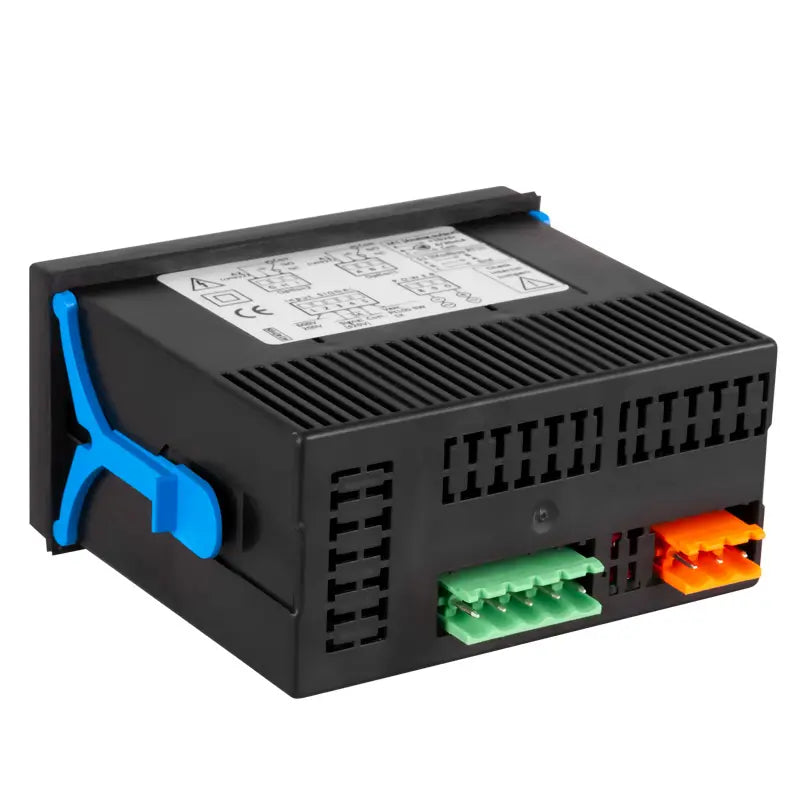

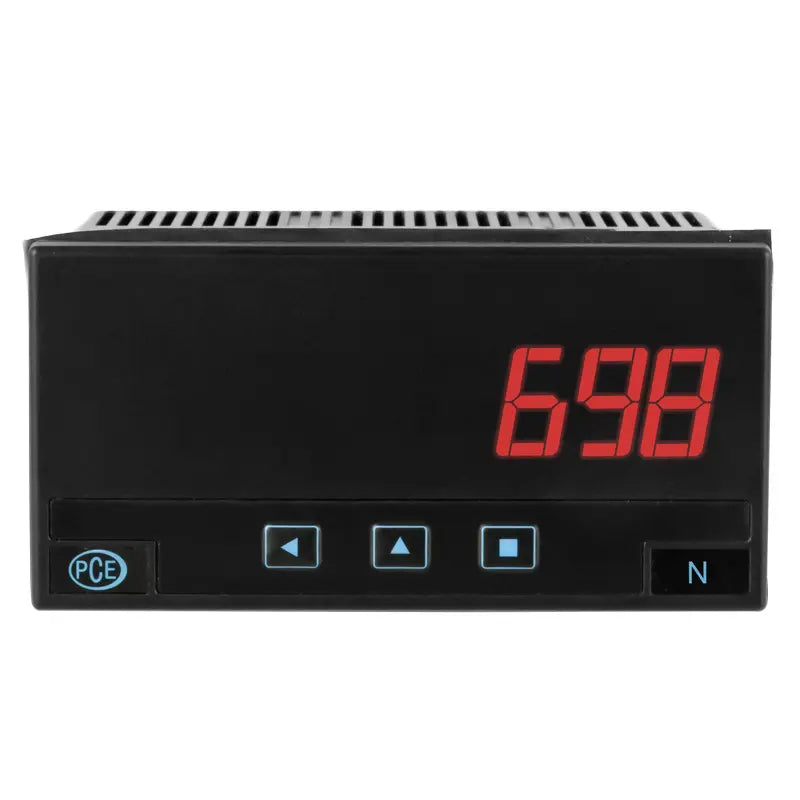

PCE-DPD-U - 4-Digit Multi-Signal Digital Panel Indicator Voltmeter & Ammeter

SKU: SKU: PCE-DPD-U Download PDF

Select a Variant:

PCE-DPD-U - 4-Digit Multi-Signal Digital Panel Indicator Voltmeter & Ammeter

SET THE QTY:

Now $228.00 Web pricing policy

~~BEFORE $0.00~~ Now $228.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-DPD-U Multi-Signal Digital Panel Indicator, a versatile device that serves as a voltmeter, ammeter, and can process various signals This modular design accommodates inputs from temperature sensors, resistors, potentiometers, and frequencies Equipped with a clear 4-digit LED display, the unit supports a universal power supply, operating on either 110 or 230V AC or 24V DC With measurement capabilities from 9999 to -1999 and a selectable decimal point for added versatility, this panel indicator offers accessible features for users.

You’ll appreciate the quick access to alarm setpoints and an external contact for special functions The eco mode helps minimize power consumption, and it provides five different brightness levels for enhanced visibility The device supports a supply voltage range of 18 to 265V AC/DC and includes optional features such as relay output, analog output, and Modbus RTU communication capabilities, making it an ideal choice for various applications.

Features and Benefits:

•IP 65 on the front.

•Different units possible.

•Digital display for industrial processes.

•Optional outputs.

•4-digit digital display.

•Many sensors can be connected.

Specifications:

Input	2-, 3- wire PT100, PT500, PT1000, Ni100, Ni200, Ni1000
Thermoelement	Type K, J, E, N, L, R, S, B, T, C
Potentiometer	500 ... 20 kOhm
Resistance	5k ... 50 kOhm
Process signal	4 ... 20 mA, 0 ... 10 V
Frequency	0 ... 100 Hz
DC-Voltage	60 mV, 200 mV, 2 V, 20 V, 200 V, 600V
DC-Current	20 mA, 5 A
AC-Voltage	2 V, 20 V, 200 V, 600 V
AC-Current	20 mA, 5 A
Measuring rate	3 / second
Resolution	16 Bit
Accuracy	0.1 %
Internal resistance (Voltage measurement)	1 MΩ
Internal resistance (Current measurement)	12 Ω
Scaling	21 points
Display	4-digit, 7-segment LED display, tri-color
Display range	-1999 ... 9999
Ambient temperature Operational	0 ... 55 °C / 32 ... 131 °F
Ambient temperature Storage	-20 ... +70 °C / -4 ... 158 °F
Dimensions digital display	96 x 48 x 91 mm / 3.7 x 1.8 x 3.5"
Panel cutout	92 x 45 mm / 3.6 x 1.7" (according to DIN)
Supply voltage	18 ... 265 V AC/DC
Protection	Front: IP 65
Mounting	Mounting clips with clamping screws, Electrical connection via terminal strip
Housing digital display	Robust plastic housing
