PCE-DPD-F2 - 6-Digit LED Panel Meter for Strain Gauges

Description:

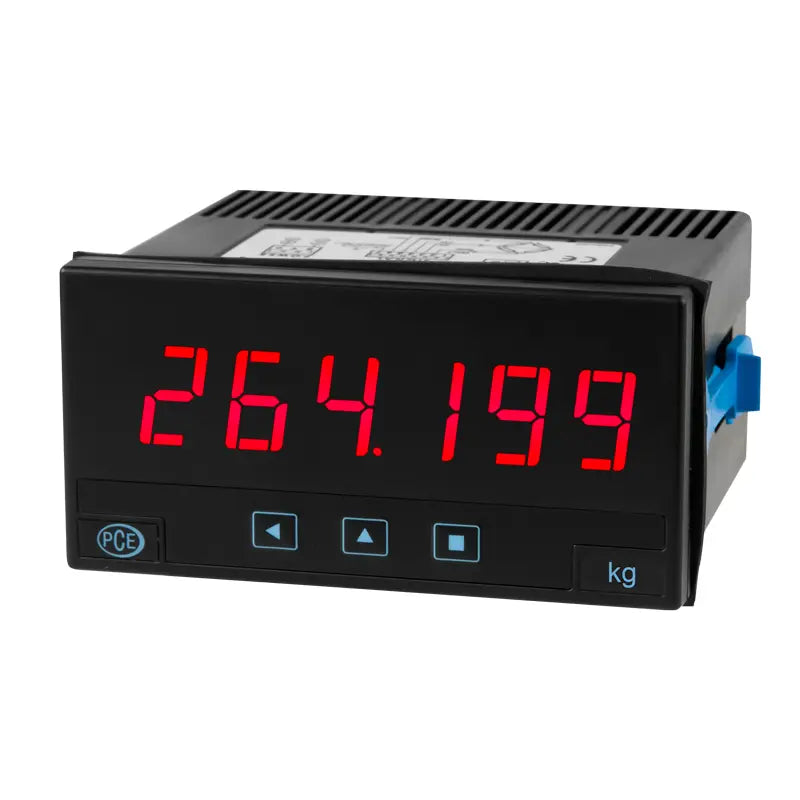

Introducing the PCE-DPD-F2 Panel Meter, an ideal solution for displaying readings from strain gauges with versatility in input options, supporting both millivolt and voltage signals through interchangeable output cards This meter boasts a clear 6-digit LED display and is compatible with power sources of either 230V or 24V It accurately shows force and weight captured by load cells and force sensors, presenting readings across a robust range from -199,999 to 999,999 based on the calibrated sensitivity.

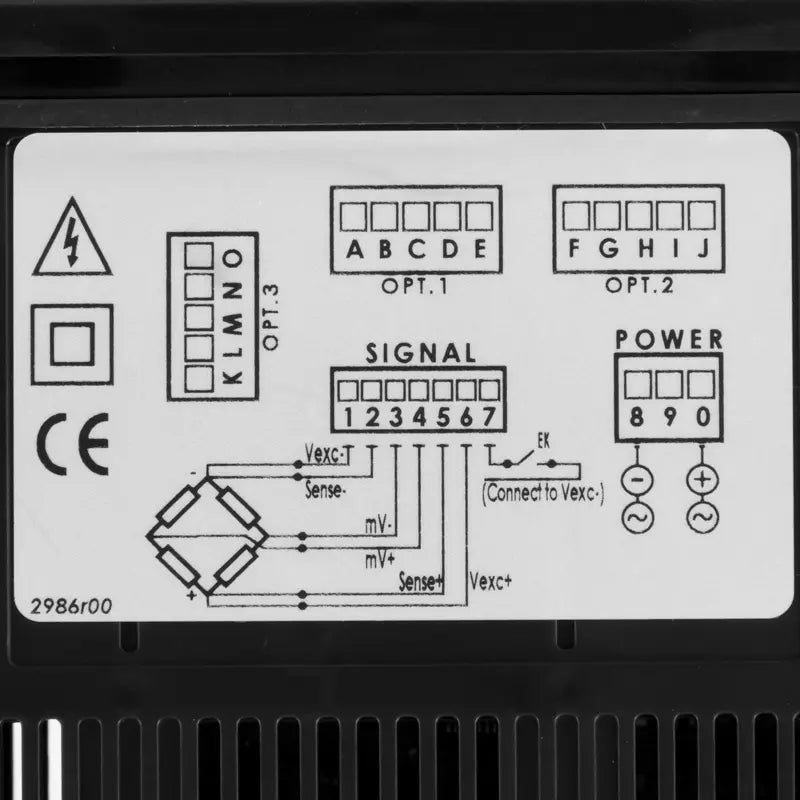

The unit also powers connected measuring cells, with the capability to provide 5V or 10V, enabling the connection of up to eight load cells at 5V or four at 10V Furthermore, the design includes a modular output system that accommodates various output cards tailored to specific applications, enhancing its functionality and adaptability in different environments.

Features and Benefits:

•Digital display for strain gauges.

•mV / V input.

•3 different measuring speeds.

•Modular output cards available.

•1/8 DIN panel mounting dimensions.

•LED display.

Specifications:
