PCE-DFG N 10TW - 10 Nm Torque Meter with 1/2" Transducer & PEAK Function

PCE-DFG N 10TW - 10 Nm Torque Meter with 1/2" Transducer & PEAK Function

SKU: PCE-DFG N 10TW   Download PDF

Select a Variant:
  • PCE-DFG N 10TW - 10 Nm Torque Meter with 1/2" Transducer & PEAK Function
Qty:
Now $2,178.00   Web pricing policy
BEFORE   $0.00 Now $2,178.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

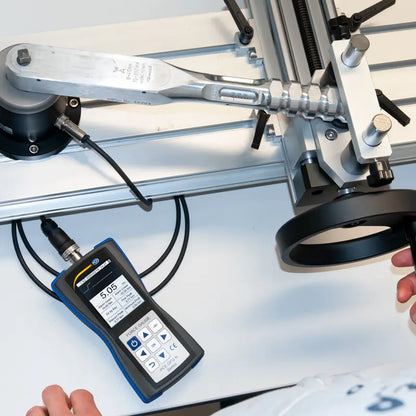

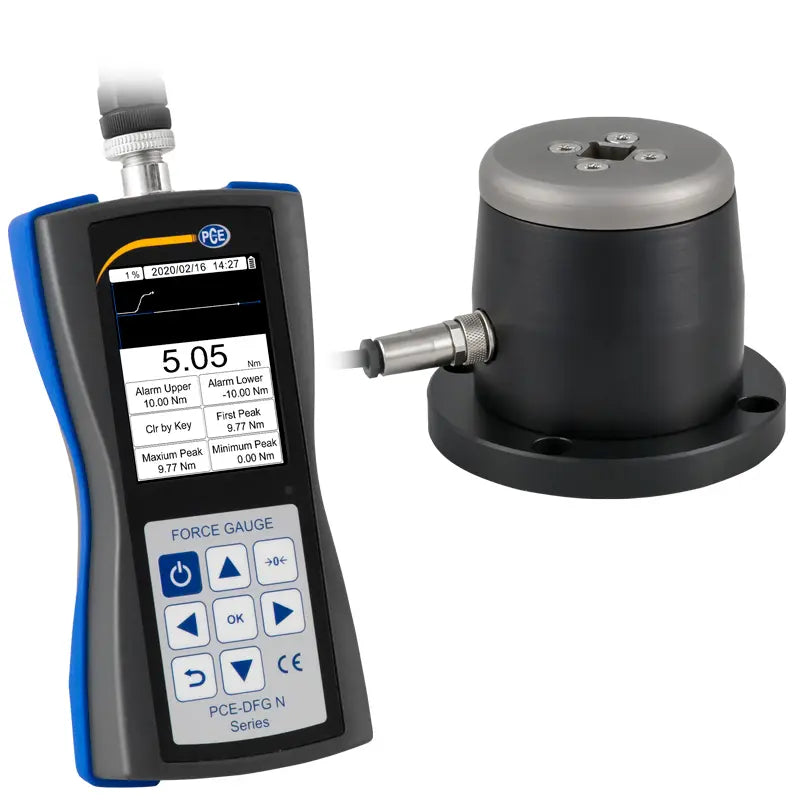

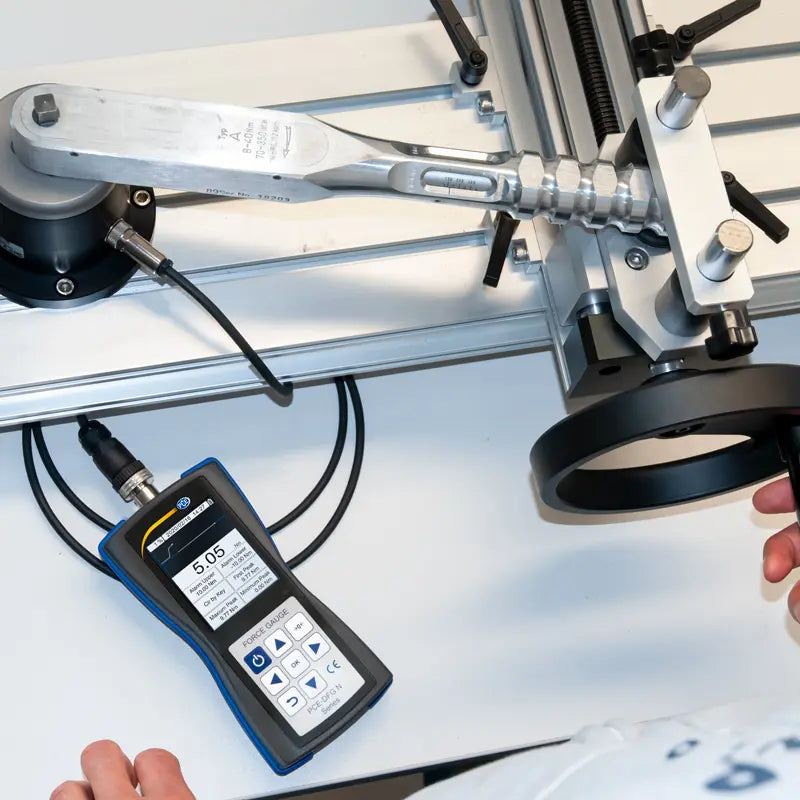

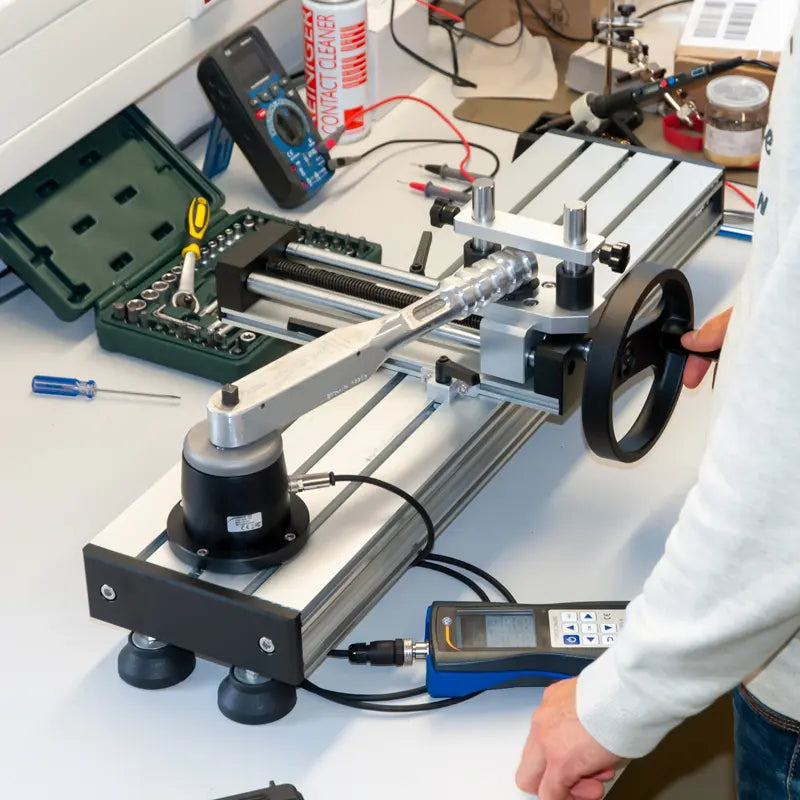

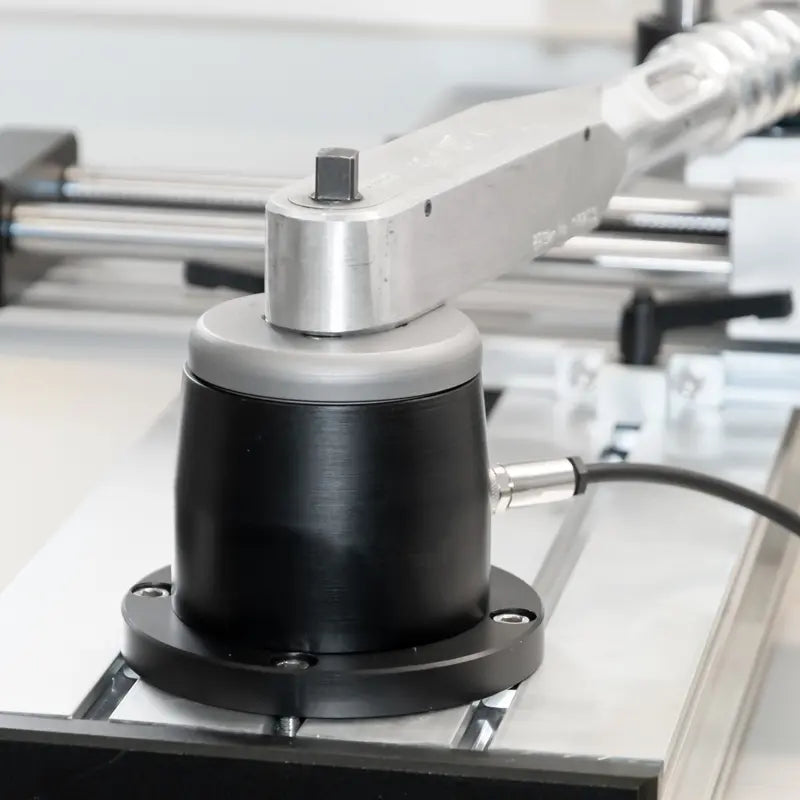

The PCE-DFG N 10TW torque meter is engineered for precise torque measurements up to 10 Nm It features an external torque transducer with a 1/2" internal square for versatility Enjoy a clear graphic display and utilize the PEAK function to capture maximum torque readings, with a remarkable sampling rate of 1600 Hz The handheld unit connects to the transducer through a 15 m (49 ft) cable, making it suitable for use on a test stand or for direct assembly on various test benches.

Ready for immediate operation, it can be delivered with an optional calibration certificate and boasts measurement uncertainty of just 05% of the measuring range, making it ideal for applications in fields such as automotive, shipbuilding, construction, and repair work.

Features and Benefits:

    •Left / right torsion measurement.

    •Sampling rate up to 1600 Hz.

    •Error limit of 0.5% of the measuring range.

    •PEAK / Hold function for torque measurements.

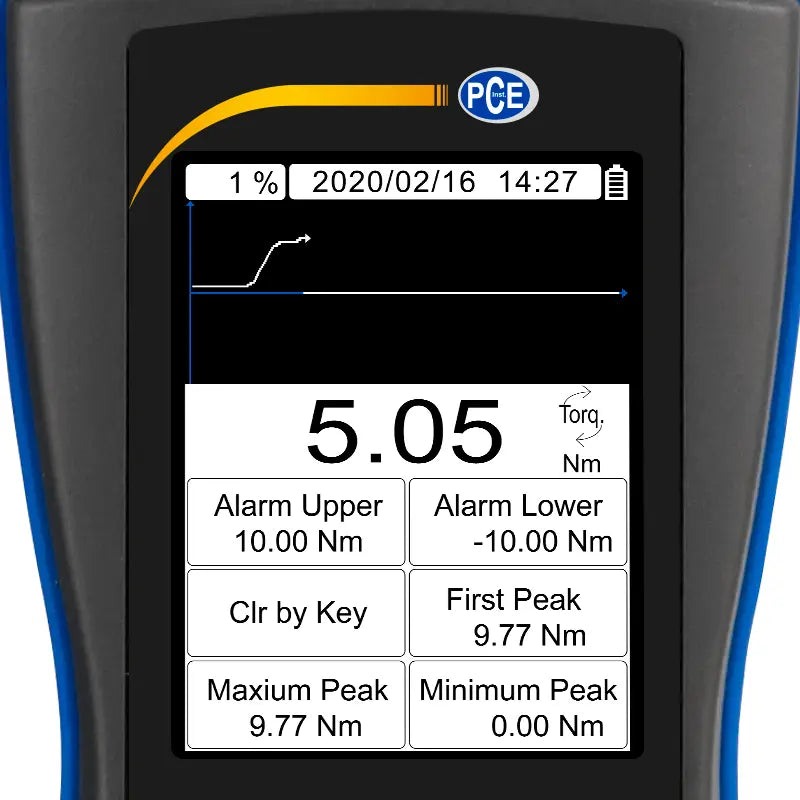

    •Graphic display for clear reading.

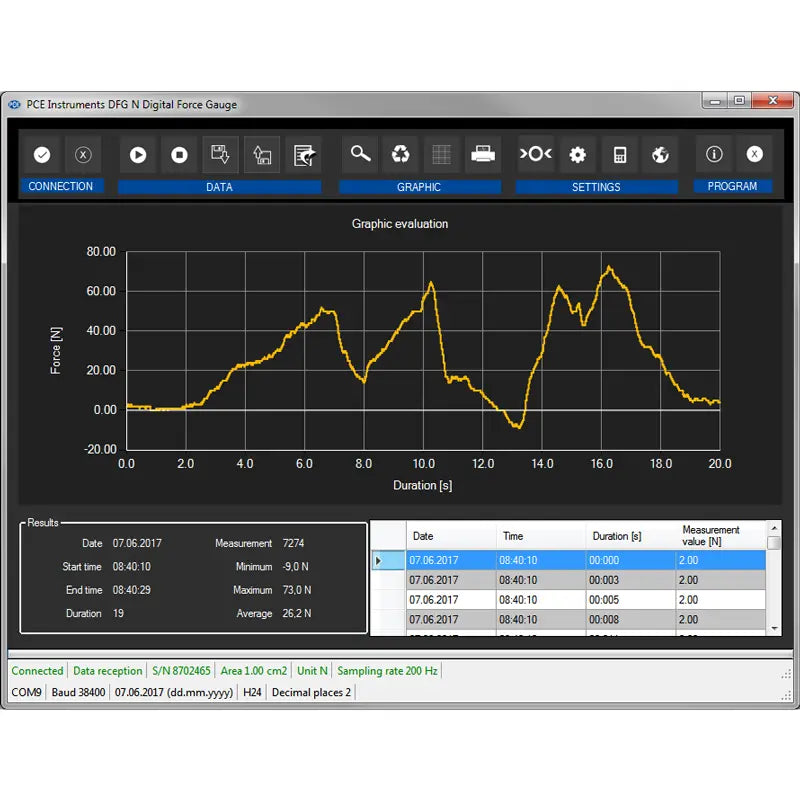

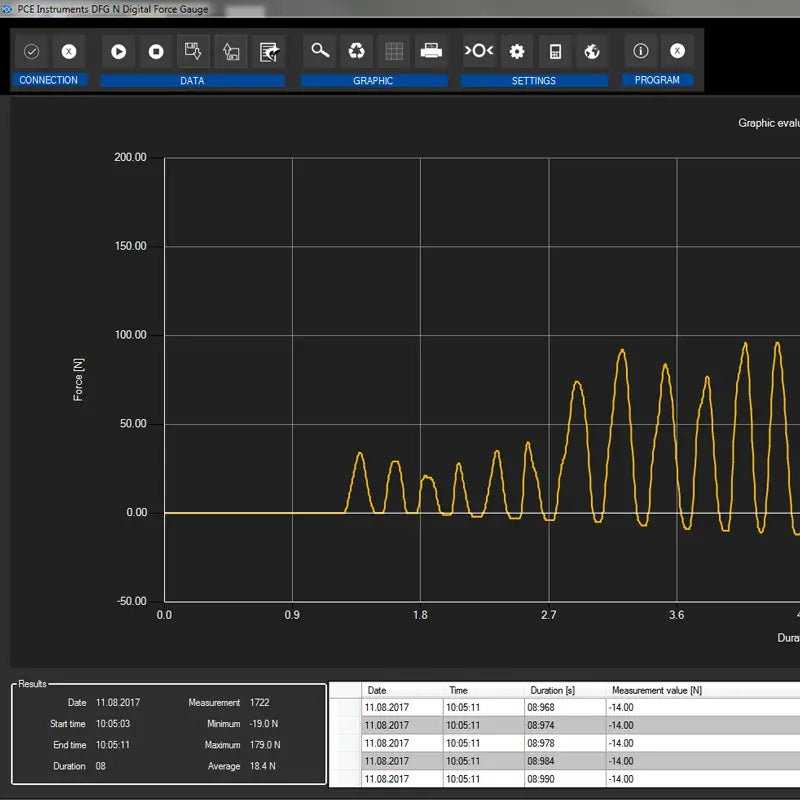

    •Included PC software for analysis.

    •Can operate on power adapter or battery.

    •Automotive industry.

    •Shipbuilding.

    •Various construction tasks.

    •Repair and maintenance services.

Specifications:

 Measuring range 0 ... 10 Nm / 7.38 ft-lb
 Resolution 0.005 Nm / 0.00369 ft-lb
 Accuracy ± 0.5% of the measuring range
 Units of measurement Nm, lbfft, kgfm
 Torque sensor mount 1/2" (12.5 x 12.5 mm) internal square
 Torsion measurement Left Right
 Display 2.8" TFT graphic display
 Alarm modes Inside Outside
 Storage For 100 measurement series with 8,000 measurement points each
 Power supply NiMh battery, 6V / 1600-mAh
 Battery life About 10 hours
 Power supply / charging adapter 12V / 1 A

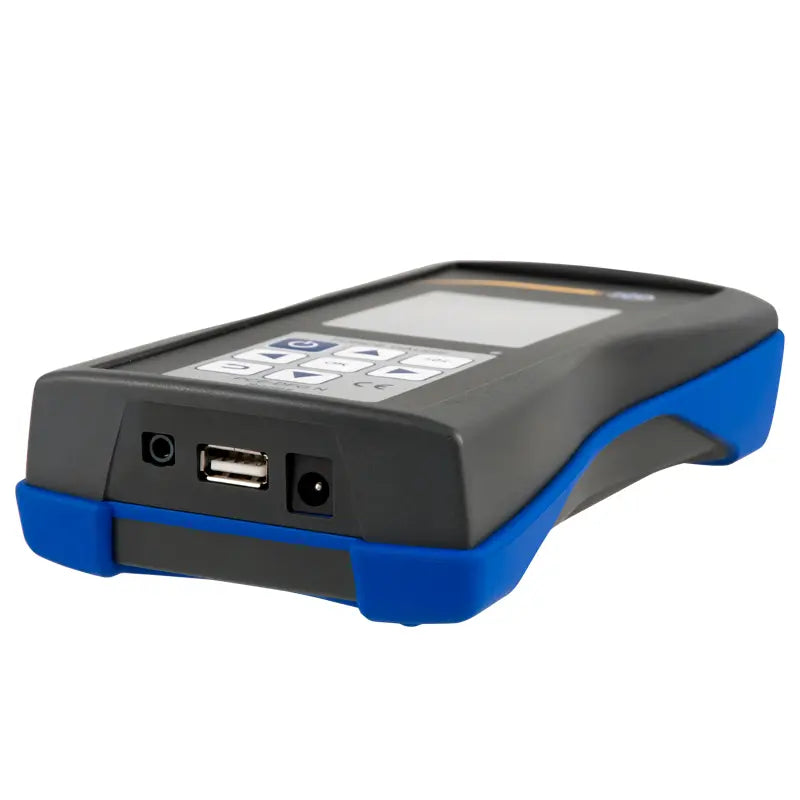

 Outputs Interface: USB, Switching output: 12V / 50-mA
 Protection class IP 54
 Operating and storage conditions -10 ... 50°C / 14 ... 122°F, 5 ... 95% RH non-condensing

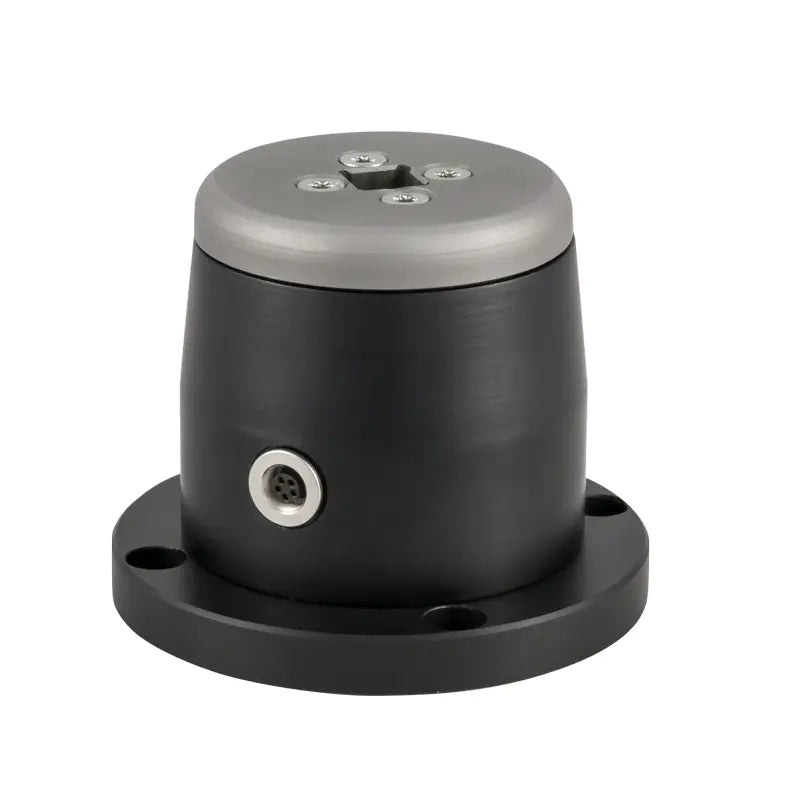

 Torque transducer dimensions H 85 mm / Ø 72 mm / Ø 104 mm (H 3.3 in / Ø 2.8 in / Ø 4.1 in)

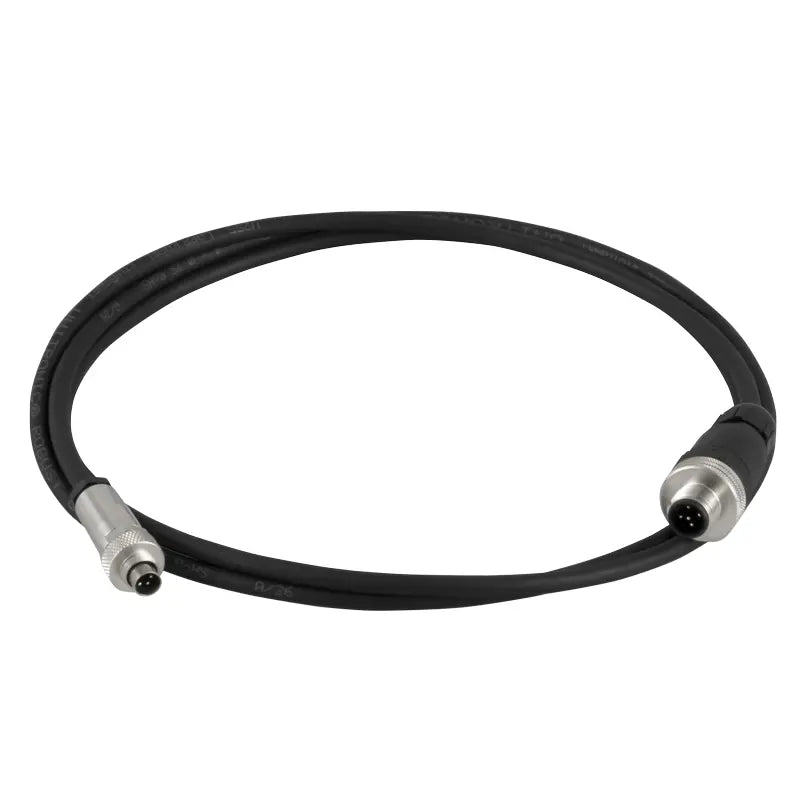

 Sensor cable length Approx. 1.5 m / 4.9 ft
 Dimensions handset 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
 Weight handset 540 g / 1.2 lbs
 Weight of the torsion transducer 985 g / 2.2 lbs
