PCE-DFG N 100TW - 100 Nm Torque Meter with Graphic Display & Transducer

Description:

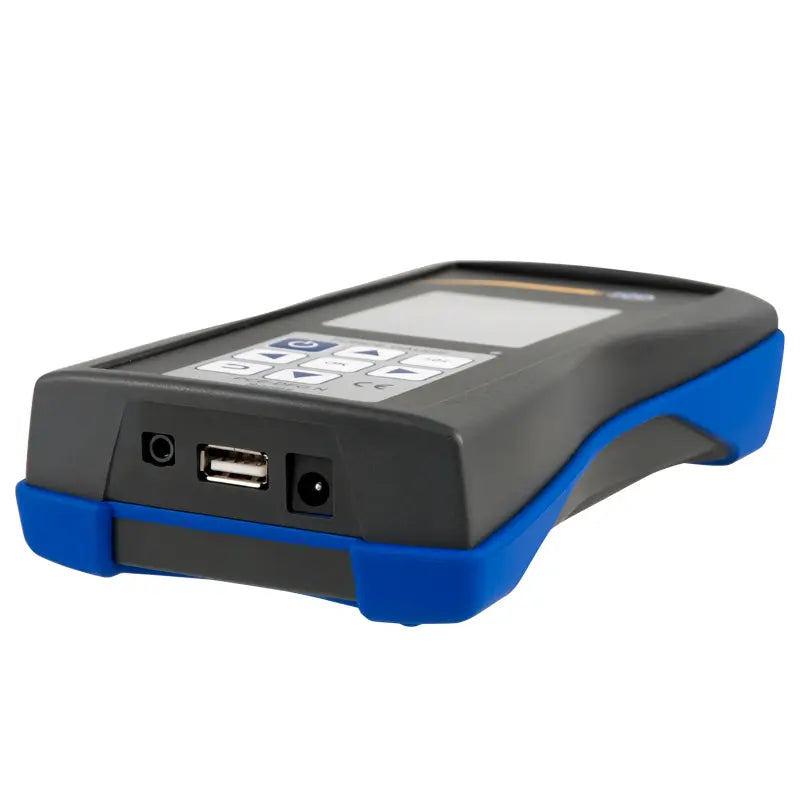

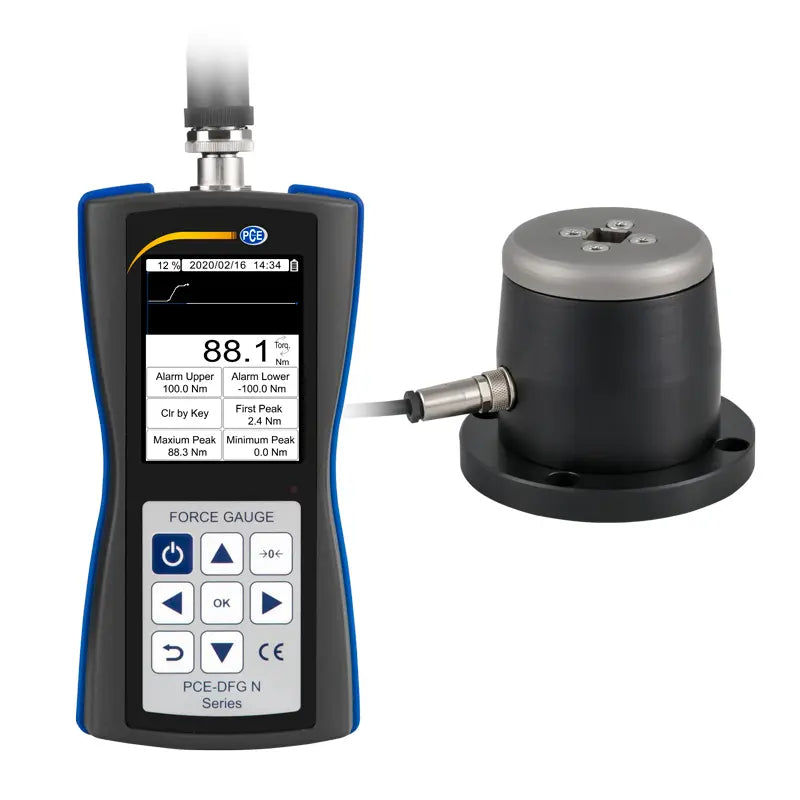

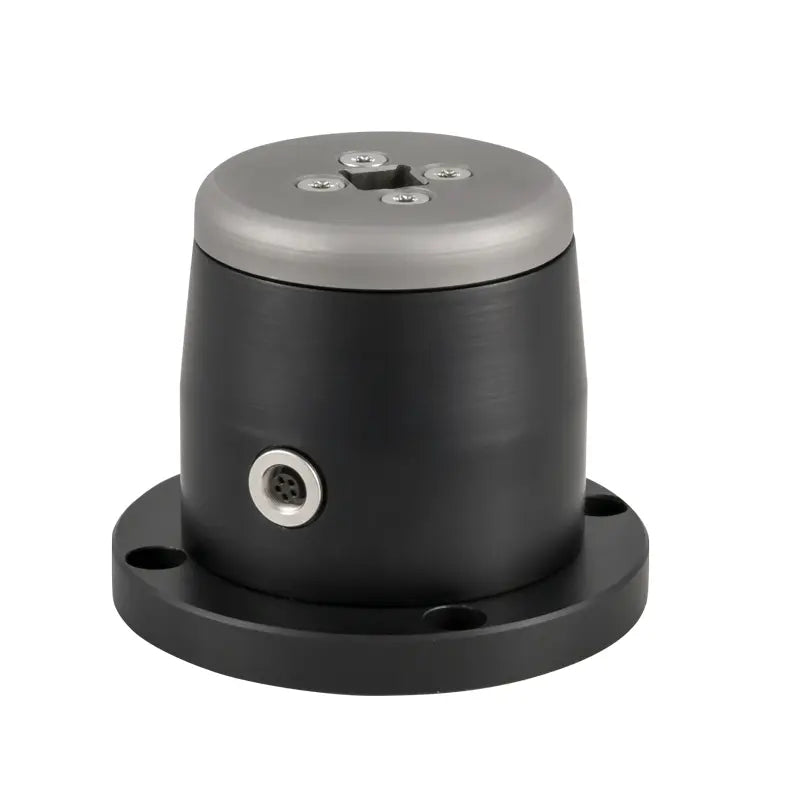

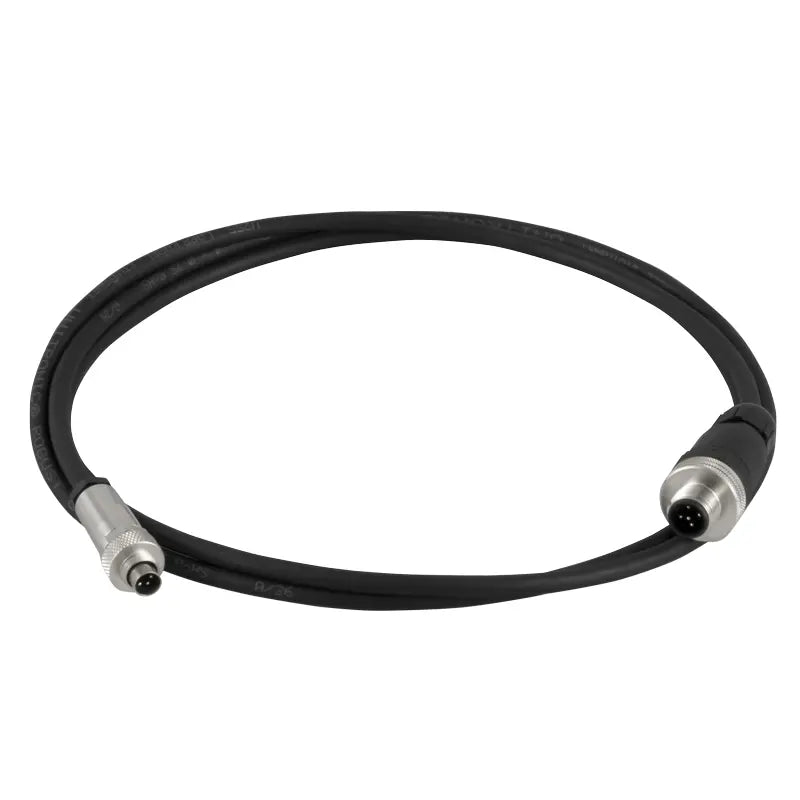

Introducing the PCE-DFG N 100TW torque meter, expertly crafted for precise torque measurement up to 100 Nm It is equipped with an external torque transducer featuring a 1/2" internal square, complemented by a user-friendly graphic display With a remarkable peak function and a high sampling rate of 1600 Hz, this device includes software designed for PC analysis, enhancing its functionality The torque wrench tester consists of a handheld measuring unit paired with a versatile 1.

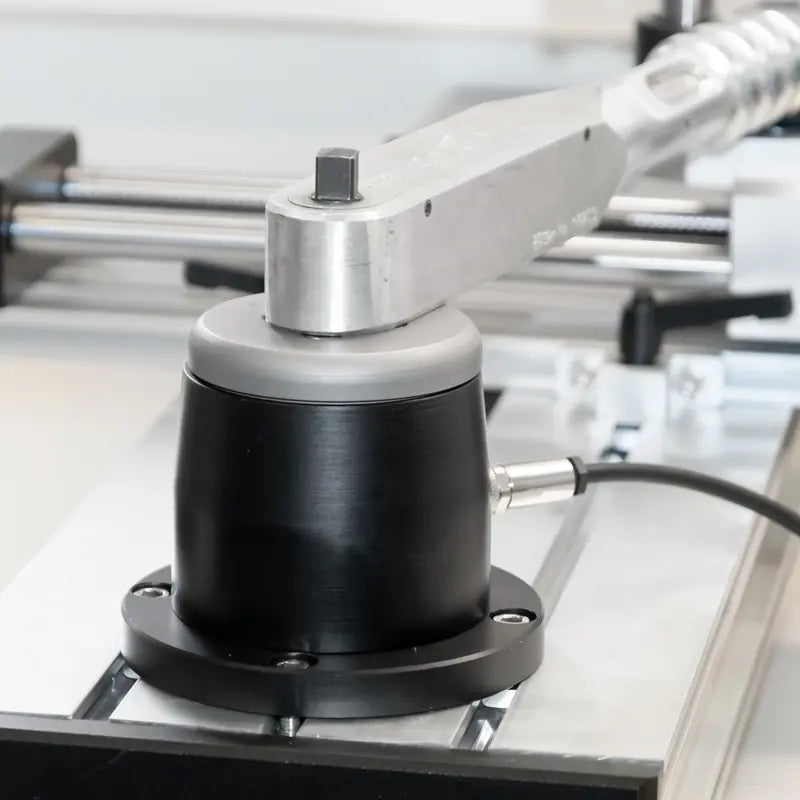

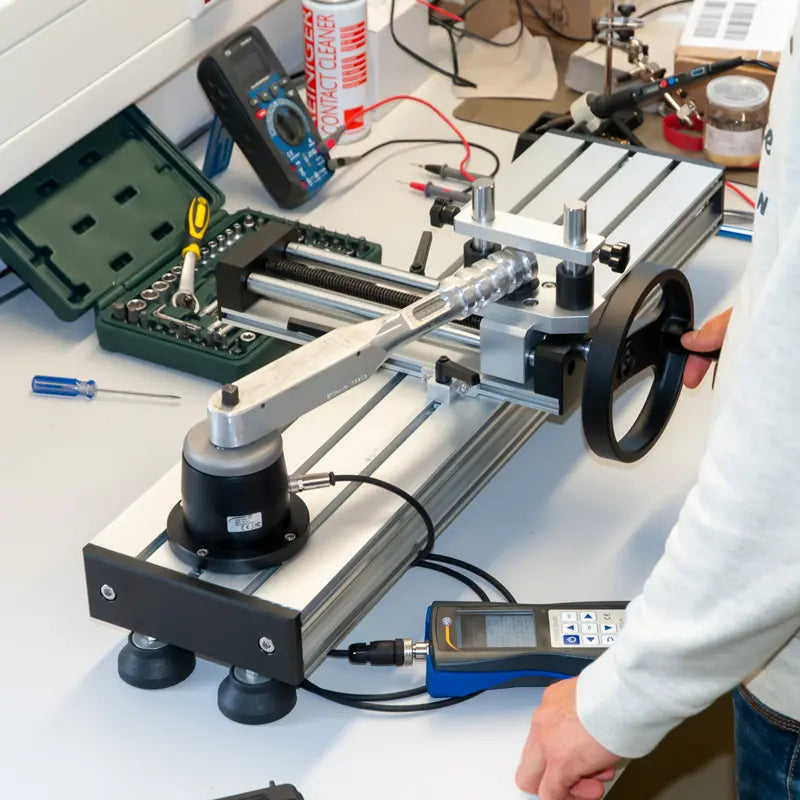

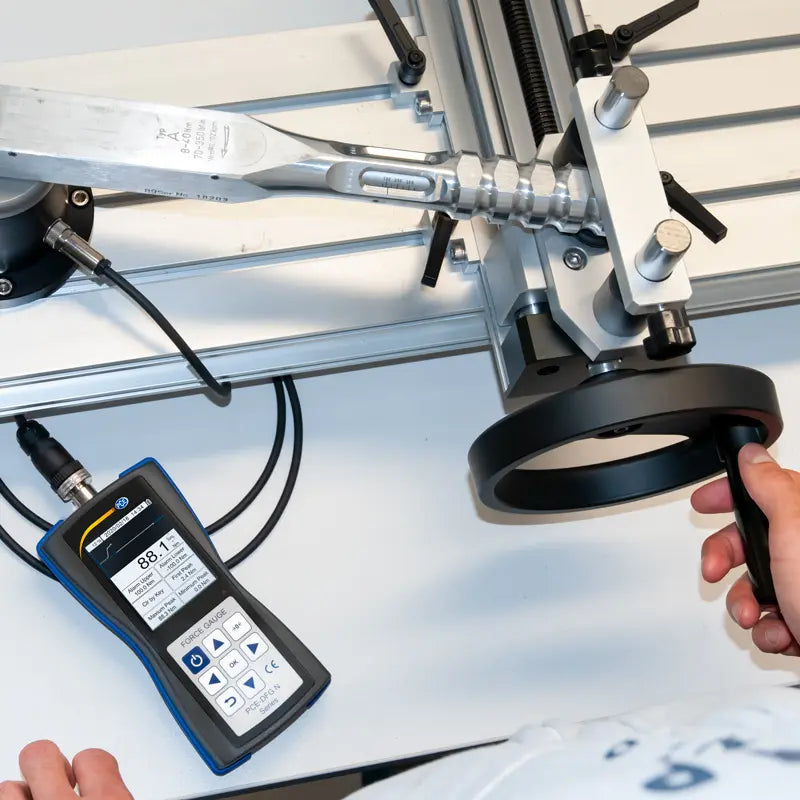

5 m (49 ft) cable, making it suitable for use on a test bench or within various test stands Pre-calibrated for immediate deployment, it also offers the option of calibration certificates to ensure a measurement accuracy of 05% uncertainty, making it an excellent reference tool for static torque assessments In addition to displaying release moments, the device is equipped with an overload warning system featuring adjustable alarm values for added safety.

Its capabilities extend to dynamic torsion measurement in both rotational directions, and it can be powered either by a battery or an adapter, providing flexibility for various testing environments.

Features and Benefits:

•Left / right torsion measurement.

•Sampling rate of up to 1600 Hz.

•Measurement accuracy of ± 0.5% of the measuring range.

•PEAK / Hold function.

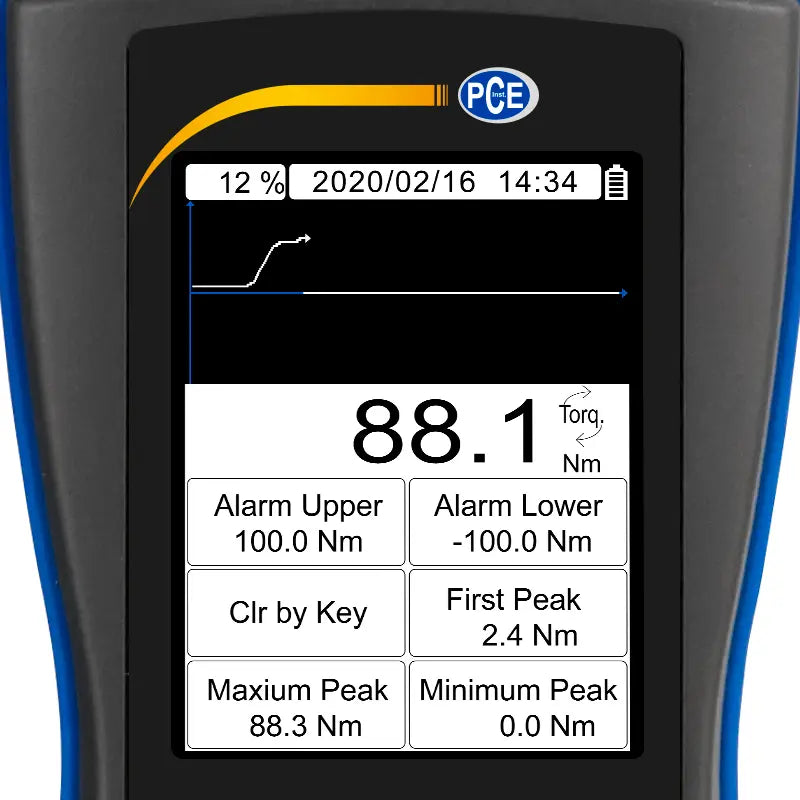

•2.8" TFT graphic display.

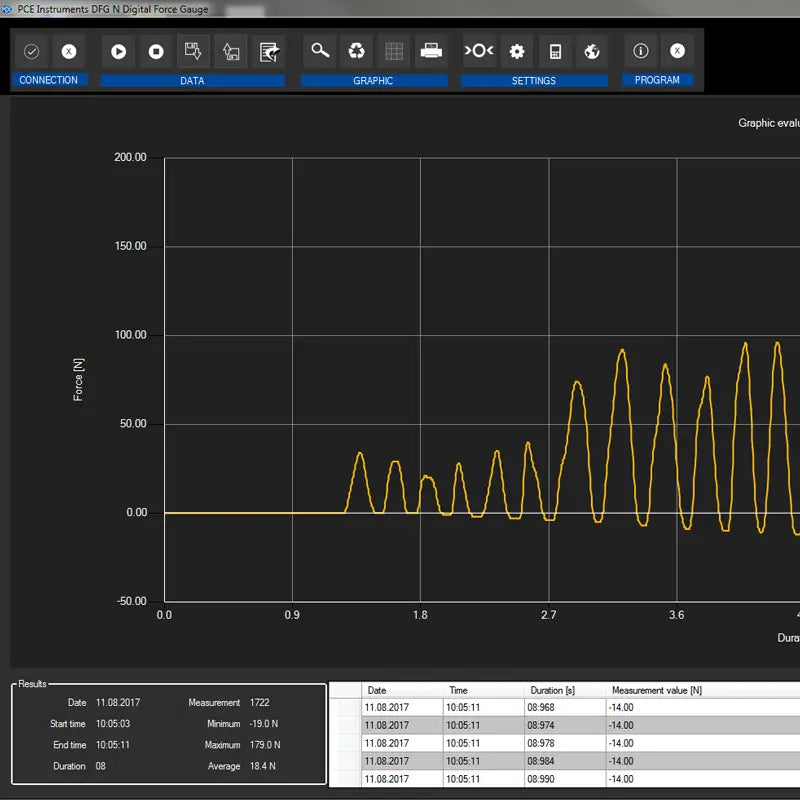

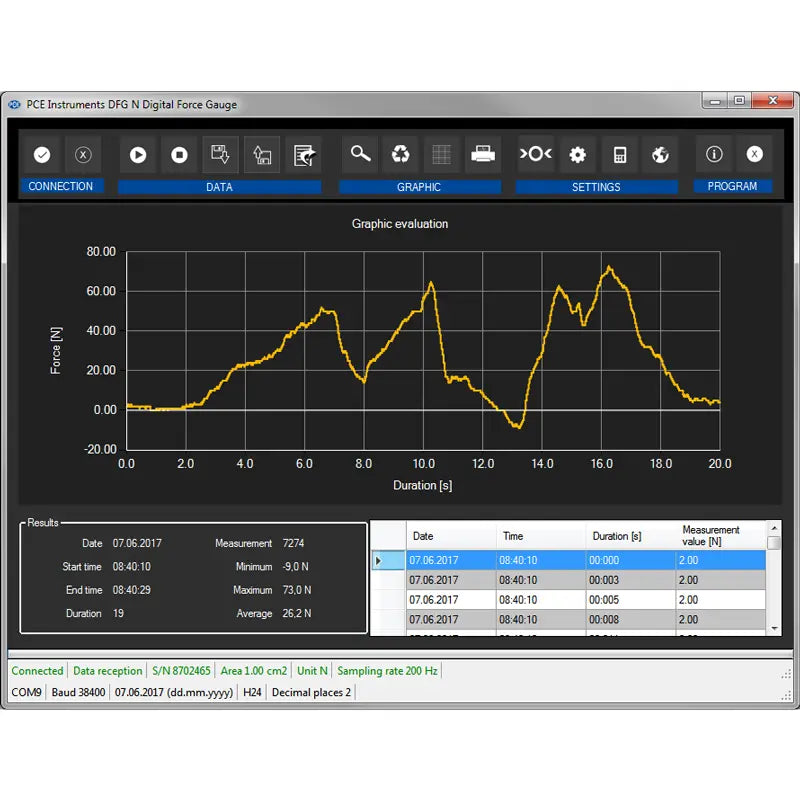

•Included PC software for detailed analysis.

•Operable on both battery and power adapter.

Specifications:
