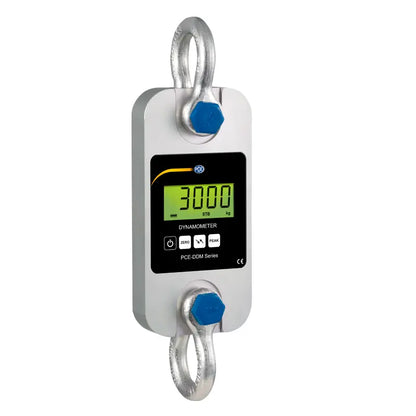

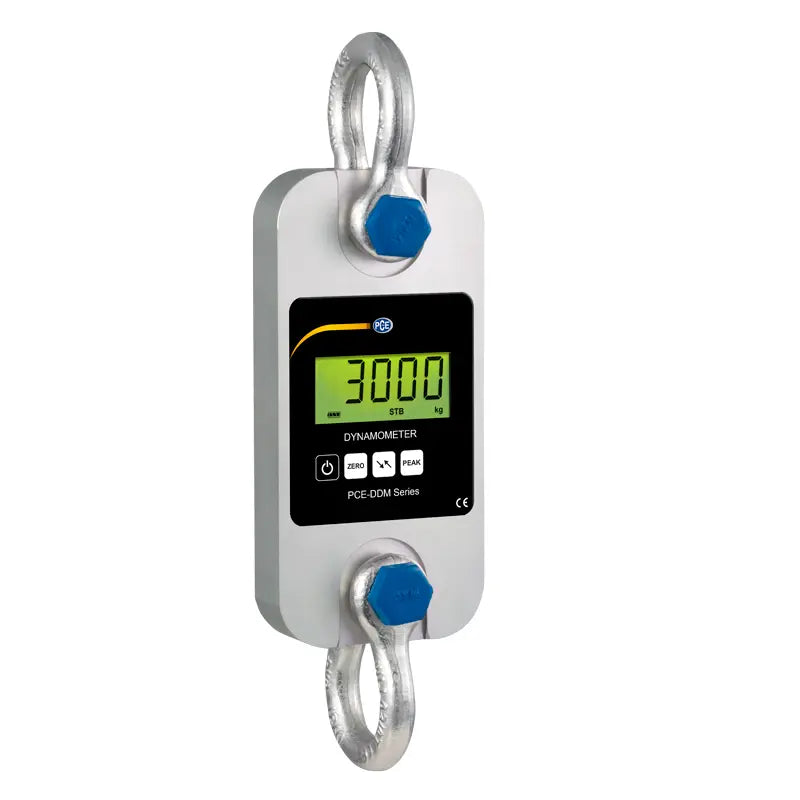

PCE-DDM 3WI - Portable 3t Hanging Scales with Carrying Case & Shackles

PCE-DDM 3WI - Portable 3t Hanging Scales with Carrying Case & Shackles

SKU: SKU: PCE-DDM 3WI   Download PDF

Select a Variant:
  • PCE-DDM 3WI - Portable 3t Hanging Scales with Carrying Case & Shackles
Qty:
Regular price Now $1,095.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,095.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-DDM 3WI Hanging Scales, an exceptional solution for accurate measurement of heavy loads and strong tensile forces With an impressive measurement capacity of up to 3 tons, these scales come equipped with two durable aluminum shackles and are conveniently packaged in a protective carrying case Calibrated by the manufacturer, these scales can also be certified to ISO standards for an additional fee.

Despite their robust design, they are lightweight and portable, making them easy to use on the go Key features include a peak hold function, summation capability, and the option to switch between various measurement units such as kg, t, lbs, N, and kN Perfect for both weighing and testing tension forces, this versatile instrument is a must-have for anyone in need of reliable measurement equipment.

Features and Benefits:

    •Measurement range up to 3000 kg / 30 kN.

    •High capacity.

    •Compact and portable.

    •Long battery life.

    •Peak hold function.

    •Summation function.

    •Selectable units of measurement: kg / t / lb / N / kN.

    •Adjustable gravitation range.

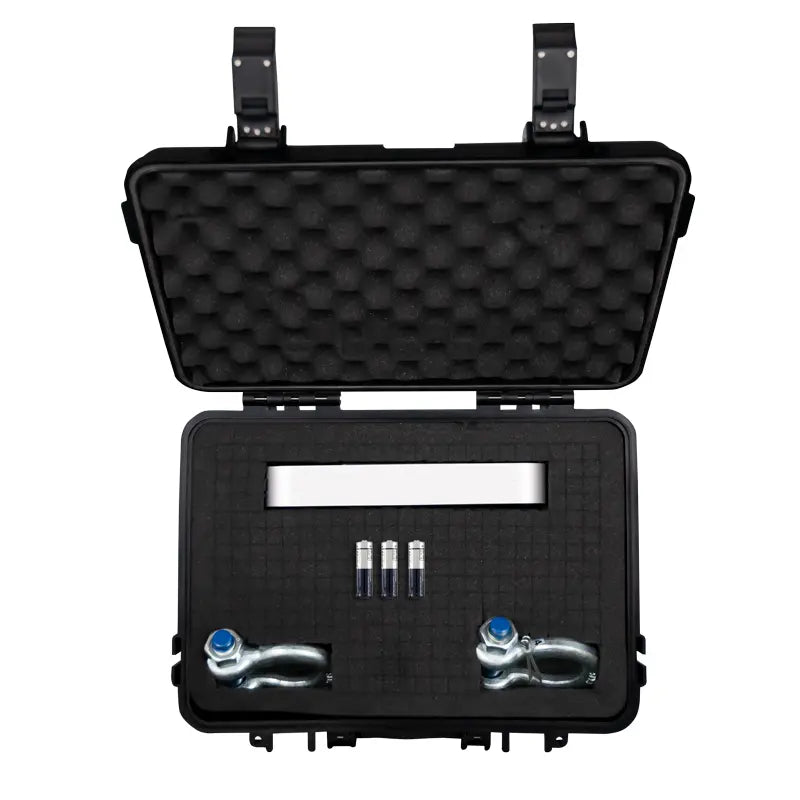

    •Shackles and carrying case included.

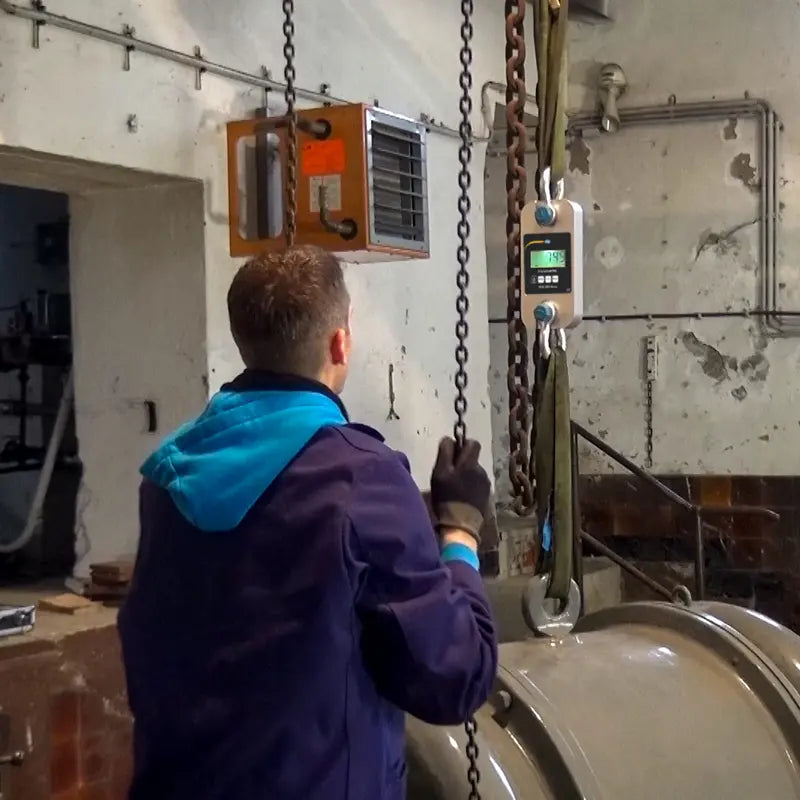

    •Weighing big loads.

    •Measuring strong tensile forces.

    •Tension force testing.

Specifications:

 Measuring range 3000 kg / 30 kN / 6614 lbs
 Resolution 1 kg / 10 N / 2.2 lbs
 Min. range 10 kg / 22 lbs
 Accuracy ±0.1 % of measurement range
 Tare range Max. 20 % of measurement range
 Display LCD with 22 mm / 0.9 in digit height
 Units of measurement kg / t / lb / N / kN
 Sampling rate 2.5 Hz
 Operating temperature -10° C ... +40° C / +14° F ... +104° F
 Power supply 3 x 1.5 V AA batteries
 Operating time Approx. 50 hours
