Product Information

Description:

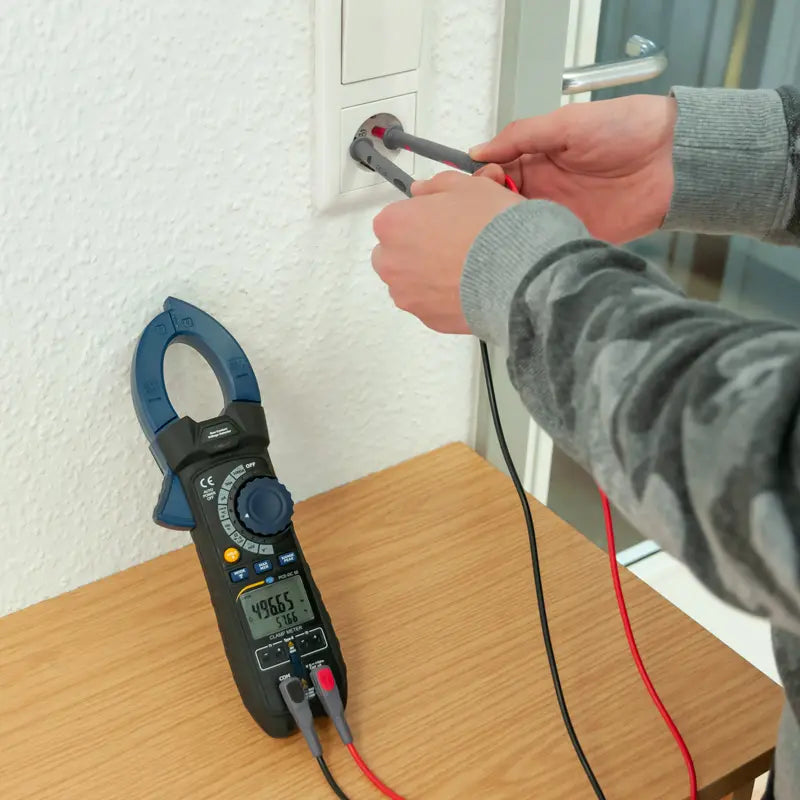

Experience the functionality of the PCE-DC voltmeter, an all-in-one measuring device designed for both AC and DC currents, capable of handling up to 1000 A This tool provides true RMS measurements and includes a Bluetooth feature for effortless data sharing and storage The voltmeter not only measures voltage but also assesses frequency, duty cycle, resistance, continuity, capacitors, and diodes, with a maximum conductor diameter accommodation of 48 mm.

For added versatility, it supports temperature readings via two type-K thermocouples, reaching up to 1000°C (1832°F) Built with a sturdy rubberized casing, this voltmeter is engineered to withstand impacts, making it a dependable option for a wide range of applications.

Features and Benefits:

    •True RMS measurement.

    •AC and DC current measurement up to 1000 A.

    •Integrated Bluetooth interface for data connection.

    •Temperature measurement via 2 type-K thermocouples.

    •Robust rubberized housing for impact resistance.

    •Automatic shutdown feature.

    •Non-contact voltage detection capability.

Specifications:

 Current measurement DC A lower range 500 μA
 Current measurement DC A accuracy ± (1% + 6 digits)
 Current measurement AC A lower range 500 μA
 Current measurement AC A accuracy ± (1.5% + 30 digits)
 Voltage measurement DC V lower range 500 mV
 Voltage measurement DC V accuracy ± (0.1% + 4 digits)
 Voltage measurement AC V lower range 500 mV
 Voltage measurement AC V accuracy ± (0.8% + 9 digits) (at 50 Hz / 60 Hz)
 Capacitance measurement lower range 500 nF
 Capacitance measurement accuracy ± (3.5% + 40 digits)
 Frequency measurement lower range 50 Hz
 Frequency measurement accuracy ± (0.3% + 2 digits)
 Temperature measurement range -100°C ... 1000°C / -148 ... 1832°F
 Maximum conductor diameter 48 mm
 Display Two lines 50,000 digits
 Sample rate 2 Hz
 AC bandwidth 50 Hz ... 400 Hz
 Power supply 9V block battery
 Dimensions (W x H x D) 230 x 76 x 40 mm
 Security IEC 1010-1 (2001), EN 61010-1 (2001), CAT III 600V, CAT II 1000V
