PCE-CT 80HP-FN3 - V-Groove Coating Thickness Gauge, 0-5000 µm Range

PCE-CT 80HP-FN3 - V-Groove Coating Thickness Gauge, 0-5000 µm Range

SKU: PCE-CT 80HP-FN3   Download PDF

Select a Variant:
  • PCE-CT 80HP-FN3 - V-Groove Coating Thickness Gauge, 0-5000 µm Range
Qty:
Now $1,306.00   Web pricing policy
BEFORE   $0.00 Now $1,306.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

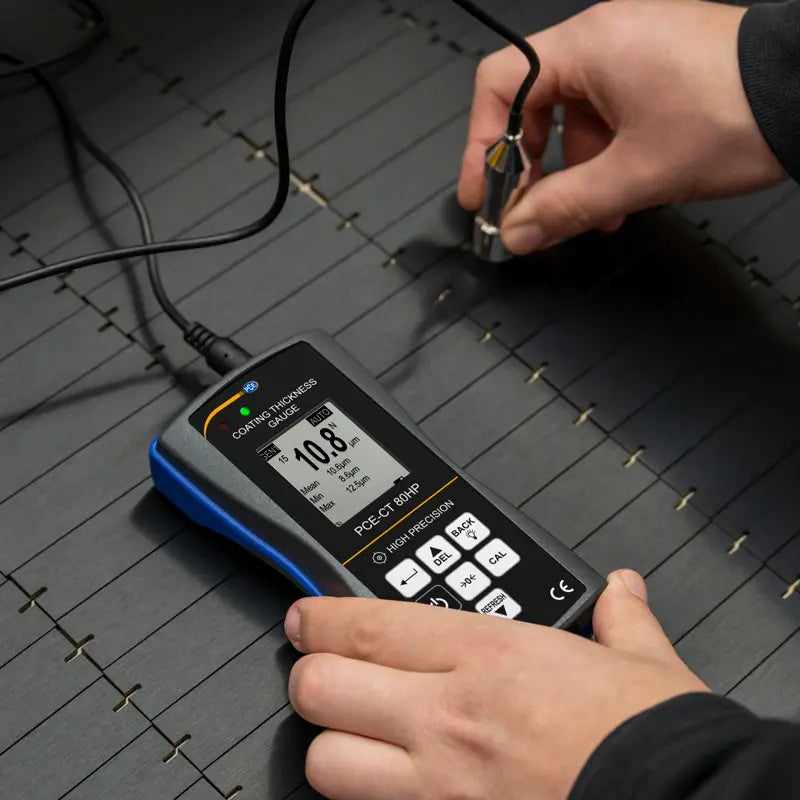

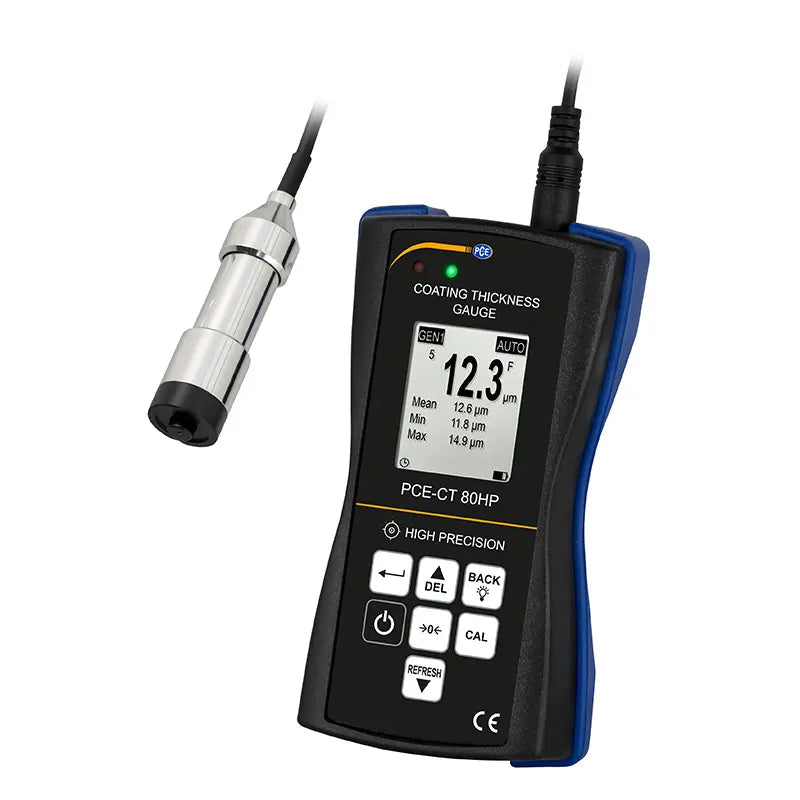

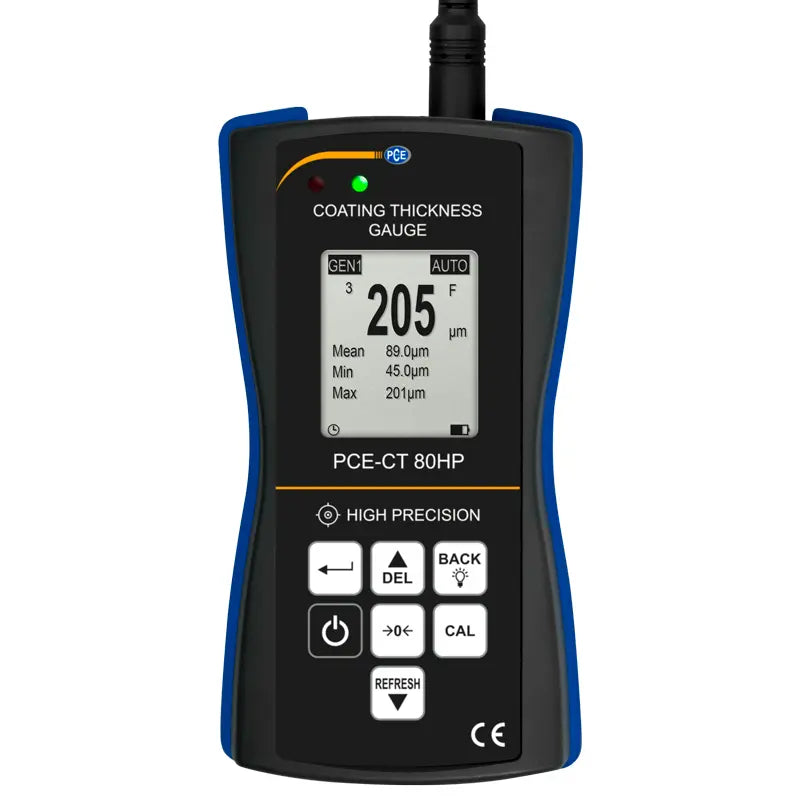

Introducing the PCE-CT 80HP-FN3 coating thickness gauge, designed for precision and versatility in various applications This advanced instrument features a specialized V-groove sensor, allowing it to measure coating thickness up to 5000 µm accurately Built with a durable housing to withstand tough conditions, it includes customizable alarm limits for your convenience With impressive accuracy within ±(1.

0% of reading + 05 µm), this gauge can effectively assess the thickness of coatings on both ferrous and non-ferrous metals, including plastics and paints Its unique sensor design enables measurements on convex and concave surfaces, expanding its usability The device can store up to 2,000 measurements, which can be easily exported in CSV format for comprehensive data analysis.

Features and Benefits:

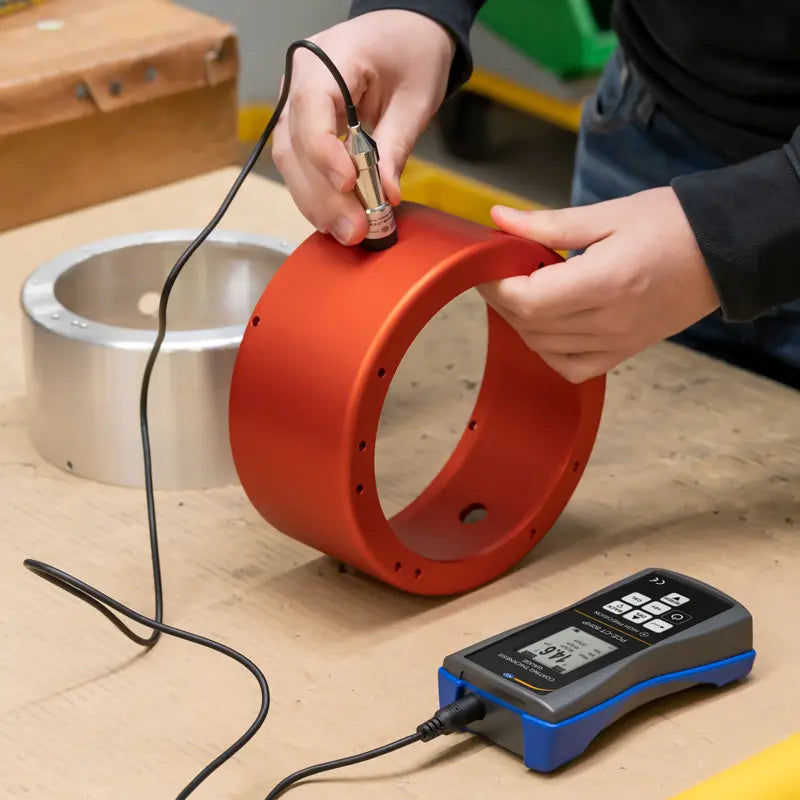

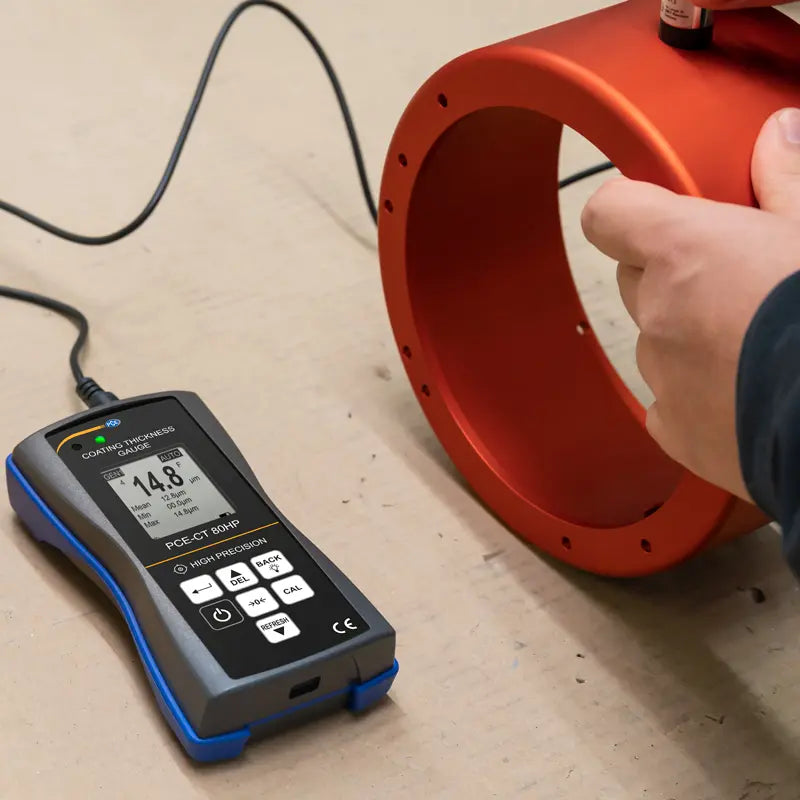

    •V-groove sensor for convex and concave surface measurements.

    •High accuracy for small coatings.

    •Adjustable limit values for precise measurements.

    •Data memory of up to 2000 readings.

    •Wide measuring range up to 5000 µm.

    •Optional ISO calibration certificate.

    •Used for quality assurance during incoming and final inspections.

    •Applicable in various industries for measuring coating thickness on metals.

Specifications:

 Measuring range (Fe) 0 ... 3000 µm
 Measuring range (NFe) 0 ... 3000 µm

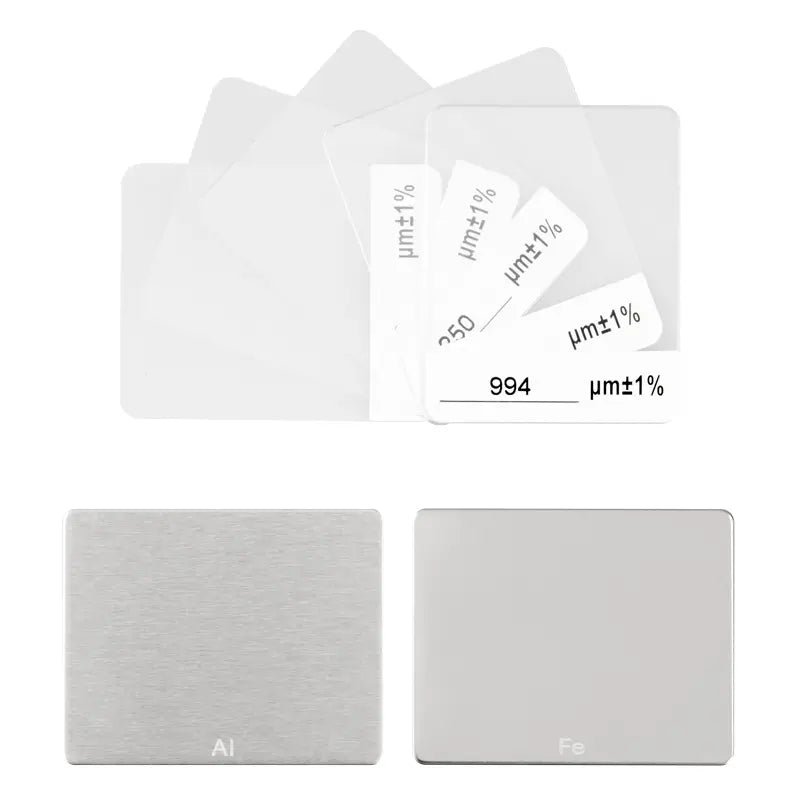

 Accuracy after foil calibration ±(1.0 % of measured value + 1 µm)
 Accuracy after zeroing ±(1.5 % of measured value + 1 µm)
 Probe diameter Ø17 mm / 0.67"
 Resolution 0.1 µm (<100 µm), 1 µm (>100 µm)
 Measurable materials Fe substrates like steel and iron, NFe substrates like aluminum and copper
 Min. radius of curvature (convex) 5 mm / 0.19"
 Min. radius of curvature (concave) 25 mm / 0.98"
 Min. measuring surface Ø17 mm / 0.67"
 Min. layer thickness 0.2 mm / 0.007" (on magnetic materials), 0.05 mm / 0.002" (on non-magnetic materials)
 Probe mode Auto material detection mode (Fe + NFe), Magnet mode (Fe), Eddy current mode (NFe)
 Calibration Multi-point calibration (1 ... 4 points for each group), Zero calibration
 Units µm, mm, mils

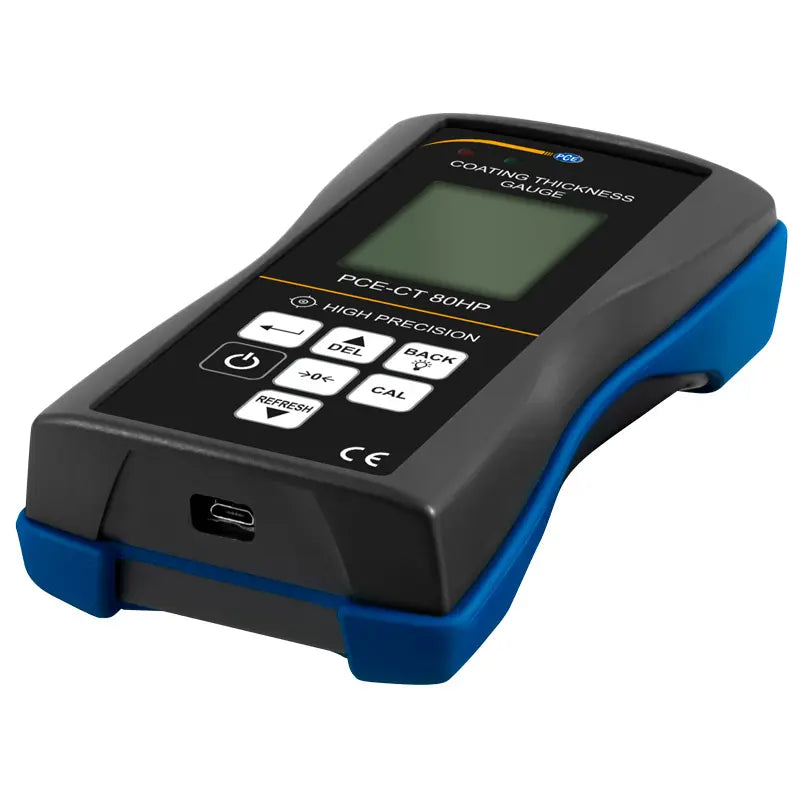

 Data transfer USB 2.0
 Memory Four measurement groups with automatic storage and max. 2000 readings
 Statistics functions Number of measured values, mean, minimum, maximum, standard deviation
 Alarm Display when the adjustable value is exceeded
 Automatic shutdown Auto. shutdown mode (3 min.)
 Power supply 3 x 1.5 V AAA batteries
 Display 128 x 128 px LCD display with battery status and error detection
 Operating conditions 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
