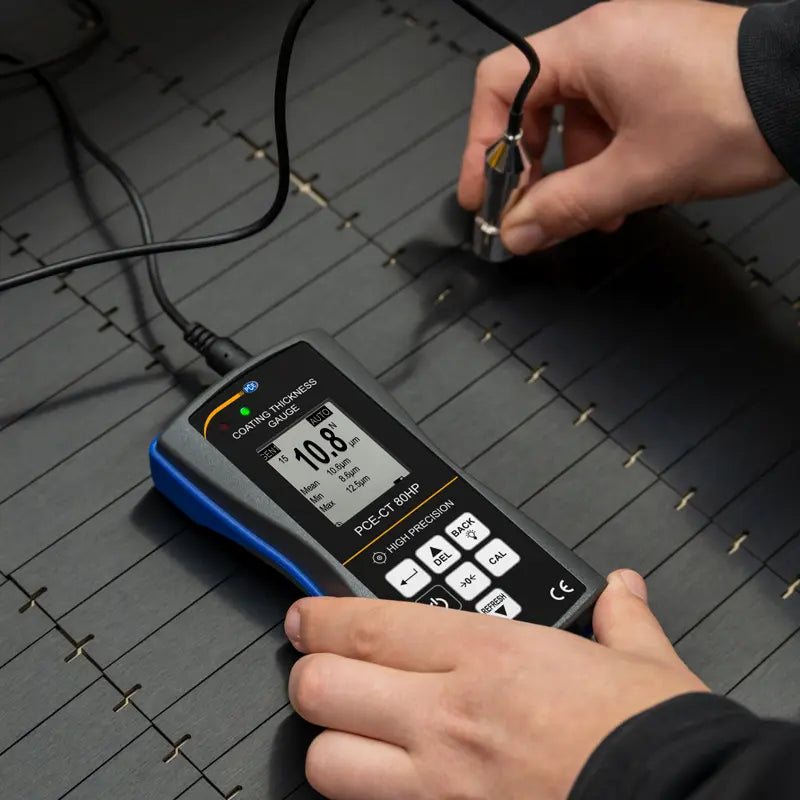

PCE-CT 80HP-FN2D5 - V-Groove Coating Thickness Gauge, 0-5000 µm Range

PCE-CT 80HP-FN2D5 - V-Groove Coating Thickness Gauge, 0-5000 µm Range

SKU: PCE-CT 80HP-FN2D5   Download PDF

Select a Variant:
  • PCE-CT 80HP-FN2D5 - V-Groove Coating Thickness Gauge, 0-5000 µm Range
Qty:
Now $1,298.00   Web pricing policy
BEFORE   $0.00 Now $1,298.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover accurate readings with this advanced coating thickness gauge, equipped with a V-groove sensor It measures from 0 to 5000 µm and allows for customizable alarm limits to enhance your monitoring The sturdy housing is complemented by built-in software and data storage capabilities With an exceptional accuracy of ±(10% of reading + 05 µm), it’s perfect for evaluating thickness on plastics, paints, and various coatings across ferrous and non-ferrous metals.

The unique V-groove design ensures you can effectively measure both convex and concave surfaces Store up to 2,000 measurements for future analysis, which can be easily exported in CSV format using compatible software Additionally, the integrated alarm feature helps maintain quality during inspections The housing is reinforced with rubber protection for the electronic components, and an optional ISO calibration certificate is also available for added reliability.

Features and Benefits:

    •Practical V-groove on the measuring heads.

    •High accuracy for small coatings.

    •Adjustable limit values.

    •Data memory for 2000 readings.

    •Measuring range of up to 0 ... 5000 µm.

    •Optionally with ISO calibration certificate.

    •Quality assurance in incoming and final inspections.

    •Measurement of coating thickness on various substrates.

Specifications:

 Measuring range (Fe) 0 ... 2500 µm
 Measuring range (NFe) 0 ... 2500 µm
 Accuracy after foil calibration ±(1.0 % of measured value + 1 µm)
 Accuracy after zeroing ±(1.5 % of measured value + 1 µm)
 Probe diameter Ø17 mm / 0.67"
 Resolution (0-100 µm) 0.1 µm
 Resolution (>100 µm) 1 µm
 Min. radius of curvature (convex) 5 mm / 0.19"
 Min. radius of curvature (concave) 25 mm / 0.98"
 Min. measuring surface Ø17 mm / 0.67"
 Min. layer thickness (magnetic materials) 0.2 mm / 0.007"
 Min. layer thickness (non-magnetic materials) 0.05 mm / 0.002"
 Probe mode Auto material detection mode (Fe + NFe), Magnet mode (Fe), Eddy current mode (NFe)
 Calibration Multi-point calibration (1 ... 4 points for each group), Zero calibration
 Units µm, mm, mils
 Data transfer USB 2.0
 Memory Four measurement groups with autom. storage and max. 2000 readings (GEN mode)
 Statistics functions Number of measured values, mean, minimum, maximum, standard deviation
 Alarm Display when the adjustable value is exceeded
 Automatic shutdown auto. shutdown mode (3 min.)
 Power supply 3 x 1.5 V AAA batteries
 Display 128 x 128 px LCD display
 Operating conditions 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
