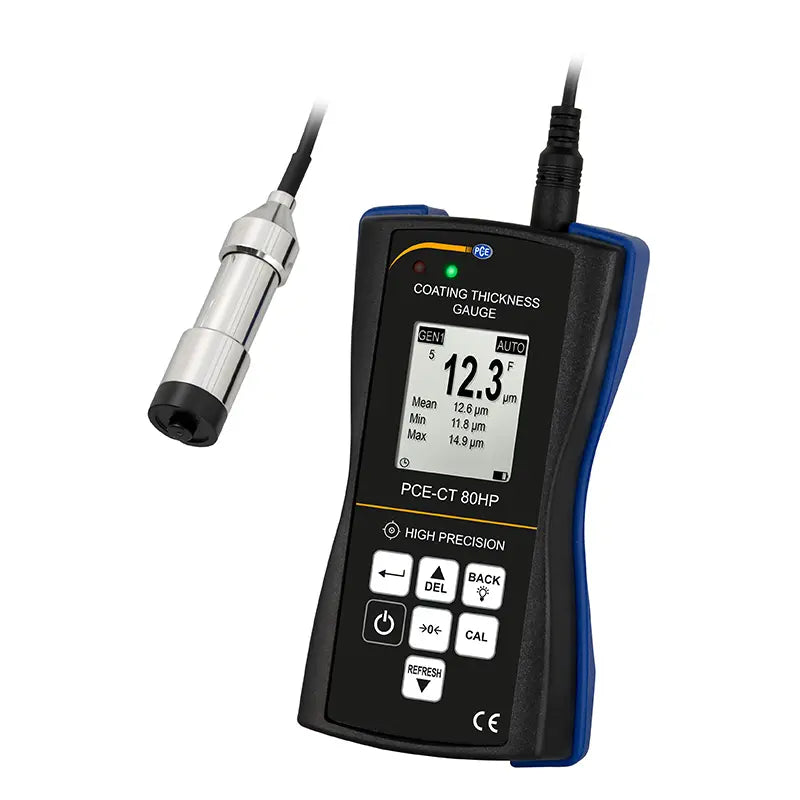

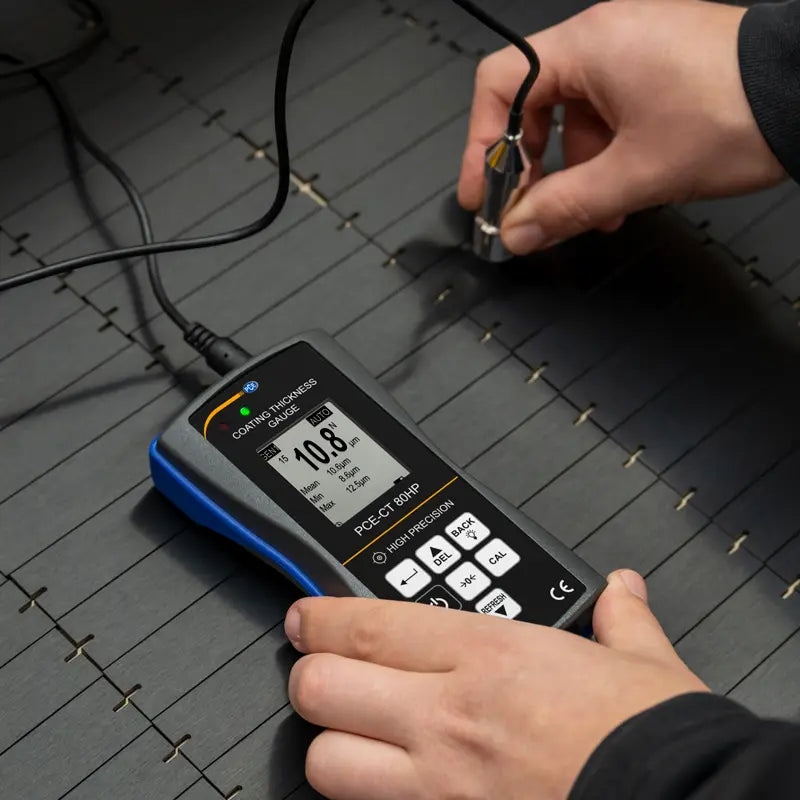

PCE-CT 80HP-FN2 - Precision Coating Thickness Gauge with V-Groove Sensor

PCE-CT 80HP-FN2 - Precision Coating Thickness Gauge with V-Groove Sensor

SKU: PCE-CT 80HP-FN2   Download PDF

Select a Variant:
  • PCE-CT 80HP-FN2 - Precision Coating Thickness Gauge with V-Groove Sensor
Qty:
Now $1,280.00   Web pricing policy
BEFORE   $0.00 Now $1,280.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Optimize your measuring experience with this advanced coating thickness gauge Featuring a V-groove sensor, it boasts a measurement capacity of up to 5000 µm This gauge is equipped with adjustable alarm limits and is housed in a sturdy casing for enhanced durability It ensures high precision with an accuracy of ±(10% of reading + 05 µm), making it ideal for assessing coating thickness across various surfaces, including both convex and concave shapes.

With the capability to store up to 2000 measurements, you can easily transfer data to your computer for in-depth analysis using the included software Additionally, the built-in limit value alarm function supports effective quality control, providing reliable measurement outcomes for all your quality assurance needs.

Features and Benefits:

    •Practical V-groove on the measuring heads.

    •High accuracy for small coatings.

    •Adjustable limit values.

    •Data memory for 2000 readings.

    •Measuring range of up to 5000 µm.

    •Optionally with ISO calibration certificate.

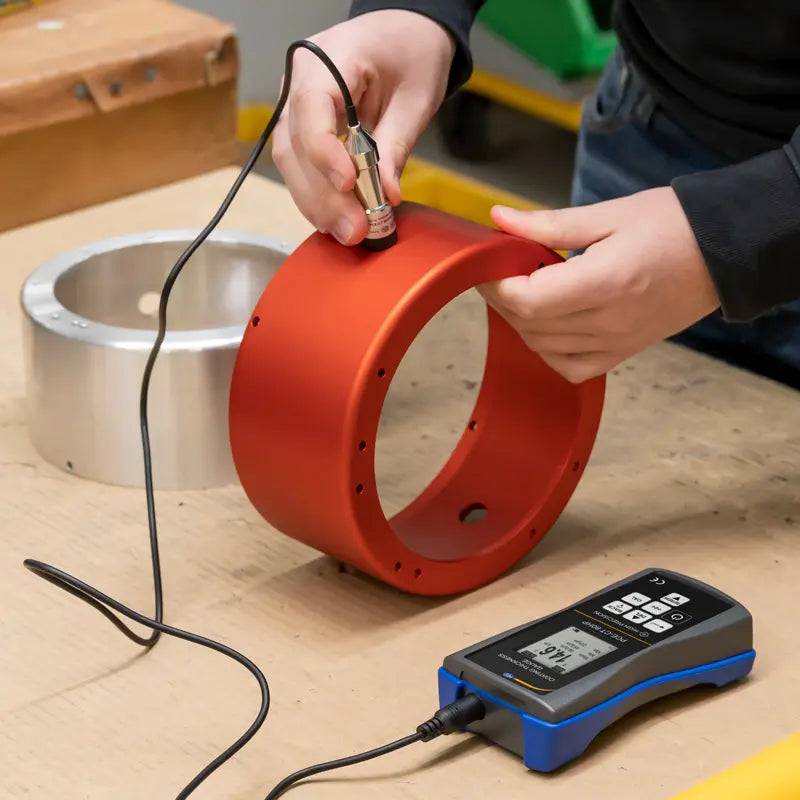

    •Determining thickness of plastics, paints, and coatings on ferrous and non-ferrous metals.

    •Quality assurance in incoming and final inspection.

Specifications:

 Measuring range (Fe): 0 ... 2000 µm
 Measuring range (NFe): 0 ... 2000 µm

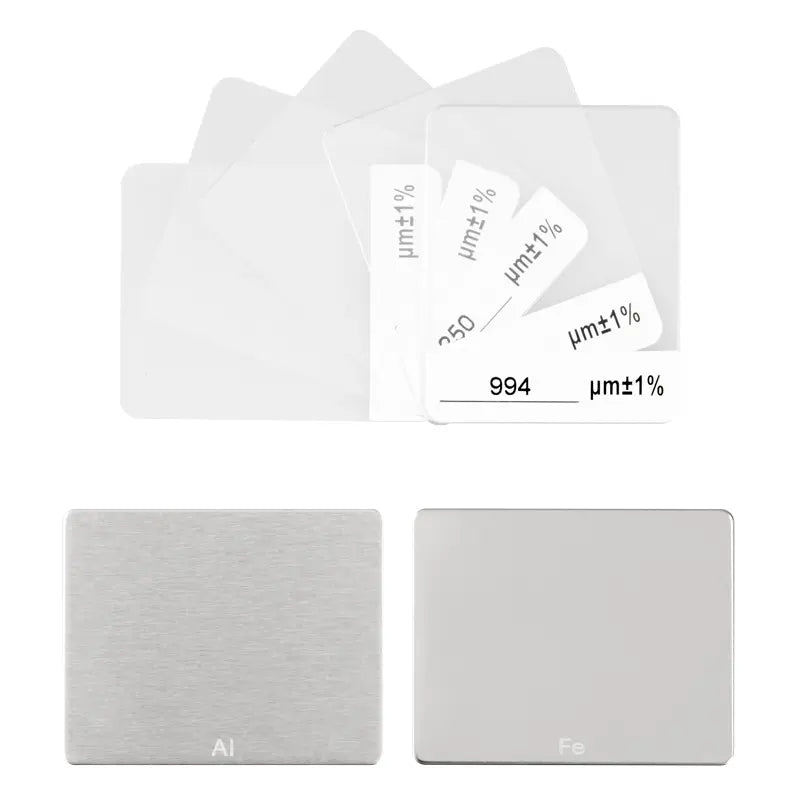

 Accuracy after foil calibration: ±(1.0 % of measured value + 1 µm)
 Accuracy after zeroing: ±(1.5 % of measured value + 1 µm)
 Probe diameter: Ø17 mm / 0.67"
 Resolution: 0.1 µm (<100 µm), 1 µm (>100 µm)
 Measurable materials: Fe substrates (steel and iron), NFe substrates (aluminum and copper)
 Min. radius of curvature convex: 5 mm / 0.19"
 Min. radius of curvature concave: 25 mm / 0.98"
 Min. measuring surface: Ø17 mm / 0.67"
 Min. layer thickness (magnetic materials): 0.2 mm / 0.007"
 Min. layer thickness (non-magnetic materials): 0.05 mm / 0.002"
 Probe mode: Auto material detection mode (Fe + NFe), Magnet mode (Fe), Eddy current mode (NFe)
 Calibration: Multi-point calibration (1 ... 4 points for each group), Zero calibration
 Units: µm, mm, mils

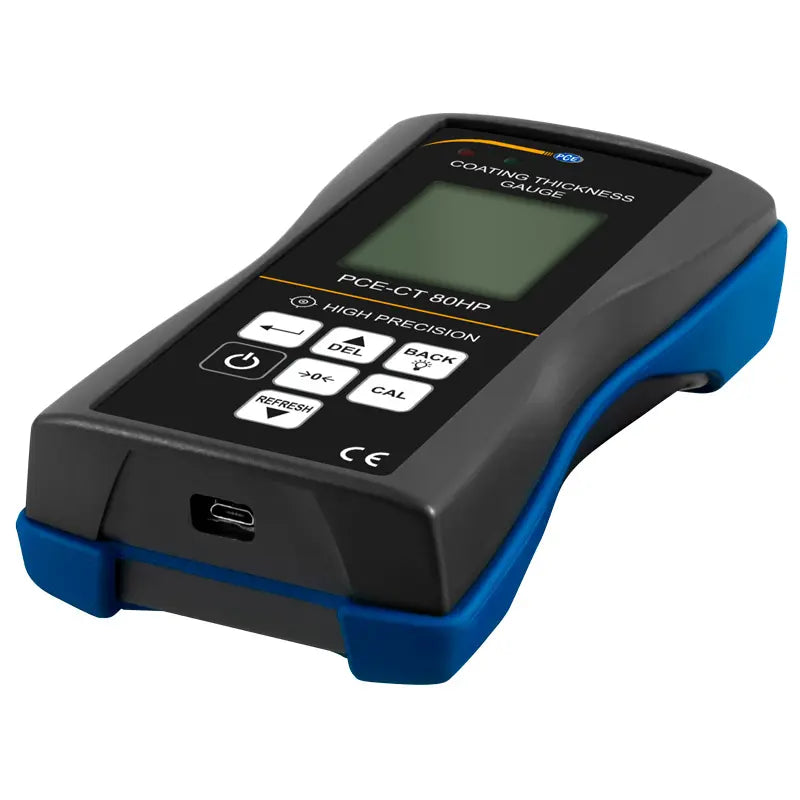

 Data transfer: USB 2.0
 Memory: Four measurement groups with automatic storage and max. 2000 readings (GEN mode)
 Statistics functions: Number of measured values, mean, minimum, maximum, standard deviation
 Alarm: Display when the adjustable value is exceeded for upper and lower alarm limit
 Automatic shutdown: Auto. shutdown mode (3 min.)
 Power supply: 3 x 1.5 V AAA batteries

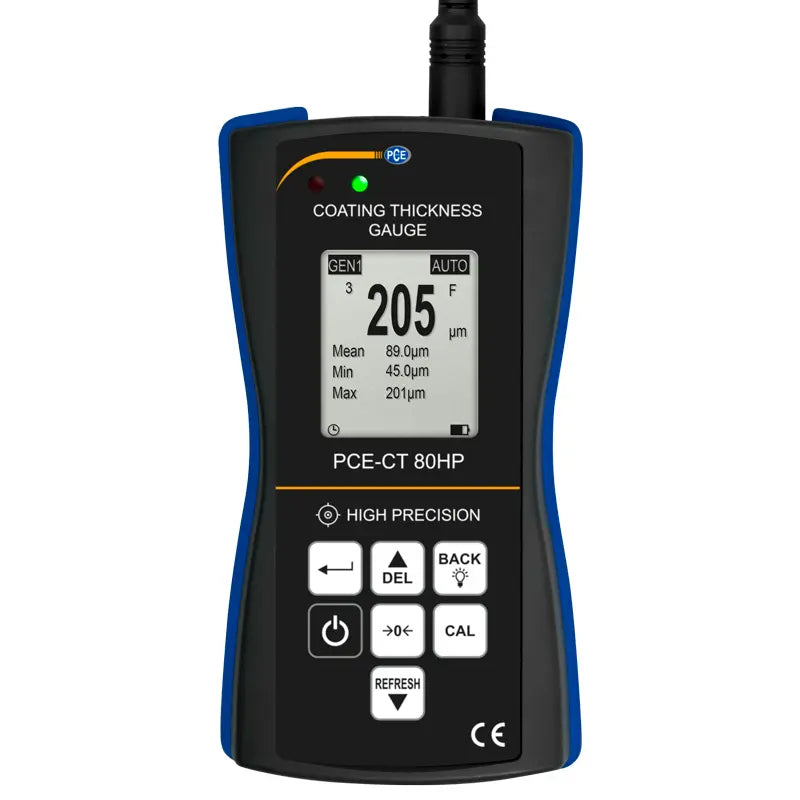

 Display: 128 x 128 px LCD display
 Additional displays: Battery status, error detection
 Operating conditions: 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions: -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
