PCE-CT 80HP-FN1D5 - V-Groove Coating Thickness Gauge, 0-5000 µm Range

PCE-CT 80HP-FN1D5 - V-Groove Coating Thickness Gauge, 0-5000 µm Range

SKU: PCE-CT 80HP-FN1D5

Select a Variant:
  • PCE-CT 80HP-FN1D5 - V-Groove Coating Thickness Gauge, 0-5000 µm Range
Qty:
Now $1,267.00   Web pricing policy
BEFORE   $0.00 Now $1,267.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Description:

Discover the precision of our coating thickness gauge equipped with a V-groove sensor, capable of measuring thicknesses from 0 to 5000 µm This device includes adjustable alarm limits, enhancing its functionality Built within a durable housing, it features sophisticated software and generous data storage options With an impressive accuracy rate of ±(10% of reading + 05 µm), it efficiently measures the thickness of various materials like plastics, paints, and coatings on both ferrous and non-ferrous metals.

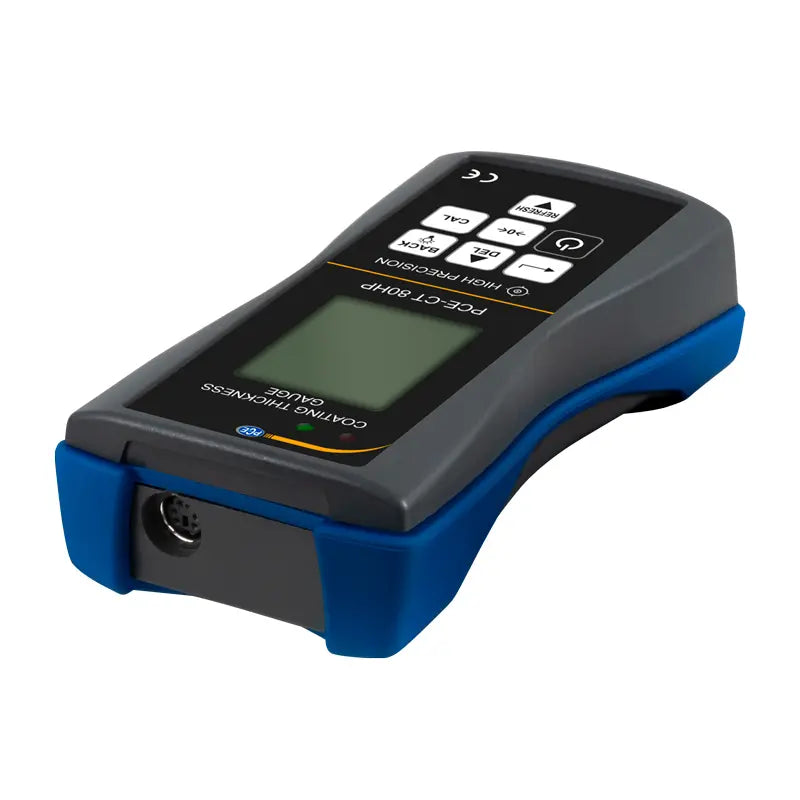

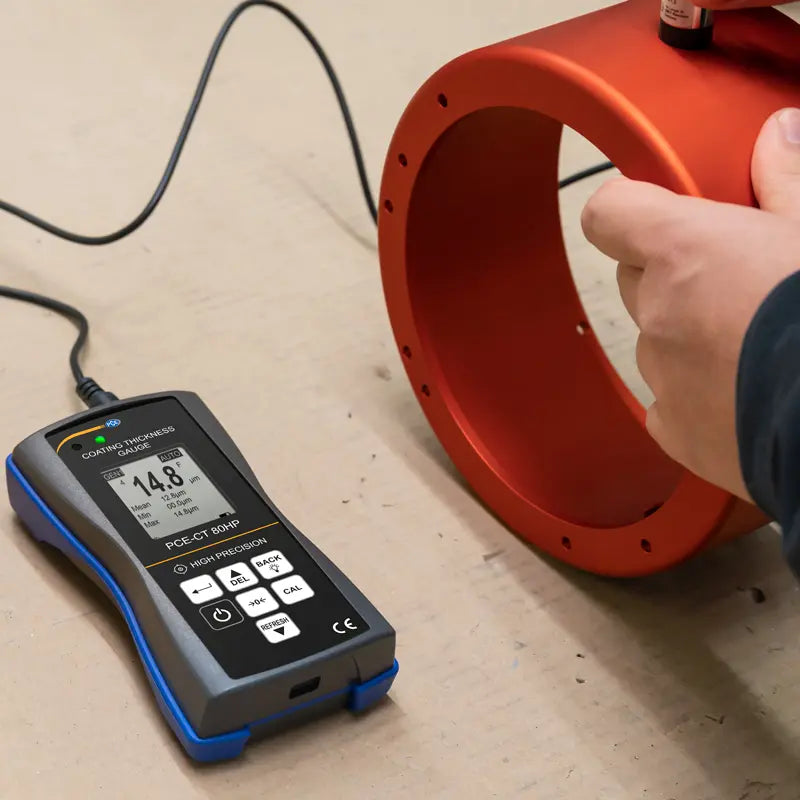

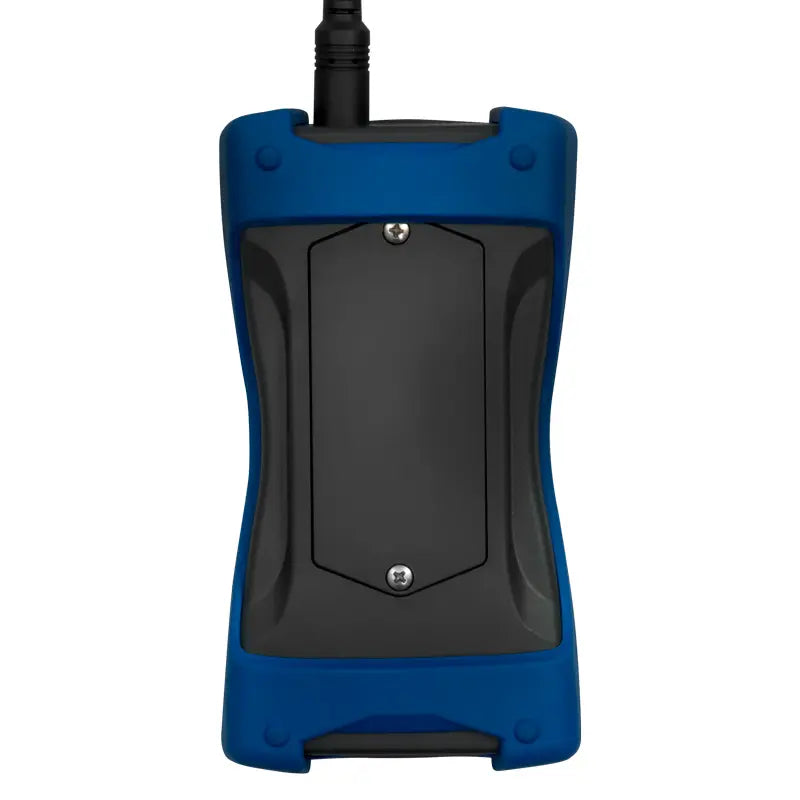

The innovative V-groove sensor allows for reliable readings on both convex and concave surfaces, making it versatile for multiple measuring tasks Store up to 2000 measurements, which can be effortlessly transferred to your computer for analysis in CSV format The integrated limit alarm function is particularly useful for maintaining quality control during inspections Plus, the protective rubberized housing safeguards the electronics, ensuring durability in any environment.

Optional ISO calibration certificates are available for added reassurance.

Features and Benefits:

    •Practical V-groove on the measuring heads.

    •High accuracy for small coatings.

    •Adjustable limit values.

    •Data memory for 2000 readings.

    •Measuring range of up to 0 ... 5000 µm.

    •Optionally with ISO calibration certificate.

    •Quality assurance during incoming and final inspection.

    •Measuring thickness of coatings on various surfaces.

Specifications:

 Measuring range (Fe) 0 ... 1500 µm
 Measuring range (NFe) 0 ... 1500 µm

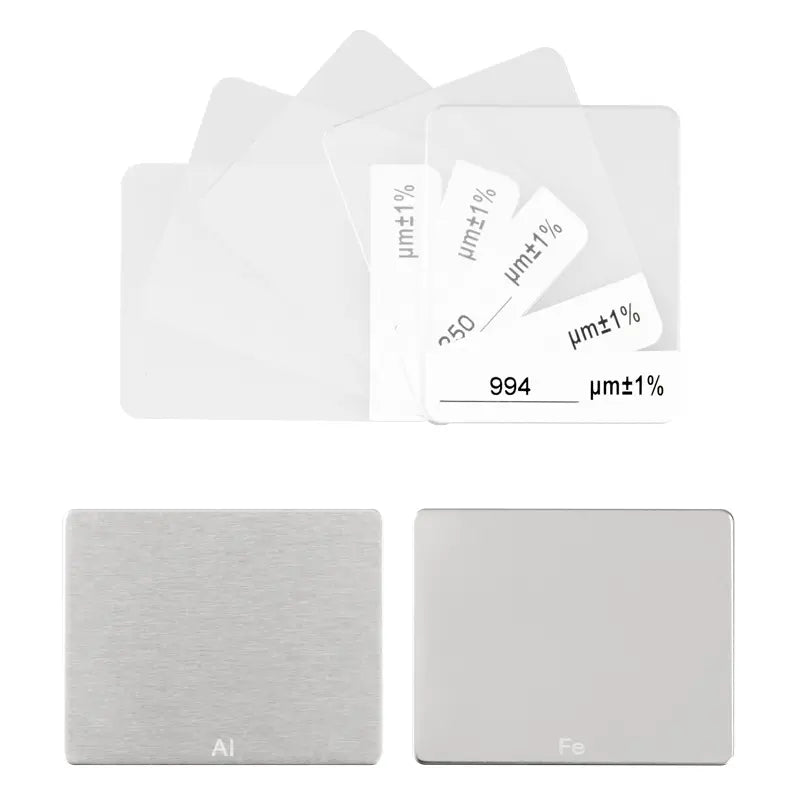

 Accuracy after foil calibration ±(1.0 % of measured value + 1 µm)
 Accuracy after zeroing ±(1.5 % of measured value + 1 µm)
 Probe diameter Ø17 mm / 0.67"
 Resolution 0.1 µm (<100 µm), 1 µm (>100 µm)
 Measurable materials Fe substrates (steel, iron), NFe substrates (aluminum, copper)
 Min. radius of curvature convex 5 mm / 0.19"
 Min. radius of curvature concave 25 mm / 0.98"
 Min. measuring surface Ø17 mm / 0.67"
 Min. layer thickness (magnetic materials) 0.2 mm / 0.007"
 Min. layer thickness (non-magnetic materials) 0.05 mm / 0.002"
 Probe mode Auto material detection mode (Fe + NFe), Magnet mode (Fe), Eddy current mode (NFe)
 Calibration Multi-point calibration (1 ... 4 points for each group), Zero calibration
 Units µm, mm, mils
 Data transfer USB 2.0
 Memory Volatile measurement group (DIR mode), Max. 2000 readings (GEN mode)
 Statistics functions Number of measured values, mean, minimum, maximum, standard deviation
 Alarm Display when the adjustable value is exceeded
 Automatic shutdown Auto shutdown mode (3 min.)
 Power supply 3 x 1.5 V AAA batteries

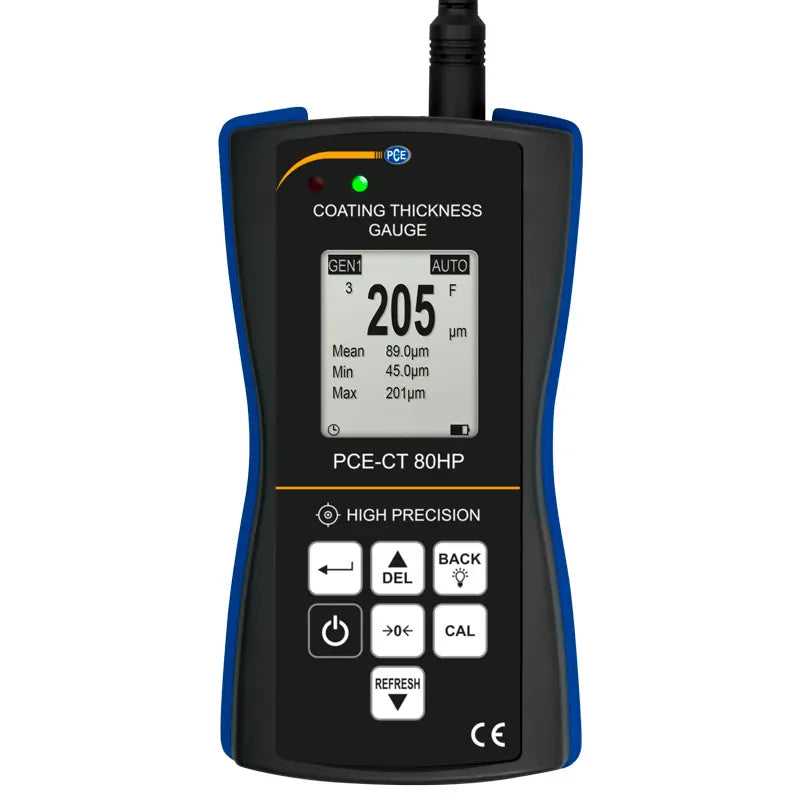

 Display 128 x 128 px LCD display
 Operating conditions 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
