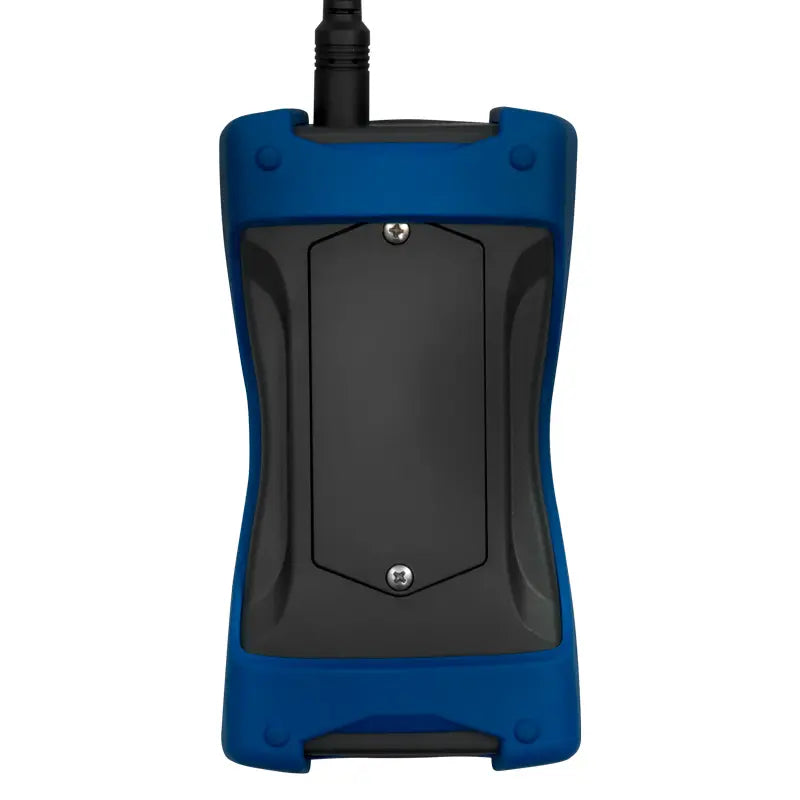

PCE-CT 80HP-FN0D5 - Accurate Coating Thickness Gauge with V-Groove Sensor

PCE-CT 80HP-FN0D5 - Accurate Coating Thickness Gauge with V-Groove Sensor

SKU: PCE-CT 80HP-FN0D5   Download PDF

Select a Variant:
  • PCE-CT 80HP-FN0D5 - Accurate Coating Thickness Gauge with V-Groove Sensor
Qty:
Now $1,306.00   Web pricing policy
BEFORE   $0.00 Now $1,306.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

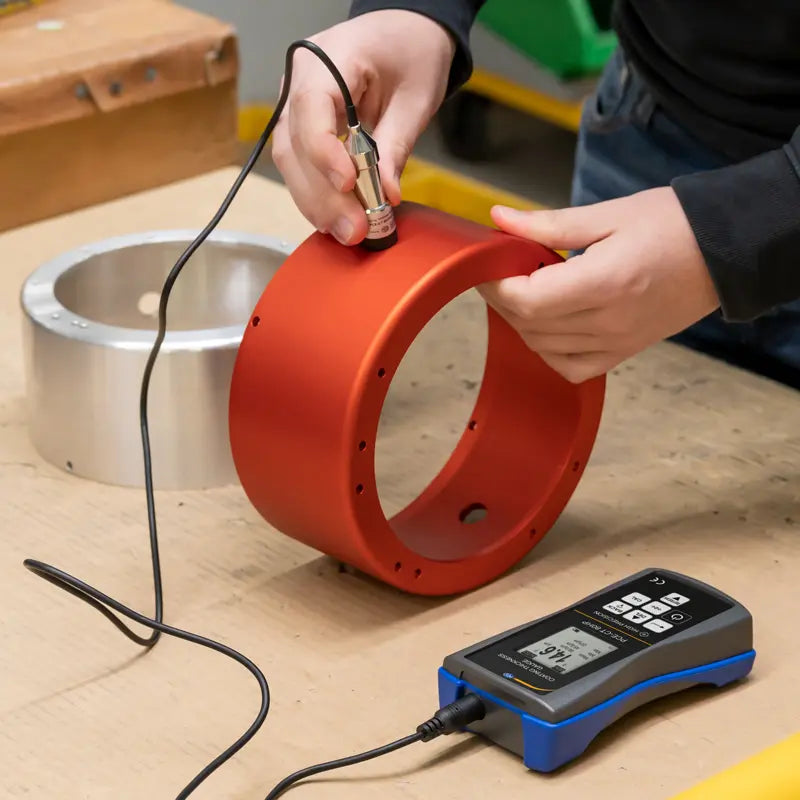

Ensure precise measurements with this advanced coating thickness gauge, expertly crafted for accurate readings of coatings such as paints and plastics on both ferrous and non-ferrous metals With a specialized V-groove sensor, it seamlessly handles measurements on both convex and concave surfaces, delivering results in a range of 0 to 5000 µm Boasting remarkable accuracy, it maintains a tolerance of ±(1.

0% of reading + 05 µm) Designed with quality assurance in mind, the device features adjustable alarm limits for effective inspections Housed in a durable rubberized material, it also includes a memory function that can store up to 2,000 measurements, with data easily transferable to a computer for comprehensive analysis using the included software.

Features and Benefits:

    •V-groove sensor for convex and concave surface measurements.

    •High accuracy of ±(1.0% of reading + 0.5 µm).

    •Adjustable alarm limits for quality assurance.

    •Data memory for up to 2000 readings.

    •Option for ISO calibration certificate.

    •Quality assurance in incoming and final inspection.

    •Measuring coating thickness on metals.

Specifications:

 Measuring range (Fe) 0 ... 5000 µm
 Measuring range (NFe) 0 ... 5000 µm

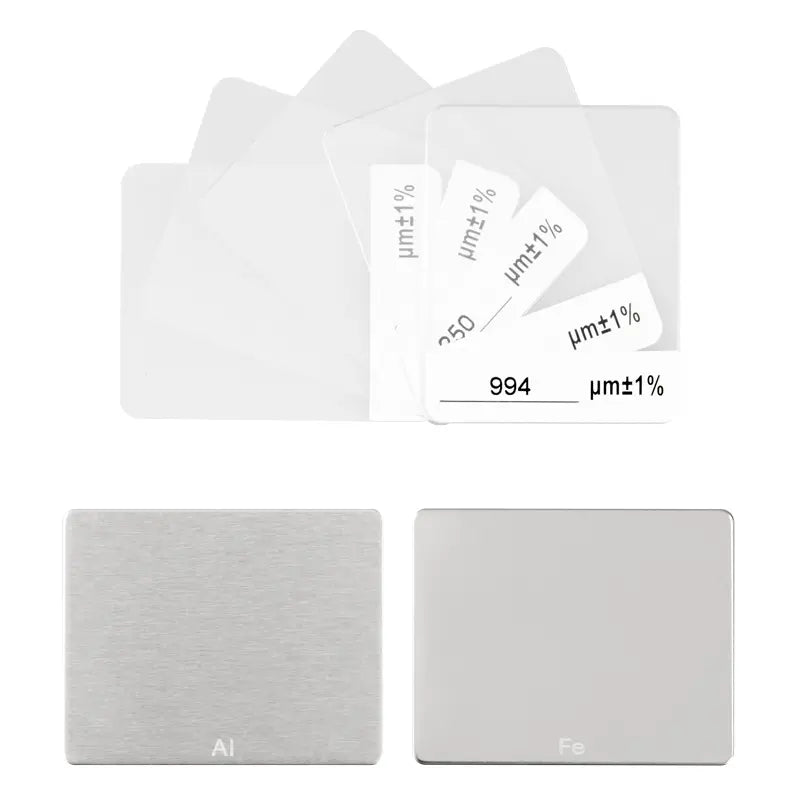

 Accuracy after foil calibration ±(1.0 % of measured value + 0.5 µm)
 Accuracy after zeroing ±(1.0 % of measured value + 0.7 µm)
 Probe diameter Ø17 mm / 0.67"
 Resolution 0.1 µm (<100 µm), 1 µm (>100 µm)
 Measurable materials Fe substrates such as steel and iron; NFe substrates such as aluminum and copper
 Min. radius of curvature convex 5 mm / 0.19"
 Min. radius of curvature concave 25 mm / 0.98"
 Min. measuring surface Ø17 mm / 0.67"
 Min. layer thickness (magnetic materials) 0.2 mm / 0.007"
 Min. layer thickness (non-magnetic materials) 0.05 mm / 0.002"
 Probe mode Auto material detection mode (Fe + NFe); Magnet mode (Fe); Eddy current mode (NFe)
 Calibration Multi-point calibration (1 ... 4 points for each group); Zero calibration
 Units µm, mm, mils
 Data transfer USB 2.0
 Memory 4 measurement groups with automatic storage of max. 2000 readings
 Statistics functions Number of measured values, mean, minimum, maximum, standard deviation
 Alarm Display when the adjustable value is exceeded
 Automatic shutdown Auto shutdown mode (3 min.)
 Power supply 3 x 1.5 V AAA batteries
 Display 128 x 128 px LCD display
 Operating conditions 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
