PCE-CT 80HP-F5N3 - High Precision Coating Thickness Gauge with V-Groove Sensor

PCE-CT 80HP-F5N3 - High Precision Coating Thickness Gauge with V-Groove Sensor

SKU: PCE-CT 80HP-F5N3   Download PDF

Select a Variant:
  • PCE-CT 80HP-F5N3 - High Precision Coating Thickness Gauge with V-Groove Sensor
Qty:
Now $1,318.00   Web pricing policy
BEFORE   $0.00 Now $1,318.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

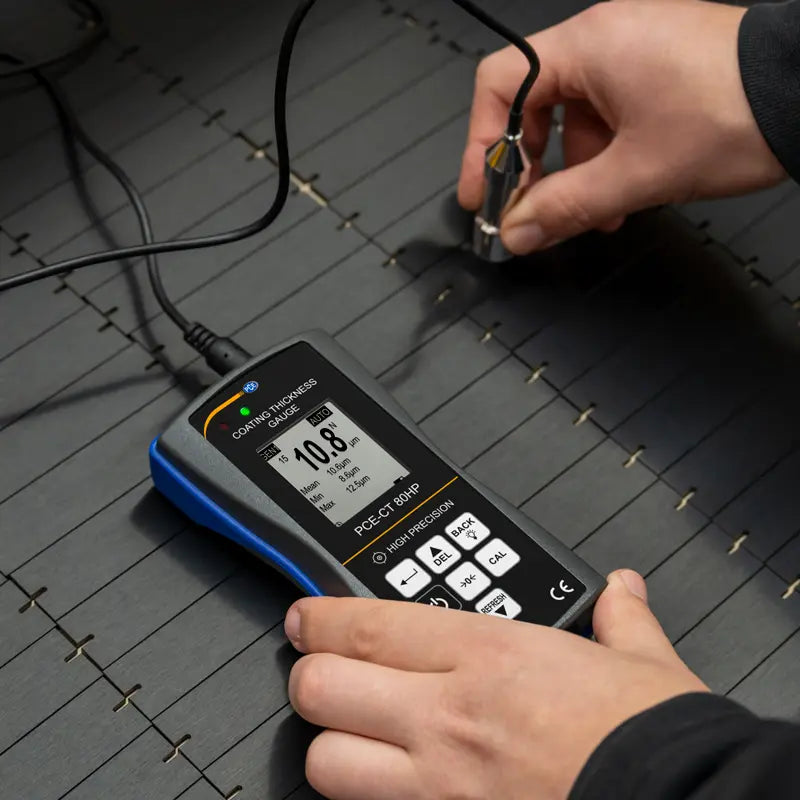

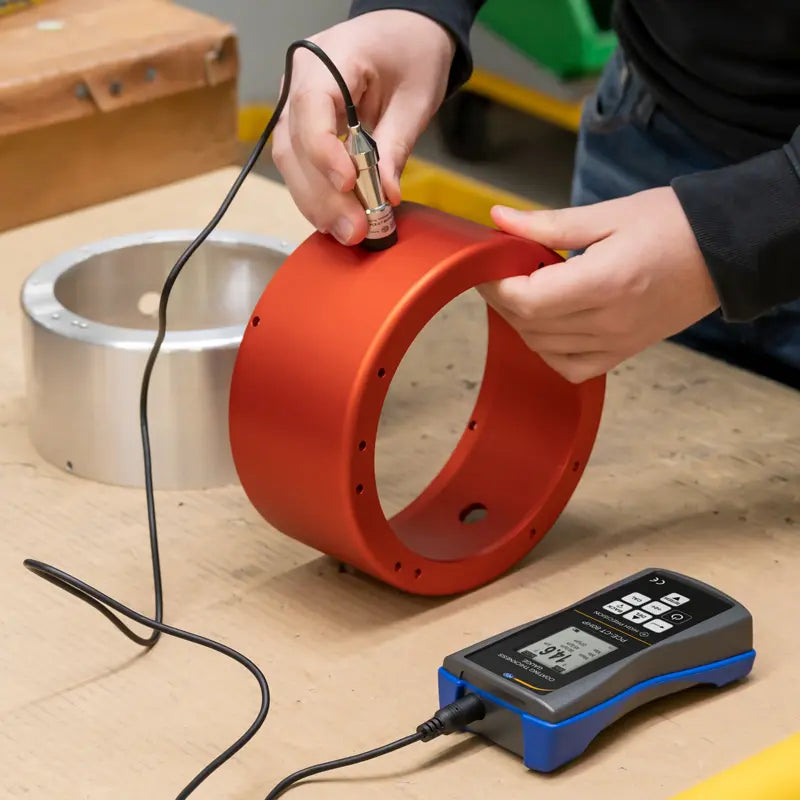

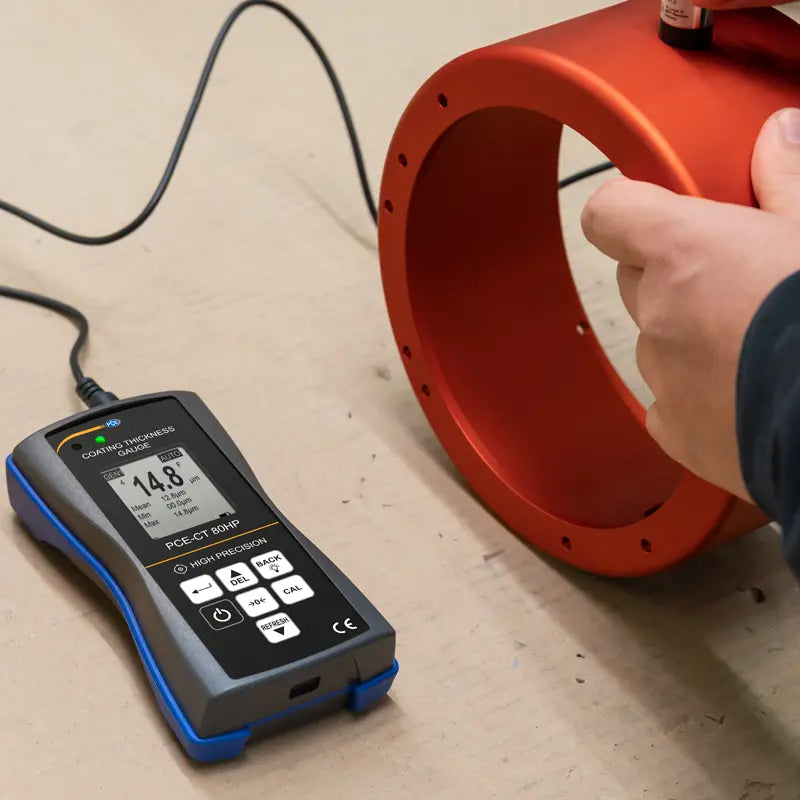

Discover precision in measurement with this advanced coating thickness gauge featuring a V-groove sensor Capable of measuring thicknesses from 0 to 5000 µm, this device includes adjustable alarm limits for enhanced functionality Constructed with a sturdy housing, it ensures reliability while delivering exceptional accuracy of ±(10% of reading + 05 µm) Ideal for assessing various coatings such as paints and plastics on both ferrous and non-ferrous metals, this gauge excels on both convex and concave surfaces.

It can store up to 2000 measurement values, easily analyzed through the provided software The built-in limit value alarm offers visual alerts through LED indicators, making it an essential tool for quality assurance checks Additionally, the durable housing is designed for added protection, and an ISO calibration certificate is available for those seeking certified accuracy.

Features and Benefits:

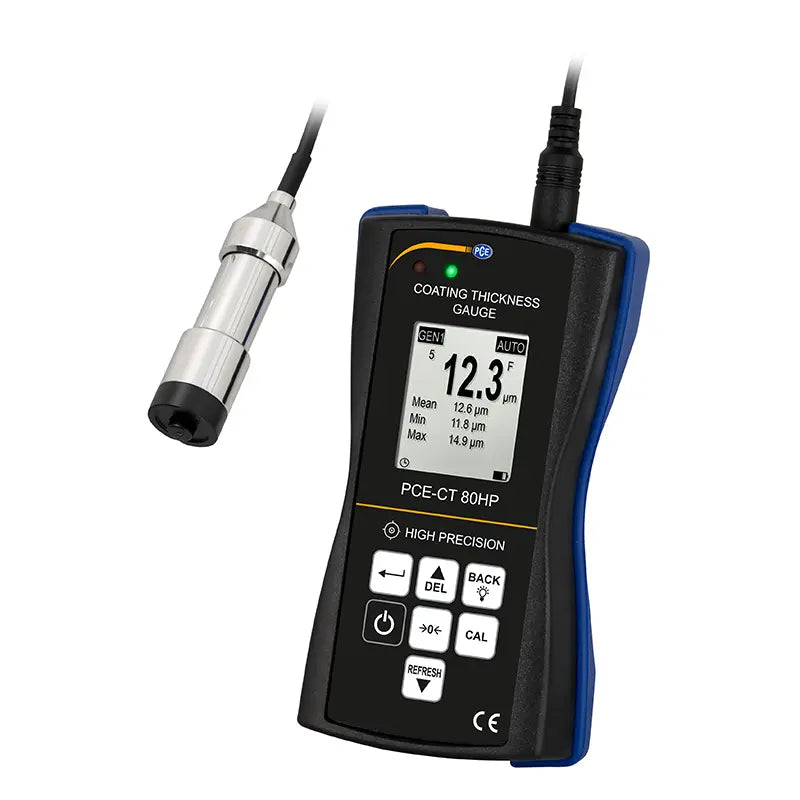

    •Practical V-groove on the measuring heads.

    •High accuracy for small coatings.

    •Adjustable limit values.

    •Data memory for 2000 readings.

    •Measuring range of up to 0 ... 5000 µm.

    •Optionally with ISO calibration certificate.

Specifications:

 Measuring range (Fe) 0 ... 5000 µm
 Measuring range (NFe) 0 ... 3000 µm

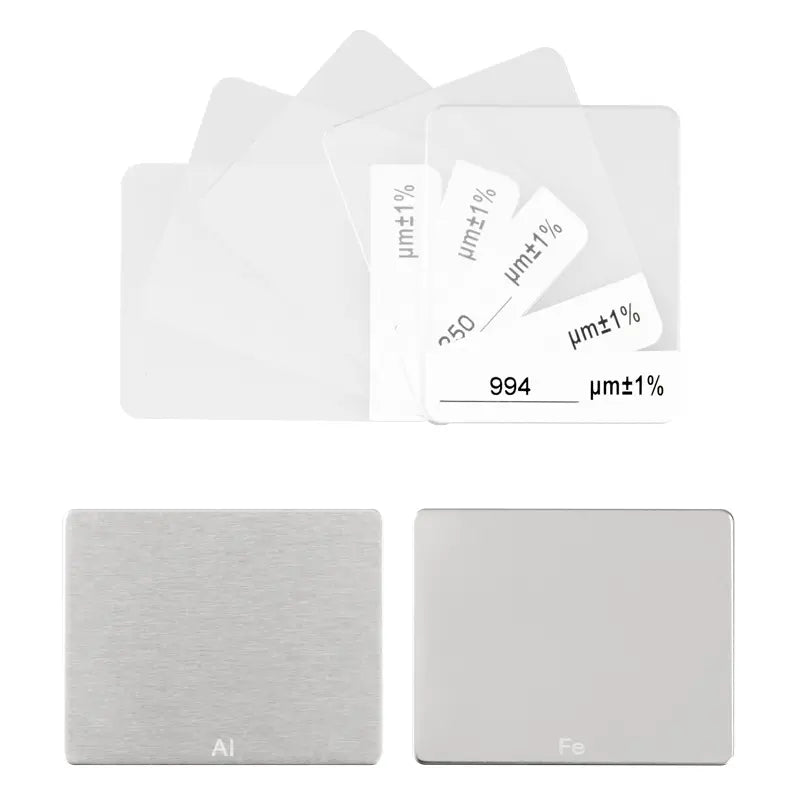

 Accuracy after foil calibration ±(1.5 % of measured value + 1 µm)
 Accuracy after zeroing ±(1.75 % of measured value + 1 µm)
 Probe diameter Ø17 mm / 0.67"
 Resolution 0.1 µm (<100 µm), 1 µm (>100 µm)
 Measurable materials Fe substrates such as steel and iron; NFe substrates such as aluminum and copper
 Min. radius of curvature (convex) 5 mm / 0.19"
 Min. radius of curvature (concave) 25 mm / 0.98"
 Min. measuring surface Ø17 mm / 0.67"
 Min. layer thickness on magnetic materials 0.2 mm / 0.007"
 Min. layer thickness on non-magnetic materials 0.05 mm / 0.002"
 Probe mode Auto material detection mode (Fe + NFe), Magnet mode (Fe), Eddy current mode (NFe)
 Calibration Multi-point calibration (1 ... 4 points for each group), Zero calibration
 Units µm, mm, mils

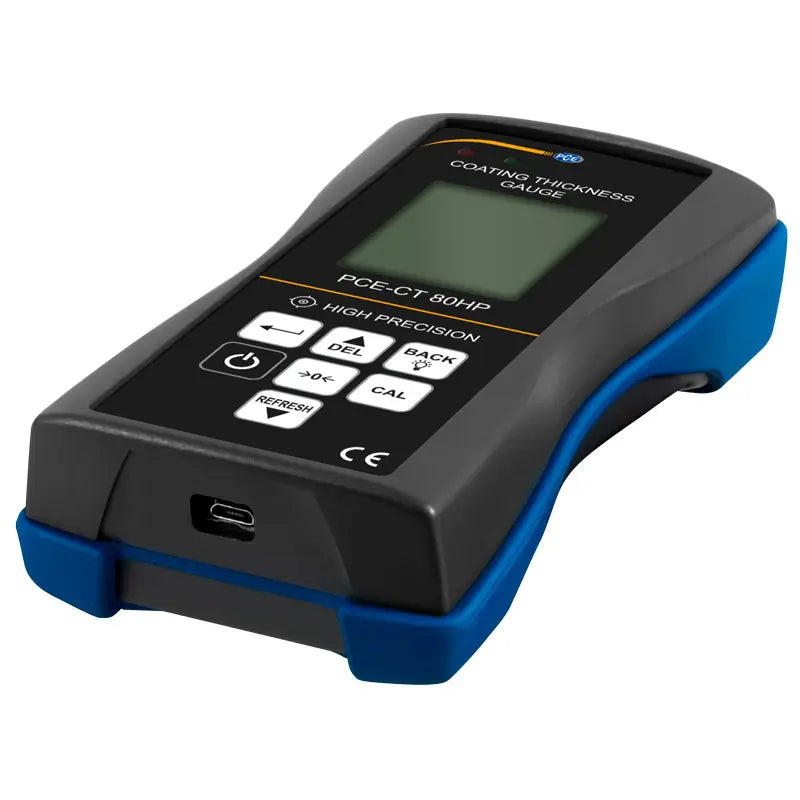

 Data transfer USB 2.0
 Memory Four measurement groups with maximum 2000 readings
 Statistics functions Number of measured values, mean, minimum, maximum, standard deviation
 Alarm Display when the adjustable value is exceeded
 Automatic shutdown Auto shutdown mode (3 min.)

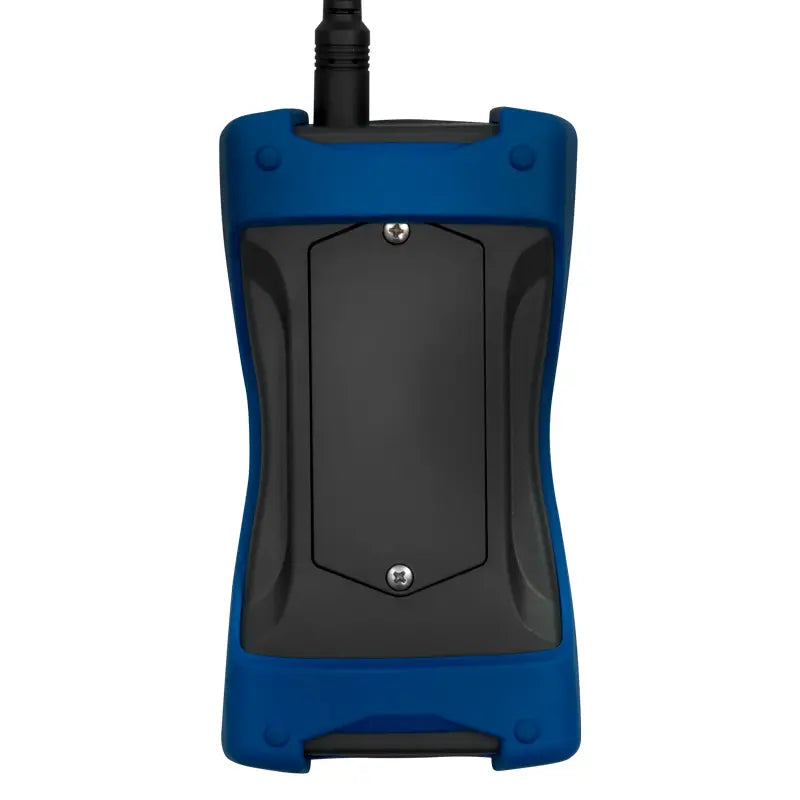

 Power supply 3 x 1.5 V AAA batteries

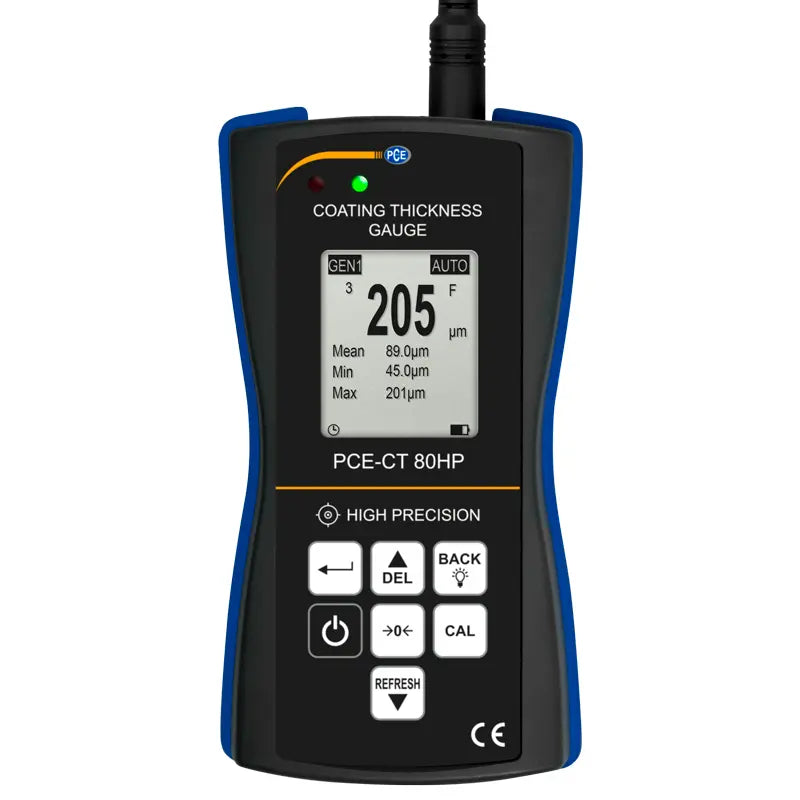

 Display 128 x 128 px LCD display
 Operating conditions 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H)
