PCE-CT 26FN - Lightweight Material Tester for Non-Ferrous Coatings

PCE-CT 26FN - Lightweight Material Tester for Non-Ferrous Coatings

SKU: SKU: PCE-CT 26FN   Download PDF

Select a Variant:
  • PCE-CT 26FN - Lightweight Material Tester for Non-Ferrous Coatings
Qty:
Regular price Now $244.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $244.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

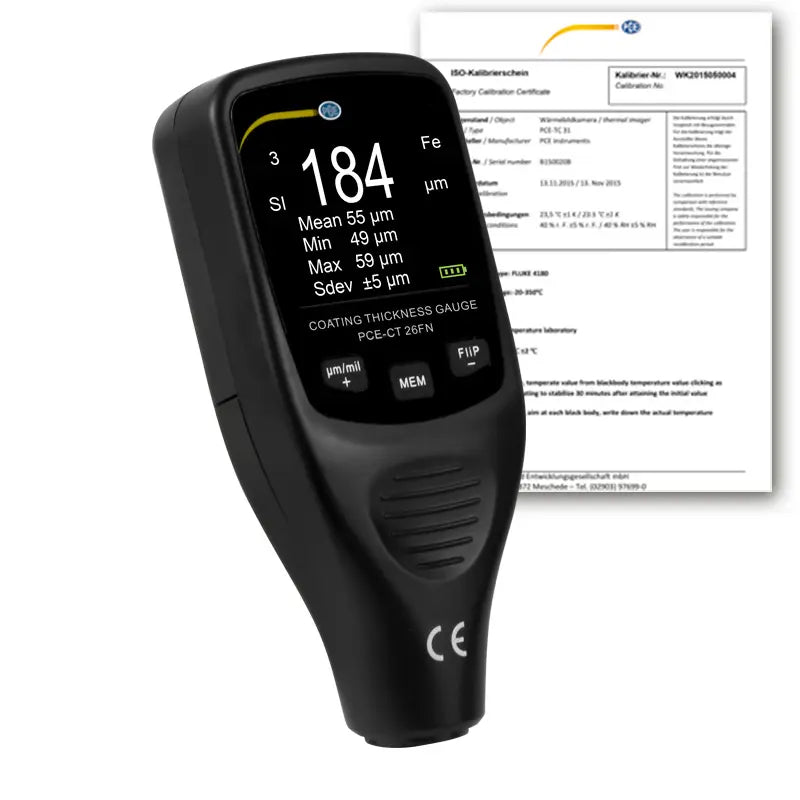

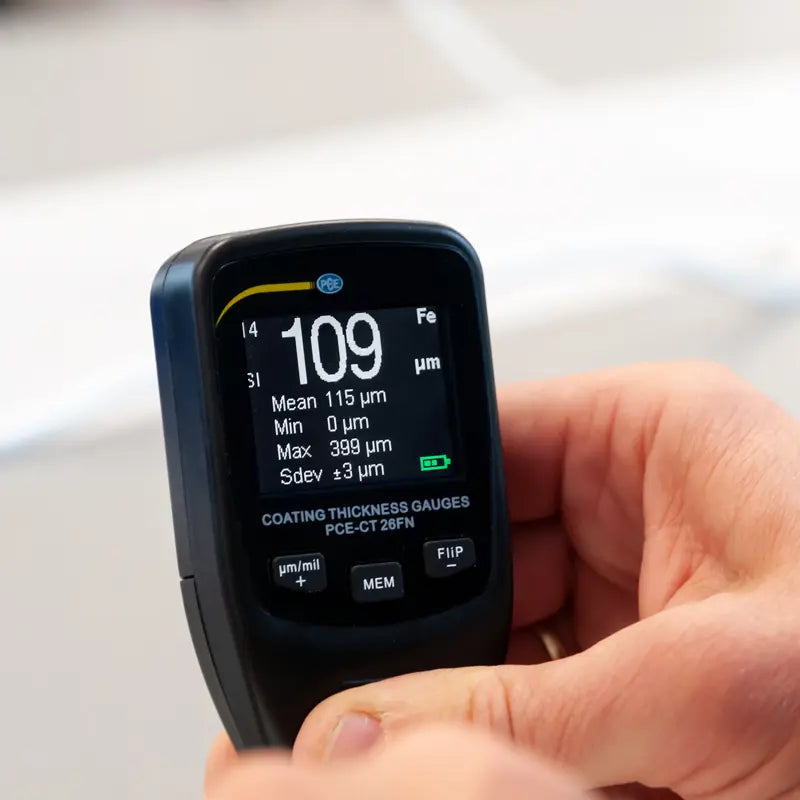

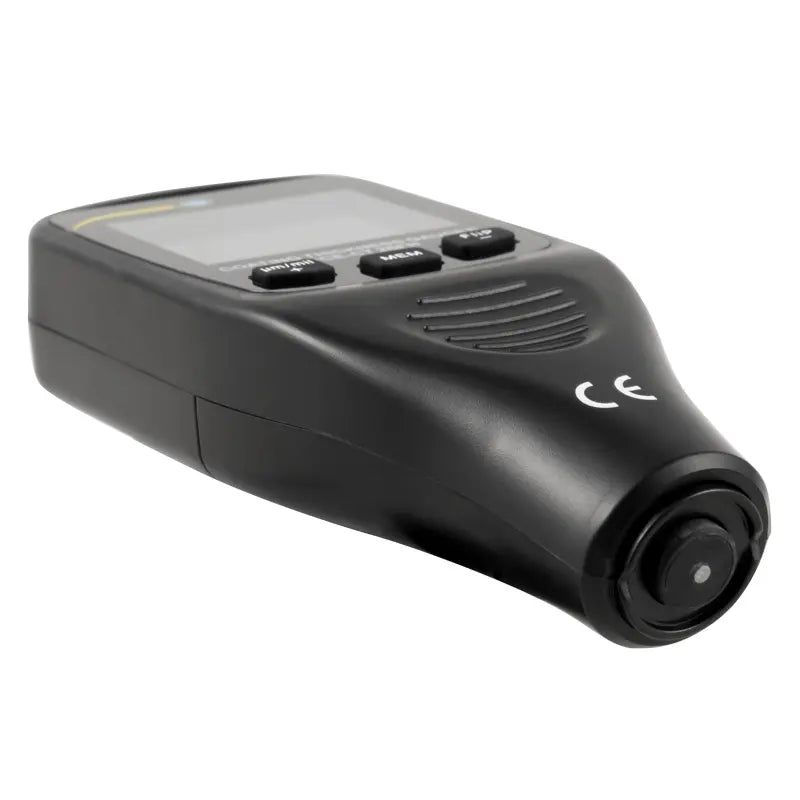

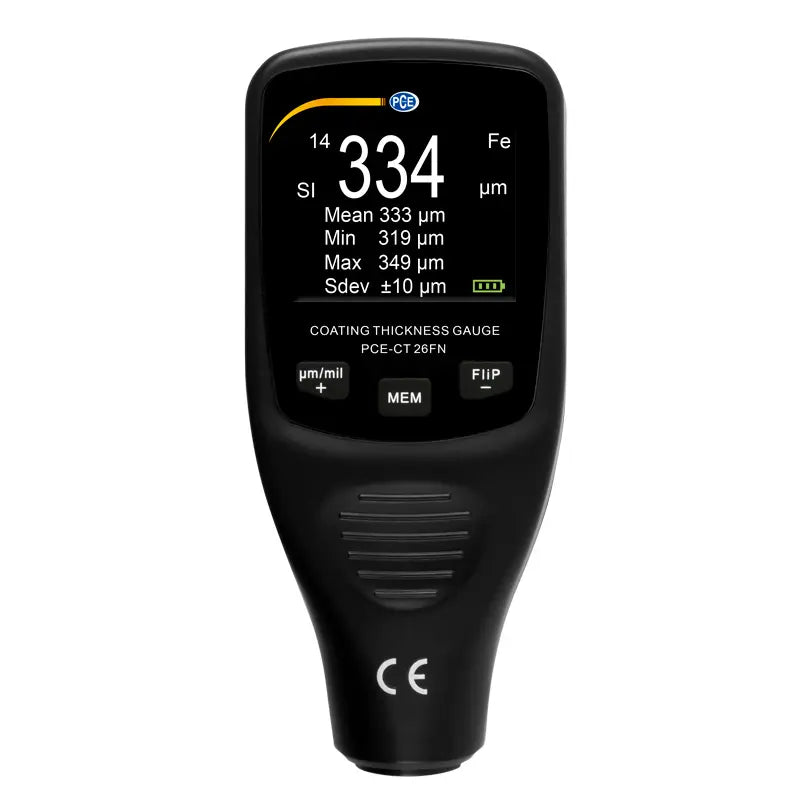

Introducing the PCE-CT 26FN-ICA material tester, a versatile tool equipped with an ISO calibration certificate, perfect for assessing iron and non-ferrous substrates This lightweight device boasts a wide measuring range and features a rotatable color display for enhanced usability It specializes in non-destructive testing of coatings on various metals, including steel, iron, and non-ferrous materials.

Ideal for quickly identifying accidental vehicle damage, this tester is also a reliable choice for industrial applications, ensuring consistent quality through thorough inspections The ergonomically designed unit includes an integrated probe for easy handling, enabling swift and precise measurement results It's effective for assessing a variety of non-magnetic coatings such as lacquer, plastic, chrome, copper, zinc, and enamel.

Moreover, it can measure insulating coatings on metals including copper, aluminum, brass, and stainless steel, making it a comprehensive solution for your material testing needs.

Features and Benefits:

    •Immediately ready to measure.

    •Wear-resistant sensor.

    •V-groove for measurement on pipes.

    •One-handed operation.

    •ISO calibration optional.

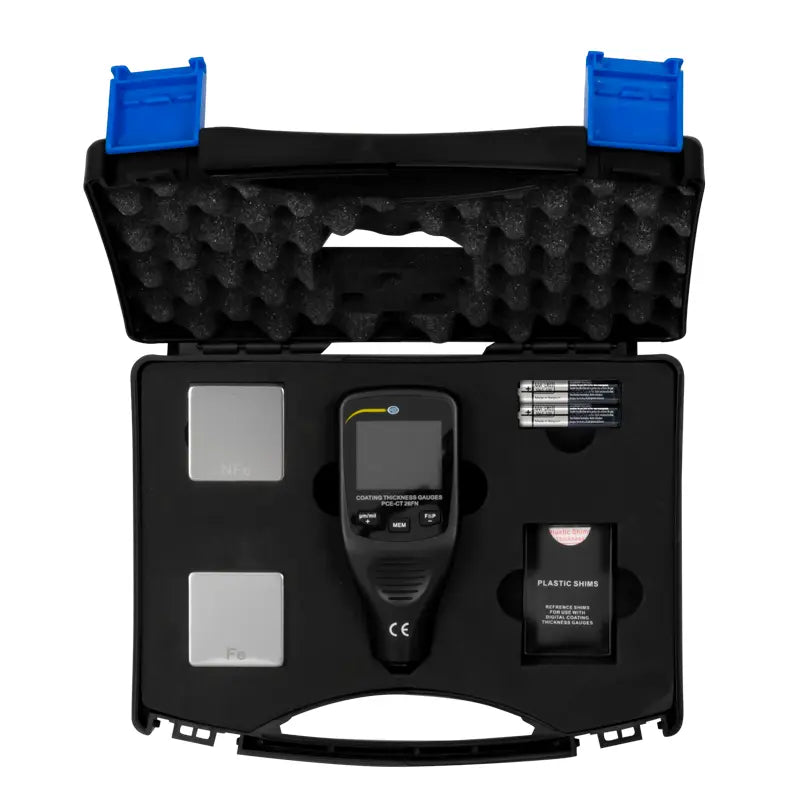

    •Includes transport case.

    •Includes ISO calibration certificate.

    •Measuring varnish and paint layers, plastic layers, chrome layers, copper plating, zinc layers, galvanizing, enamel on steel, stainless steel, and iron.

    •Measuring non-ferrous metals such as copper, aluminum, brass, and anodized aluminum.

Specifications:

 Measuring range 0 ... 1250 μm (0 ... 49.2 mils)
 Resolution 1 μm (0.039 mils)
 Accuracy ± (3% + 2 μm) or ± (3% + 0.079 mils)
 Smallest measuring surface 5 x 5 mm / 0.2 in x 0.2 in
 Smallest radius of curvature Convex: 3 mm (0.1 in) / concave: 50 mm (2 in)
 Smallest thickness of the base material Fe at least 0.5 mm / 0.02 in
 Smallest thickness of the base material NFe at least 0.3 mm / 0.01 in
 Display OLED display
 Ambient temperature 0 ... 50°C / 32 ... 120°F
 Power supply 2 x AAA battery 1.5V
 Dimension 100 x 52 x 29 mm / 4 x 2 x 1.1 in
