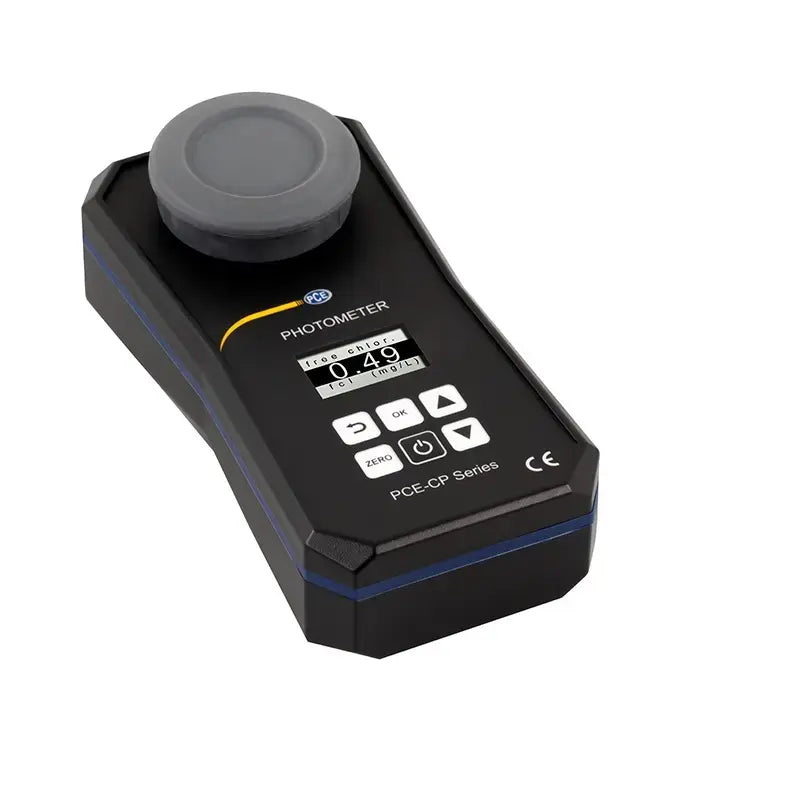

PCE-CP 10 - Mobile Multi-Parameter IoT Meter for Liquid Analysis

PCE-CP 10 - Mobile Multi-Parameter IoT Meter for Liquid Analysis

SKU: PCE-CP 10   Download PDF

Select a Variant:
  • PCE-CP 10 - Mobile Multi-Parameter IoT Meter for Liquid Analysis
Qty:
Now $429.00   Web pricing policy
BEFORE   $0.00 Now $429.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the versatile multi-parameter IoT meter, a portable device designed for liquid analysis that enables a range of measurements This innovative meter allows you to assess parameters such as alkalinity, chlorine, cyanuric acid, and pH levels efficiently For operation, simply place a 10 ml water sample in a cuvette The device utilizes an integrated LED to emit test light at wavelengths of 503 nm, 570 nm, and 620 nm, while a photodiode detects the light transmission to ascertain measurement values.

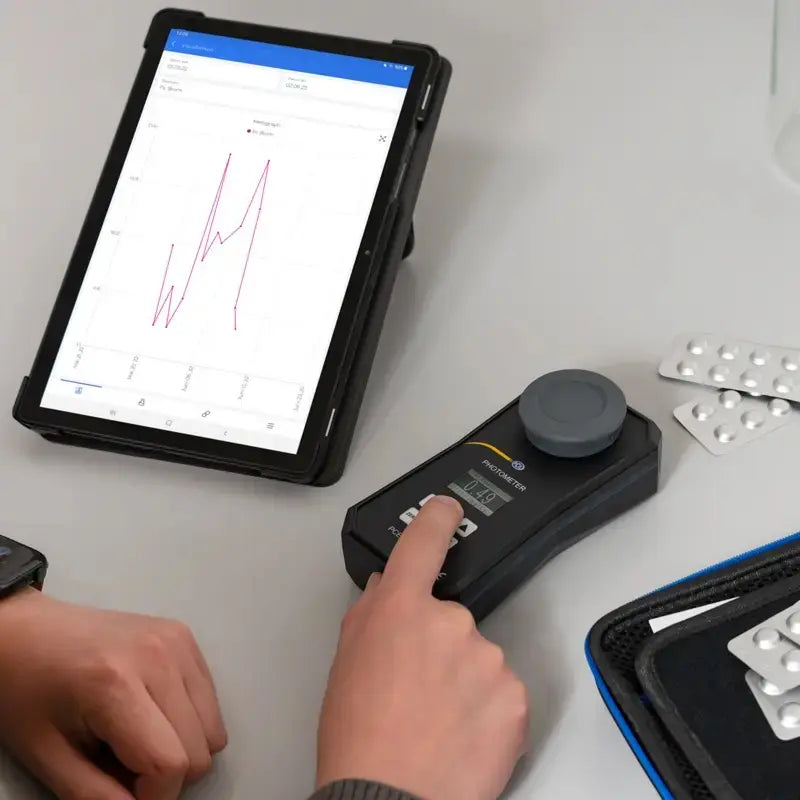

Every result is automatically recorded by the meter, allowing for easy retrieval via Bluetooth connectivity to your mobile device A complimentary app is available to facilitate the analysis of these measurements Additionally, you can connect the meter to a computer using free software for more in-depth data examination One standout feature of this IoT meter is its ability to upload measurement data to the cloud for access from anywhere, ensuring you stay connected and informed.

This cloud service is offered at no extra cost, making the multi-parameter IoT meter an invaluable tool for your liquid analysis needs.

Features and Benefits:

    •Up to 5 selectable parameters.

    •Bluetooth connection with app.

    •Exchangeable and lockable cuvette.

    •LED at 503 nm, 570 nm, and 620 nm.

    •Automatic shutdown when inactive.

    •Multiple menu languages available.

    •Uses a photodiode for light detection.

    •Includes a cuvette of dimensions 36 x ø 21 mm (10 ml).

    •Liquid analysis for measuring parameters like pH, alkalinity, chlorine, and cyanuric acid.

Specifications:

 Alkalinity Measuring Range 0… 30 mg / l; 30… 60 mg / l; 60… 100 mg / l; 100… 200 mg / l
 Alkalinity Accuracy 3 mg / l; 7 mg / l; 12 mg / l; 18 mg / l
 Alkalinity Resolution 1 mg / l
 Chlorine Measuring Range 0.00 ... 2.00 mg / l; 2.00 ... 3.00 mg / l; 3.00 ... 4.00 mg / l; 4.00 ... 8.00 mg / l
 Chlorine Accuracy 0.10 mg / l; 0.23 mg / l; 0.75 mg / l; 1.00 mg / l
 Chlorine Resolution 0.01 mg / l
 Cyanuric Acid Measuring Range 0… 15 mg / l; 15… 50 mg / l; 50… 120 mg / l; 120… 160 mg / l
 Cyanuric Acid Accuracy 1 mg / l; 5 mg / l; 13 mg / l; 19 mg / l
 Cyanuric Acid Resolution 1 mg / l
 pH Measuring Range 6.50 ... 8.40 pH
 pH Accuracy 0.11 pH
 pH Resolution 0.01 pH
 Calibration Zero point calibration
 Light Source 503 nm / 570 nm / 620 nm LED
 Light Detector Photodiode
 Power Supply 4 x 1.5V AA batteries
 Cuvette Dimensions 36 x ø 21 mm (10ml)
 Menu Languages English, German, French, Spanish, Italian
 Storage Automatic storage of measured values with readout
 Storage Space 256 values
 Interface Bluetooth connection with app and PC software
 Automatic Shutdown After 300 seconds of inactivity
 Operating Conditions 5 … 45°C, 20 ... 90% RH non-condensing
 Storage Conditions 5 … 45°C, 20 ... 90% RH non-condensing
 Dimensions 165 x 95 x 50 mm
 Weight 230 g
