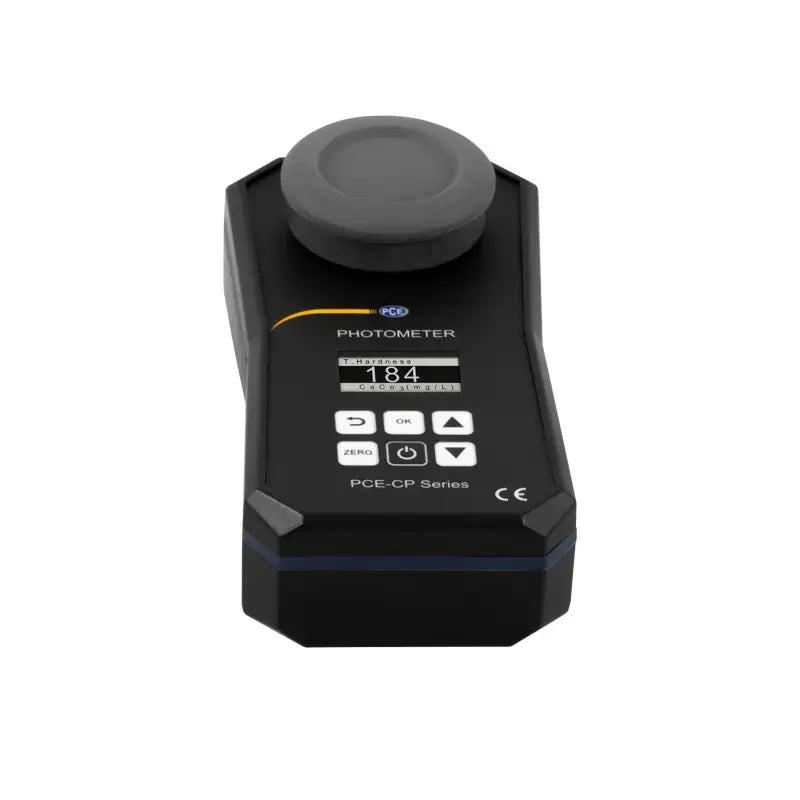

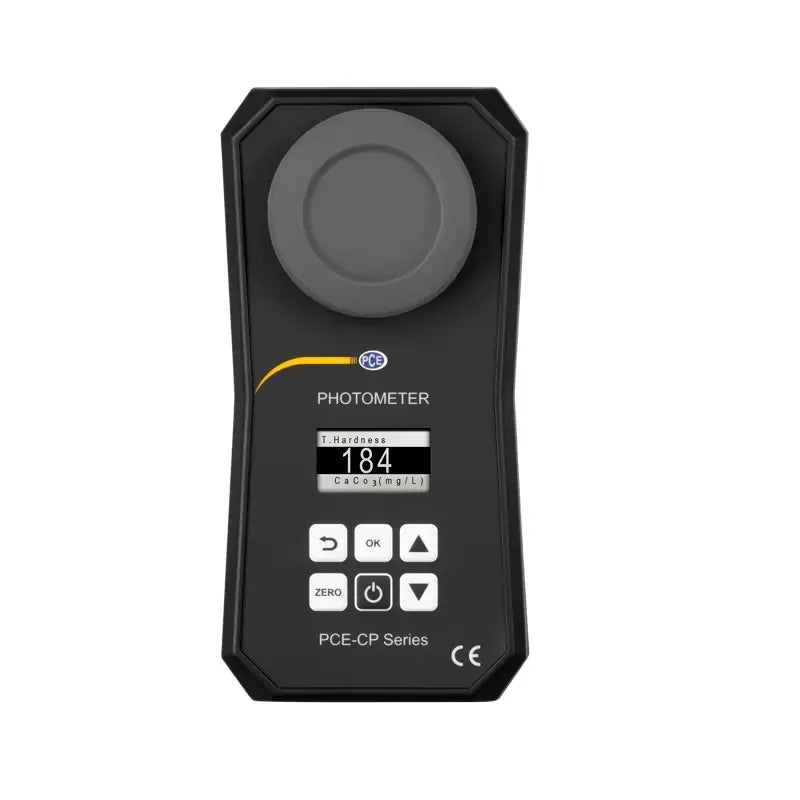

PCE-CP 04 - Compact Multi-parameter Photometer with Bluetooth & Cloud Access

PCE-CP 04 - Compact Multi-parameter Photometer with Bluetooth & Cloud Access

SKU: PCE-CP 04   Download PDF

Select a Variant:
  • PCE-CP 04 - Compact Multi-parameter Photometer with Bluetooth & Cloud Access
Qty:
Now $495.00   Web pricing policy
BEFORE   $0.00 Now $495.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

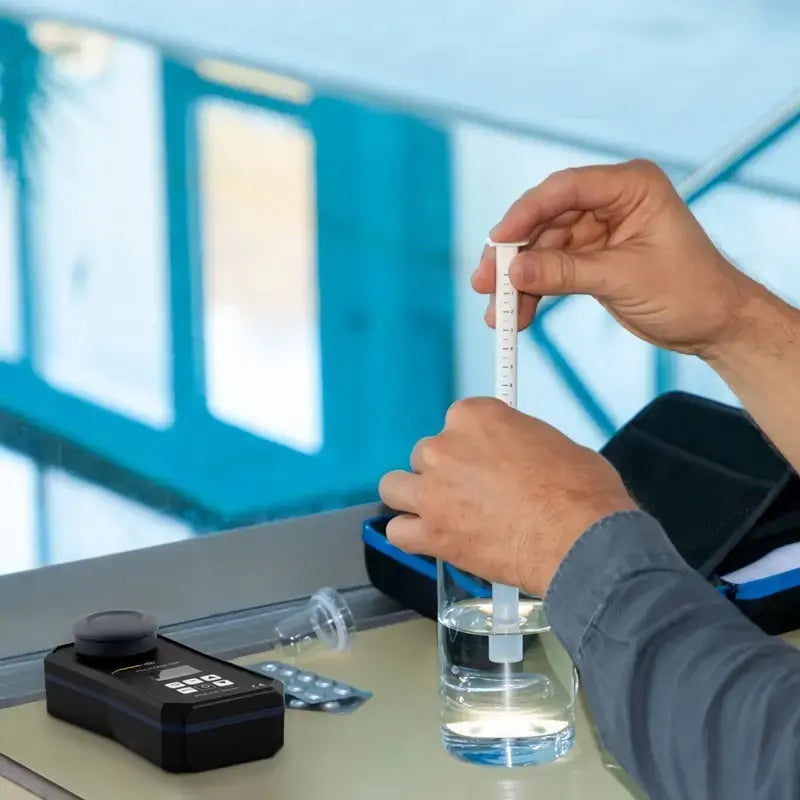

Experience versatile liquid analysis with the multi-parameter photometer, a portable device perfect for a range of measurements This innovative tool allows you to assess alkalinity, chlorine, cyanuric acid, and pH levels with ease Simply add a 10 ml water sample to a cuvette for testing Equipped with a built-in LED, this photometer emits test light at wavelengths of 503 nm, 570 nm, and 620 nm, while a photodiode accurately identifies the measurement based on the sample's light transmission.

Each measurement is automatically recorded, making it easy to track your results Access your saved readings effortlessly via Bluetooth on your mobile device or computer, supported by a dedicated app and free software for in-depth analysis A standout feature of this photometer is its capability to upload measurement data to the cloud, allowing for remote access from anywhere—all at no additional cost.

Features and Benefits:

    •Up to 5 selectable parameters.

    •Bluetooth connection with app.

    •Exchangeable and lockable cuvette.

    •503 nm / 570 nm / 620 nm LED.

    •Automatic shutdown when inactive.

    •Many different menu languages.

    •Light detector: photodiode.

    •Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml).

Specifications:

 Alkalinity Measuring range 0… 30 mg / l, 30… 60 mg / l, 60… 100 mg / l, 100… 200 mg / l
 Alkalinity Accuracy 3 mg / l, 7 mg / l, 12 mg / l, 18 mg / l
 Alkalinity Resolution 1 mg / l
 pH Measuring range 6.50 ... 8.40 pH
 pH Accuracy 0.11 pH
 pH Resolution 0.01 pH
 Total hardness Measuring range 0… 30 mg / l, 30… 60 mg / l, 60… 100 mg / l, 100… 200 mg / l, 200 ... 300 mg / l, 300 ... 500 mg / l
 Total hardness Accuracy 3 mg / l, 5 mg / l, 10 mg / l, 17 mg / l, 22 mg / l, 58 mg / l
 Total hardness Resolution 1 mg / l
 Calcium hardness Measuring range 0… 25 mg / l, 25… 100 mg / l, 100 ... 300 mg / l, 300 ... 500 mg / l
 Calcium hardness Accuracy 8 mg / l, 22 mg / l, 34 mg / l, 45 mg / l
 Calcium hardness Resolution 1 mg / l
 Hardness units mg/l CaCO3, ppm, mmol/l KS 4.3, °dH (degree of German hardness), °e (degree English hardness / Degree Clark), °f (degree of French hardness)
 Calibration Zero point calibration
 Light source 503 nm / 570 nm / 620 nm LED
 Light detector Photodiode
 Power supply 4 x 1.5V AA batteries
 Dimensions of the cuvette 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
 Menu languages English, German, French, Spanish and Italian
 Storage Automatic storage of measured values and readout
 Storage space 256 values
 Interface Bluetooth connection with app and PC software
 Automatic shutdown After 300 seconds of inactivity
 Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
 Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
 Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
