Description:

Introducing the PCE-COM 20 Material Tester for Non-Ferrous Metals, a compact and portable solution for evaluating materials such as aluminum and copper This handheld device employs advanced eddy current technology to accurately measure electrical conductivity, displaying a range of 051 to 112% IACS or 03 to 65 MS/m, with an impressive accuracy of +/- 05% at 20°C The tester is equipped with features like automatic temperature compensation and lift-off compensation to provide reliable results, regardless of environmental conditions.

Perfect for professionals seeking precise material analysis on the go.

Features and Benefits:

•Eddy current measuring principle.

•Non-destructive testing (NDT).

•60 kHz operating frequency.

•Large measuring range up to 112% IACS or 65 MS/m.

•Memory for up to 500 groups of measurements.

•Automatic temperature compensation.

•Lift-off compensation up to 500 μm.

•Adjustable backlighting.

•Internal rechargeable battery.

•Portable and user-friendly.

•Assessment of strength differences in heat-treated or hardened materials.

•Authenticity testing of coin alloys.

•Verification of alloy inhomogeneities in critical components.

•Sorting of materials.

Specifications:

Operating frequency	60 kHz, sine wave
Conductivity measuring range	0.51% IACS ... 112% IACS, 0.3 MS/m ... 65 MS/m
Resistance range	0.015388 ... 3.33333 Ω • mm² / m
Conductivity measuring resolution	0.01% IACS (at <51% IACS), 0.1% IACS (at 51% IACS ... 112% IACS)
Conductivity measuring accuracy	± 0.5% at 20°C / 68°F, ± 1% in the range 0 ... 40°C / 32 ... 104°F
Lift-off compensation	0.5 mm / ≈ 0.0197 in
Temperature measuring range	0 ... 50°C / 32 ... 122°F
Temperature measuring accuracy	± 0.5°
Temperature compensation	Automatic adjustment of conductivity result to the value at 20°C / 68°F
Operating conditions	0 ... 50°C / 32 ... 122°F, 0 ... 95% relative humidity (RH)

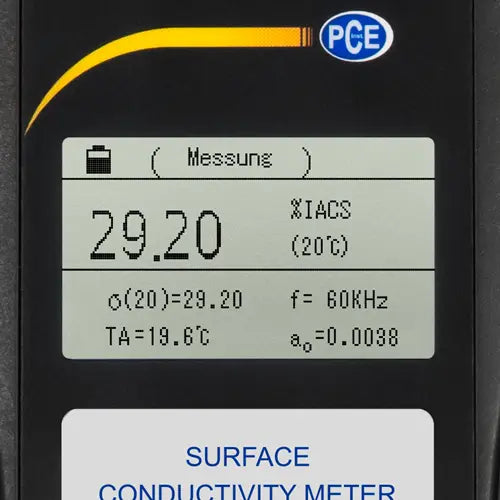

Display	LCD, backlit
Menu languages	English, German, Japanese
Power supply	Internal, rechargeable battery

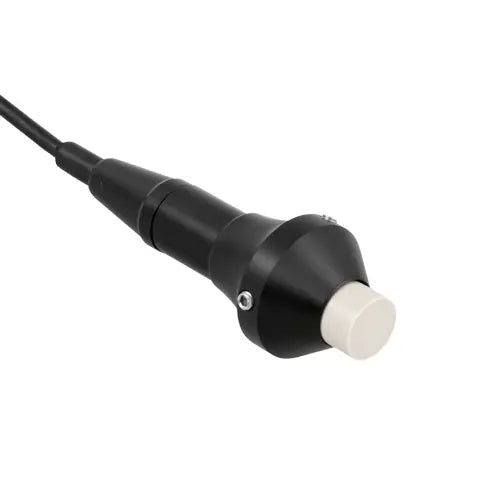

Probe diameter	14 mm / ≈ 0.55 in
Memory	Stores up to 500 groups of measurement values
Data interface	USB port connection
Dimensions	≈ 220 x 95 x 35 mm / 8.66 x 3.74 x 1.38 in
