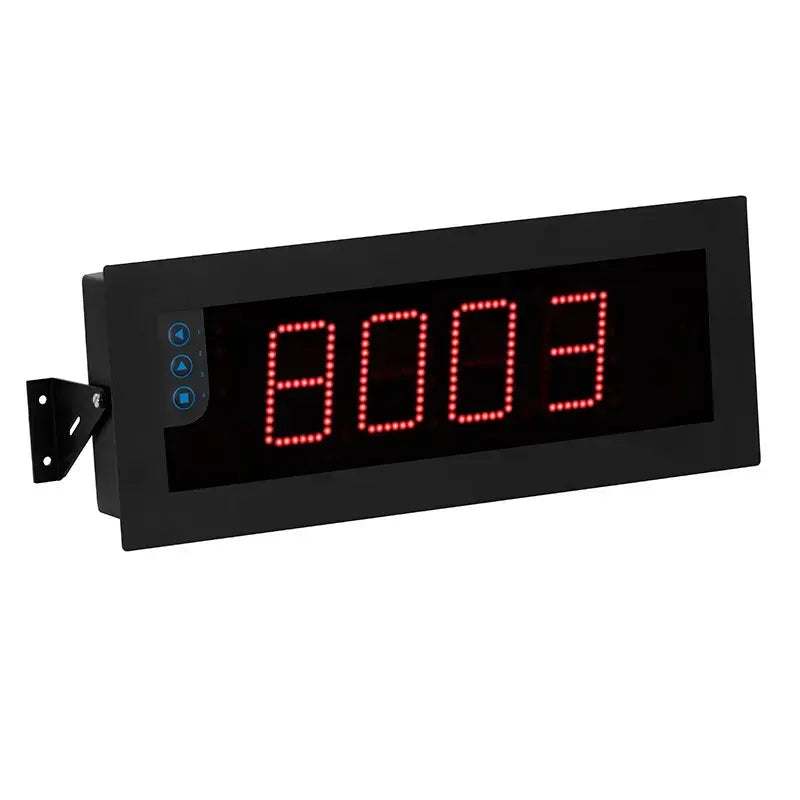

PCE-BPD-U-41D - IP65 Panel Meter with 60mm LED Display for Long-Distance Readings

SKU: SKU: PCE-BPD-U-41D Download PDF

Select a Variant:

PCE-BPD-U-41D - IP65 Panel Meter with 60mm LED Display for Long-Distance Readings

SET THE QTY:

Now $1,511.00 Web pricing policy

~~BEFORE $0.00~~ Now $1,511.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

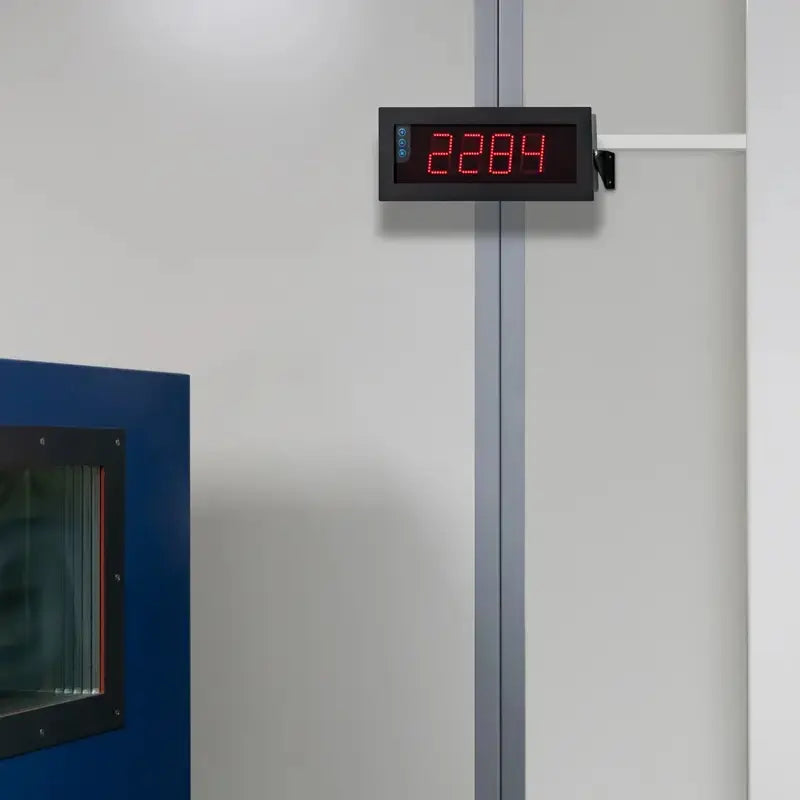

Discover the durability and functionality of this panel meter, designed with a sturdy metal casing that makes it perfect for wall or control cabinet installation With an impressive IP65 rating, it offers splash-proof protection and can withstand challenging environments The vivid red LED display ensures excellent visibility from a distance, featuring digit heights of 60 mm or 100 mm for easy readings from up to 50 meters away.

This versatile meter supports various input signals, including 4 20 mA and pulse inputs, allowing for custom settings via the intuitive keypad Additionally, optional digital output interfaces facilitate the switching of process signals when limit thresholds are exceeded For optimal usage, the panel meter can be easily aligned for vertical mounting on walls.

Features and Benefits:

•Protection class IP65.

•Robust metal housing.

•Individually parameterizable.

•Bright red LED indicator.

•For wall or control cabinet mounting.

•Different input signals.

Specifications:

Function	to convert analog signal into a usable value
Input signal	4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC
Maximum input signal	100 mA or 100 V DC
Input impedance (current measurement)	11 Ω
Input impedance (voltage measurement)	932 kΩ
Number of digits	4
Digit height	100 mm / 3.9"
Maximum reading distance	50 m / 164 ft
Accuracy	0.05 % of measuring range
Measuring rate	15 Hz
Response time for value changes	120 ms from 0 to 99% of the signal
Display range	-1999 ... 9999
Number of outputs	2
Power consumption	6.75 W (with optional accessories)
Sensor voltage supply	20, 15, 10, 5 V DC
Sensor power supply accuracy	±5 %
Maximum sensor supply current	35 mA (with short-circuit protection)
Power supply	11 ... 36 V DC
Weight	2500 g / 88.1 oz
Cable cross-section for input	<0.5 mm² and output signal
Cable cross-section for supply voltage	<2.5 mm²
Display	7 segment display
Viewing angle	120 °
Warm-up time	15 minutes
Operating conditions	0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions	-20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing

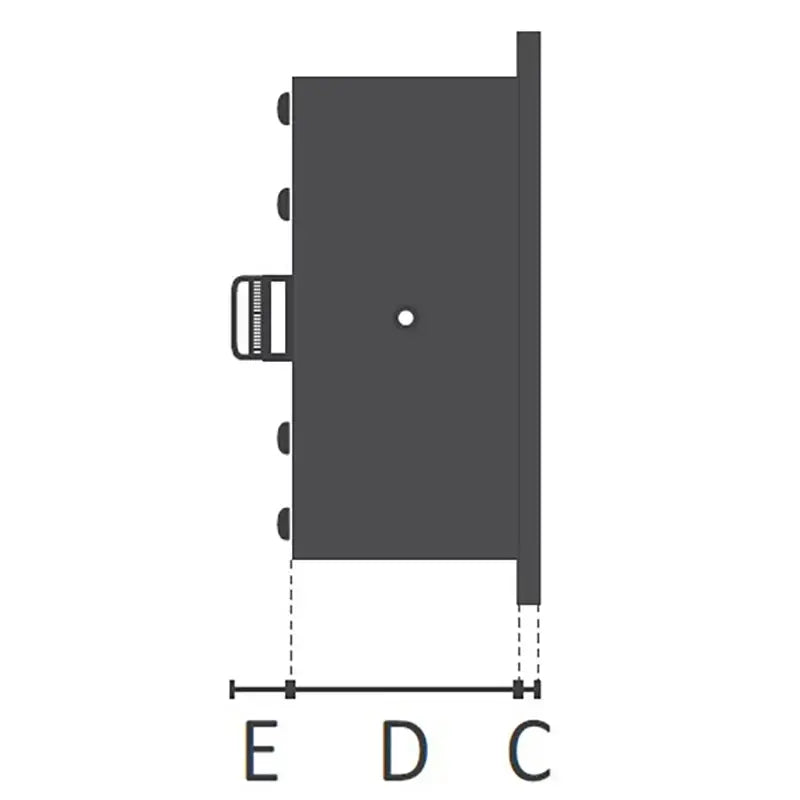

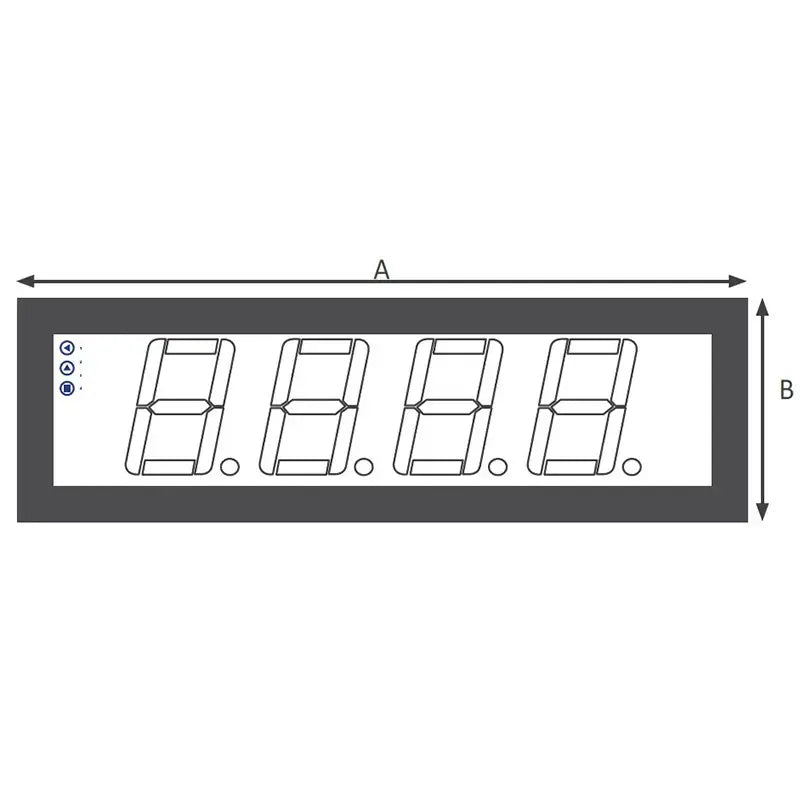

Dimensions	Further information can be found in the instructions
Dimension A	542 mm / 21.3"
Dimension B	166 mm / 6.5"
Dimension C	3 mm / 0.1"
Dimension D	55 mm / 2.1"
Dimension E	25 mm / 0.9"
