Product Information

Description:

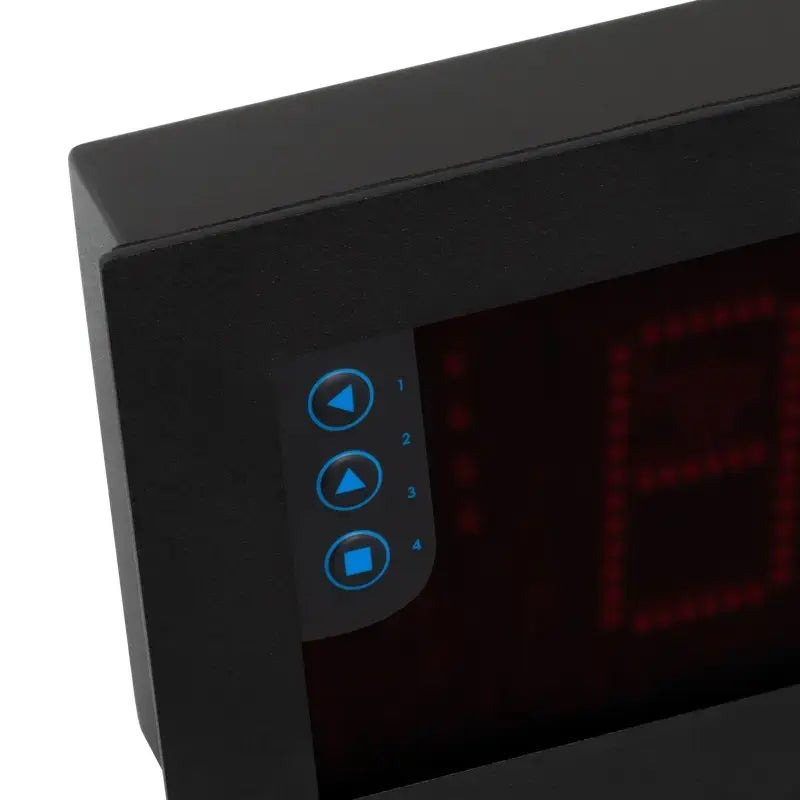

Introducing a durable panel meter designed for secure wall or control cabinet installation, featuring a sturdy metal casing that meets an impressive IP65 protection standard Its vivid red LED display guarantees visibility from distances up to 50 meters, with digit sizes available in 60 mm or 100 mm, making it ideal for various environments This versatile device supports multiple output signals and allows for easy configuration of digital displays through a user-friendly keypad.

Engineered to perform even in challenging conditions, it effectively manages bright lighting scenarios Additional functionalities include the ability to toggle between process signals and pulses, customizable input options, and safeguards against water ingress within control cabinets.

Features and Benefits:

•Protection class IP65.

•Robust metal housing.

•Individually parameterizable.

•Bright red LED indicator.

•For wall or control cabinet mounting.

•Different input signals.

Specifications:

Function	time measurement
Input signal	NPN, PNP
Input voltage	±30 V DC
Functions	start, stop, reset
Quartz accuracy	±0.01 %
Number of digits	6
Digit height	60 mm / 2.3"
Maximum reading distance	25 m / 82 ft
Accuracy	0.03% of measuring range
Measuring rate	3.5 Hz
Response time for value changes	300 ms
Display range	-199,999 ... 999,999
Number of outputs	3
Power consumption	3.5 W (without optional accessories), 5.5 W (with optional accessories)
Sensor voltage supply	18, 15, 9, 5 V DC
Maximum current for the sensor supply	70 mA (with short-circuit protection)
Power supply	85 ... 265 V AC / 120 ... 370 V DC
Weight	3500 g / 123.4 oz
Cable cross-section for input	<0.5 mm²
Cable cross-section for supply voltage	<2.5 mm²
Display	7 segment display
Viewing angle	120 °
Warm-up time	15 minutes
Operating conditions	0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions	-20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing

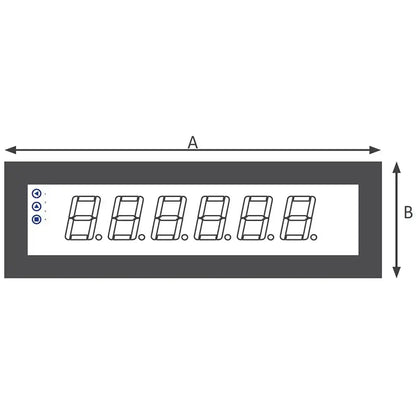

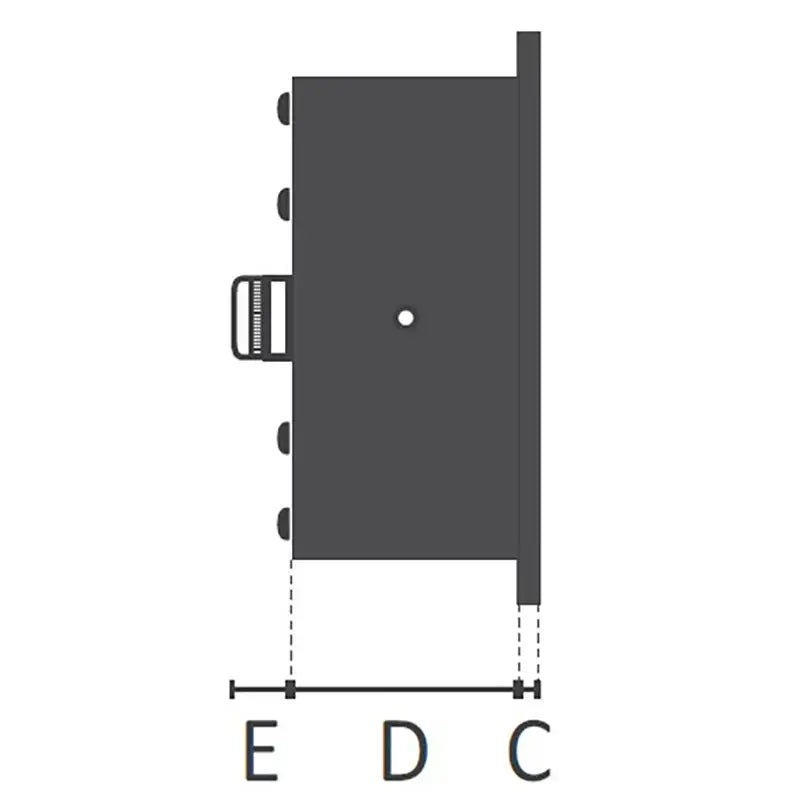

Dimensions	{'A': '436 mm / 17.1"', 'B': '135 mm / 5.3"', 'C': '3 mm / 0.1"', 'D': '55 mm / 2.1"', 'E': '25 mm / 0.9"'}
