Home / INSTRUMENTS / PCE-675 - Infrared Digital Thermometer with Laser Pointer and ISO Certification
1 6

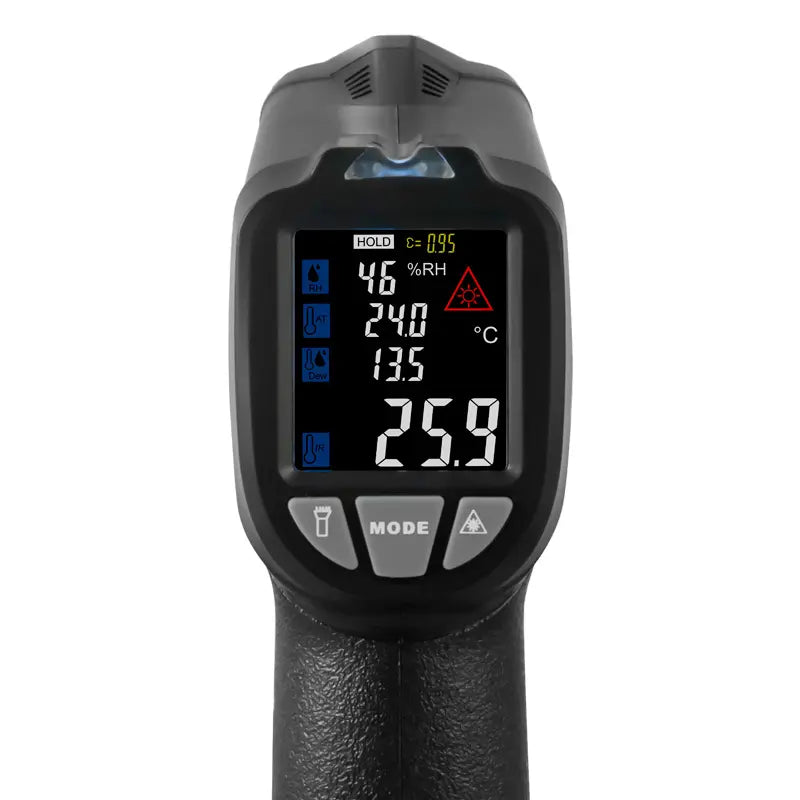

PCE-675 - Infrared Digital Thermometer with Laser Pointer and ISO Certification

PCE-675 - Infrared Digital Thermometer with Laser Pointer and ISO Certification

SKU: PCE-675   Download PDF

Select a Variant:
  • PCE-675 - Infrared Digital Thermometer with Laser Pointer and ISO Certification
Qty:
Now $107.00   Web pricing policy
BEFORE   $0.00 Now $107.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-675-ICA Digital Thermometer, which includes an ISO calibration certificate for reliability This user-friendly infrared thermometer features a red laser pointer for precise targeting, allowing for accurate readings of surface temperatures, air temperature, humidity, and dew point temperature With a 13:1 spot-to-spot ratio, this thermometer can effectively measure surface temperatures and ambient humidity over considerable distances.

Its straightforward operation combined with the laser sight helps achieve perfect alignment for reliable measurements Designed for universal application, this thermometer includes a built-in flashlight to illuminate measuring points in low-light conditions You can customize settings for a broad range of temperature and humidity measurements Additionally, it offers a flexible emission value setting from 0.

1 to 10, covering over 90% of typical temperature measurement needs.

Features and Benefits:

    •Low measurement sequence.

    •Emissivity adjustable between 0.1 and 1.0.

    •Automatic shutdown.

    •Switchable laser sighting aid.

    •Measured value display selectable between °C and °F.

    •Different exhibition settings.

    •Battery operation.

    •Compact and robust design.

    •Incl. ISO calibration certificate.

Specifications:

 Measuring function (Infrared) Measuring range -50 ... 550 °C; Resolution ≤ 1000 °C/°F: 0.1 °C/°F; > 1000 °C/°F: 1 °C/°F; Accuracy -50 … 0 ºC: ± 3 ºC; > 0º C: ± 1.5 % or ± 2.0, the larger value counts
 Measuring function (Type K) Measuring range -50 … 850 ºC; Resolution ≤ 1000 °C/°F: 0.1 °C/°F; > 1000 °C/°F: 1 °C/°F; Accuracy ± 1.5 % or ± 1.5 °C, the larger value counts
 Measuring function (Air temperature) Measuring range -20 … 60 ºC; Resolution 0.1 °C; Accuracy 0 … 40 ºC: ± 1.0 ºC; Other: ± 2 °C
 Measuring function (Humidity) Measuring range 0 … 100 % r.H.; Resolution 1 %; Accuracy 35 … 75 % r.H.: ± 3.0 % r.H.; Other: ± 5 % r.H.
 Measuring function (Dew point) Measuring range -20 … 60 ºC; Resolution 0.1 °C; Accuracy 25 ºC, 40 … 80 % r.H.: ± 1.5 ºC
 Measuring function (Wet bulb temp) Measuring range -20 … 60ºC; Resolution 0.1 °C; Accuracy 25 °C: ± 1.5 °C
 Emissivity Adjustable between 0.1 and 1.0
 Optical resolution 13 : 1
 Response time ≤ 500 ms
 Spectral sensitivity 8 … 14 um
 Laser ≤ 1 mW, 630 … 670 nm, class 2 laser
 Automatic shutdown after one minute
 Operating conditions 0 … 50 ºC / ≤ 95% r.H.
 Storage conditions -20 … 70 ºC / ≤ 80 % r.H.
 Power supply 9 V battery
