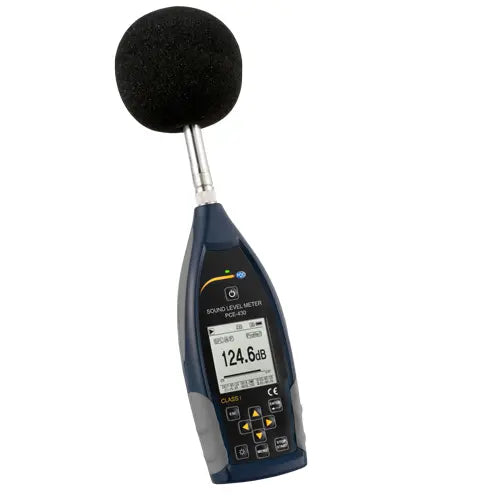

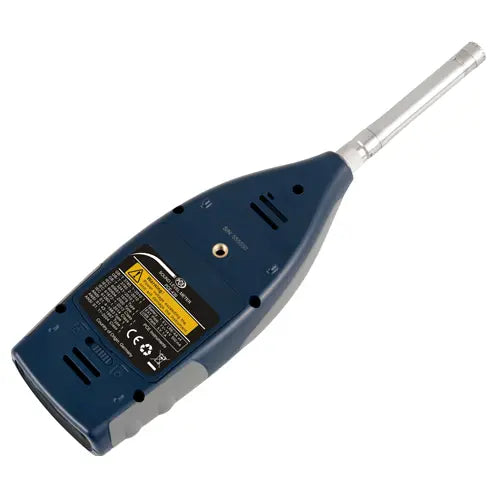

PCE-430-EKIT - Professional Outdoor Noise Meter with Data Logger and USB Access

PCE-430-EKIT - Professional Outdoor Noise Meter with Data Logger and USB Access

SKU: SKU: PCE-430-EKIT   Download PDF

Select a Variant:
  • PCE-430-EKIT - Professional Outdoor Noise Meter with Data Logger and USB Access
Qty:
Regular price Now $6,581.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $6,581.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-430-EKIT Outdoor Decibel Meter Kit, specifically engineered for accurate outdoor noise detection and analysis This portable noise measurement tool features a real-time frequency analyzer and an octave band filter, allowing for fast, slow, and pulse evaluations With an integrated data logger that saves information onto a micro SD card, and USB connectivity for effortless data management and post-processing, it’s built for convenience.

Compliant with various accuracy standards, the meter boasts a large illuminated display for easy readability Perfect for assessing workplace noise and monitoring environmental sound levels, this device helps users select suitable hearing protection and implement effective noise reduction strategies while estimating exposure levels.

Features and Benefits:

    •Integrated precision pulse decibel meter following relevant standards.

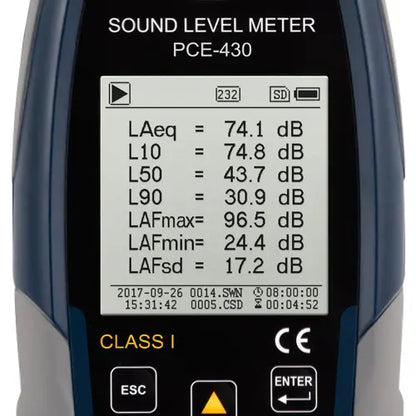

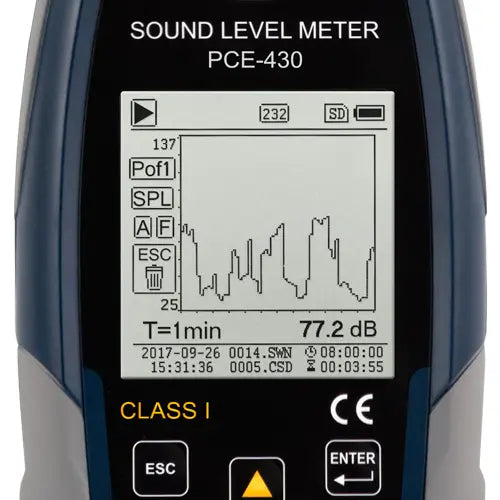

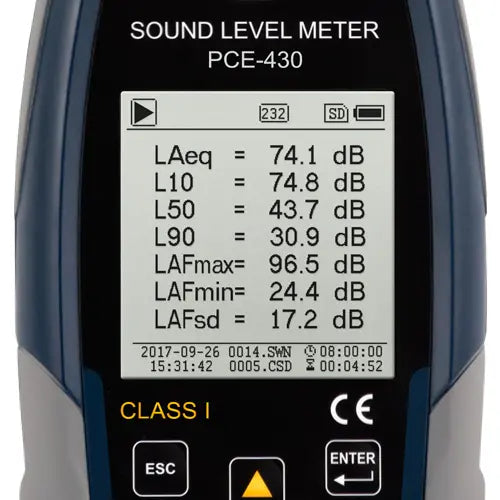

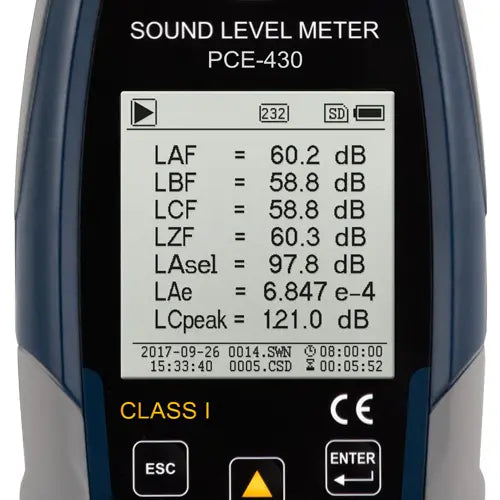

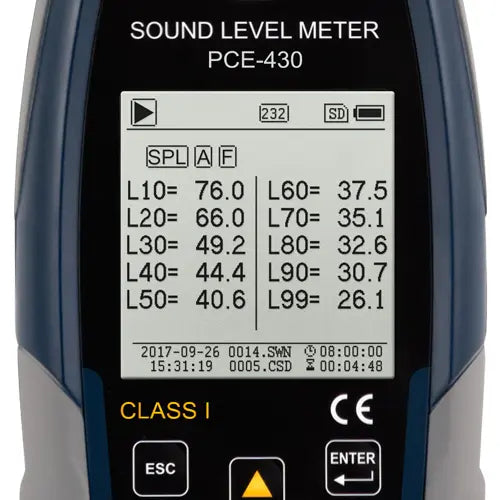

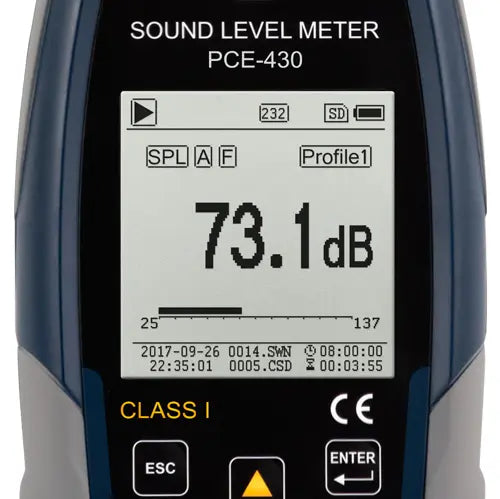

    •Large illuminated display for real-time sound level and frequency analysis.

    •Data logging capability with micro SD card storage.

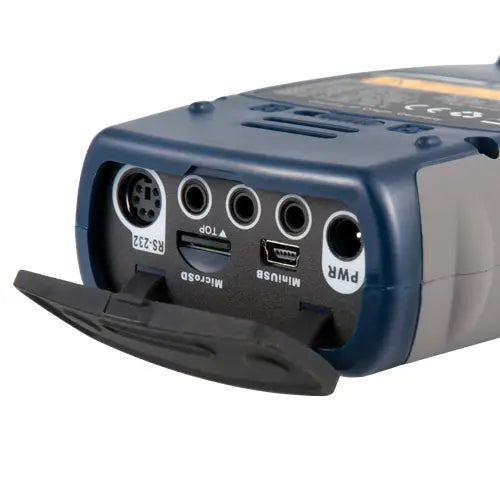

    •USB connectivity for data transfer and software analysis.

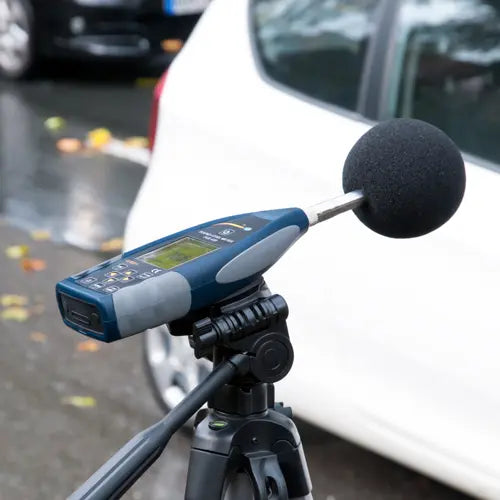

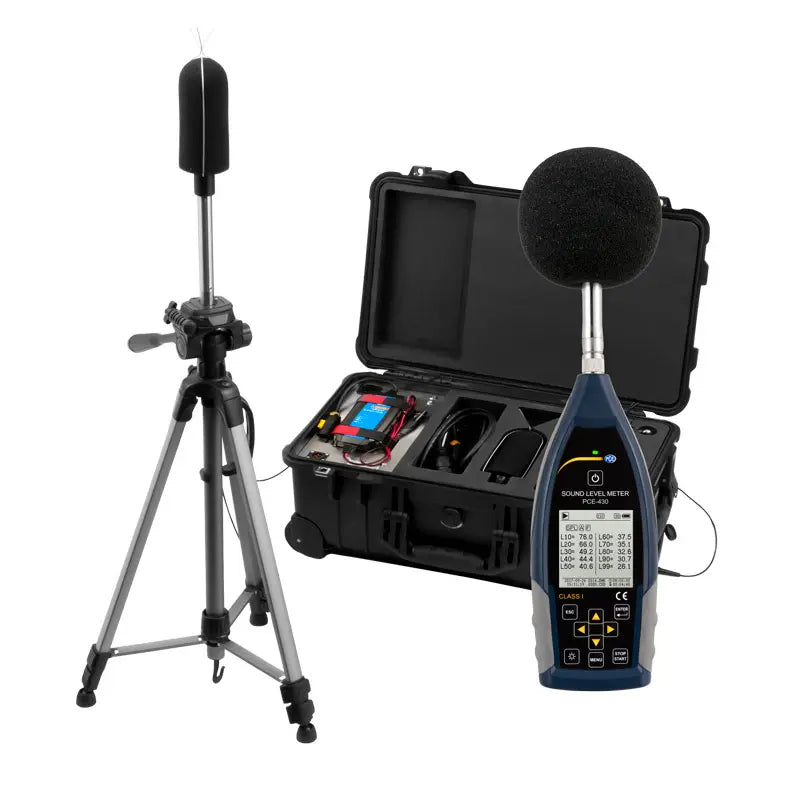

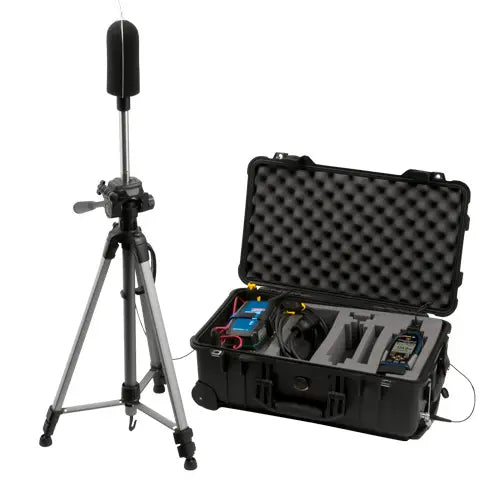

    •Weatherproof kit for extended outdoor use and protection from elements.

    •Measurement of workplace noise.

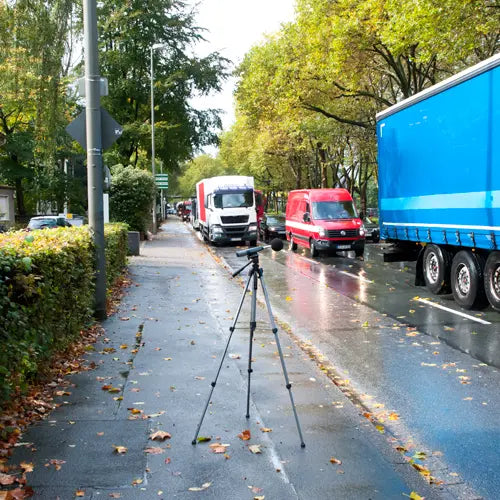

    •Compliance checks for environmental noise.

    •Assessment for selection of hearing protectors.

    •Implementation of noise abatement measures.

    •Estimation of noise exposure in various environments.

Specifications:

 Measuring range 22 ... 136 dbA
 Accuracy Class 1
 Frequency range 3 Hz ... 20 kHz
 Standards GB/T3785.1-2010, GB/T3785.2-2010, IEC60651:1979, IEC60804:2000, IEC61672-1:2013, ANSI S1.4-1983, ANSI S1.43-1997
 Frequency analysis Octave band filter: 8 Hz ... 16 kHz, 1/3 Octave band filter: 6.3 Hz ... 20 kHz

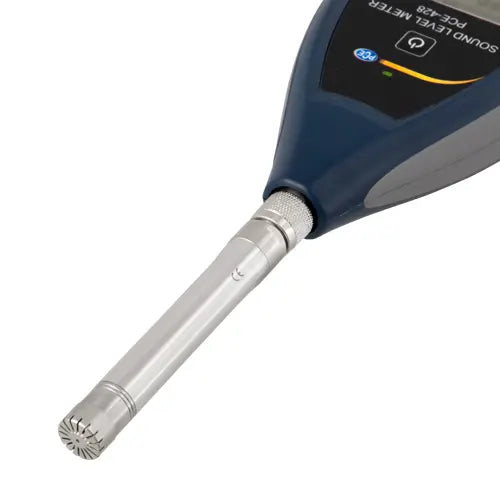

 Microphone 1/2" measurement microphone class 1 with sensitivity 40 mV/PA
 Data-logging interval 1 s ... 24 h (adjustable)
 Display 160 x 160 pixel LCD with backlight
 Memory 4 GB Micro SD card
 Operating time battery mode min. 10 h
 Dimensions 70 x 300 x 36 mm
 Transport case PELI 1510 with rollers
 Protection IP65
