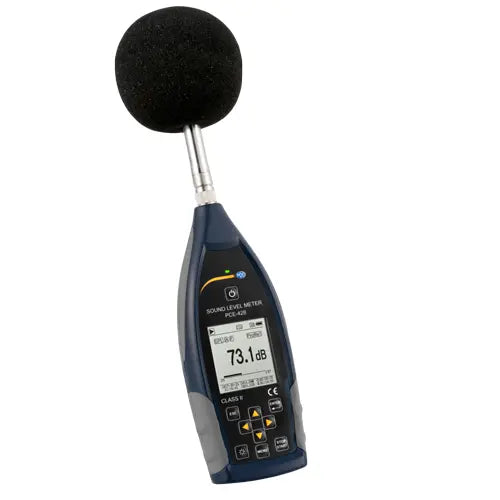

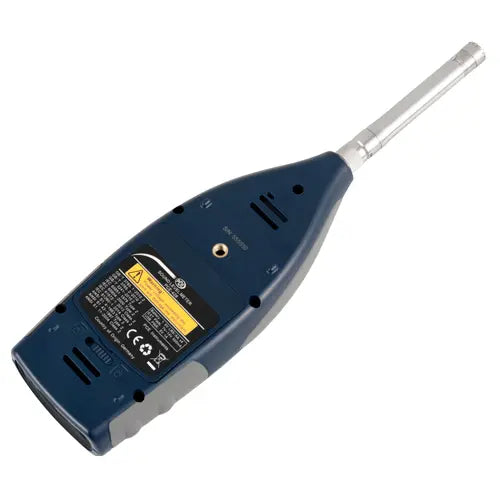

PCE-428-EKIT - Professional Sound Level Meter with USB Logging and Outdoor Kit

PCE-428-EKIT - Professional Sound Level Meter with USB Logging and Outdoor Kit

SKU: SKU: PCE-428-EKIT   Download PDF

Select a Variant:
  • PCE-428-EKIT - Professional Sound Level Meter with USB Logging and Outdoor Kit
Qty:
Regular price Now $5,379.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $5,379.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-428-EKIT Environmental Meter, perfect for monitoring sound levels in various environments such as workplaces, construction sites, traffic areas, and airports This class II sound level meter is equipped with an octave band filter that facilitates detailed frequency analysis With the capability to store three distinct measurement profiles, this device accommodates a range of frequency ratings, including A, B, C, and Z.

The PCE-428-EKIT offers multiple time weighting options for measurements—fast, slow, pulse, and peak—ensuring versatility in your assessments It features a measuring range from 25 to 136 dBA and captures frequencies between 20 Hz and 125 kHz Additionally, it includes a peak hold function to identify maximum sound levels, paired with a design that minimizes inherent noise for greater accuracy For comprehensive analysis even under tough outdoor conditions, an optional outdoor noise measurement kit is available, making this meter a valuable tool for long-term environmental monitoring.

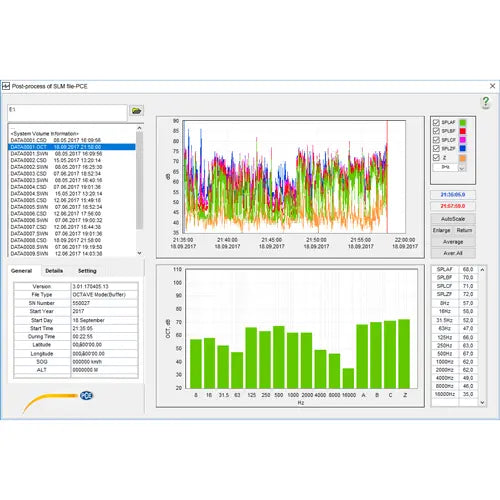

Data logging is simplified through the USB interface, allowing for easy transfer and analysis of your measurements.

Features and Benefits:

    •Includes octave band filter and optional 1/3 octave band filter.

    •Features a class 2 accuracy rating.

    •Reports with A, B, C, and Z frequency ratings.

    •Selectable fast, slow, pulse, and peak weighting.

    •3 adjustable measuring profiles for flexible data recording.

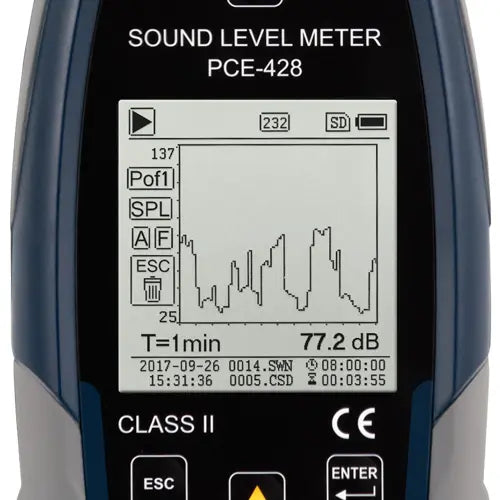

    •Graphs display sound profiles for better visualization.

    •Low inherent noise for precise measurement.

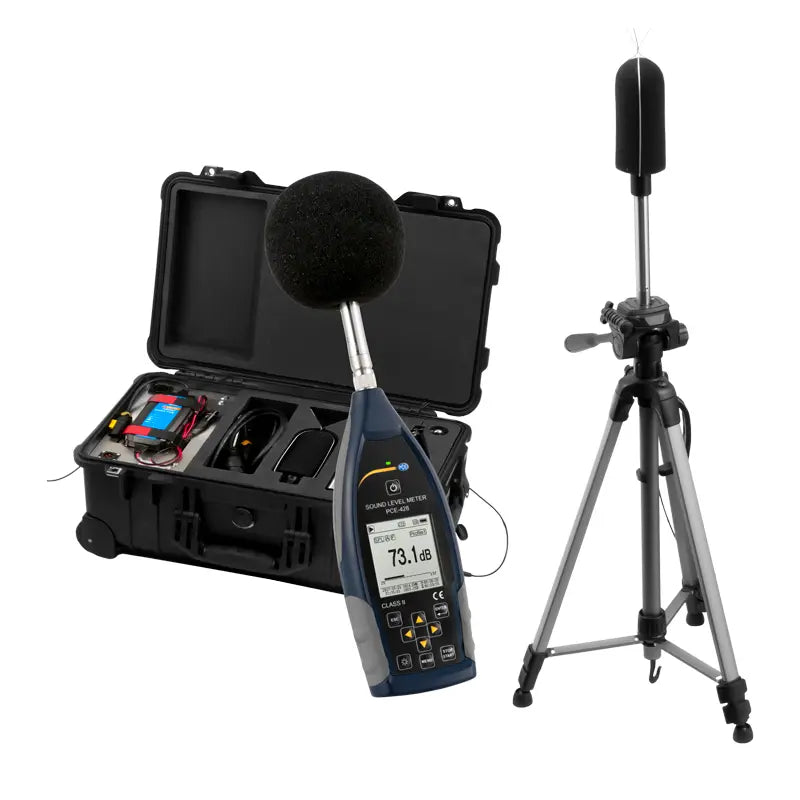

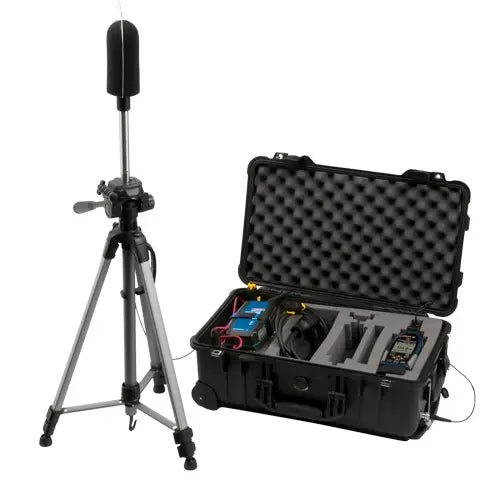

    •Robust outdoor measuring kit with waterproof housing.

    •Extended battery life for long-term outdoor use.

    •Workplace sound level measurements.

    •Construction site noise monitoring.

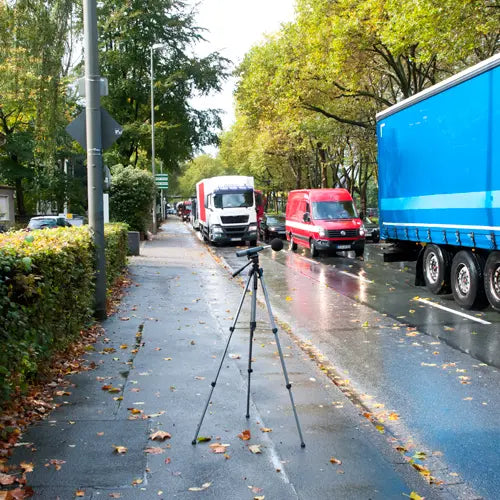

    •Traffic noise analysis.

    •Airport noise assessment.

    •Environmental noise monitoring in urban areas.

Specifications:

 Measuring range 25 ... 136 dBA
 Accuracy Class 2
 Frequency range 20 Hz ... 12.5 kHz
 Standards GB/T3785.1-2010, GB/T3785.2-2010, IEC60651:1979, IEC60804:2000, IEC61672-1:2013, ANSI S1.4-1983, ANSI S1.43-1997
 Frequency analysis Octave band filter: 20Hz ... 8kHz, 1/3 Octave band filter: 20Hz ... 12.5kHz

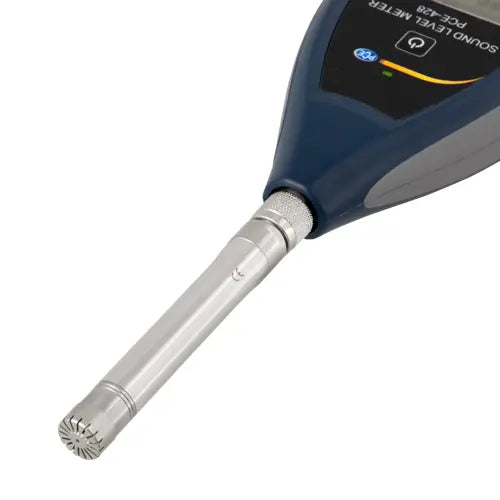

 Microphone 1/2" measurement microphone class 2, Sensitivity: 40 mV/PA, Frequency range: 20 Hz ... 12.5 kHz, Connection: TNC
 Data-logging interval 1 s ... 24 h (adjustable)

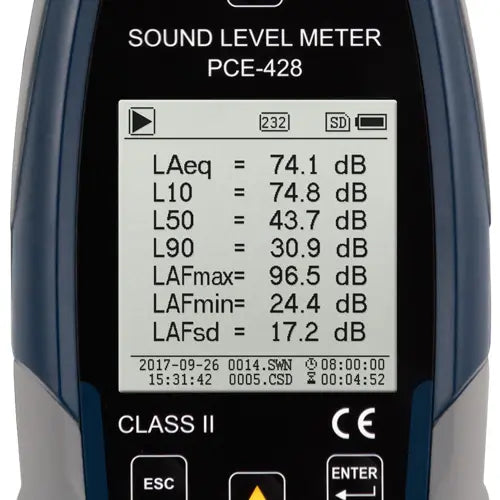

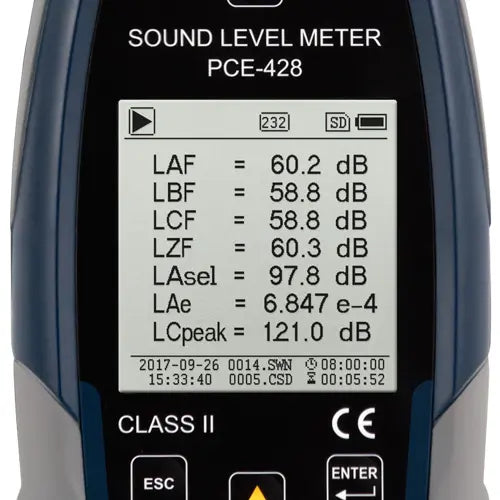

 Measuring functions LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak
 24 hour measurement Automatic measurement with data storage
 Frequency weightings A, B, C, Z
 Time weightings Fast (F), Slow (S), Pulse(I), Peak
 Inherent noise Microphone: 20 db(A), 26 db(C), 31 db(Z), Electronics: 14 db(A), 19 db(C), 24 db(Z)
 AD converter 24 Bit
 AD Sample rate Standard: 48 kHz, LN Mode: 20 ms

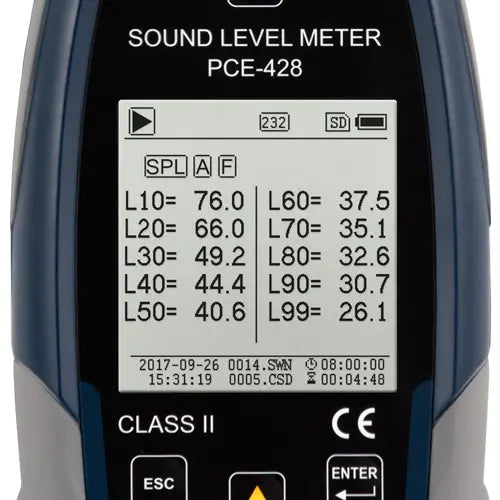

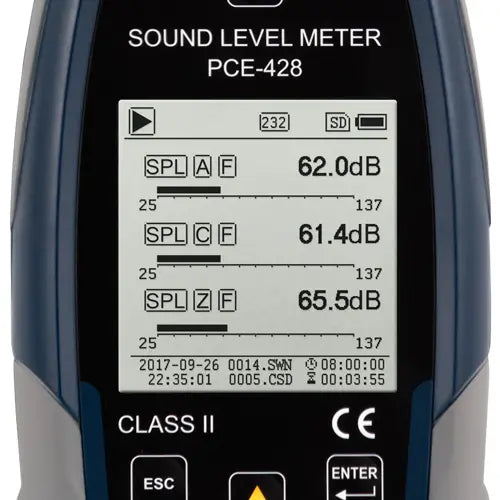

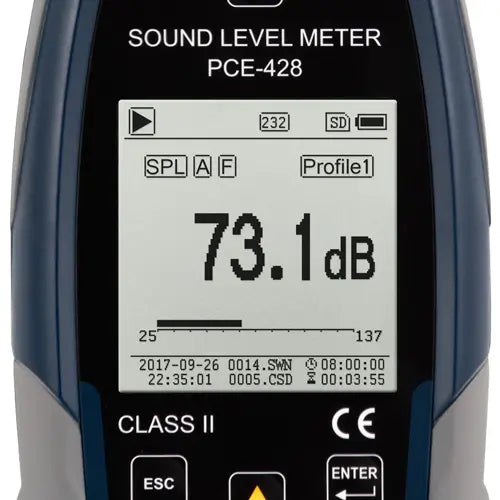

 Measuring display Numerical, Bar graph, Graphical
 Display 160 x 160 Pixel LCD with backlight
 Memory 4 GB Micro SD card

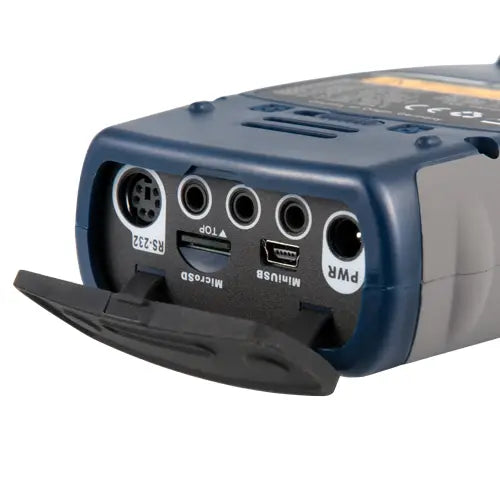

 Interface USB (Memory readable via software or directly as mass storage), RS232
 Voltage output AC 5V RMS, DC 10 mV/db
 Alarm Adjustable
 Power supply 4 x 1.5 V AA batteries, 12 V / 1 A power plug, 5 V / 1 A USB
 Operating time battery mode min. 10 h
 Dimensions 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)
 Transport case PELI 1510 with rollers with grid foam
 Protection IP65
 Charger Victron Blue Smart 12 V / 4 A IP65
 Internal batteries 2 x 12 V / 12 Ah lead gel
 Battery running time min. 10 days
 Cable length Microphone cable: 2 m / 6 ft 6" with TNC connector, Power supply: 2 m / 6 ft 6" with PowerCon TRU
