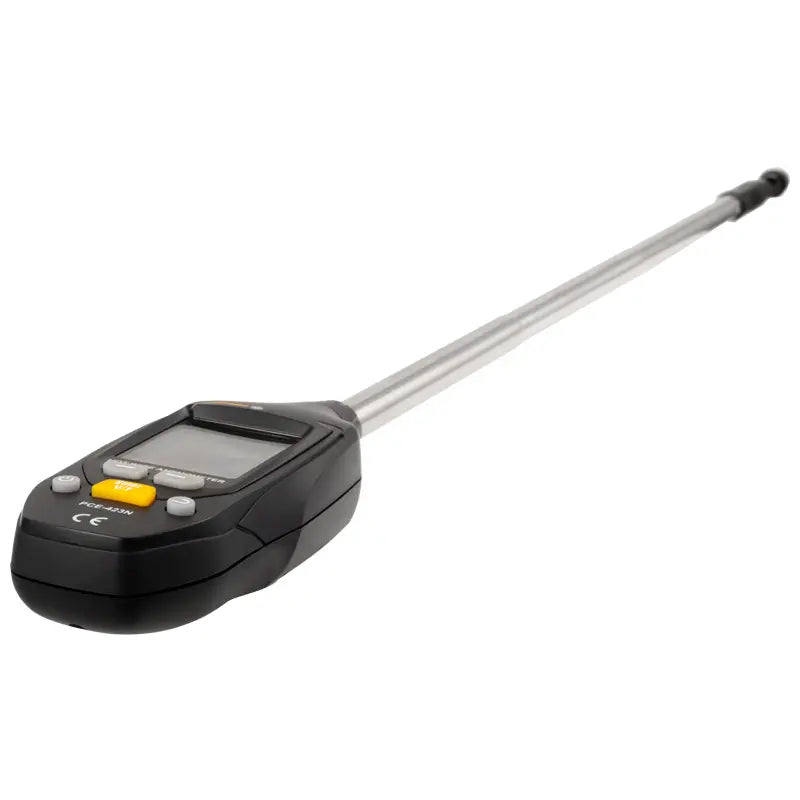

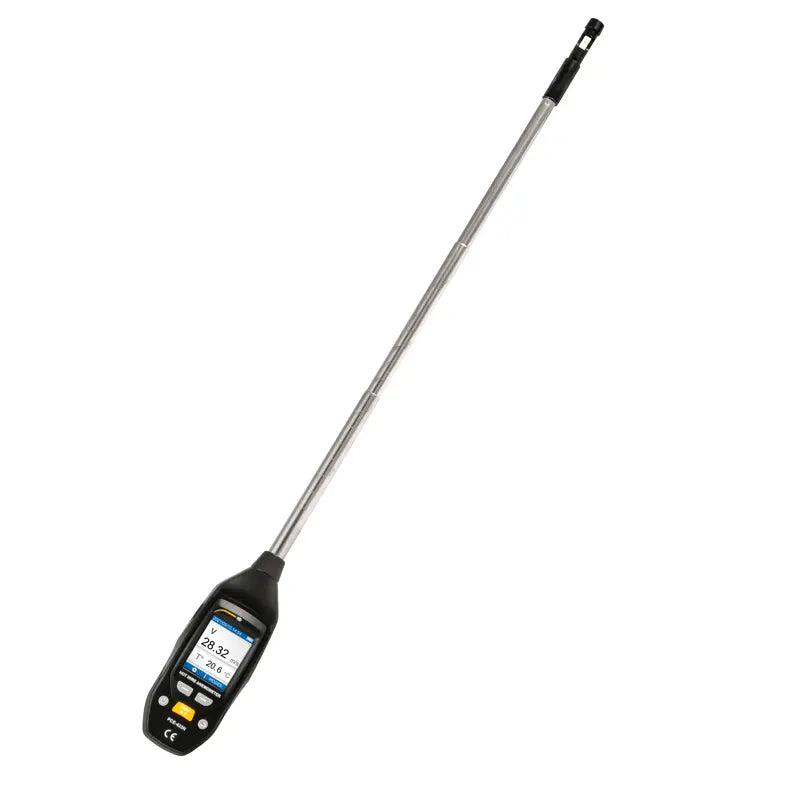

PCE-423N - Portable Environmental Meter with 426mm Probe and Data Logging

SKU: SKU: PCE-423N Download PDF

Select a Variant:

PCE-423N - Portable Environmental Meter with 426mm Probe and Data Logging

SET THE QTY:

Now $243.00 Web pricing policy

~~BEFORE $0.00~~ Now $243.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-423N environmental meter, a versatile tool tailored for a wide range of applications This device boasts a measuring capability that spans from 0 to 30 m/s (98 ft/s) It features a micro-USB interface for seamless data transfer and includes a telescopic probe that can extend to 426 mm (167 inches), enhancing its reach Powered by a rechargeable 1000 mAh battery, this meter is perfect for on-the-go usage.

With the ability to record and store up to 10,000 data points, users can easily analyze results in CSV format Its compact design makes it ideal for accessing tight spaces like ducts and cooling fins, allowing for efficient measurement of speed, volume flow, and temperature.

Features and Benefits:

•Measuring range up to 30 m/s / 98 ft/s.

•Rechargeable battery.

•Data format in CSV.

•Data memory for 10,000 measuring points.

•Measures speed, volume flow, and temperature.

Specifications:

Measuring range (Speed)	0.00 ... 30.00 m/s, 0.0 ... 5905.5 ft/min
Resolution (Speed)	0.01 m/s, 0.1 ft/min
Accuracy (Speed)	±0.10 m/s or ± 5% at 0 ... 5 m/s, ±0.30 m/s or ±5 % at 5 ... 30 m/s
Measuring range (Volume flow)	0.0 ... 339120.0 m3/h, 0.0 ... 99598.0 CFM
Resolution (Volume flow)	0.1 m3/h, 0.1 CFM
Measuring range (Temperature)	0 ... 50 °C, 32 ... 122 °F
Resolution (Temperature)	0.1 °C, 0.1 °F
Accuracy (Temperature)	±1 °C, ±1.8 °F

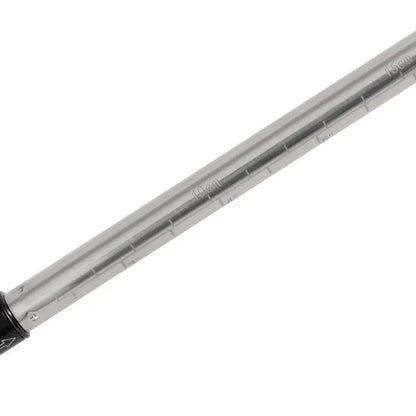

Telescopic probe length	210 ... 426 mm / 8.2 ... 16.7"
Telescopic probe diameter	12 mm / 0.47"
Memory	10,000 measuring points
File format	CSV
Interface	Micro-USB

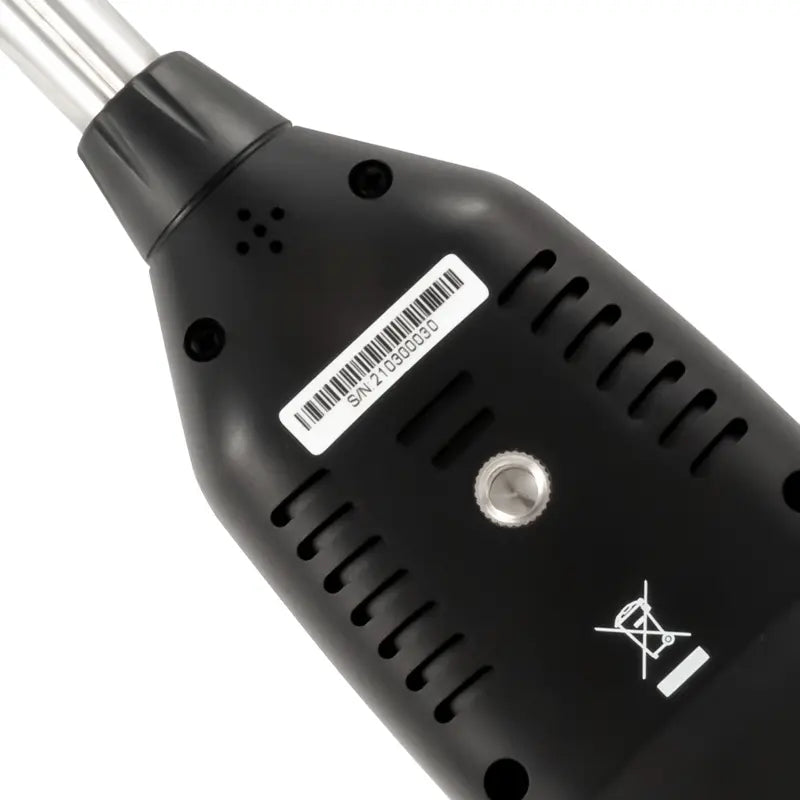

Bracket	3/8" tripod bracket
Display	2" LCD display, 176 x 220 pixels
Measuring rate	1 Hz
Power supply (battery)	internal 1000 mAh battery
Power supply (external)	5 V DC, 1 A
Operating conditions	0 ... 50 °C (32 ... 122 °F), <85 % RH, non-condensing
Storage conditions	-10 ... 60 °C (14 ... 140 °F), <85 % RH, non-condensing
Dimensions	145 x 50 x 35 mm / 5.7 x 1.9 x 1.3"
Weight	156 g / 5.5 oz
