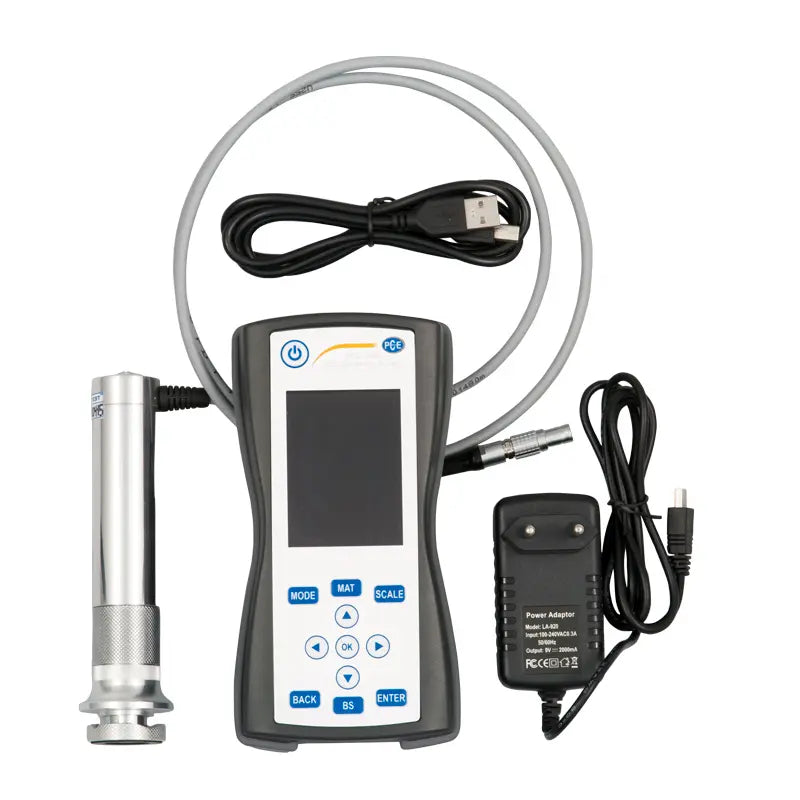

PCE-3500 - Non-Destructive UCI Hardness Tester with Color Display

PCE-3500 - Non-Destructive UCI Hardness Tester with Color Display

SKU: PCE-3500   Download PDF

Select a Variant:
  • PCE-3500 - Non-Destructive UCI Hardness Tester with Color Display
Qty:
Now $4,996.00   Web pricing policy
BEFORE   $0.00 Now $4,996.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience precision with the UCI hardness tester PCE-3500, specifically engineered for non-invasive hardness assessment of metal materials through the Ultrasonic Contact Impedance testing method This device boasts a vibrant color LC display and comes equipped with data evaluation software for seamless analysis It can measure hardness in various scales including HV, HRC, HRB, HB, and MPa, and features an integrated memory function for easy data storage.

This model is compatible with interchangeable probes and utilizes a 136 ° Vickers diamond to ensure accuracy in measurements.

Features and Benefits:

    •Measurement in line with UCI procedure.

    •Tests HRC, HRB, HV, HB, MPa.

    •Measurement direction 360°.

    •Large colour LC display.

    •Memory function via SD card.

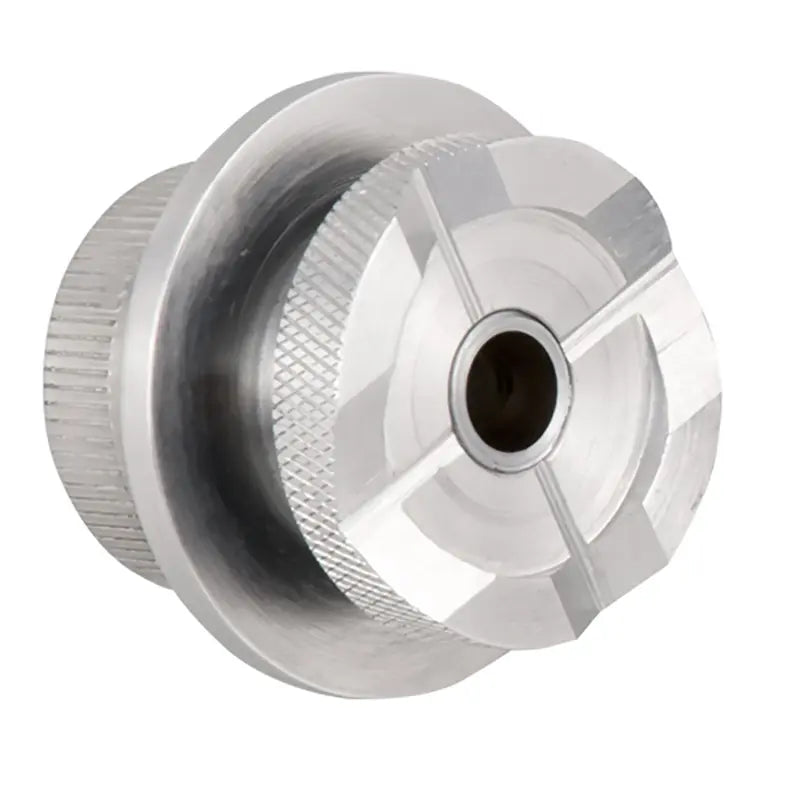

    •Different probes can be attached.

    •Characteristic curve of material pre-calibrated.

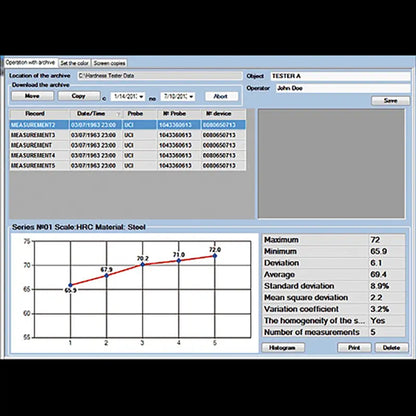

    •Evaluation via software possible.

    •Suitable for edge layer hardened components.

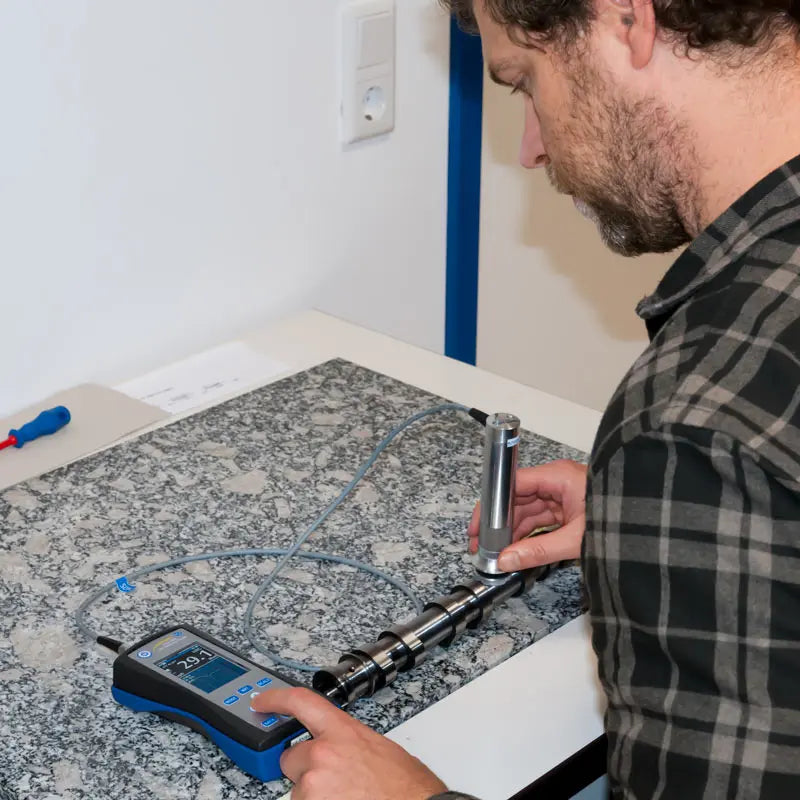

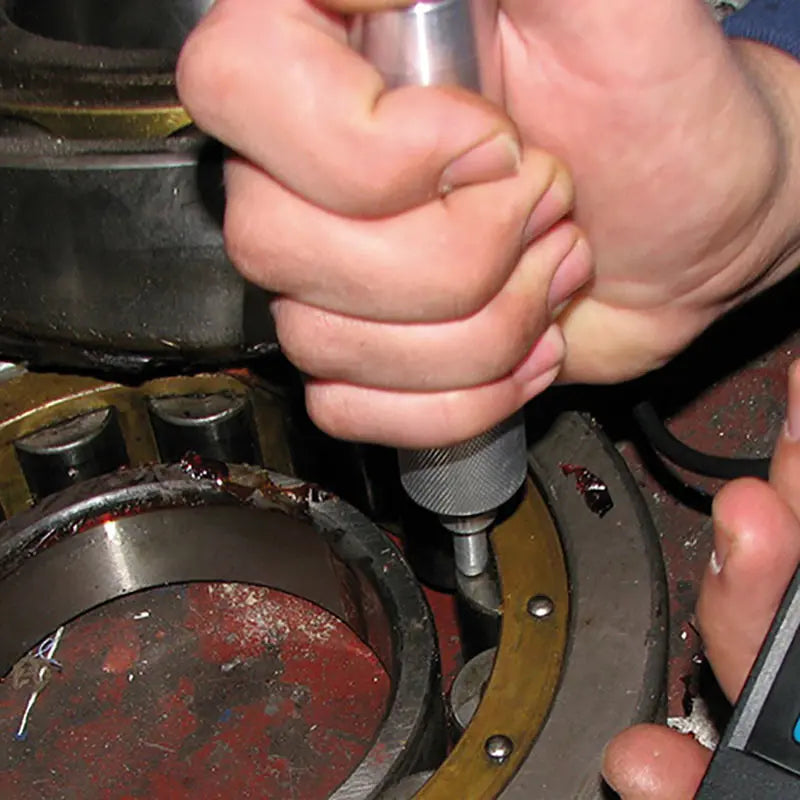

    •Used for punching tools, presses, thin-walled components, cog wheels, turbine blades, camshafts, or weld seams.

Specifications:

 Measurement range HV: 230 ... 940 HV
 Measurement range HRC: 20 ... 70 HRC
 Measurement range HB: 90 ... 650 HB
 Measurement range MPa: 370 ... 1740 MPa
 Accuracy HV: +/- 3% HV
 Accuracy HRC: +/- 1.5 HRC
 Accuracy HB: +/- 3% HB

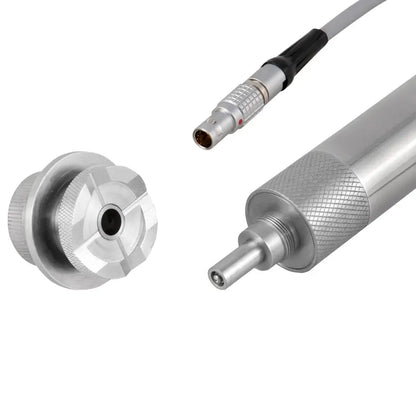

 Probes: 50 N UCI probe (10 N UCI probe optional)
 Hardness scales: HRC, HB, HV, HRB, HL, MPA
 Materials: UCI: steel (ferromagnetic)
 Reference block: 136° Vickers diamond
 Measurement direction: 360°
 Minimum material thickness: 1 mm / .04 in (with UCI probe only)

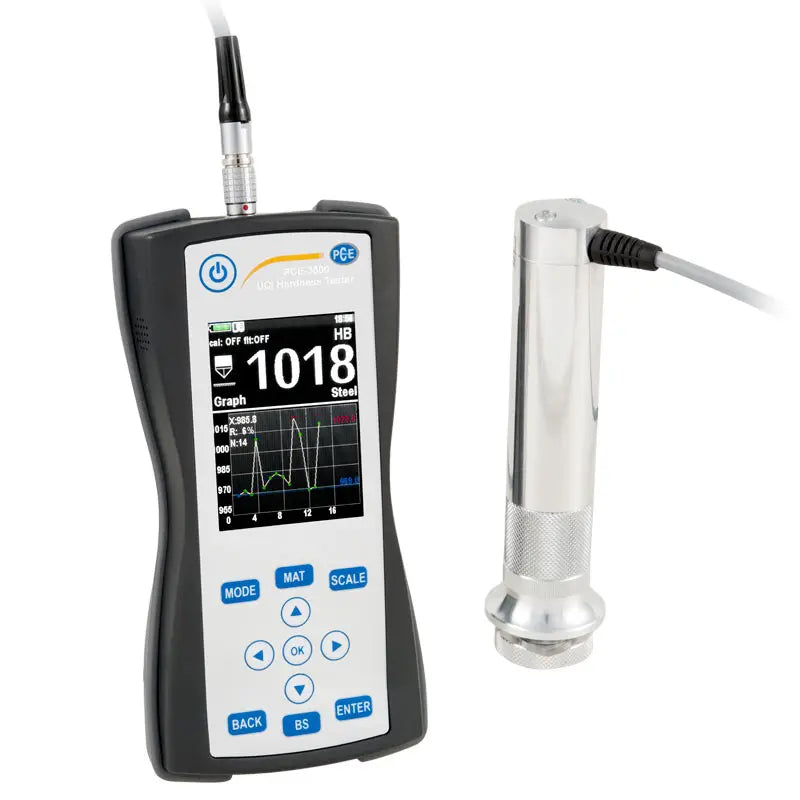

 Display: graphical colour LCD with backlight
 Functions: Single measurement, MIN / MAX / average value, number of measurements, mean value, standard deviation, variation coefficient, bar chart, Smart Mode (filters outliers)
 Memory: SD card
 Interface: USB
 Operating conditions: -20 ... 40°C / -4 ... 104°F ; 30 ... 80 % RH
 Power supply: 6V (3 x AA batteries)
 Battery life: Approx. 10 hours
 Dimensions: 160 x 75 x 30 mm / 6.3 x 3 x 1.2 in
 Protection class: IP 54
