PCE-228-KIT - Portable pH Meter Kit with Data Logging & Temperature Sensor

PCE-228-KIT - Portable pH Meter Kit with Data Logging & Temperature Sensor

SKU: SKU: PCE-228-KIT Download PDF

Variant:
  • PCE-228-KIT - Portable pH Meter Kit with Data Logging & Temperature Sensor
Regular price Now $422.00
Regular price BEFORE   $0.00 Sale price Now $422.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

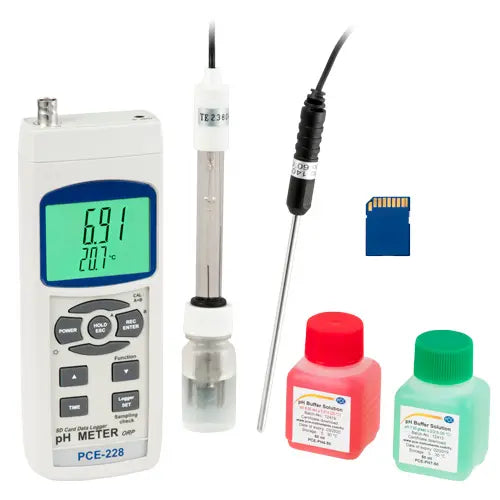

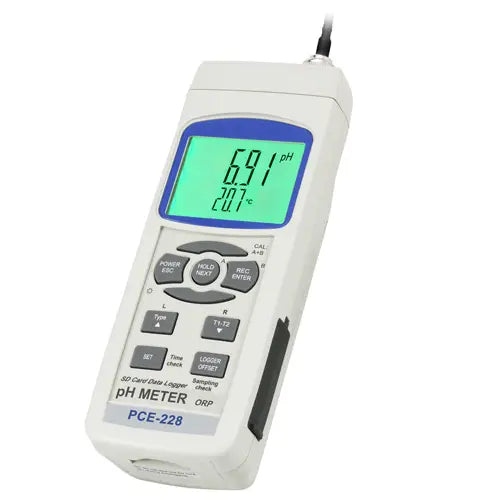

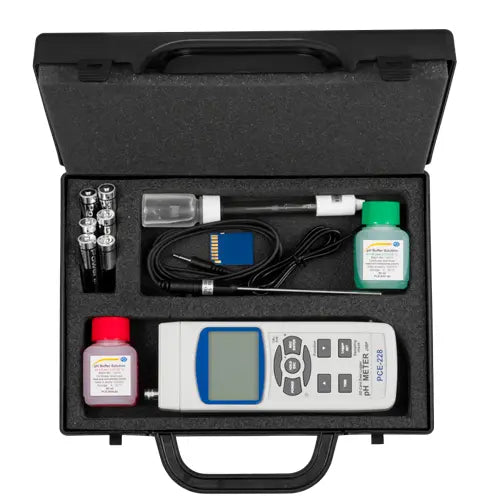

Introducing the PCE-228-Kit pH Meter Kit, a versatile instrument for measuring pH, Redox, and temperature with precision This comprehensive kit includes a PE-03 electrode, a temperature sensor, and an SD memory card for convenient data storage in Excel format The PCE-288 pH meter within the kit is a portable, user-friendly device that allows for accurate readings of pH levels, mV, and °C Users can effortlessly save measurement data to the SD card or connect to a PC through the RS-232 interface.

The device is equipped with features that accommodate both manual and automatic temperature compensation, two calibration points, and a large display for easy readability Its durable enclosure ensures long-lasting use For added functionality, optional software and a Redox electrode are available as accessories.

Features and Benefits:

    •Good price-performance ratio.

    •Includes SD memory card with capacity up to 16 GB.

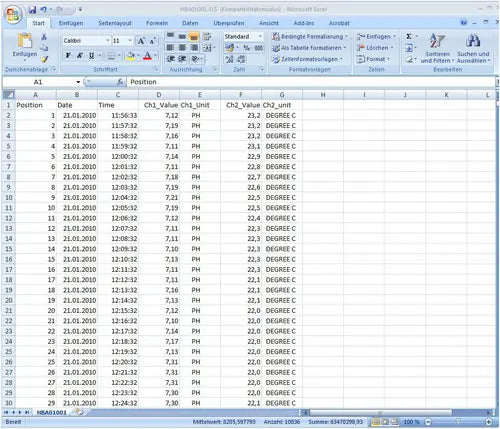

    •Measured values saved directly in the SD card as an Excel file.

    •RS-232 interface for real-time data transfer.

    •Measures pH values, Redox, conductivity, salt content, oxygen, and temperature.

    •High accuracy and low battery indication.

    •Large LCD display with adjustable measurement rate.

    •Solid enclosure for durability.

    •Automatic calibration and manual or automatic temperature compensation.

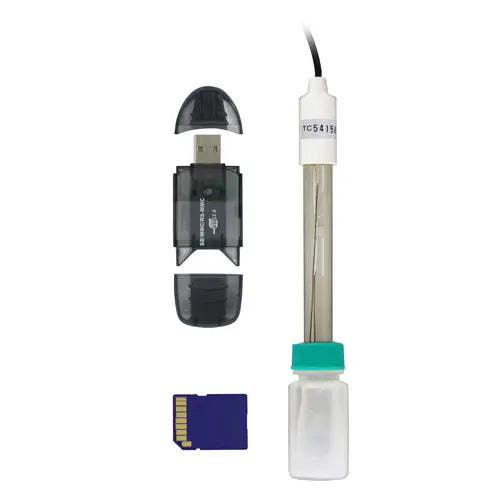

    •Includes pH PE-03 electrode and stainless steel temperature sensor.

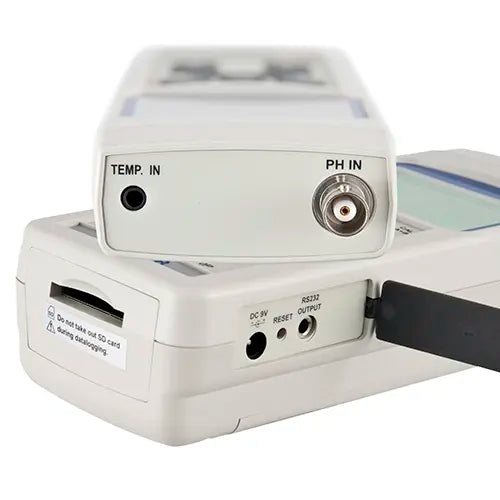

    •BNC connector for easy electrode attachment.

    •Suitable for laboratory and on-site measurements.

    •Used for measuring pH, temperature, and Redox values in laboratories and fieldwork.

Specifications:

 Measurement range pH 0.00 to 14.00
 Measurement range Redox -1999 to 0 to 1999 mV (only with optional Redox electrode)
 Temperature range 0.0 to 65.0 °C or 32 ... 149 °F (only the temperature sensor)
 Resolution 0.01 pH, 1 mV, 0.1°C
 Accuracy at 20°C ± (0.02 pH + 2 digits), ± (0.5 % + 2 digits), ±0.5°C
 Calibration Automatic three-point calibration
 Temperature compensation Automatic from 0 to 65°C or manual between 0 and 100°C with temperature sensor removal
 Electrode pH PE-03 electrode with 1 meter cable and BNC plug, temperature range: 0 ... 60 ºC
 Measurement rate Adjustable from 1 second up to 8 hours 59 min 59 sec
 Display dimensions LCD display: 52 x 38 mm
 Memory SD card from 1 ... 16 GB (2 GB memory card included)
 Interface RS-232
 Software Optional
 Power supply 6 x 1.5 V AA batteries / mains adapter 9 V (optional)
 Operating conditions 0 to 50°C max. 80% r.h.
 Dimensions 177 x 68 x 45 mm
