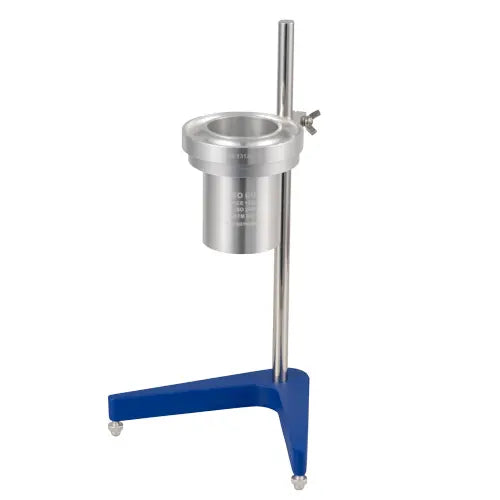

PCE-125/4 - Anodized Aluminum Ford Flow Cup Meter for Viscosity Testing

Description:

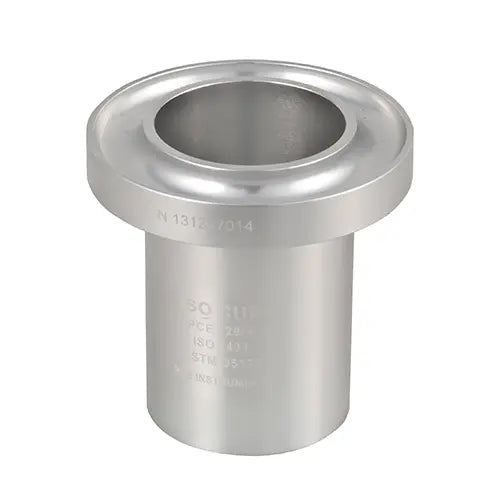

Introducing the Ford Flow Cup Meter, expertly crafted to adhere to international standards ASTM D1200, D333, and D365 Made from anodized aluminum and featuring an interchangeable stainless steel nozzle, this device is ideal for measuring the viscosity of less viscous liquids with ease and accuracy The flow cup meter's design follows a standardized DIN structure, characterized by its cylindrical hollow body that terminates in a nozzle.

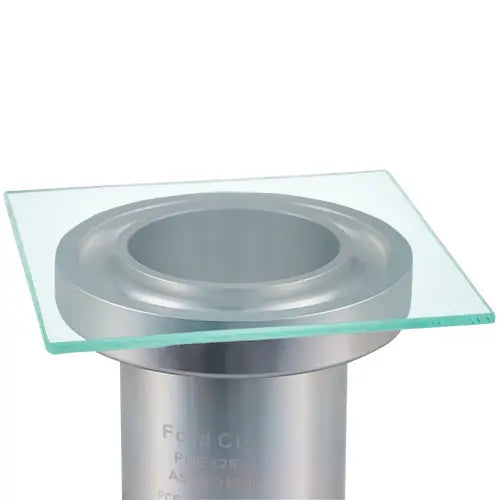

Both the cup and nozzle openings conform to specified DIN standards, ensuring consistent measurements To use the flow cup, start by holding the nozzle closed and filling it to the brim with the liquid you wish to measure An innovative overflow channel prevents any measurement inaccuracies due to liquid escaping the sides After removing excess material with a glass plate, you can release the nozzle.

A negative pressure will keep the liquid secured in the cup until you pull the glass plate away, signaling you to start your timer When the stream of liquid breaks for the first time, stop the timer and record your result For optimal accuracy, it's crucial to clean the flow cup meter thoroughly after every use Any residual liquid within the nozzle or cup can skew future results, and even minor scratches can impact measurement precision, as they alter the internal volume of the cup, deviating from the certified DIN standard.

Features and Benefits:

•Anodized aluminum - satin finish.

•Including factory calibration certificate.

•Overflow channel for clean work.

•Complies with international standards.

•Stand available as optional accessory.

Specifications:
