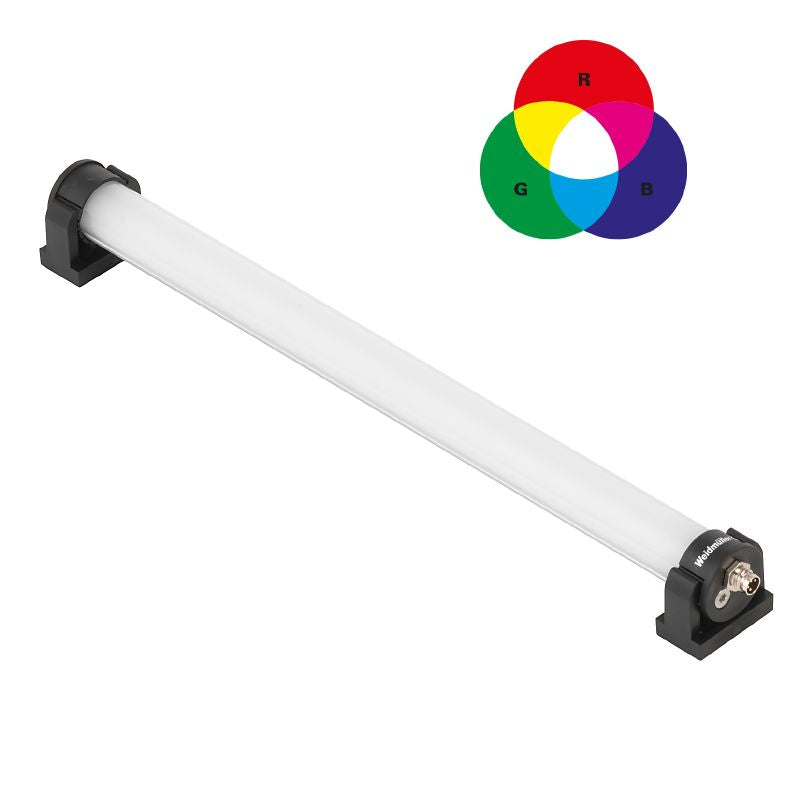

WIL-ERGBX-RXSS-XXXX-X280-M8XX - Durable 24V M8 Dimmable Lighting Fixture, 552 Lumens

WIL-ERGBX-RXSS-XXXX-X280-M8XX - Durable 24V M8 Dimmable Lighting Fixture, 552 Lumens

SKU: SKU: 2899870000   Download PDF

Select a Variant:
  • WIL-ERGBX-RXSS-XXXX-X280-M8XX - Durable 24V M8 Dimmable Lighting Fixture, 552 Lumens
Qty:
Regular price Now $181.67   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $181.67 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Illuminate your space with this versatile lighting fixture, designed to perform optimally in temperature conditions ranging from -20°C to 45°C Crafted with a robust hard anodised aluminium housing, it promises exceptional durability The M8 pin connector offers a straight configuration with an A-coded design, ensuring a reliable connection This fixture features smooth dimming capabilities and delivers a bright output of 552 lumens with a 120-degree emission angle, producing an impressive illumination level of 163 lux.

Powered by a 24 V DC rated voltage, it operates with a power consumption of just 55 W Adhering to RoHS regulations, it also boasts an IP54 protection rating, making it suitable for a variety of environments With a lifespan of up to 60,000 hours, this lighting option is built for longevity and efficiency.

Features and Benefits:

    •Stepless dimming capability.

    •Emitting angle of 120 degrees.

    •Illumination level of 163 lux.

    •Long operating life of 60,000 hours.

    •Compact and durable hard anodised aluminium housing.

    •Compliant with RoHS directives.

Specifications:

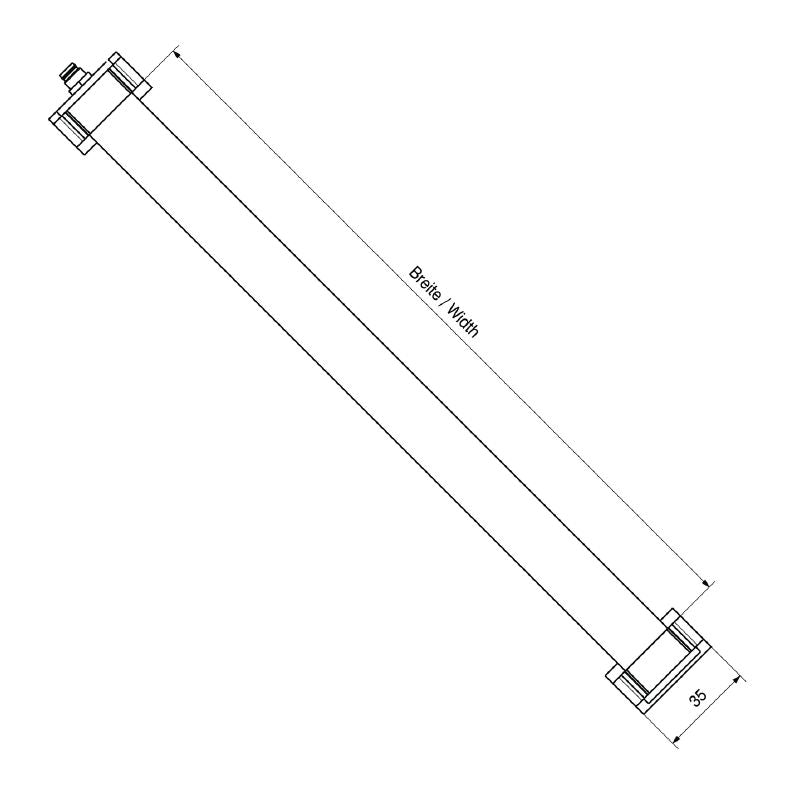

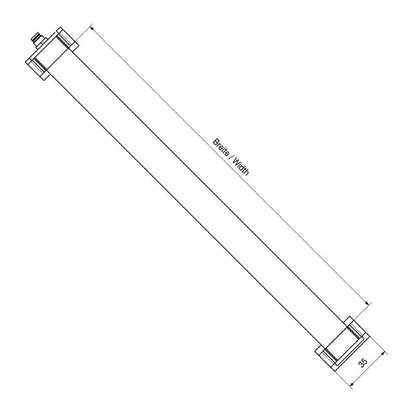

 Depth 35 mm
 Height 35 mm
 Width 280 mm
 Rated voltage 24 V DC
 Power 5.5 W
 Dimmable yes, stepless dimming
 Number of poles 4
 Tightening torque 0.6 Nm
 Light current 552 lm
 Operating life 60.000 h

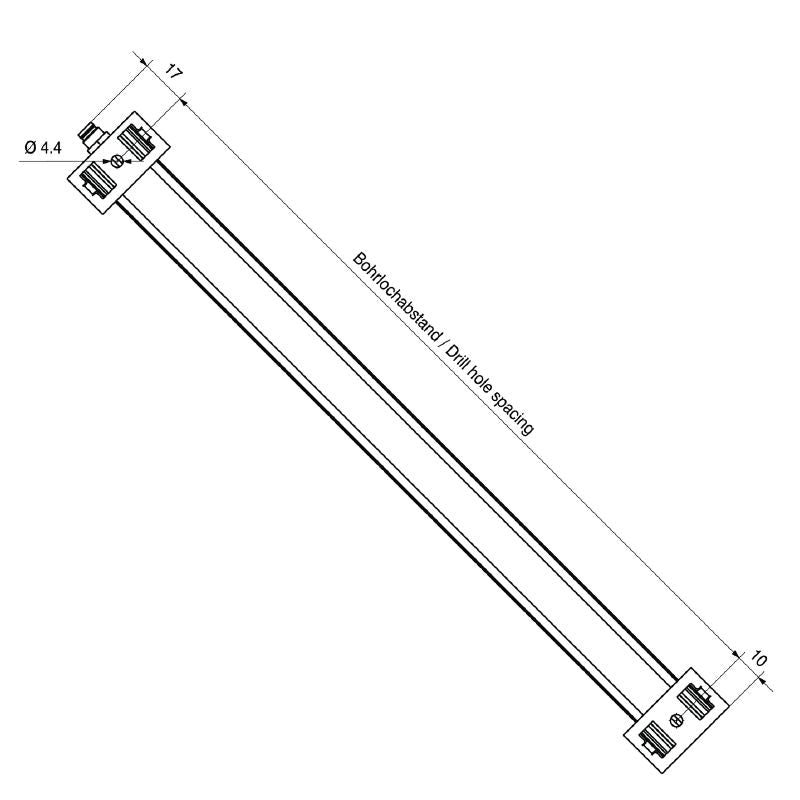

 Type of mounting Screw mounting
 Protection degree IP54
 Material of LED cover PMMA
 Wiring Pin 1 / 2 / 4: control multicolor LED; Pin 5: GND(-); Pin 3: GND(-)
