2527940000 - 5m LED Module, 6500K, 886 Lumens, 24V DC
2527940000 - 5m LED Module, 6500K, 886 Lumens, 24V DC
SKU: SKU: 2527940000 Download PDF
- 2527940000 - 5m LED Module, 6500K, 886 Lumens, 24V DC
- 2527940000 - 5m LED Module, 6500K, 886 Lumens, 24V DC
Couldn't load pickup availability
Description:
Introducing an exceptional LED module engineered to function efficiently within a temperature range of -20°C to 60°C This product adheres to strict RoHS standards, with no exemptions, ensuring it is free from Substances of Very High Concern (SVHC) in quantities exceeding 01 wt% Operating at a voltage of 24V DC and a maximum current of 031A, this module has a total power consumption of 75W

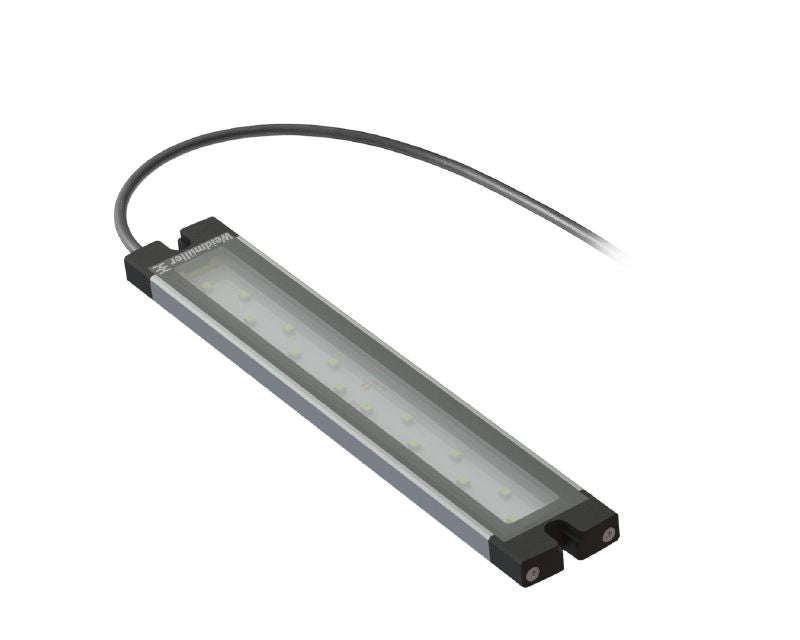

Delivered as a pre-assembled unit, the LED module features a rectangular design and emits a brilliant light at a color temperature of 6500K.
With an impressive luminosity of 3,470 cd and brightness of 886 lumens, it provides an illumination angle of 40 degrees, delivering an illumination level of 291 lux Designed for longevity, it boasts an operational life of 60,000 hours and requires screw mounting for straightforward installation.
Features and Benefits:
•Dimmable function.
•Number of LEDs: 14.
•Impact resistance rated IK05.
•Protection degree IP67.
•Cable length of 5m.
•Designed for NEC Class 2 power supply applications.
•Housing made of hard anodized aluminum.
•Cable material is PUR.
•Sheathing color is black.
Specifications:

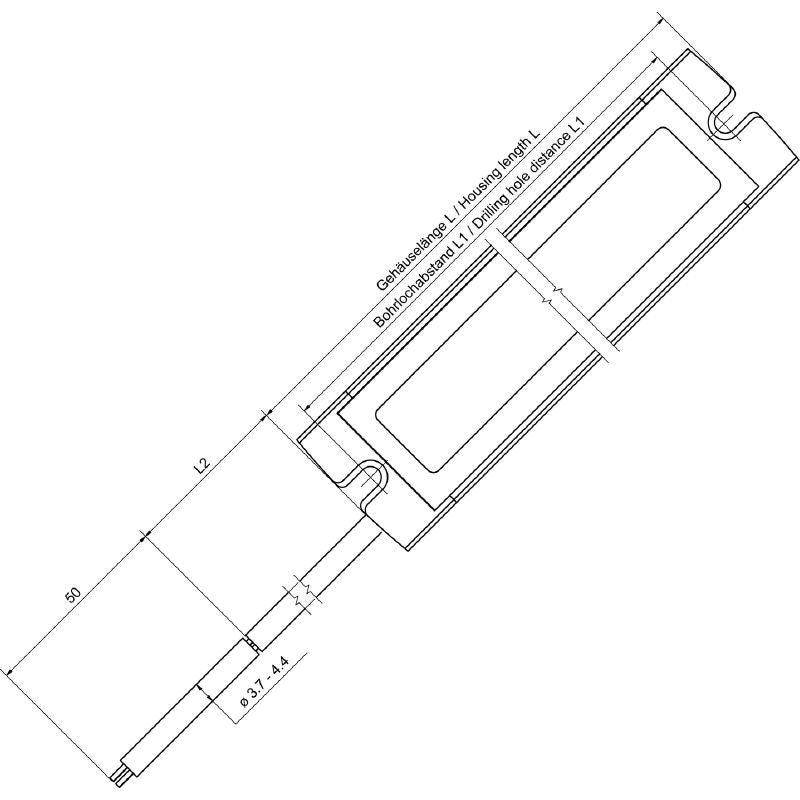

| Depth | 40 mm |
| Height | 9.5 mm |
| Width | 240 mm |
| Core cross-section | 0.34 mm² |
| Connection data | LED Modul is attachable: no; Version: Cable end open; Number of poles: 2; Coding: none; Connection thread: without; Wiring: Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Operating temperature | -20 - 60°C |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Shape of the LED module | Rectangular |
| Efficiency class | F |
| Material of LED cover | ESG |
| Material of end caps | PBT |
