Description:

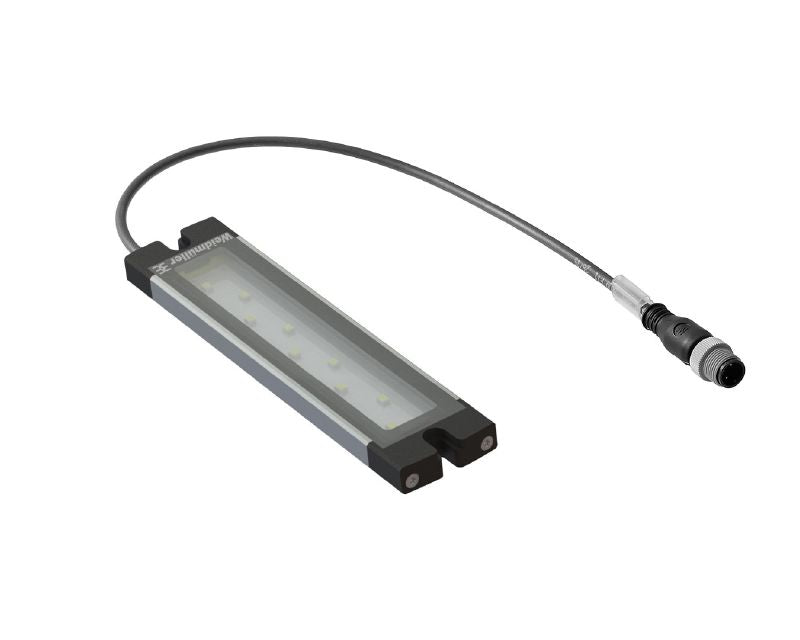

Introducing a versatile pre-assembled cable tailored for LED modules, operating efficiently in temperatures from -20 to 60 degrees Celsius Constructed with a robust hard anodised aluminium casing and sleek black PUR sheathing, this innovative cable accommodates a connection thread of M12 It features an array of 7 white LEDs, achieving a bright 6500K color temperature With an impressive luminosity of 3,470 cd and a light output of 443 lm, it provides a focused light beam at a 40-degree angle.
Designed for longevity, this product boasts a remarkable operational lifespan of 60,000 hours and is easy to install with screw mounting.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Operating temperature range of -20 to 60 degrees Celsius.
•Dimmable functionality.
•IK05 impact resistance classification.
•Protection degree IP67.
•Recommended NEC Class 2 for power supply use.
•Easy screw mounting.
•Pre-assembled cable design.
Specifications:
| Cable Material | PUR |
| Sheathing colour | black |
| Housing main material | hard anodised aluminium |
| Cable length | 1.5 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.162 A |
| Power | 3.9 W |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 7 |
| Light colour (CCT) | 6500K White |
| Luminosity | 3,470 cd |
| Light current | 443 lm |
| Emitting angle | 40 ° |
| Illumination level | 145 lux |
| Operating life | 60.000 h |
| Type of mounting | Screw mounting |

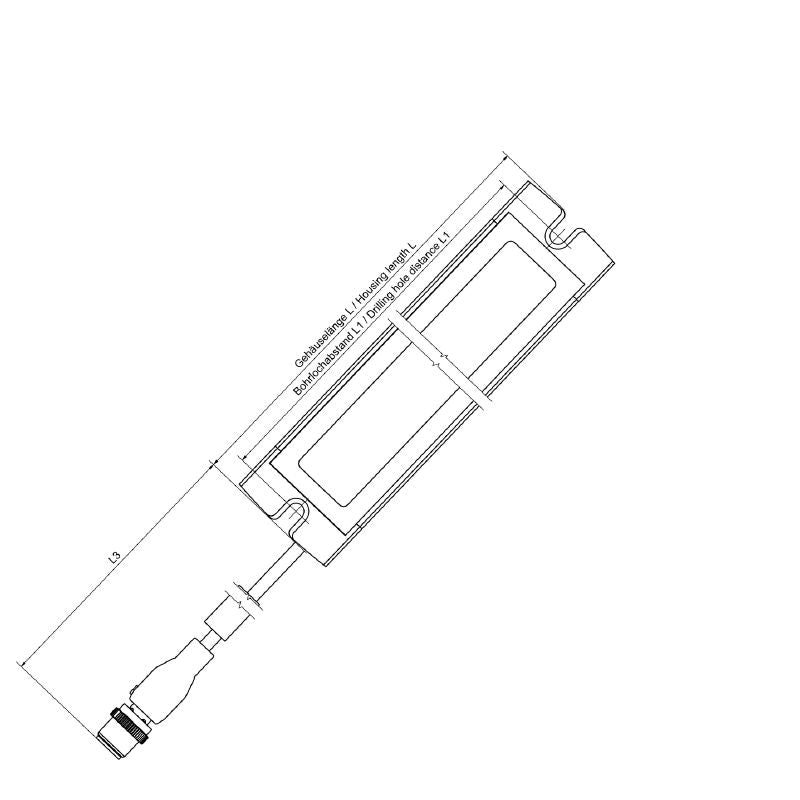

| Drill hole spacing | 130 mm |
| Efficiency class (according to EU Directive No. 874/2012) | G |
| Material of LED cover | ESG |
| Threaded ring material | PA |
| Material of end caps | PBT |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| ETIM 9.0 | EC000996 |
| ECLASS 15.0 | 27-11-06-35 |
