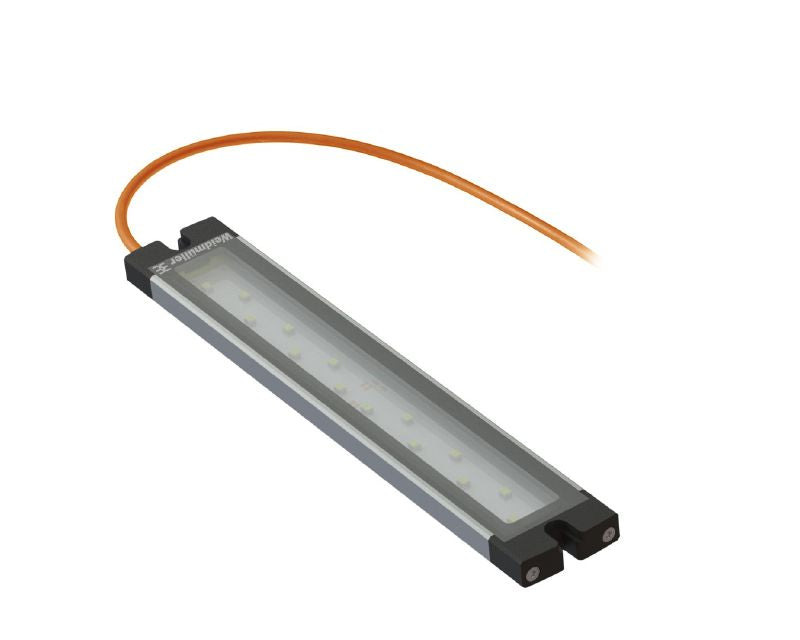

2527970000 - 3m LED Module, IP67, 6500K, Dimmable Lighting
2527970000 - 3m LED Module, IP67, 6500K, Dimmable Lighting
SKU: SKU: 2527970000 Download PDF
- 2527970000 - 3m LED Module, IP67, 6500K, Dimmable Lighting
- 2527970000 - 3m LED Module, IP67, 6500K, Dimmable Lighting
Couldn't load pickup availability
Description:
Illuminate your space with this impressive 3-meter LED module, designed to thrive in temperatures ranging from -20 to 60 degrees Celsius Operating at a voltage of 24V DC and a current of 031 A, it delivers a robust power output of 75 W With a striking color temperature of 6500K, this module emits an impressive brightness of 3,470 cd and a luminous output of 886 lm
Its dimming capability allows for adjustable lighting, while installation is a breeze with screw mounting.
Crafted from durable hard anodized aluminum, this module boasts an IP67 protection rating, making it suitable for diverse settings Enjoy long-lasting performance with a lifespan of up to 60,000 hours, powered by 14 efficient LEDs that produce an illumination level of 291 lux.
Features and Benefits:
•Dimmable functionality.
•Built with a hard anodized aluminum housing.
•Temperature range from -20 to 60 degrees Celsius.
•Long operating life of 60,000 hours.
•Mounting method is screw mounting.
•Rated voltage of 24 V DC and rated current of 0.31 A.
Specifications:
| Cable Material | PUR |
| Cable length | 3 m |
| Core cross-section | 0.34 mm² |
| Number of poles | 2 |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Shape of the LED module | Rectangular |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Emitting angle | 40 ° |
| Illumination level | 291 lux |
| Impact resistance | IK05 |
| Protection degree | IP67 |
| Material of LED cover | ESG |
| Material of end caps | PBT |
