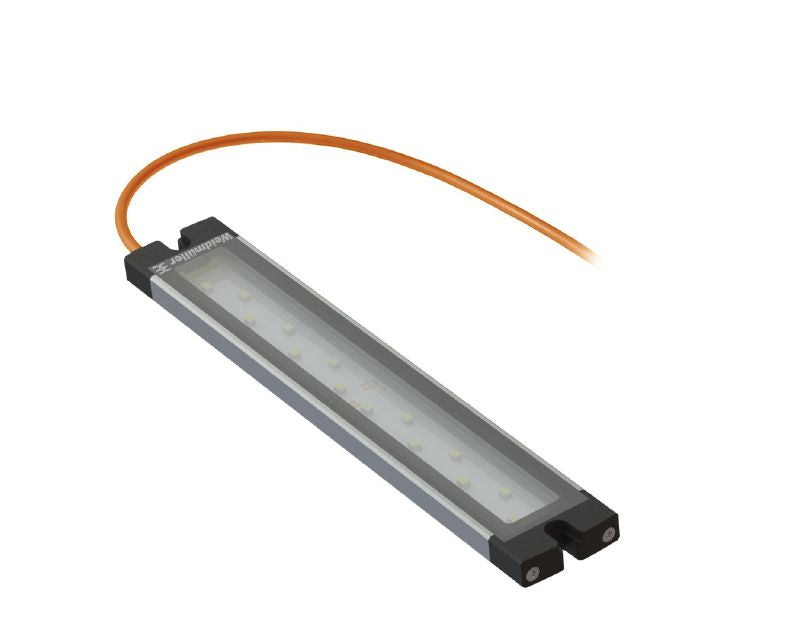

2528010000 - 240mm LED Module 6500K, Dimmable, 886 lm Output
2528010000 - 240mm LED Module 6500K, Dimmable, 886 lm Output
SKU: SKU: 2528010000 Download PDF
- 2528010000 - 240mm LED Module 6500K, Dimmable, 886 lm Output
- 2528010000 - 240mm LED Module 6500K, Dimmable, 886 lm Output
Couldn't load pickup availability

Description:
Introducing a top-notch LED module designed to perform reliably within a temperature range of -20 to 60°C This module adheres to RoHS standards without exceptions and contains no SVHCs exceeding 01 weight percent Crafted with a durable hard anodised aluminium housing, it comes ready for installation with a pre-assembled cable featuring an open end for easy connectivity
Accommodating up to 14 LEDs, this module emits a bright light with a color temperature of 6500K, producing a striking luminosity of 3,470 candela and a total light output of 886 lumens.
Operating at a rated voltage of 24 V DC and drawing a current of 031 A, it has a total power consumption of just 75 W Its dimming capability and impressive lifespan of approximately 60,000 hours make it an exceptional choice for various applications.
Features and Benefits:
•Dimmable functionality.
•Rated for 60,000 hours of operating life.
•Impact resistance rating of IK05.
•IP67 protection degree.
•Robust hard anodised aluminium housing.
Specifications:
| Cable Material | PUR |
| Cable length | 3 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Emitting angle | 40 ° |
| Illumination level | 291 lux |
| Type of mounting | Screw mounting |

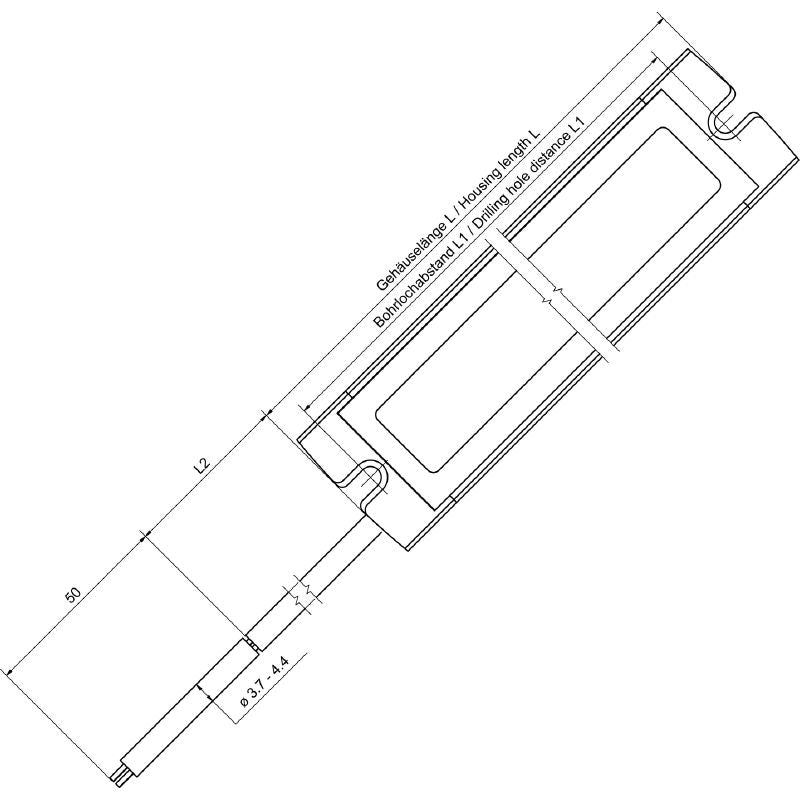

| Drill hole spacing | 225 mm |
| Efficiency class | F |
| Material of LED cover | ESG |
| Material of end caps | PBT |
