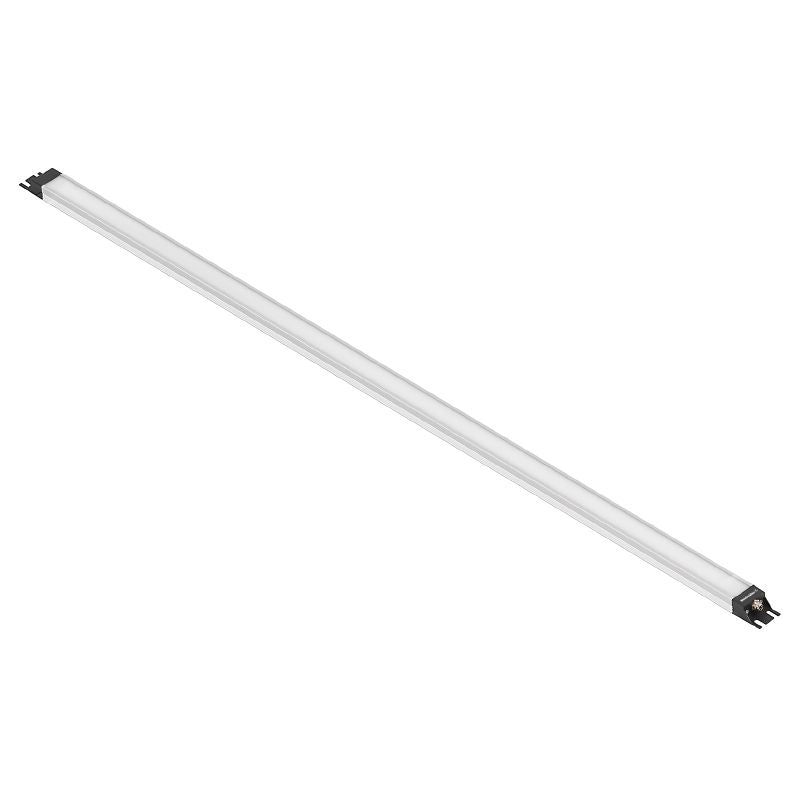

2899930000 - 30mm Deep RoHS Compliant 1120mm UL Certified Unit
2899930000 - 30mm Deep RoHS Compliant 1120mm UL Certified Unit
SKU: SKU: 2899930000 Download PDF
- 2899930000 - 30mm Deep RoHS Compliant 1120mm UL Certified Unit
- 2899930000 - 30mm Deep RoHS Compliant 1120mm UL Certified Unit
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Ensure compliance and reliability with this certified product, featuring RoHS compliance and a UL certification (File No E354496) Its general order number is 2899930000, and it has compact dimensions of 30 mm (1181 inches) in depth, 175 mm (0689 inches) in height, and 1,120 mm (44094 inches) in width, making it an efficient fit for various applications Weighing just 840 grams, it operates effectively in a temperature range of -20°C to 70°C.
Additionally, it meets RoHS exemption 6c requirements and is listed under REACH SVHC for lead (7439-92-1) For tracking and reference, it has a SCIP number of 37ebc061-1fa2-4387-80af-82299a5c3412.
Features and Benefits:
•Dimmable with stepless adjustment.
•Screw mounting type.
•Round shape of the LED module.
•Protection degree of IP40.
Specifications:
| Housing main material | hard anodised aluminium |
| Version | pin, straight |
| Number of poles | 4 |
| Coding | A-coded |
| Connection thread | M8 |
| Tightening torque | 0.6 Nm |
| Pin wiring | {'Pin 1': 'control white LED 24V DC', 'Pin 2': 'NC', 'Pin 3': 'GND(-)', 'Pin 4': 'NC'} |
| Rated voltage | 24 V DC |
| Rated current | 1125 mA |
| Power | 27 W |
| Light colour (CCT) | 5700K |
| Light current | 3,376 lm |
| Emitting angle | 100 ° |

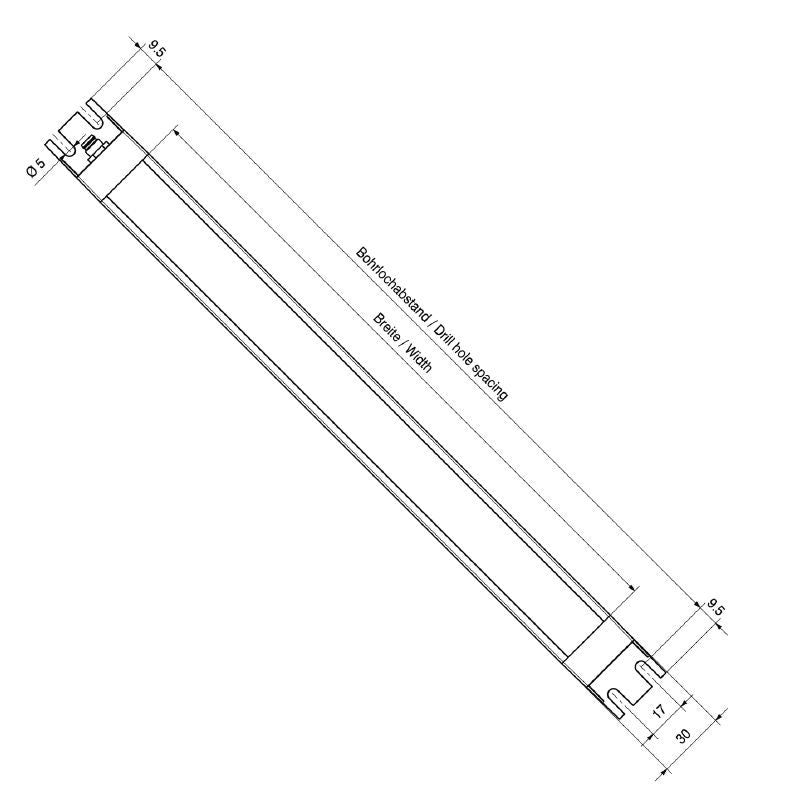

| Drill hole spacing | 1,176 mm |
