Description:

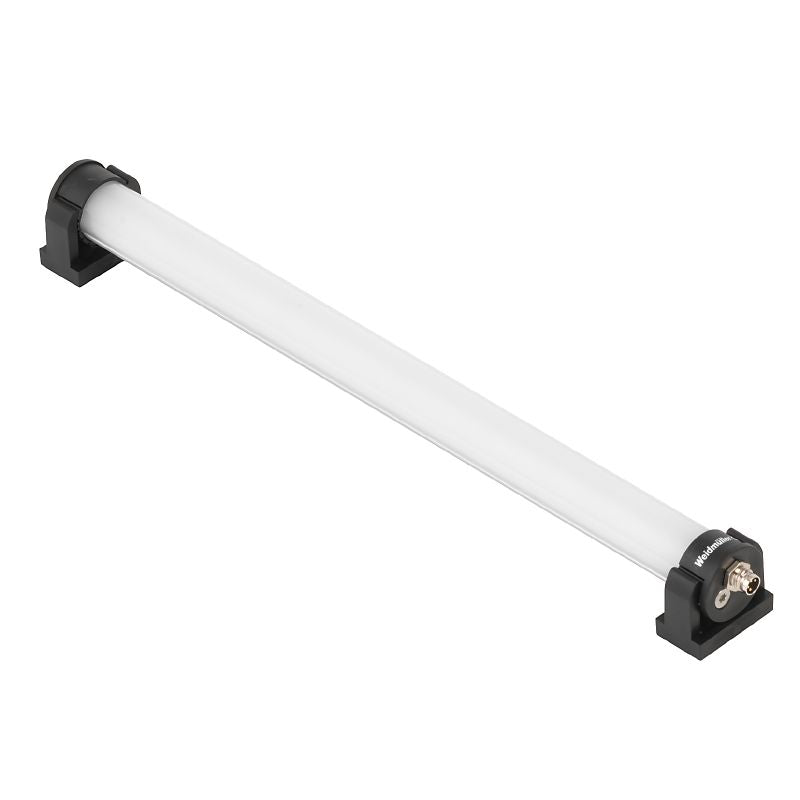

This robust LED module boasts a hard anodized aluminum housing and adheres to RoHS regulations with exemption status It features a pin-straight connection with an M8 thread, making it suitable for various applications The device includes four poles and operates at 24 V DC, delivering a current of 2833 mA and a power output of 68 W With a color temperature of 5700K, it emits a luminous flux of 485 lumens.
Additional benefits include stepless dimming capability and an impressive lifespan of 60,000 hours For installation, it utilizes a screw mounting method and is rated with an IP54 protection degree, ensuring dependable performance across different environments.
Features and Benefits:
•Compliant with RoHS and exemption 6c.
•Stepless dimming capability.
•Long operational life of 60,000 hours.
•IP54 protection degree for reliable performance.
•Round shape of LED module for versatile applications.
Specifications:
| Depth | 35 mm |
| Height | 35 mm |

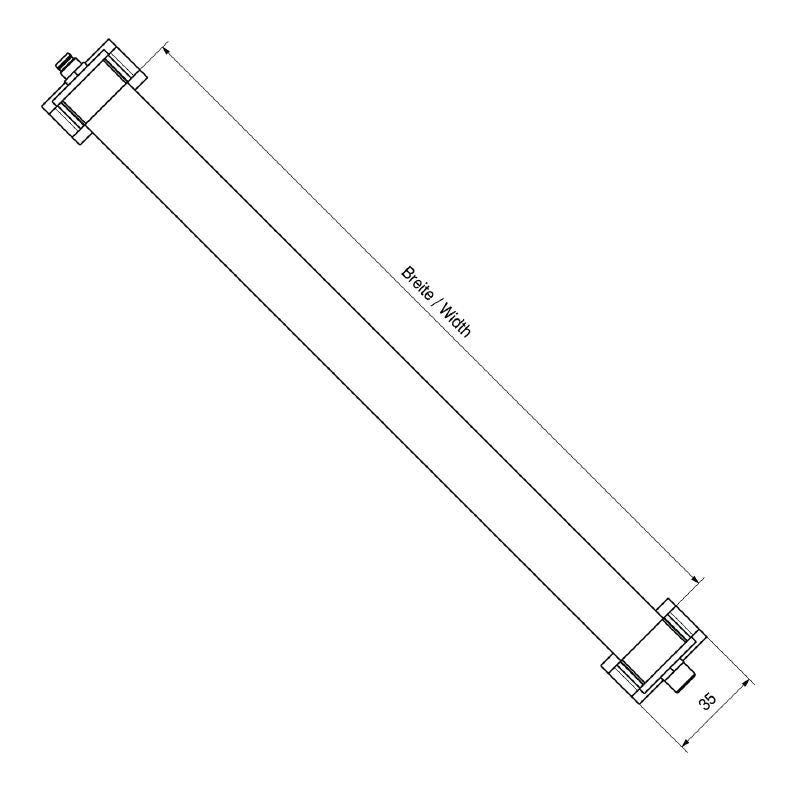

| Width | 280 mm |
| Operating temperature | -20 - 45°C |

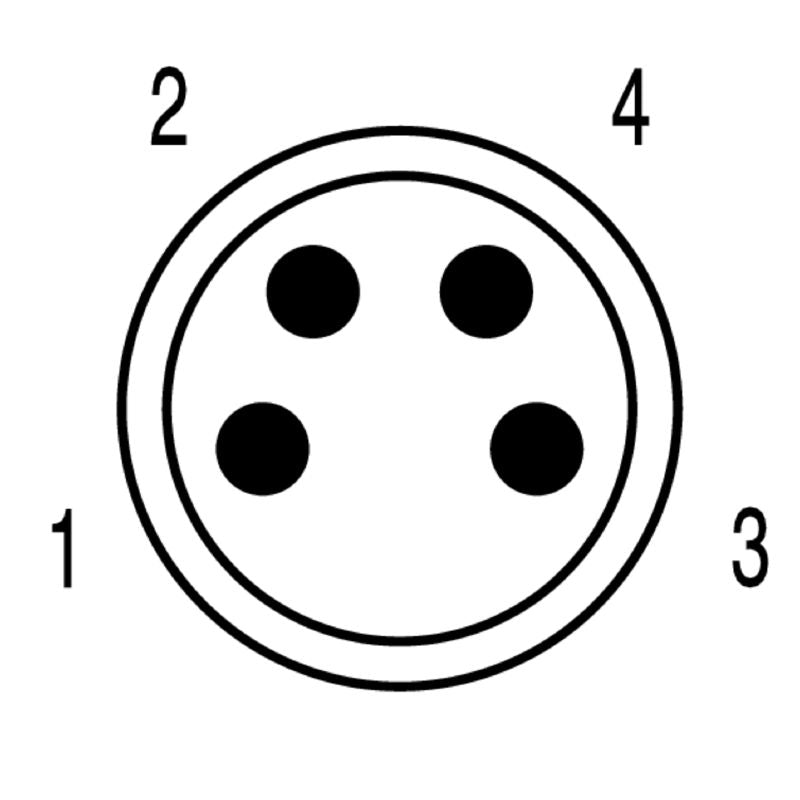

| Connection data | Pin 1: control white LED 24V DC; Pin 2: NC; Pin 3: GND(-); Pin 4: NC |
| Rated voltage | 24 V DC |
| Rated current | 283.3 mA |
| Power | 6.8 W |
| Light colour (CCT) | 5700K white |
| Light current | 485 lm |
| Emitting angle | 120° |
| Illumination level | 221 lux |
| Type of mounting | Screw mounting |

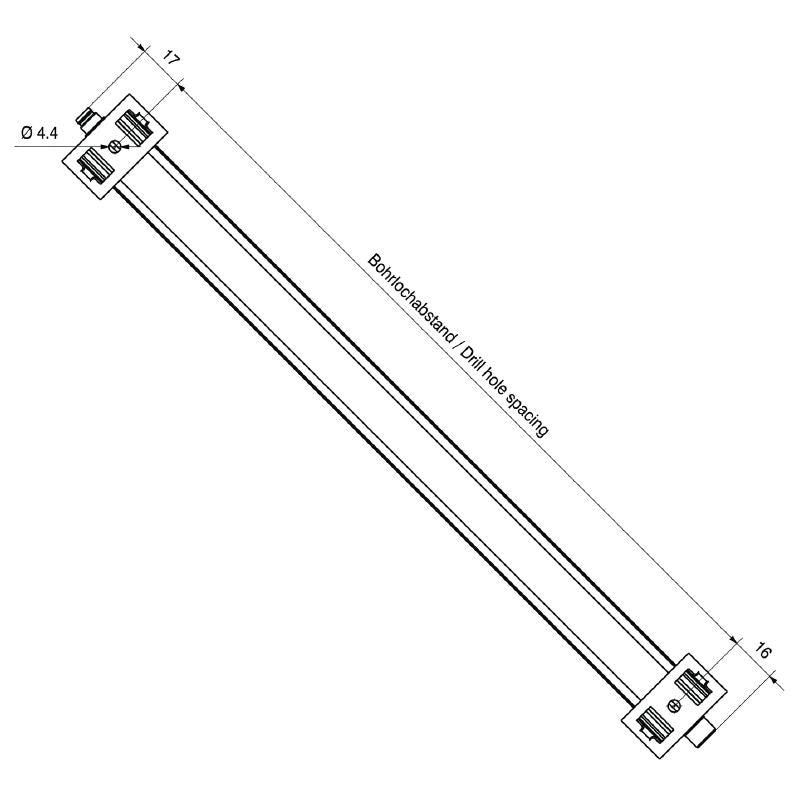

| Drill hole spacing | 289 mm |
| Material of LED cover | PMMA |
| Connection thread | M8 / M8 |
| Tightening torque | 0.6 Nm |
| Housing main material | hard anodised aluminium |
