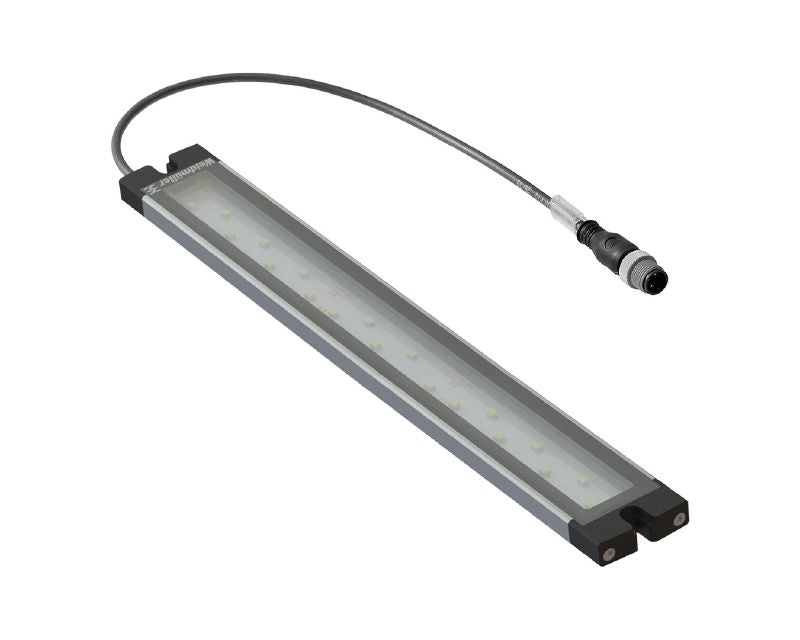

2633680000 - 0.3m PUR LED Module Cable with 21 LEDs, 4000K

2633680000 - 0.3m PUR LED Module Cable with 21 LEDs, 4000K

SKU: SKU: 2633680000 Download PDF

Variant:
  • 2633680000 - 0.3m PUR LED Module Cable with 21 LEDs, 4000K
Regular price Now $152.96
Regular price BEFORE   $0.00 Sale price Now $152.96
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile pre-assembled LED module cable that extends 03 meters in length Crafted from durable PUR material, this cable is built to withstand temperatures from -20°C to 60°C, making it ideal for a range of environments The robust housing is constructed of hard anodized aluminum, ensuring long-lasting performance Featuring a striking black protective sheath, the cable incorporates 21 LEDs that emit a neutral white light with a color temperature of 4000K.

With a maximum current rating of 0462 A at 24 V DC and a power draw of 111 W, this module boasts a luminosity of 390 cd, providing an impressive illumination of 440 lux Under optimal conditions, it can last up to 60,000 hours, making it a reliable lighting solution for various applications.

Features and Benefits:

    •Dimmable LED module.

    •IP67 protection degree.

    •EMI compliance with exemption.

    •IK05 impact resistance.

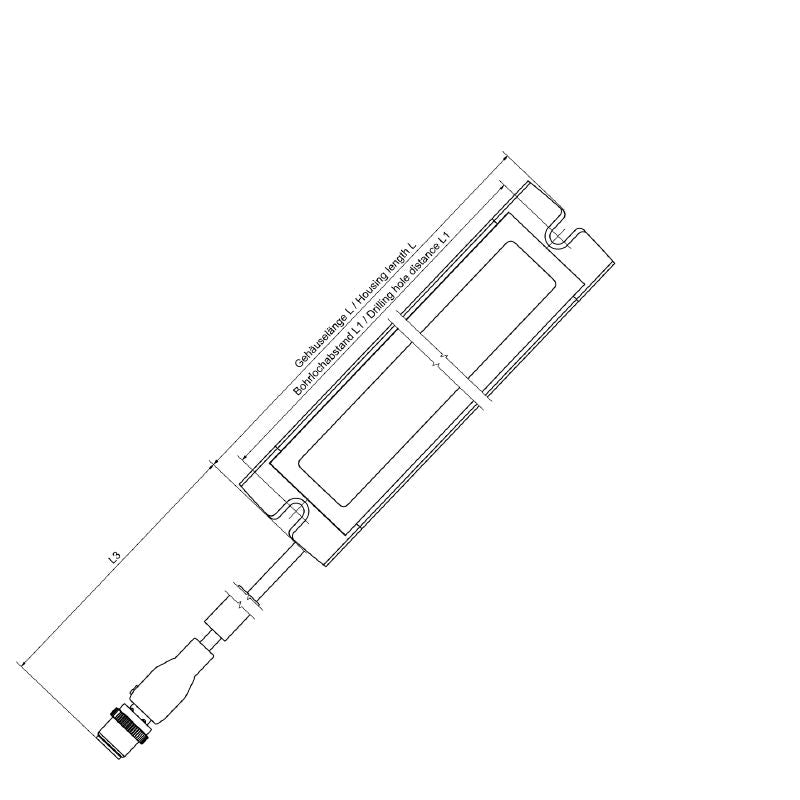

    •Screw mounting type with 335 mm drill hole spacing.

Specifications:

 Cable Material PUR
 Cable Length 0.3 m
 Core Cross-section 0.34 mm²
 Rated Voltage 24 V DC
 Rated Current 0.462 A
 Power 11.1 W
 Number of LEDs 21
 Light Color (CCT) 4000K
 Luminosity 390 cd
 Light Current 1,359 lm
 Emitting Angle 40°
 Operating Life 60,000 h
 Protection Degree IP67
