Description:
Introducing the WIL-EXXXX-RXSS-5700-X420-M8XX, a reliable product that meets RoHS compliance standards With a weight of 267 grams, this unit features compact dimensions of 35 mm in both depth and height, while its width spans an impressive 420 mm Suitable for a wide range of applications, it operates efficiently within a temperature range of -20 to 45°C The housing is constructed from hard anodised aluminium, providing exceptional strength and long-lasting durability for your needs.
Features and Benefits:
•Dimmable with stepless dimming capability.
•Emitting angle of 120 degrees.
•Light current of 728 lumens.
•Operating life expectancy of 60,000 hours.
•Protection degree of IP54.
•Screw mounting type for easy installation.
Specifications:
| Depth | 35 mm |
| Height | 35 mm |

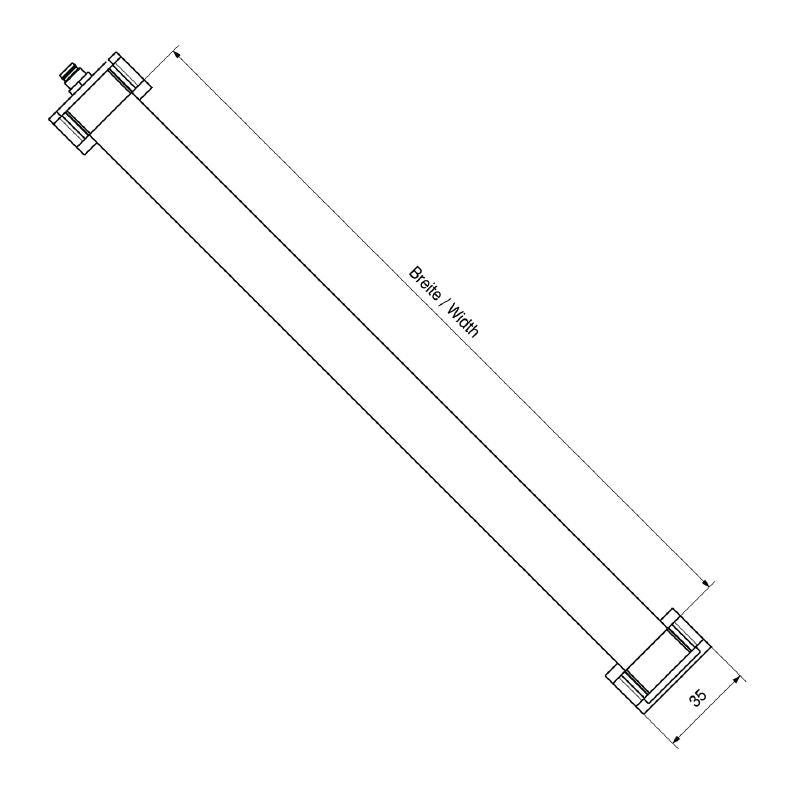

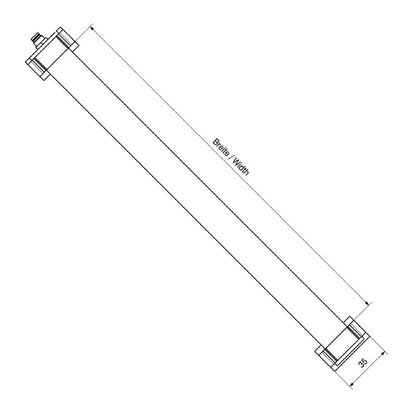

| Width | 420 mm |
| Net weight | 267 g |
| Operating temperature | -20 - 45°C |
| Rated voltage | 24 V DC |
| Rated current | 425 mA |
| Power | 10.2 W |
| Shape of the LED module | Round |
| Type of connection | Pin connector |
| Light colour (CCT) | 5700K White |
| Illumination level | 331 lux |
| Type of mounting | Screw mounting |

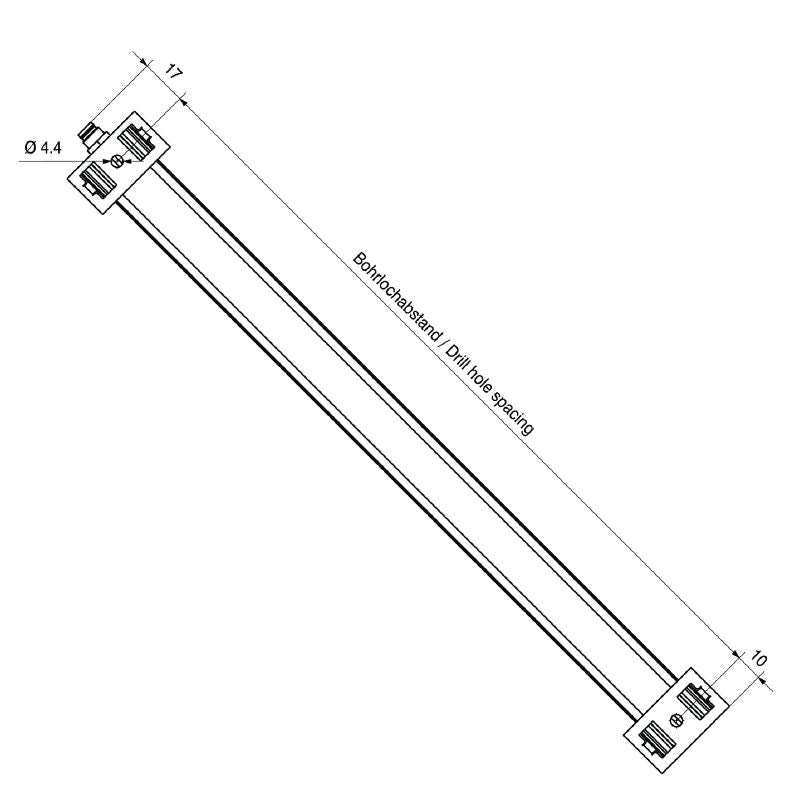

| Drill hole spacing | 429 mm |
| Material of LED cover | PMMA |
| Housing main material | hard anodised aluminium |
| Connection data | {'Version': 'pin, straight', 'Number of poles': '4', 'Coding': 'A-coded', 'Connection thread': 'M8', 'Tightening torque': '0.6 Nm', 'Wiring': 'Pin 1: control white LED 24V DC; Pin 2: NC; Pin 3: GND(-); Pin 4: NC'} |
