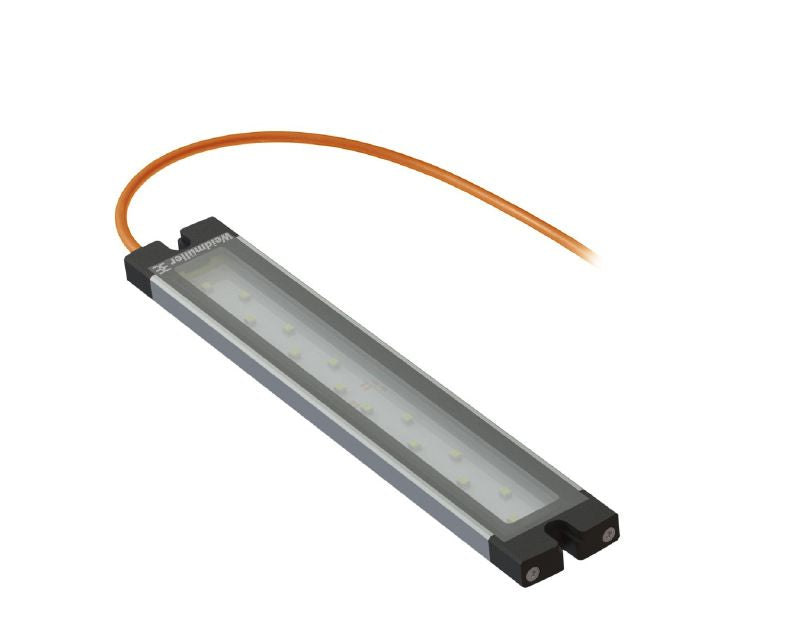

2528030000 - 10m LED Module, 240mm x 40mm, IP67 Rated, 6500K Light
2528030000 - 10m LED Module, 240mm x 40mm, IP67 Rated, 6500K Light
SKU: SKU: 2528030000 Download PDF
- 2528030000 - 10m LED Module, 240mm x 40mm, IP67 Rated, 6500K Light
- 2528030000 - 10m LED Module, 240mm x 40mm, IP67 Rated, 6500K Light
Couldn't load pickup availability
Description:
Discover the exceptional WIL-LWXXXX-6500D024-240MF100OXXXXXXXX LED module, meticulously engineered for optimal performance Operating at a voltage of 24V DC and drawing a current of 031A, this module includes an impressive array of 14 LEDs that emit a bright 6500K light With a remarkable luminosity of 3470 cd and a light output of 886 lm, it guarantees powerful illumination
Featuring a durable 10-meter PUR cable with a cross-sectional area of 0.
34 mm², this lighting solution is built for extended use It boasts an impressive lifespan of 60,000 hours and an IP67 rating, providing excellent resistance to dust and moisture for various applications
Compactly designed, this unit measures 240mm in width, 40mm in depth, and 95mm in height, with a total weight of 240 grams, making it lightweight and easy to install Enhance your lighting setup with this reliable and versatile LED module.
Features and Benefits:
•Dimmable.
•Screw mounting type.
•Impact resistance rating of IK05.
•Efficiency class F according to EU Directive No. 874/2012.
Specifications:
| Operating temperature | -20 - 60°C |
| Cable Material | PUR |
| Connection data | LED Modul is attachable: no |
| Version | Cable end open |
| Number of poles | 2 |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Emitting angle | 40° |
| Illumination level | 291 lux |
| Operating life | 60.000 h |

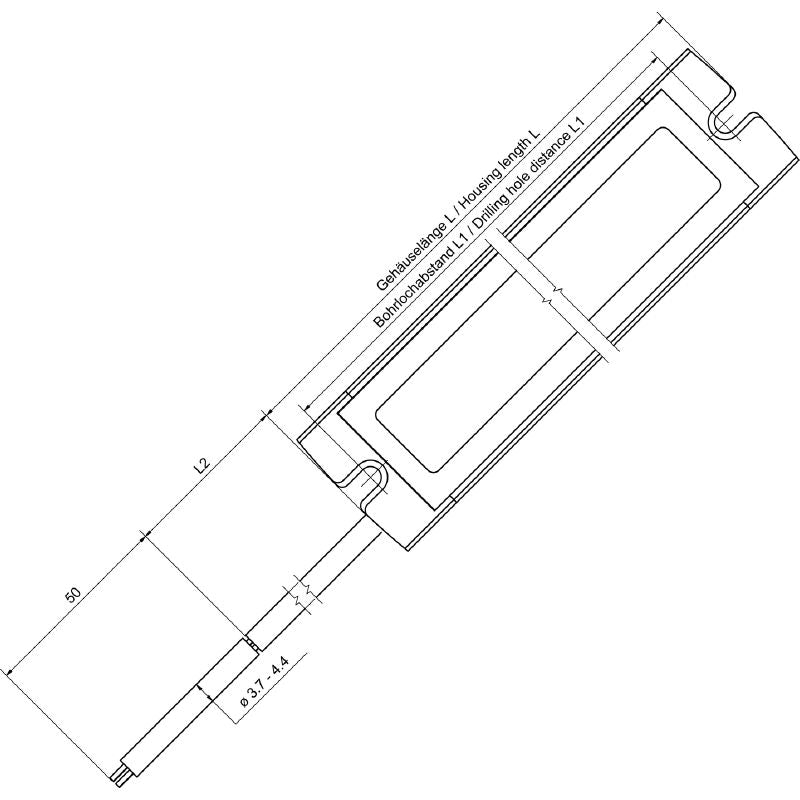

| Drill hole spacing | 225 mm |
| Protection degree | IP67 |
| Material of LED cover | ESG |
| Material of end caps | PBT |
| Shape of the LED module | Rectangular |
| Type of connection | Pre-assembled cable |
| Recommended class according to UL for use of an power supply | NEC Class 2 |
