2821330000 - 655mm 2700K LED Module, Durable Aluminum, 24V DC
2821330000 - 655mm 2700K LED Module, Durable Aluminum, 24V DC
SKU: SKU: 2821330000 Download PDF
- 2821330000 - 655mm 2700K LED Module, Durable Aluminum, 24V DC
- 2821330000 - 655mm 2700K LED Module, Durable Aluminum, 24V DC
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

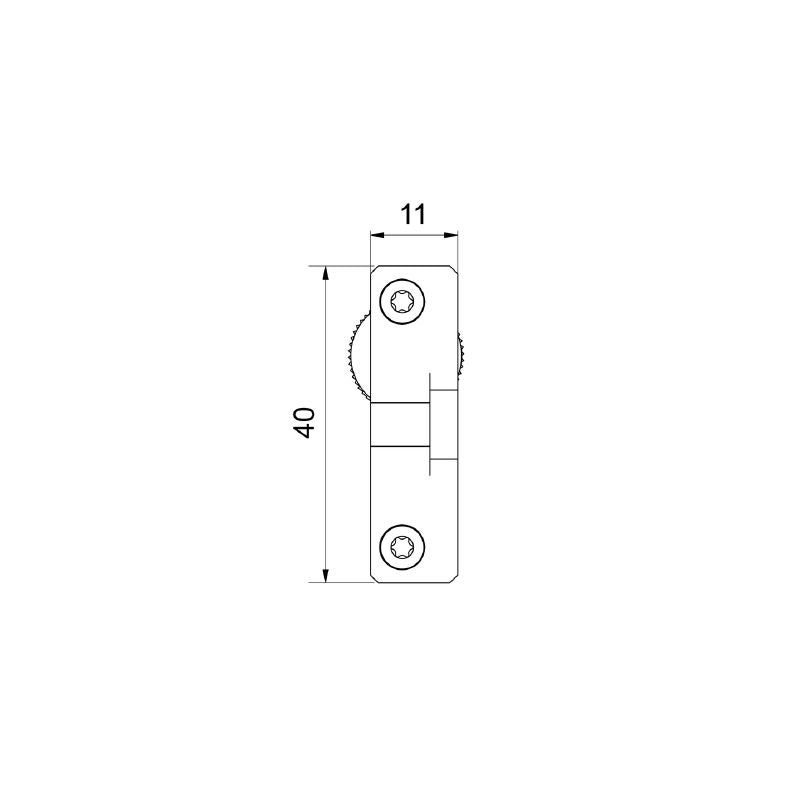

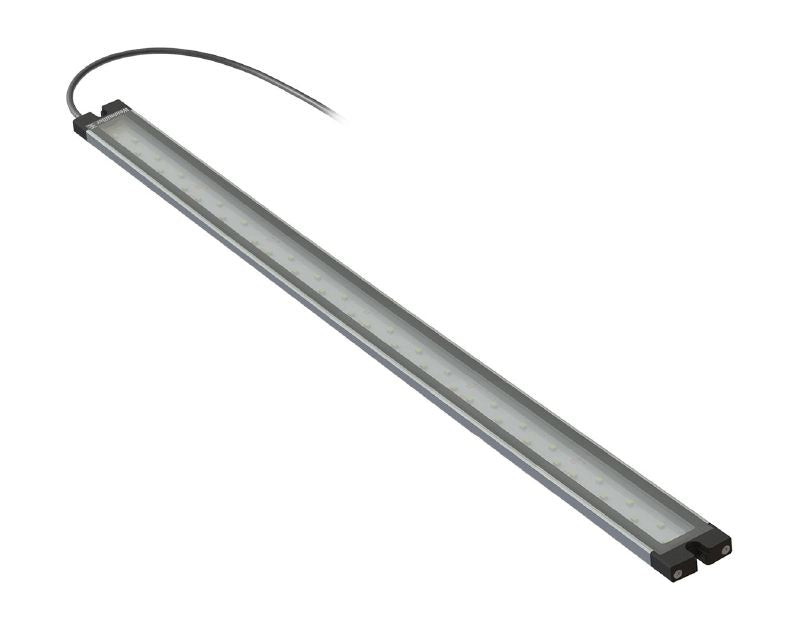

Illuminate your space with this versatile LED module, perfect for various environments It operates on a 24 V DC power supply and consumes 0937 A, delivering a robust output of 225 W Emitting a warm white light at a cozy 2700K, this module provides a luminous output of 2,492 lumens With a streamlined design, it measures 655 mm in width, 40 mm in depth, and only 8 mm in height Built to last, its durable construction includes a black PUR cable and a hard anodized aluminum housing.
This module functions efficiently within a temperature range of -20 to 60°C and meets RoHS compliance with an exemption status.
Features and Benefits:
•Dimmable functionality.
•Long operational life of 60,000 hours.
•IK05 impact resistance.
•IP67 protection degree.
Specifications:
| Cable Material | PUR |
| Cable length | 3 m |
| Core cross-section | 0.34 mm² |
| Connection data | LED Modul is attachable: no |
| Rated voltage | 24 V DC |
| Rated current | 0.937 A |
| Power | 22.5 W |
| Shape of the LED module | Rectangular |
| Number of LEDs | 42 |
| Light colour (CCT) | 2700K |
| Light current | 2,492 lm |
| Emitting angle | 40° |
| Operating life | 60,000 h |
| Type of mounting | Screw mounting |

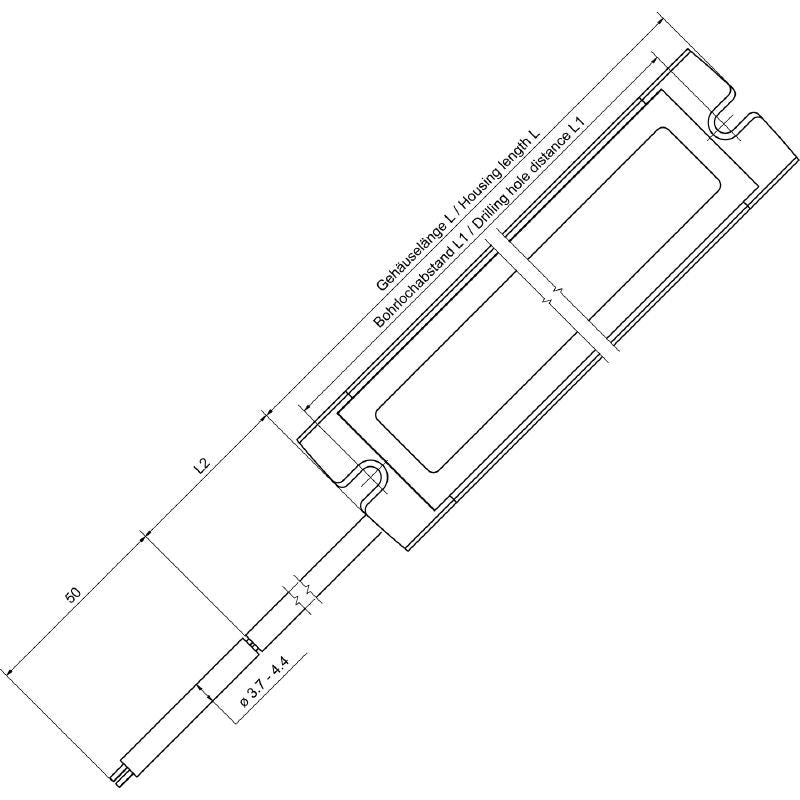

| Drill hole spacing | 640 mm |
| Protection degree | IP67 |
| Material of LED cover | ESG |
| Material of end caps | PBT |
| Environmental Compliance | Compliant with RoHS and REACH SVHC Lead 7439-92-1 |
