Description:

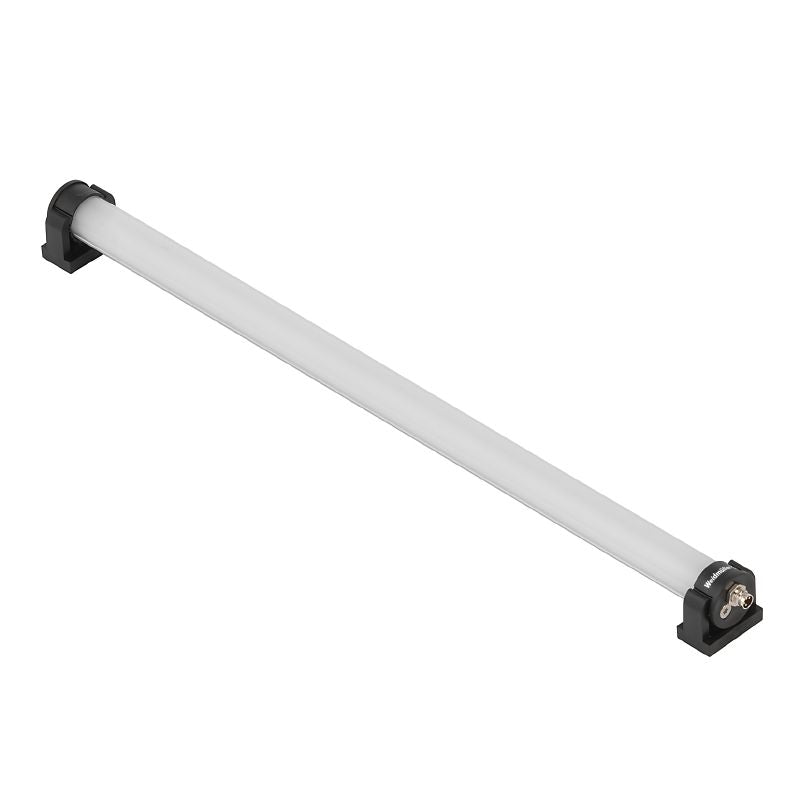

Introducing a versatile connection module crafted from durable hard anodised aluminum This module supports an attachable LED unit and features a 4-pole pin configuration with A-coded connectors Operating at a voltage of 24 V DC, it boasts a current rating of 425 mA and consumes 102 W of power The module emits a bright light with a color temperature of 5700K, providing an impressive 728 lumens output with a 120° emission angle.

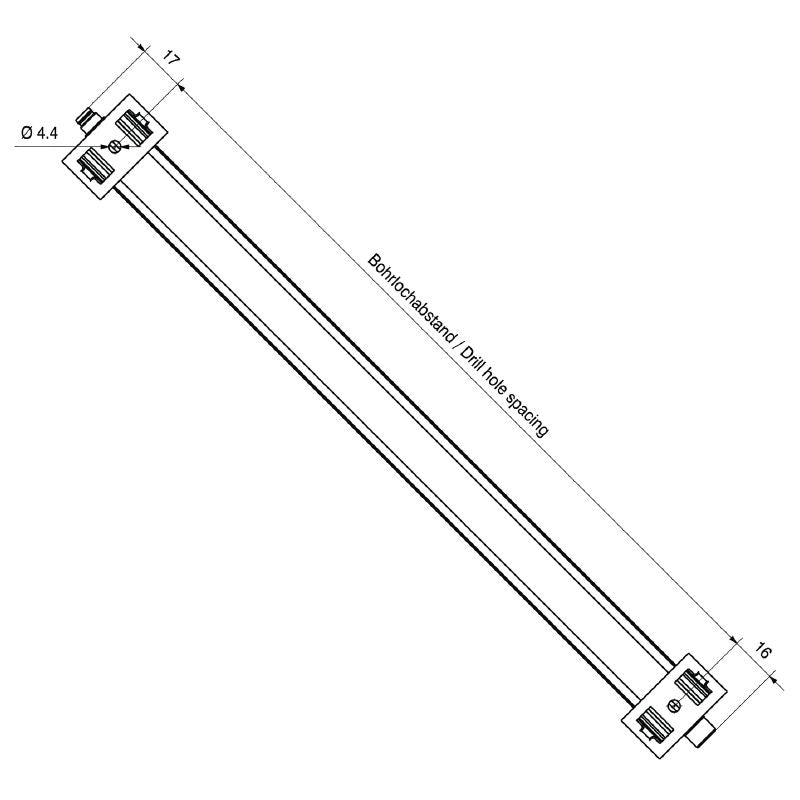

With its stepless dimming functionality, it offers customizable lighting, while its long lifespan of up to 60,000 hours ensures enduring performance It provides multiple connection configurations, including pin and socket options, and has an IP54 protection rating For easy installation, this module mounts with screws, featuring a drill hole spacing of 429 mm.
Features and Benefits:
•Dimmable with stepless dimming capability.
•Long operational life of 60,000 hours.
•Compact design with an attachable LED module.
•IP54 rated for dust and water resistance.
Specifications:

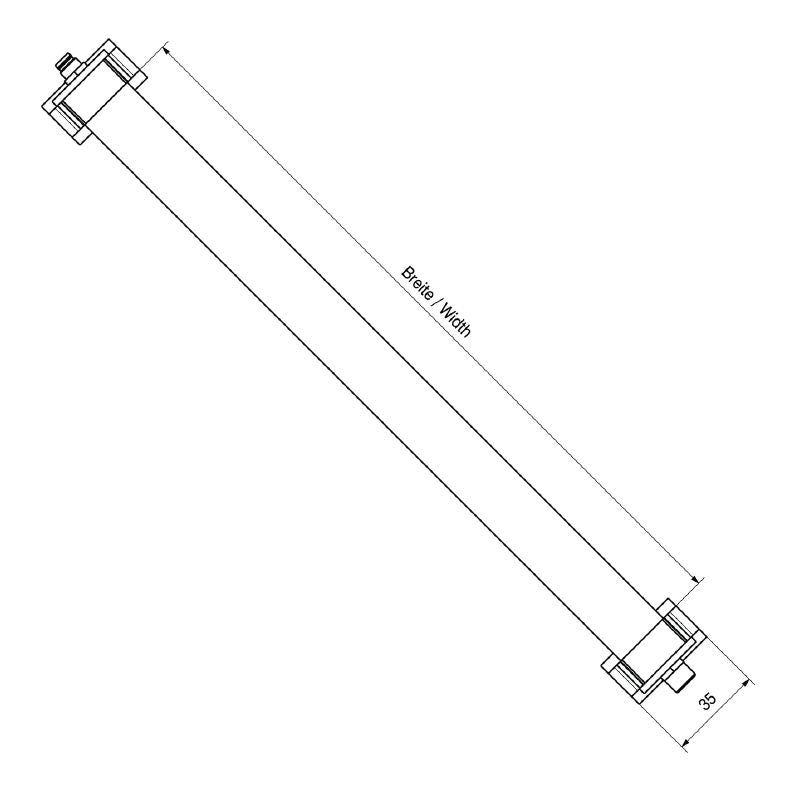

| Depth | 35 mm |
| Height | 35 mm |
| Width | 420 mm |
| Operating temperature | -20 - 45°C |

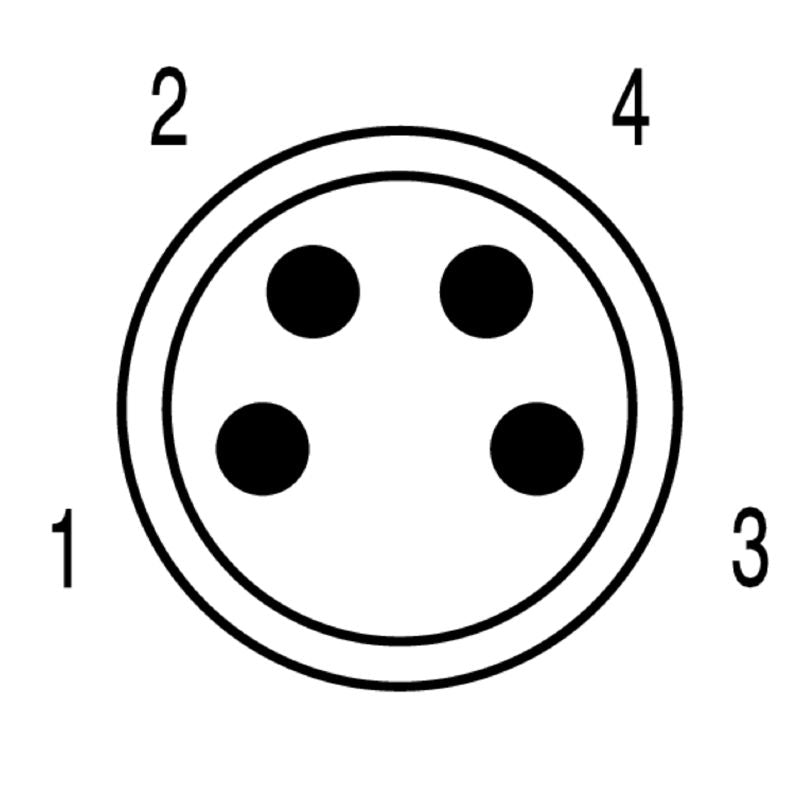

| Number of poles | 4 |
| Tightening torque | 0.6 Nm |
| Rated voltage | 24 V DC |
| Rated current | 425 mA |
| Power | 10.2 W |
| Light colour (CCT) | 5700K |
| Light current | 728 lm |
| Emitting angle | 120° |
| Illumination level | 331 lux |
| Type of mounting | Screw mounting |
| Protection degree | IP54 |
| Material of LED cover | PMMA |
