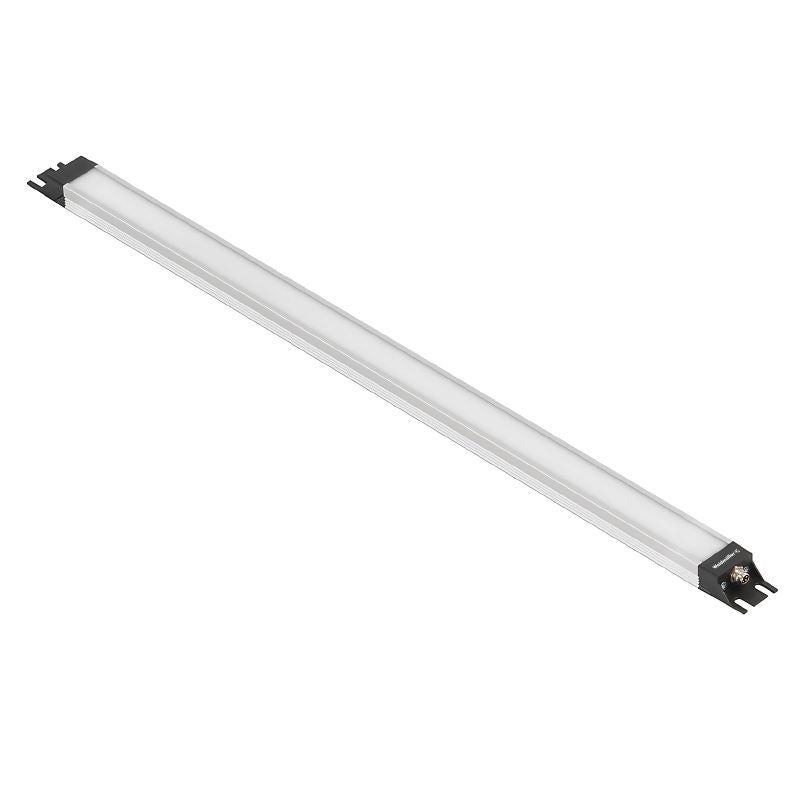

2900120000 - 30mm LED Module, 6500K, IP69K, Stepless Dimming

Description:

This versatile device boasts ROHS compliance, with a specific exemption noted as 6c For verification purposes, it carries the UL File Number E354496 In terms of dimensions, it measures 560 mm in width, 30 mm in depth, and 175 mm in height, with a total net weight of 561 grams Operating effectively within a temperature range of -20 to 70°C, it adheres to SCIP regulations, identifiable by the code 37ebc061-1fa2-4387-80af-82299a5c3412.

Featuring a four-pole straight pin connection and M8 threading, the tightening torque is set at 06 Nm The device operates on a voltage range of 12 to 30 V DC and consumes a power of 138 W, offering stepless dimming functionality Its round LED module emits a cold white light with a color temperature of 6500K, delivering a luminous flux of 1,142 lumens and a generous 120° emitting angle, achieving an illumination level of 340 lux.

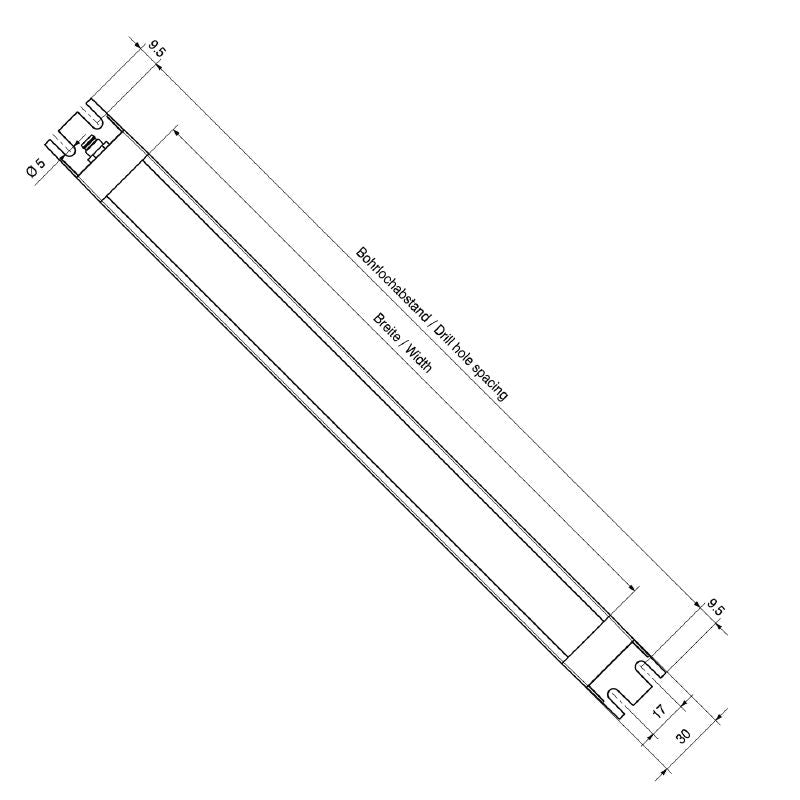

Designed for longevity, it boasts an impressive operational lifespan of 60,000 hours The mounting design is screw-based with a drill hole spacing of 616 mm, and its protection degree is rated at IP69K for enhanced durability.

Features and Benefits:

•ROHS compliant with exemption.

•UL File Number E354496.

•IP69K protection degree.

•Stepless dimming capability.

•Long operational lifespan of 60,000 hours.

•Cold white light with CCT of 6500K.

Specifications:
