Description:
This product meets RoHS standards and is verified by UL File Number E354496 Designated as WIL-EXXXX-RXSS-5700-X560-M8DX, it has a GTIN of 4064675906773 Weighing 346 grams and measuring 35 mm in both depth and height, with a width of 560 mm, it is engineered to function effectively within temperatures ranging from -20 to 45°C Additionally, it includes the SCIP identification code 3ecd7eed-9477-489c-b868-70515b8da84d, confirming its compliance with applicable regulations.
Features and Benefits:
•Housing made of hard anodised aluminium.
•LED module is attachable.
•Dimmable with stepless dimming capability.
•Protection degree of IP54.
•Type of connection includes pin and socket connectors.
•Operating life of 60,000 hours.
Specifications:

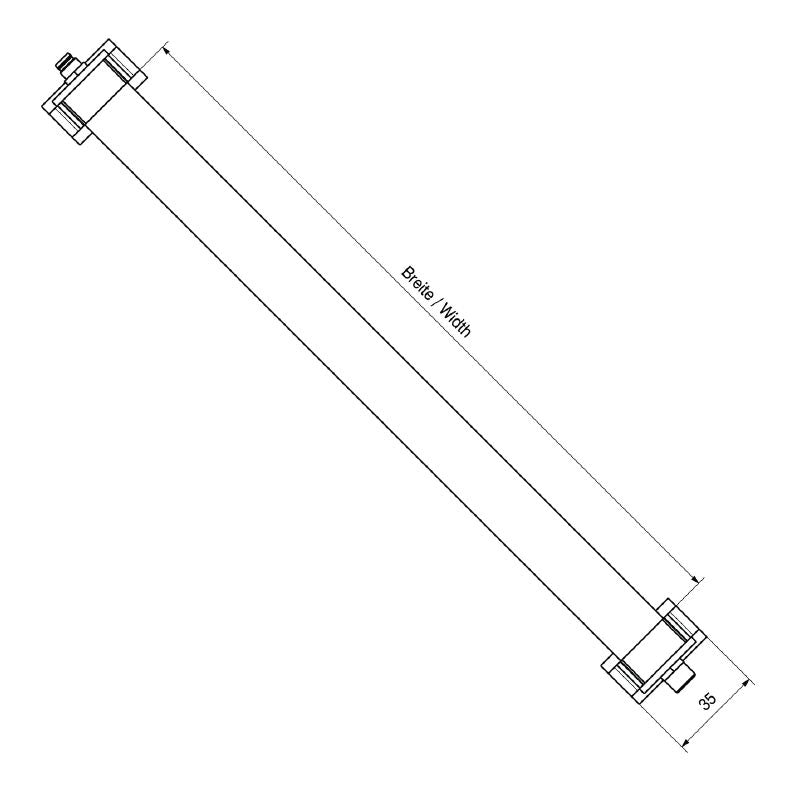

| Dimensions | {'Depth': '35 mm', 'Height': '35 mm', 'Width': '560 mm'} |
| Operating temperature | -20 - 45°C |
| Number of poles | 4 |
| Rated voltage | 24 V DC |
| Rated current | 562.5 mA |
| Power | 13.5 W |
| Light colour (CCT) | 5700K |
| Light current | 971 lm |
| Emitting angle | 120° |
| Illumination level | 421 lux |
| Tightening torque | 0.6 Nm |
| Type of mounting | Screw mounting |

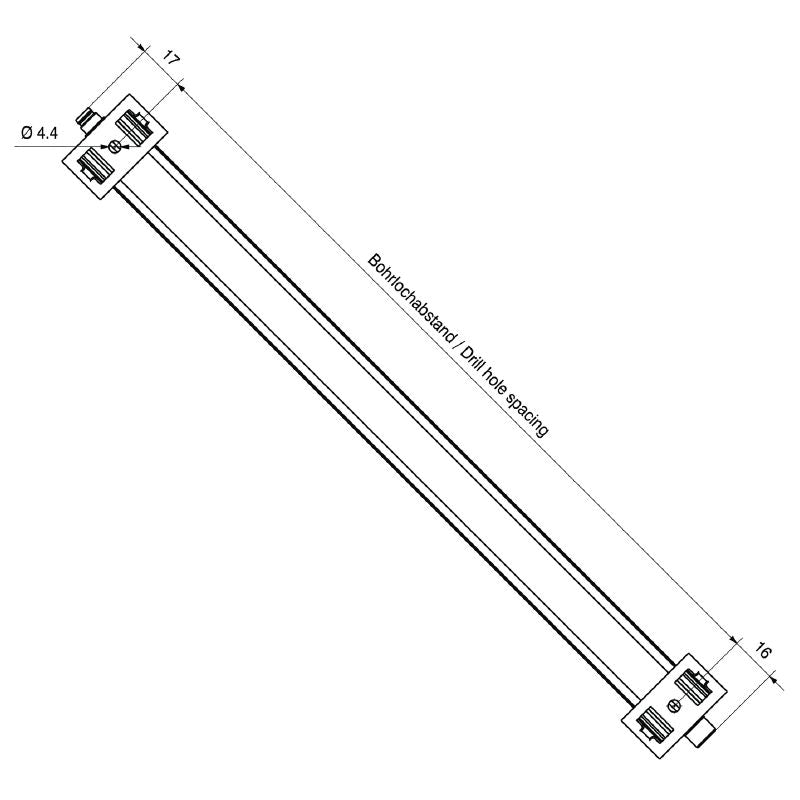

| Drill hole spacing | 569 mm |
| Material of LED cover | PMMA |
