2821290000 - 3m LED Module with 2700K Warm Light, IP67 Rated
2821290000 - 3m LED Module with 2700K Warm Light, IP67 Rated
SKU: SKU: 2821290000 Download PDF
- 2821290000 - 3m LED Module with 2700K Warm Light, IP67 Rated
- 2821290000 - 3m LED Module with 2700K Warm Light, IP67 Rated
Couldn't load pickup availability
Description:

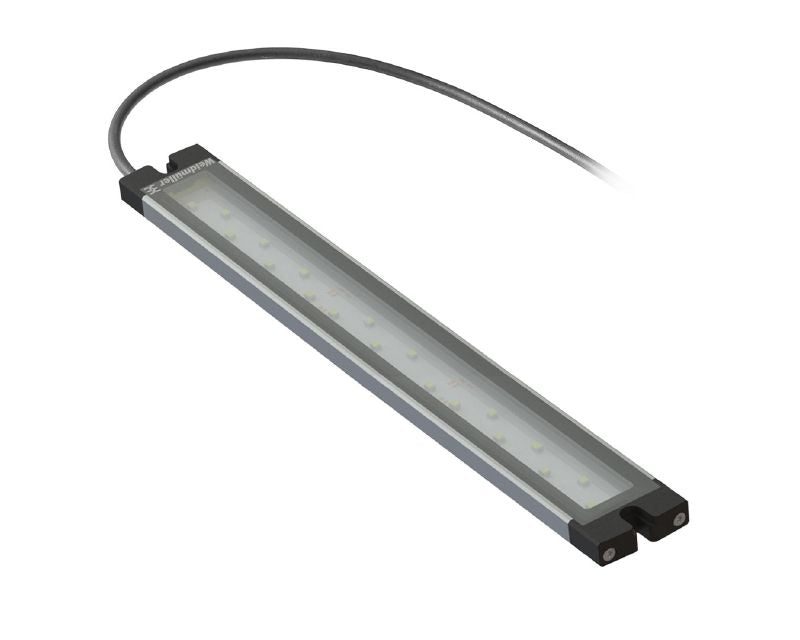

Illuminate your space with this versatile LED module, designed for easy mounting and capable of operating in temperatures ranging from -20 to 60 degrees Celsius It features a durable 3-meter PUR cable and is powered by a 24 V DC voltage with a current draw of 0471 A Emitting a warm white light at a cozy color temperature of 2700K, this module delivers a luminous output of 1,246 lumens and an impressive illumination level of 407 lux.

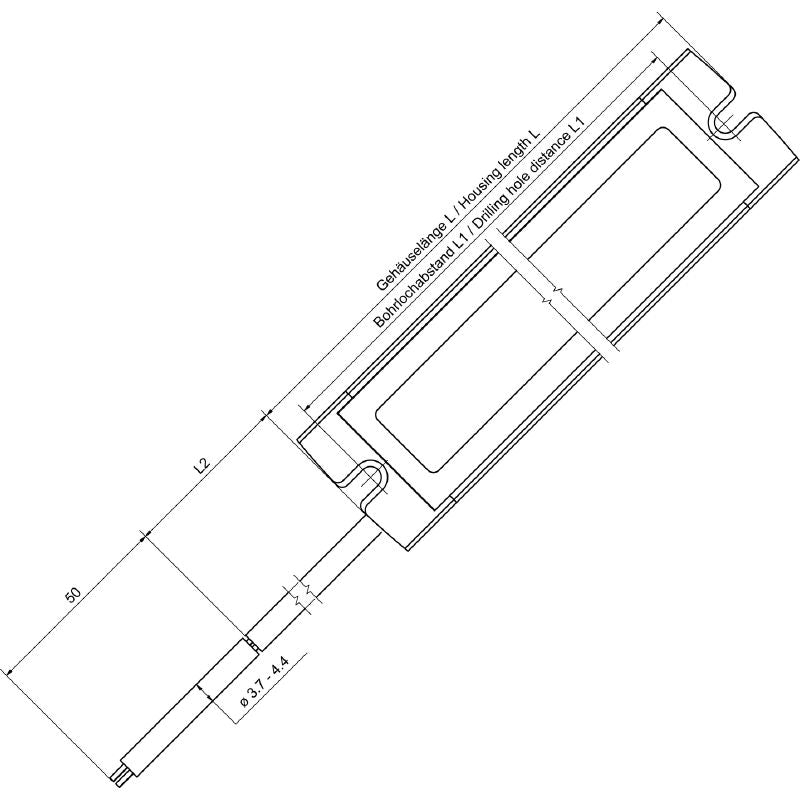

With a rectangular design and screw mount options, it includes a drill hole spacing of 335 mm for straightforward installation Built to last, this LED module boasts a lifespan of 60,000 hours and is rated with an IP67 protection degree, making it suitable for outdoor applications Additionally, it meets RoHS standards and is UL certified, ensuring safe and reliable performance for your lighting needs.
Features and Benefits:
•Dimmable functionality.
•Impact resistance rated at IK05.
•Efficiency class F according to EU Directive No. 874/2012.
Specifications:

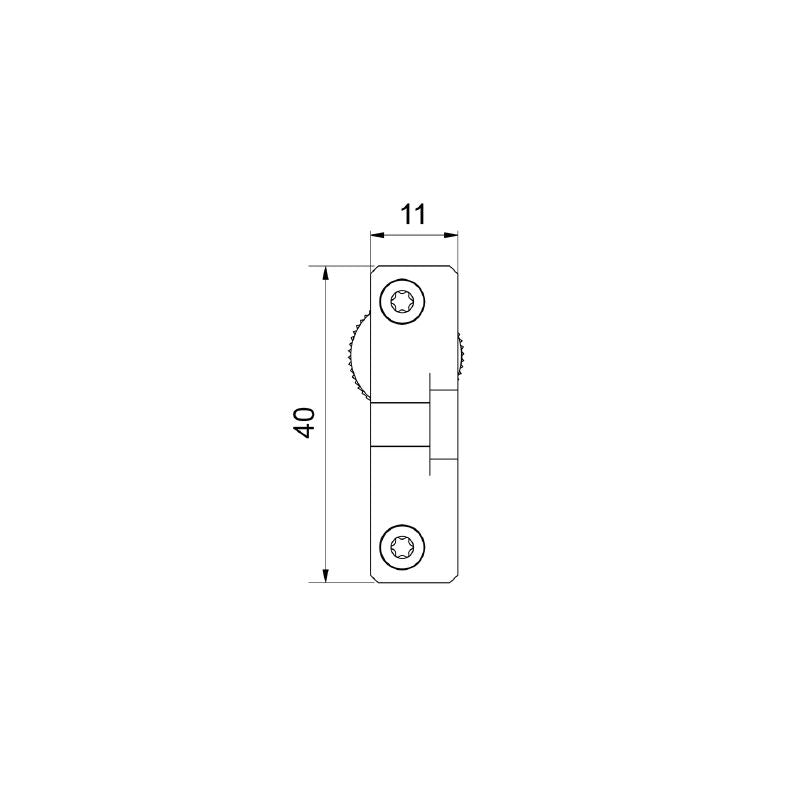

| Dimensions (Depth x Height x Width) | 40 mm x 8 mm x 350 mm |
| Cable Material | PUR |
| Core cross-section | 0.34 mm² |
| Number of Poles | 2 |
| Light Color (CCT) | 2700K |
| Light Current | 1,246 lm |
| Emitting Angle | 40° |
| Operating Life | 60,000 h |
| Type of Connection | Pre-assembled cable |
| Protection Degree | IP67 |
| Operating Temperature | -20 - 60°C |
