Description:

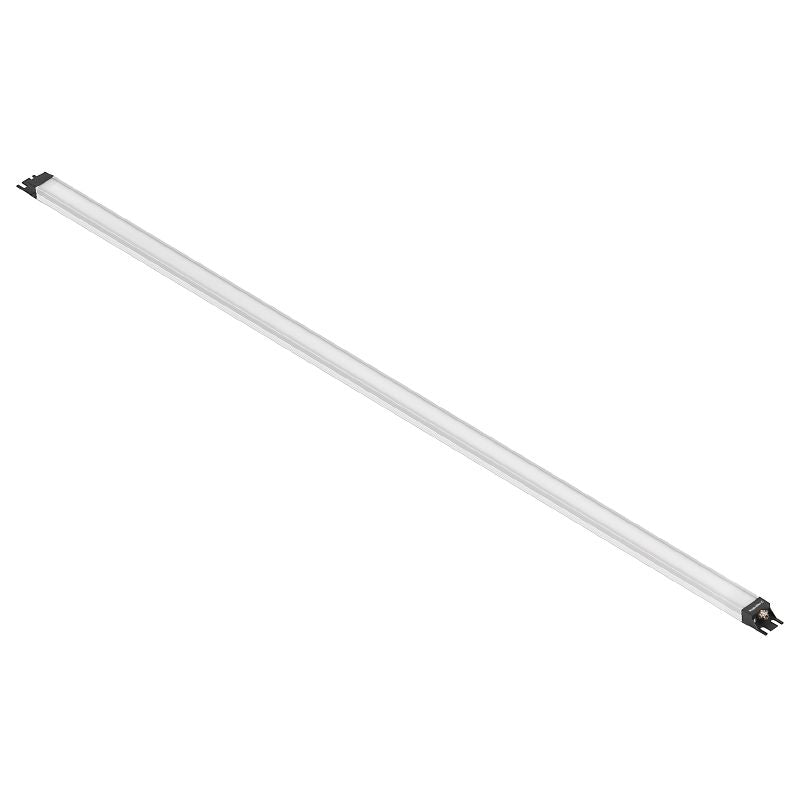

Introducing a versatile connector designed for a wide range of applications It adheres to RoHS standards and has obtained necessary certifications for quality assurance This connector measures 30 mm in depth, 175 mm in height, and spans 1,400 mm in width, with a total weight of 1,043 grams It operates effectively within a temperature range of -20 to 70°C, making it a reliable choice for diverse environments.
Features and Benefits:
•Hard anodised aluminium housing.
•Dimmable with stepless dimming capability.
•Rated voltage of 24 V DC.
•Rated current of 1412.5 mA.
•Light colour temperature of 5700K.
•White light output with a luminous flux of 4,221 lm.
•Emitting angle of 100°.
•Illumination level of 1,335 lux.
•Long operating life of 60,000 hours.
•Screw mounting type.
•IP40 protection degree.
Specifications:
| Depth | 30 mm |
| Height | 17.5 mm |
| Width | 1,400 mm |
| Rated voltage | 24 V DC |
| Rated current | 1412.5 mA |
| Power | 33.9 W |
| Connection version | pin, straight |
| Number of poles | 4 |
| Connection thread | M8 |
| Tightening torque | 0.6 Nm |

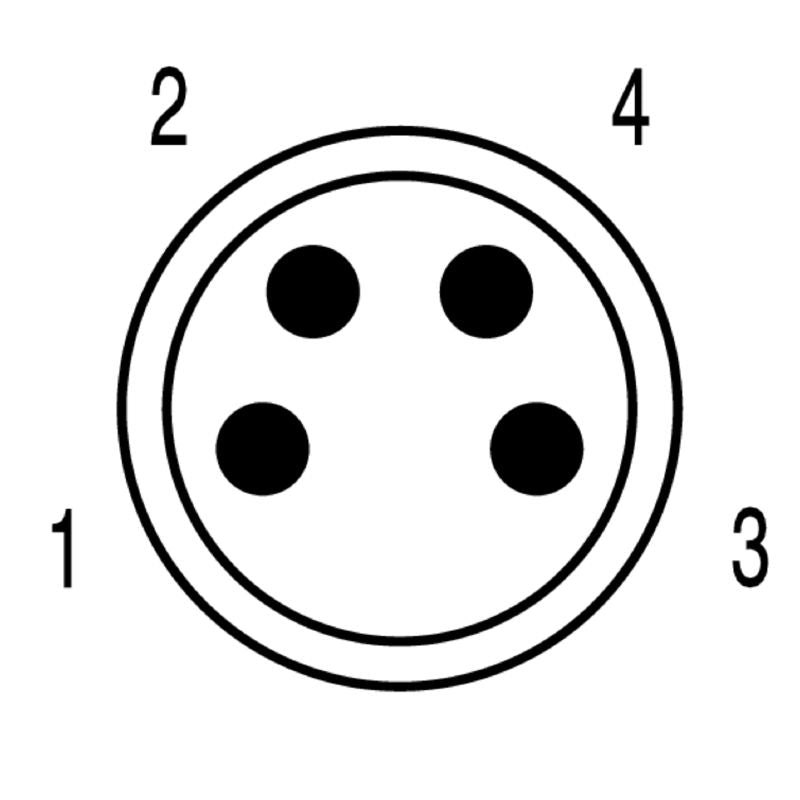

| Wiring | Pin 1: control white LED 24V DC; Pin 2: NC; Pin 3: GND(-); Pin 4: NC |
| Shape of LED module | Round |
| Light current | 4,221 lm |

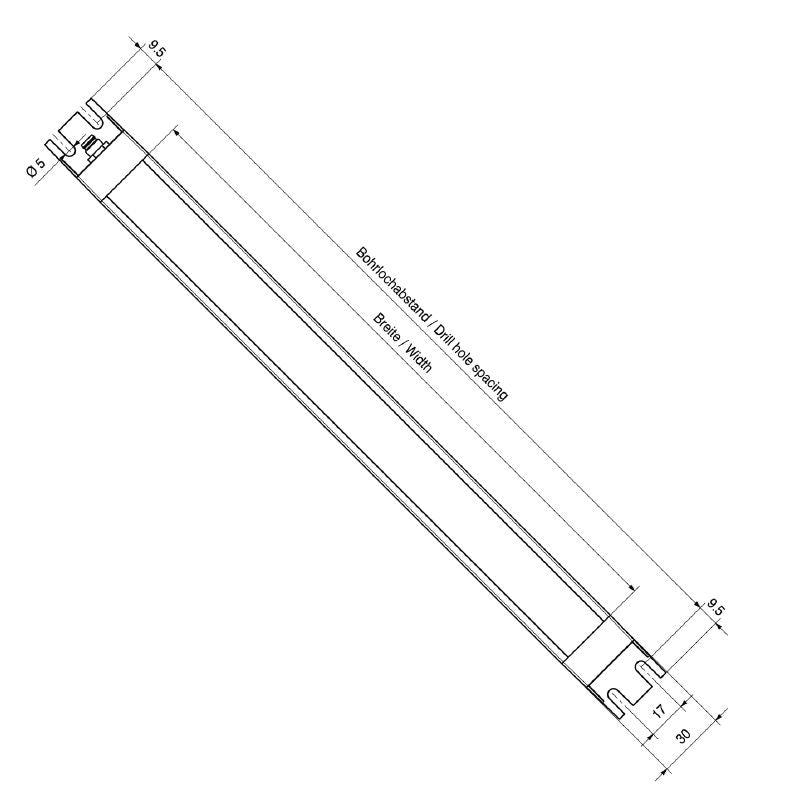

| Drill hole spacing | 1,456 mm |
| Material of LED cover | PMMA |
| Environmental compliance | Compliant with exemption |
| RoHS exemption | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 37ebc061-1fa2-4387-80af-82299a5c3412 |
