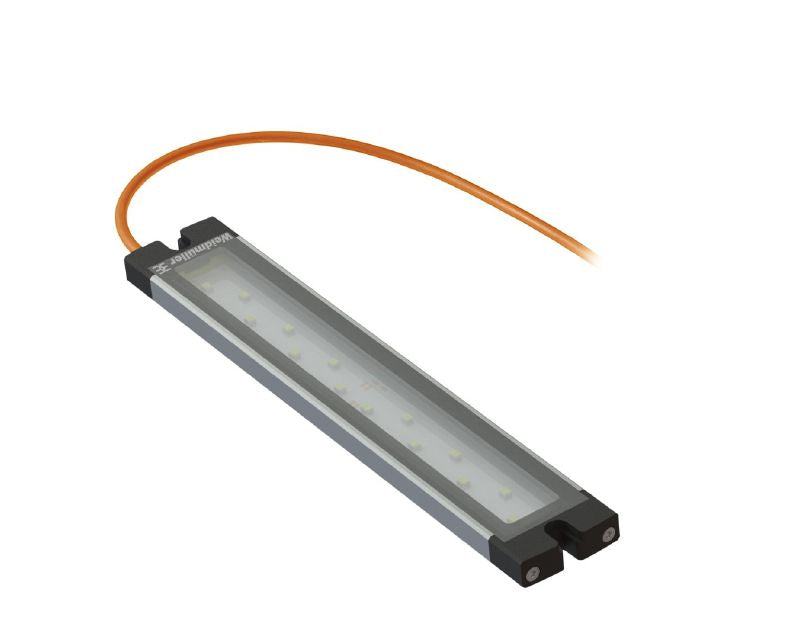

2528020000 - 5m Cable, UL Certified, -20 to 60°C, 240g Weight
2528020000 - 5m Cable, UL Certified, -20 to 60°C, 240g Weight
SKU: SKU: 2528020000 Download PDF
- 2528020000 - 5m Cable, UL Certified, -20 to 60°C, 240g Weight
- 2528020000 - 5m Cable, UL Certified, -20 to 60°C, 240g Weight
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile cable built for a wide range of uses, capable of functioning optimally in temperatures from -20 to 60 degrees Celsius This product meets RoHS standards and is certified with UL number E354496 It measures 240 mm in width, 40 mm in depth, and 95 mm in height, while weighing in at a compact 240 grams, making it an excellent choice for your connectivity needs.
Features and Benefits:
•Sheathing color is orange.
•Cable material is PUR.
•Dimmable feature is included.
•Pre-assembled cable type connection.
•Impact resistance rating of IK05.
•Protection degree of IP67.
•Lifetime of 60,000 hours.
Specifications:
| Cable length | 5 m |
| Core cross-section | 0.34 mm² |
| Rated voltage | 24 V DC |
| Rated current | 0.31 A |
| Power | 7.5 W |
| Number of LEDs | 14 |
| Light colour (CCT) | 6500K |
| Luminosity | 3,470 cd |
| Light current | 886 lm |
| Emitting angle | 40° |
| Illumination level | 291 lux |
| Type of mounting | Screw mounting |
| Connection data | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |
| Wiring | Pin 4 (Strand: black) control white LED, Pin 3 (Strand: blue) |

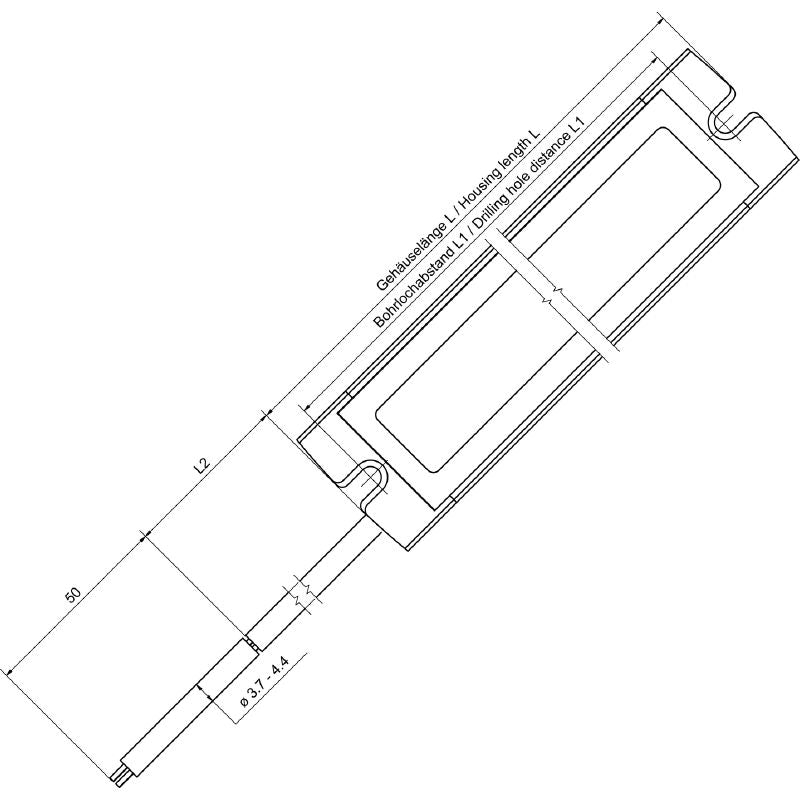

| Drill hole spacing | 225 mm |
| Efficiency class | F |
