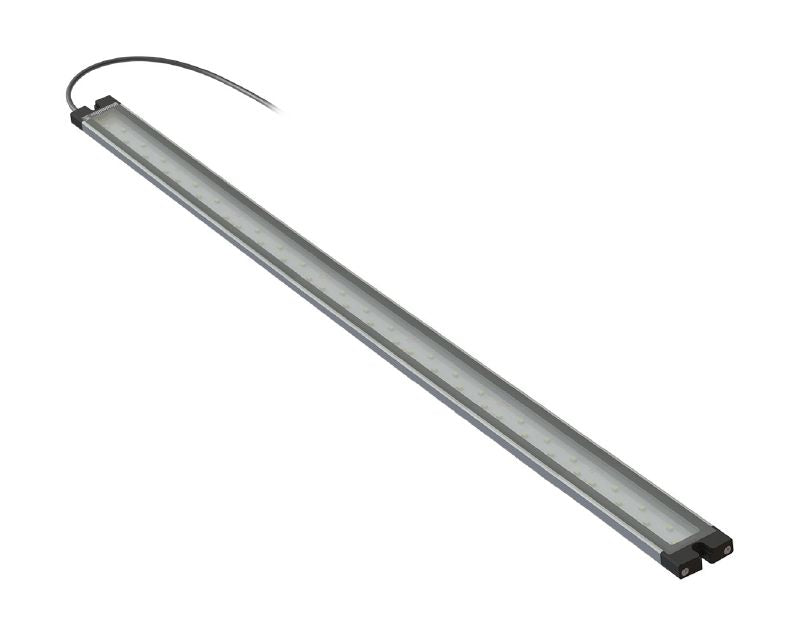

2821350000 - 3m PUR LED Module Cable, Dimmable 2700K Warm White Light

2821350000 - 3m PUR LED Module Cable, Dimmable 2700K Warm White Light

SKU: SKU: 2821350000 Download PDF

Variant:
  • 2821350000 - 3m PUR LED Module Cable, Dimmable 2700K Warm White Light
Regular price Now $284.84
Regular price BEFORE   $0.00 Sale price Now $284.84
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable illumination with this 3-meter LED module cable, engineered to perform in temperatures ranging from -20°C to 60°C Constructed from PUR material, it boasts a sleek black sheath and a robust main housing made of hard anodized aluminum Featuring an open-ended design, this cable is not equipped for attachable LED modules Operating at a rated voltage of 24 V DC, it efficiently manages a current of 1.

1 A with a power output of 264 W With 49 integrated LEDs, it emits a warm white light at a cozy 2700K color temperature, producing an impressive brightness of 2,908 lumens and an illumination level of 886 lux Additionally, the cable is rated IP67 for dust and water resistance, along with an impact resistance of IK05, making it ideal for diverse environments.

Features and Benefits:

    •Dimmable.

    •IP67 protection degree.

    •IK05 impact resistance.

    •Operating life of 60,000 hours.

    •Screw mounting type.

Specifications:

 Cable Material PUR
 Sheathing colour black
 Housing main material hard anodised aluminium
 Cable length 3 m
 Core cross-section 0.34 mm²
 Rated voltage 24 V DC
 Rated current 1.1 A
 Power 26.4 W
 Light colour (CCT) 2700K
 Number of LEDs 49
 Light current 2,908 lm
 Emitting angle 40 °
 Illumination level 886 lux
 Operating life 60,000 h
 Drill hole spacing 750 mm
 Recommended class according to UL for use of an power supply NEC Class 2
